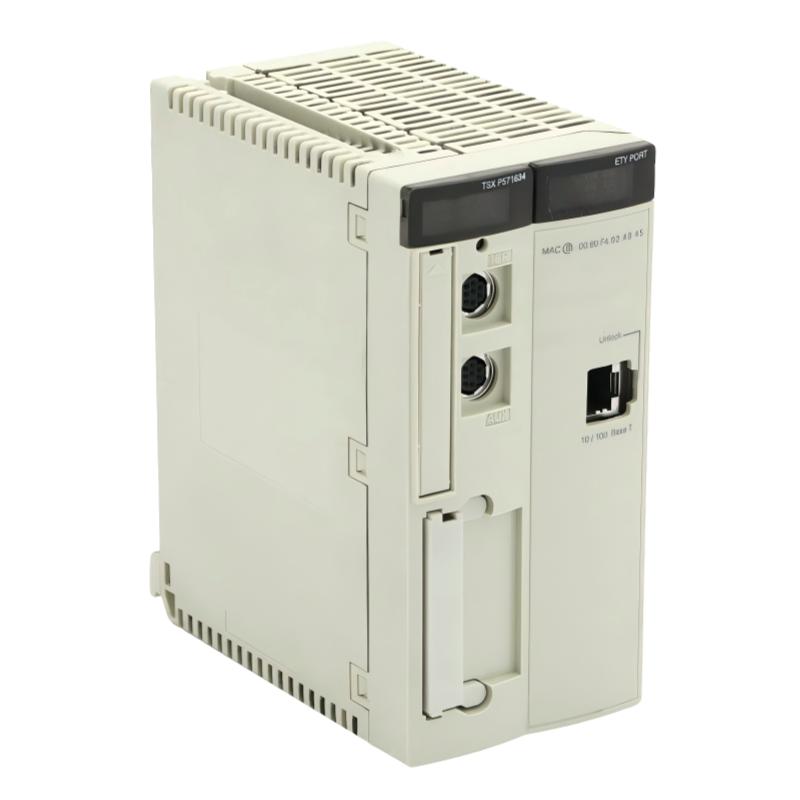

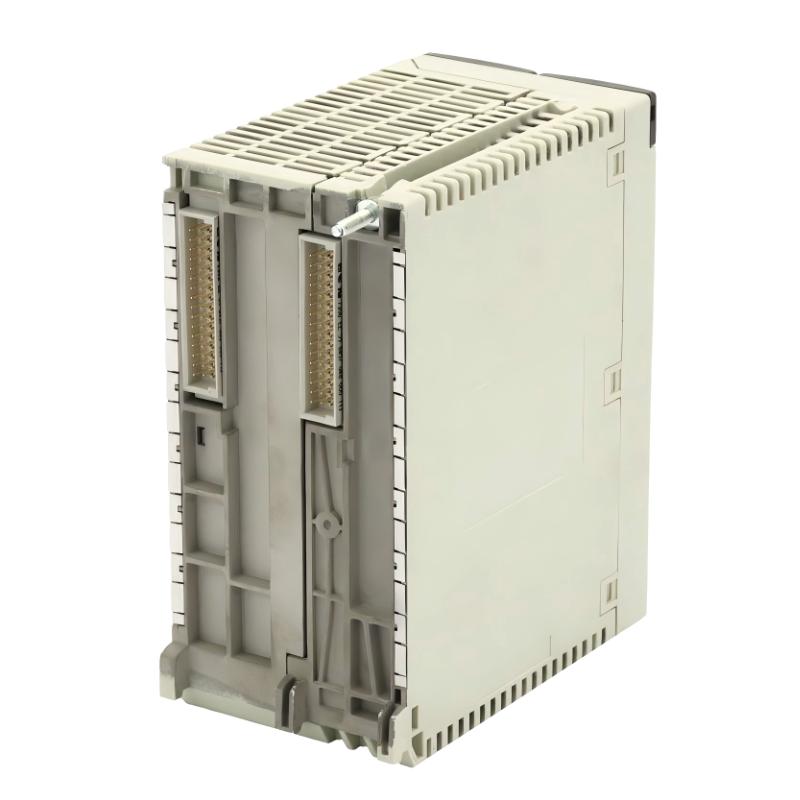

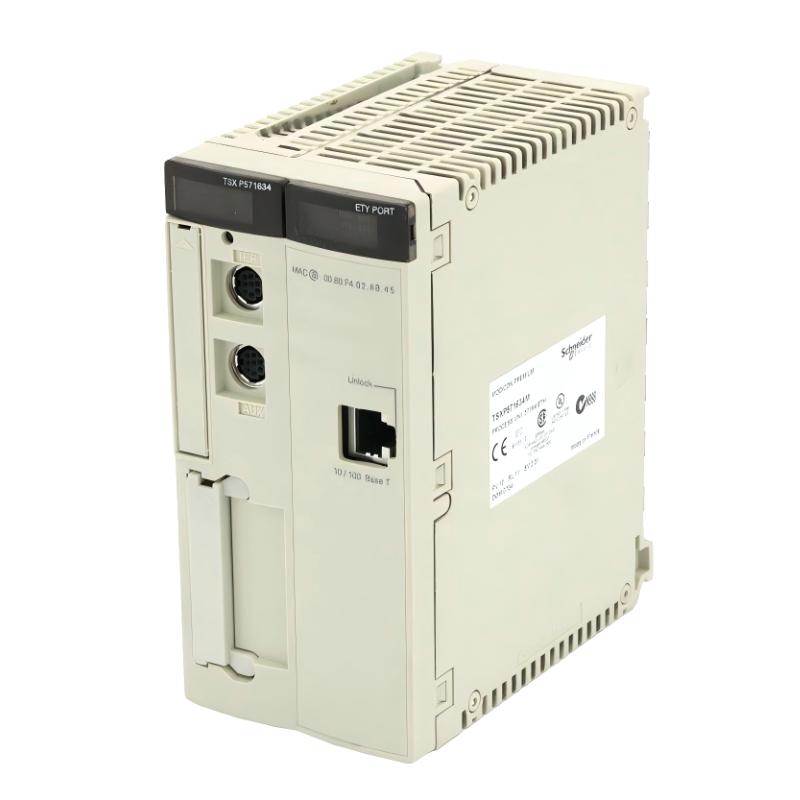

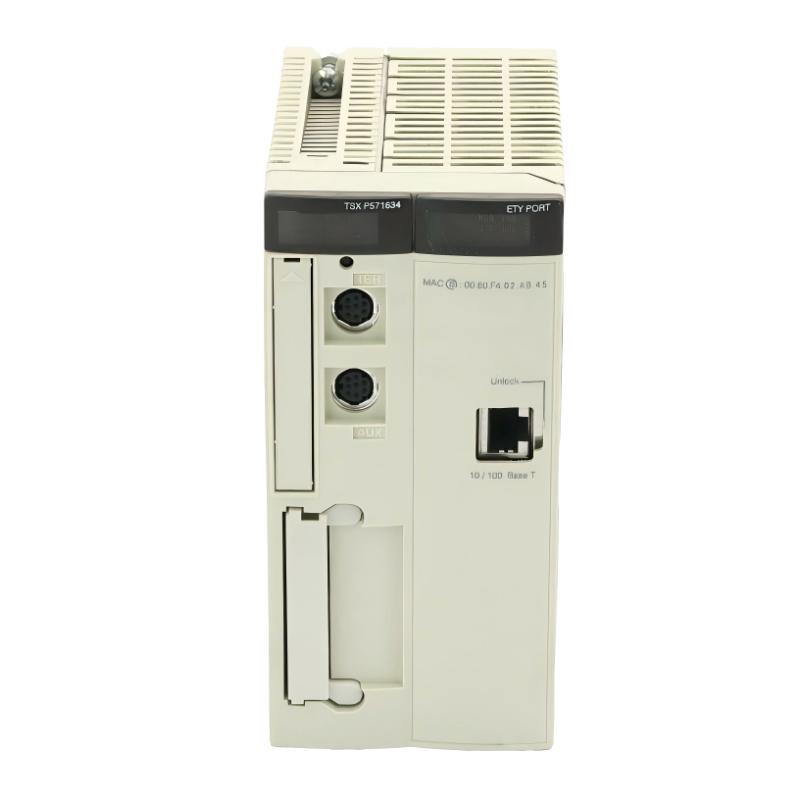

Schneider TSXP571634M Unity Processor

Overview

The Schneider TSXP571634M is a Unity processor designed for the Modicon Premium PLC platform. It provides central processing and control functions for industrial automation systems, with support for Ethernet TCP/IP, Fipio, and distributed I/O applications.

General Information

Part Number: TSXP571634M

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Premium

Processor Type: Unity Processor

Programming Software: Unity Pro

I/O Capacity: Up to 512 discrete I/O points

Analog I/O Capacity: Up to 24 analog I/O points

Application-Specific Channels: Up to 8

Power Specifications

Supply Voltage: 5 V DC

Current Consumption: Approximately 1650 mA

Power Consumption: Approximately 8.25 W

Power Source: Premium PLC rack backplane

Communication & Interface

Ethernet Interface: 1 × RJ45 Ethernet TCP/IP port

Ethernet Speed: 10/100 Mbps

Serial Interface: RS485 via Mini-DIN connector

Fieldbus Support: Fipio

Communication Modules: Supports additional communication modules

Memory: 96 kB internal RAM

Memory Expansion: PCMCIA memory card support

Status Indicators: RUN, ERR, I/O, Ethernet, RX, and TX LEDs

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −25 to +70 °C

Relative Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Operating Altitude: Up to 2000 m

Pollution Degree: 2

Dimensions & Weight

Dimensions (L × W × H): 95 × 180 × 260 mm

Weight: 0.74 kg
