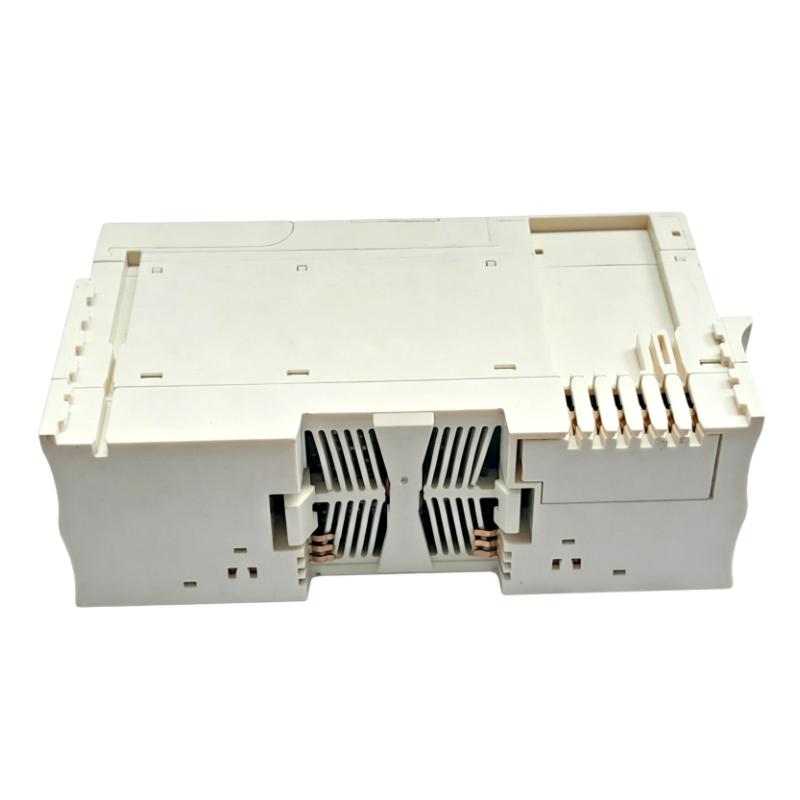

Schneider STBNIC2212 Network Interface Module

Overview

The Schneider STBNIC2212 is a network interface module for the Modicon STB distributed I/O system. It provides communication between the STB island and an industrial network, allowing connected I/O modules to exchange control and diagnostic data with the automation system.

General Information

Part Number: STBNIC2212

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon STB

Module Type: Network Interface Module

System: Modicon STB Distributed I/O

Installation: STB island backplane

Application: Industrial automation and distributed I/O control

Power Specifications

Supply Voltage: 24 V DC

Power Source: STB power distribution system

Power Consumption: Application dependent

Protection: Electronic protection for industrial operation

Status Indicators: LEDs for power, network, and module status

Communication & Interface

Network Interface: Industrial network communication

Network Connection: Network interface for Modicon STB island

Data Exchange: Cyclic I/O data and diagnostic information

Configuration: Network-based configuration and parameter management

Diagnostics: Network, module, and communication status monitoring

I/O Expansion: Supports communication with connected STB I/O modules

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 10–95% RH, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: IP20

Mounting Position: Horizontal or vertical installation according to system requirements

Dimensions & Weight

Dimensions (L × W × H): 128.3 × 18.4 × 70 mm

Weight: 0.145 kg
