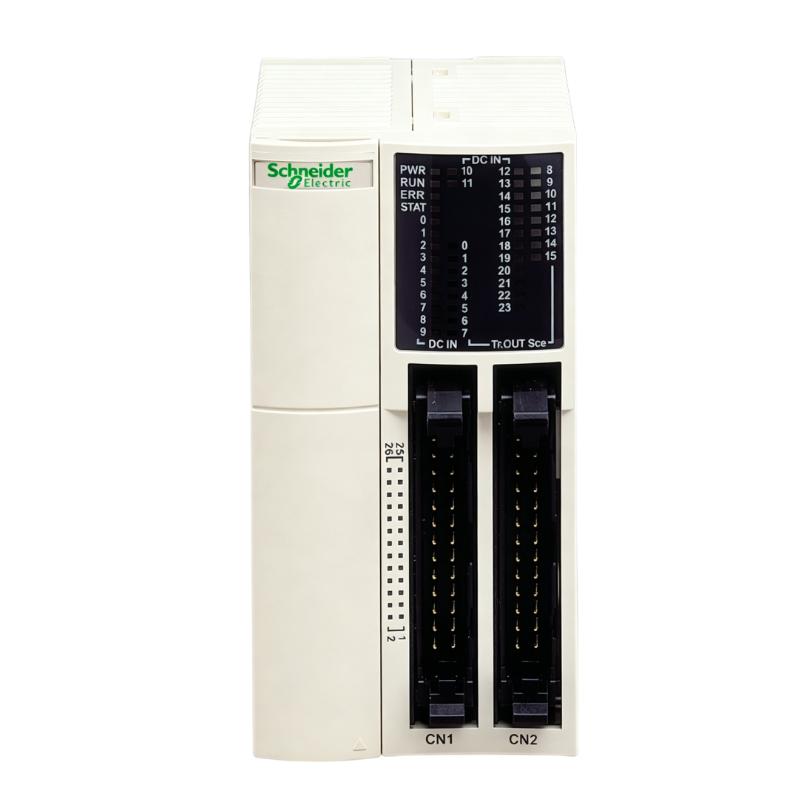

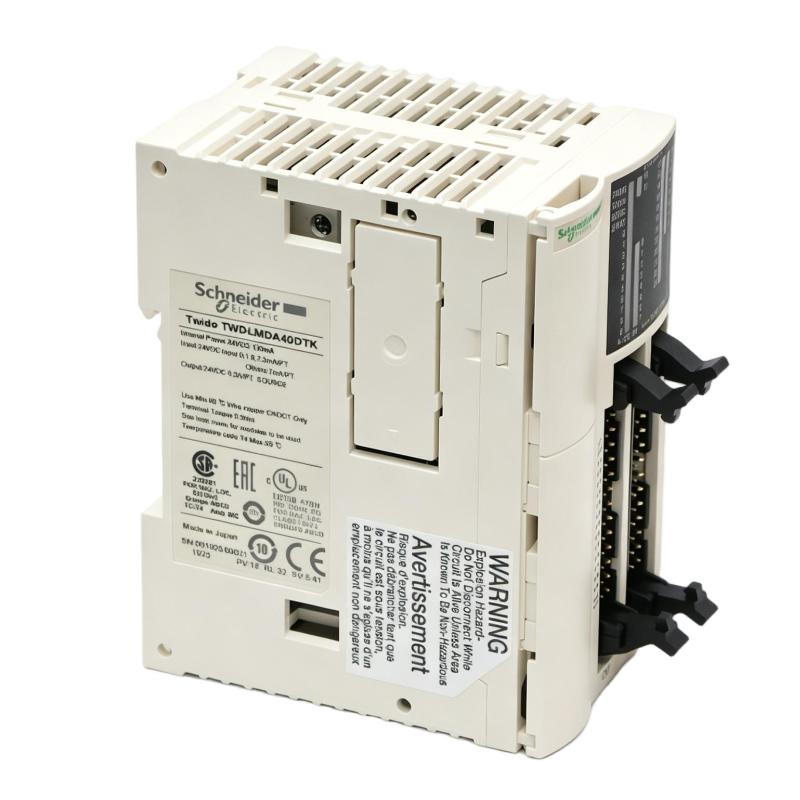

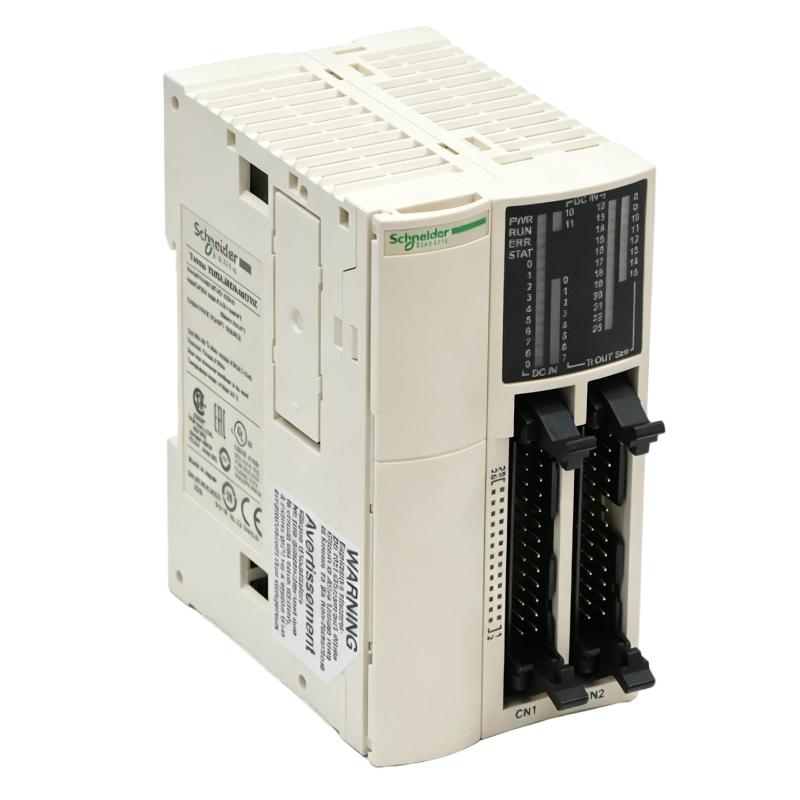

Schneider TWDLMDA40DTK Modular Base Station Controller

Overview

The Schneider TWDLMDA40DTK is a modular base station controller designed for the Modicon Twido automation platform. It combines PLC control functions with integrated digital I/O and provides a compact solution for machine control and small industrial automation applications.

General Information

Part Number: TWDLMDA40DTK

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Twido

Module Type: Modular Base Station Controller

Controller Type: Programmable Controller

I/O Configuration: Integrated digital inputs and outputs

Mounting: DIN rail or panel mounting

Application: Machine control and industrial automation

Power Specifications

Supply Voltage: 24 V DC

Power Source: External DC power supply

Power Consumption: Application dependent

Output Type: Relay and transistor output configurations

Protection: Electronic protection for industrial operation

Status Indicators: LED indicators for controller and I/O status

Communication & Interface

Communication Interface: Serial communication interface

Network Support: Modicon Twido communication options

Programming Interface: Twido programming connection

I/O Expansion: Supports expansion modules for additional control points

Communication Functions: Data exchange, programming, diagnostics, and controller monitoring

Status Indication: LED indicators for power, operation, and I/O activity

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Relative Humidity: 10–95% RH, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: IP20

Mounting Position: Suitable for standard industrial installation

Dimensions & Weight

Dimensions (L × W × H): 94.5 × 81.3 × 47.5 mm

Weight: 0.18 kg
