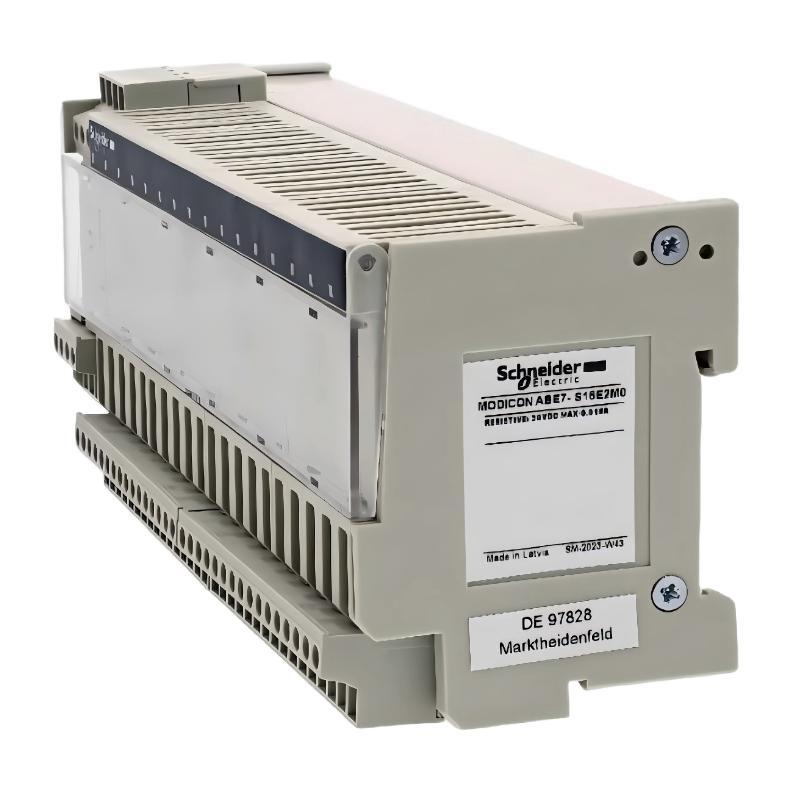

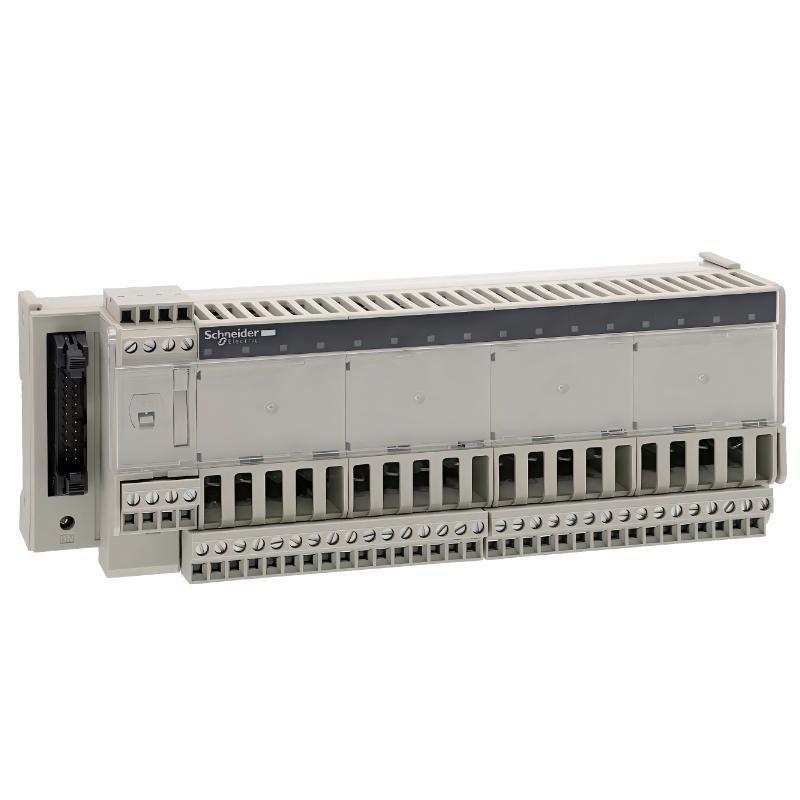

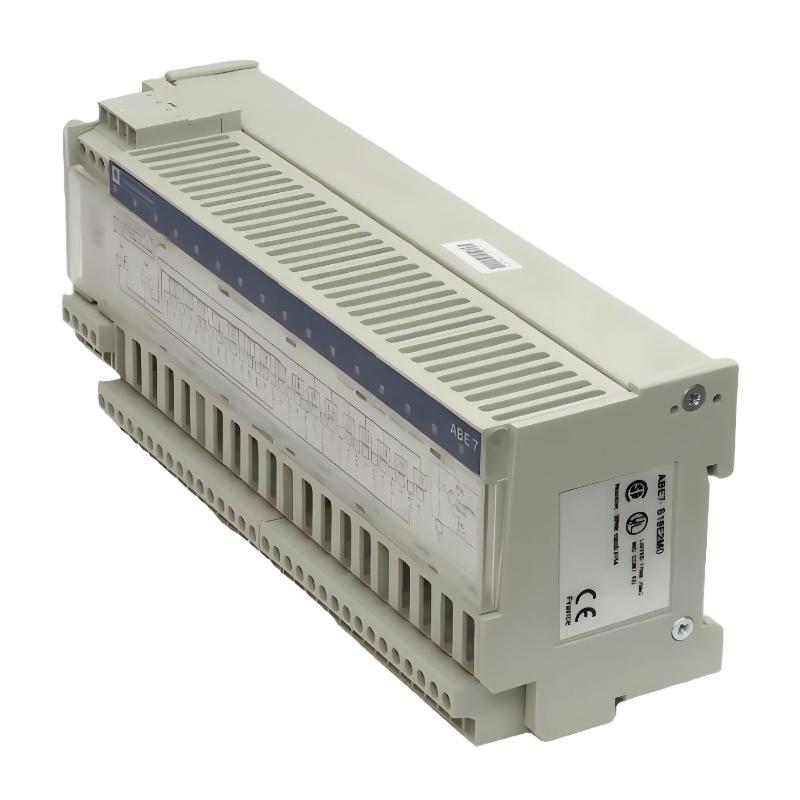

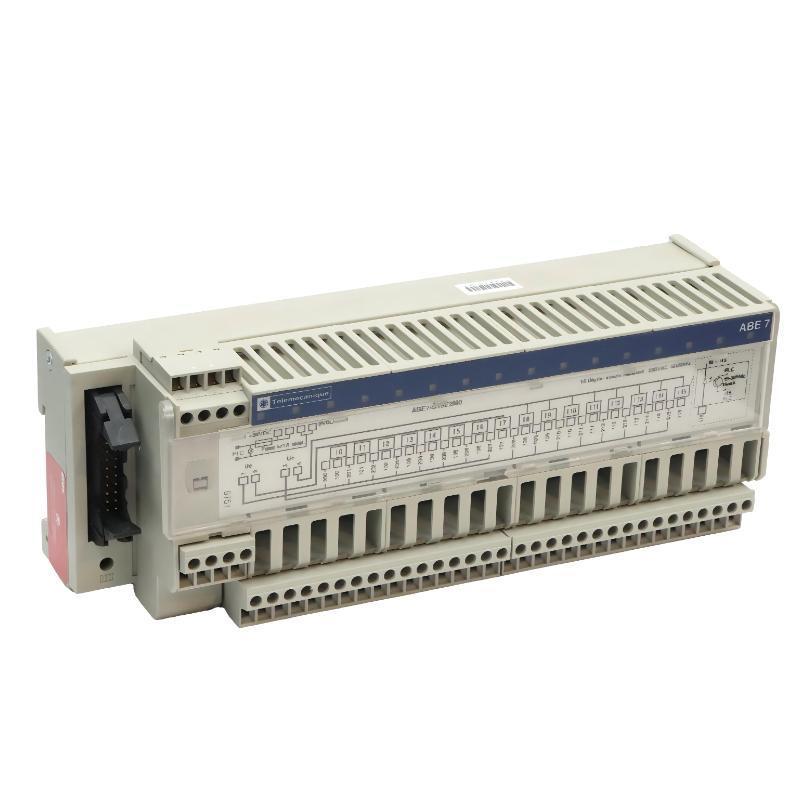

Schneider ABE7S16E2M0 Solder-Mount Solid-State Output Relay Socket

Overview

The Schneider ABE7S16E2M0 is a solder-mount solid-state output relay socket designed for industrial automation and control applications. It provides a compact interface for solid-state relay installation and signal switching, helping simplify field wiring and improve control cabinet organization.

General Information

Part Number: ABE7S16E2M0

Manufacturer: Schneider Electric

Series: Advantys Telefast

Type: Solder-Mount Solid-State Output Relay Socket

Function: Solid-state relay mounting and signal interface

Mounting: Solder mounting

Brand: Schneider Electric

Country of Origin: France

Power Specifications

Power Supply: Determined by the connected solid-state relay and control circuit

Power Consumption: Depends on the installed relay

Signal Type: Solid-state output switching

Switching Function: Suitable for discrete output control

Electrical Isolation: Provided by the connected solid-state relay

Communication & Interface

Relay Interface: Solder-mount solid-state relay connection

Field Connection: Provides an organized interface between automation equipment and external circuits

Signal Switching: Supports solid-state discrete output signals

System Integration: Suitable for PLC and industrial I/O control systems

Wiring: Helps simplify control and field signal connections

Environmental

Operating Temperature: Suitable for standard industrial environments

Humidity: Suitable for typical industrial conditions

Installation Environment: Industrial control cabinets and electrical enclosures

Protection: Designed for protected installation

Application Areas: PLC control, machine automation, solid-state relay interfacing, and industrial signal switching

Dimensions & Weight

Dimensions (L × W × H): 206 × 71 × 77 mm

Weight: 0.407 kg
