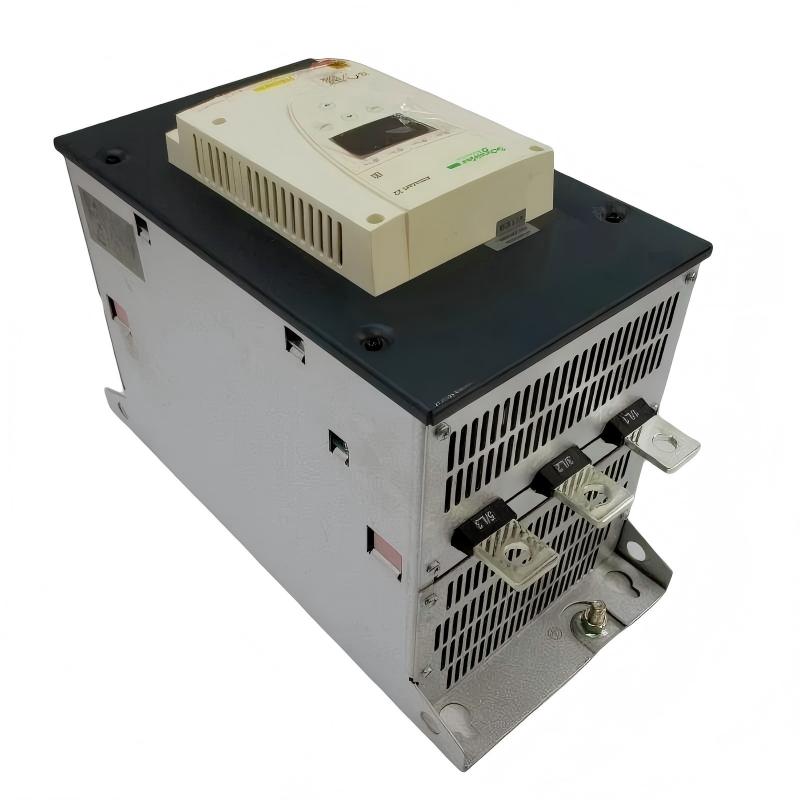

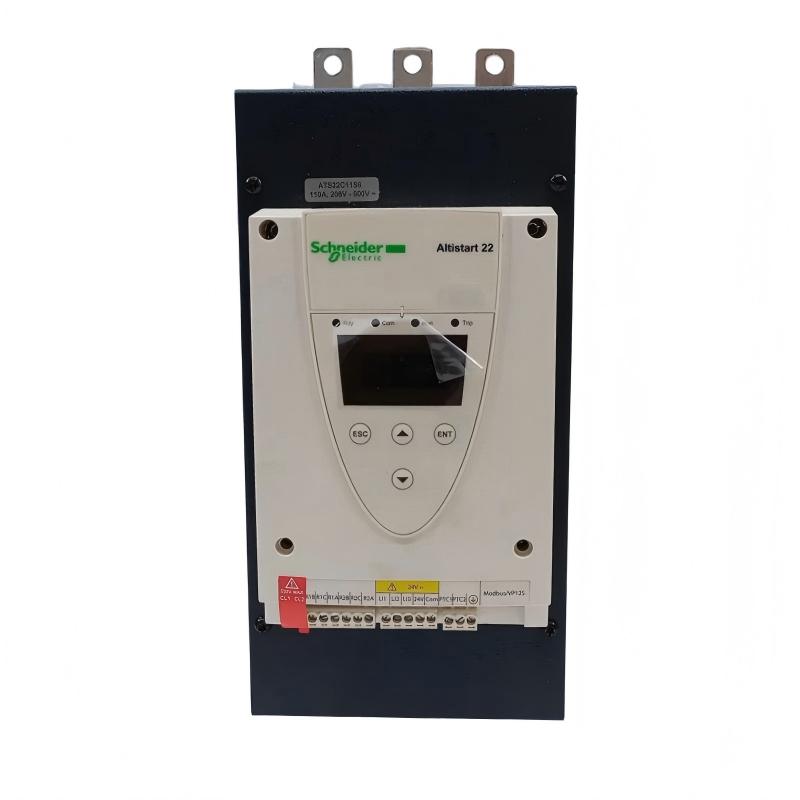

Schneider ATS22C25S6U Soft Starter

Overview

The Schneider ATS22C25S6U is a soft starter designed to control the acceleration and deceleration of three-phase asynchronous motors. It helps reduce starting current and mechanical stress during motor startup, supporting smoother operation and improved equipment reliability in industrial applications.

General Information

Model Number: ATS22C25S6U

Brand: Schneider Electric

Product Type: Soft Starter

Product Series: Altistart 22

Application: Industrial motor starting and stopping

Motor Compatibility: Three-phase asynchronous motors

Country of Origin: France

Power Specifications

Rated Operational Voltage: 230–440 V AC

Rated Current: 25 A

Control Supply Voltage: Refer to the manufacturer's specifications

Starting Method: Voltage ramp with current limitation

Motor Control: Soft start and soft stop

Protection Functions: Motor overload and starter protection, depending on configuration

Communication & Interface

Control Interface: Hardwired control terminals

Communication Protocol: Modbus, depending on model configuration

Status Indication: LED indicators for operating status and faults

Control Functions: Start, stop, and motor operating control

Diagnostics: Fault monitoring and operating status indication

Environmental

Operating Temperature: Refer to the manufacturer's specifications

Storage Conditions: Store in a clean, dry environment

Installation Environment: Industrial electrical cabinets

Protection Rating: IP20

Cooling Method: Natural or forced ventilation, depending on operating conditions

Dimensions & Weight

Dimensions (L × W × H): 425 × 206 × 299 mm

Weight: 33 kg
