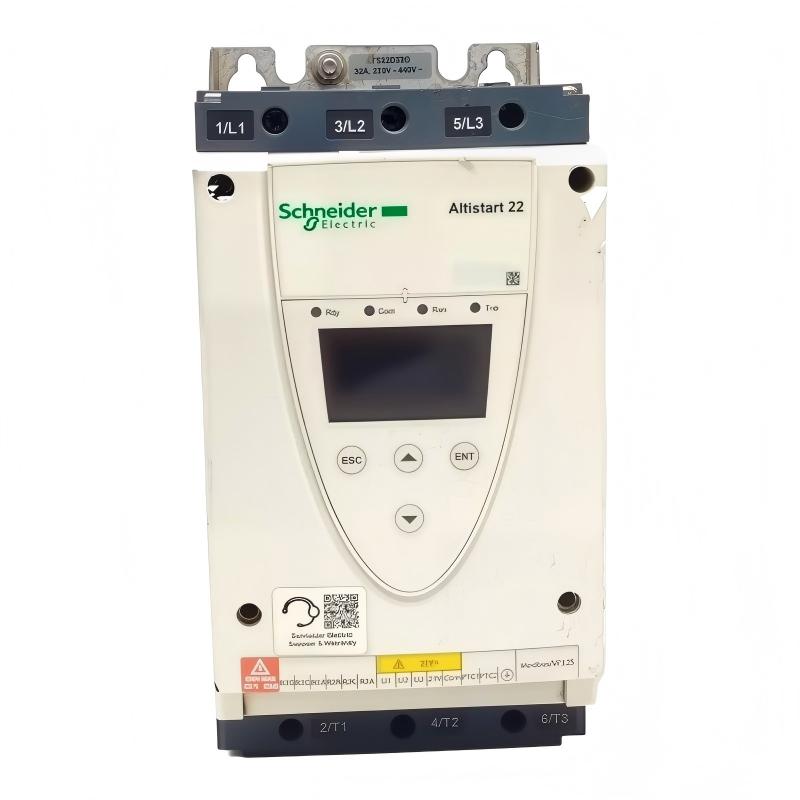

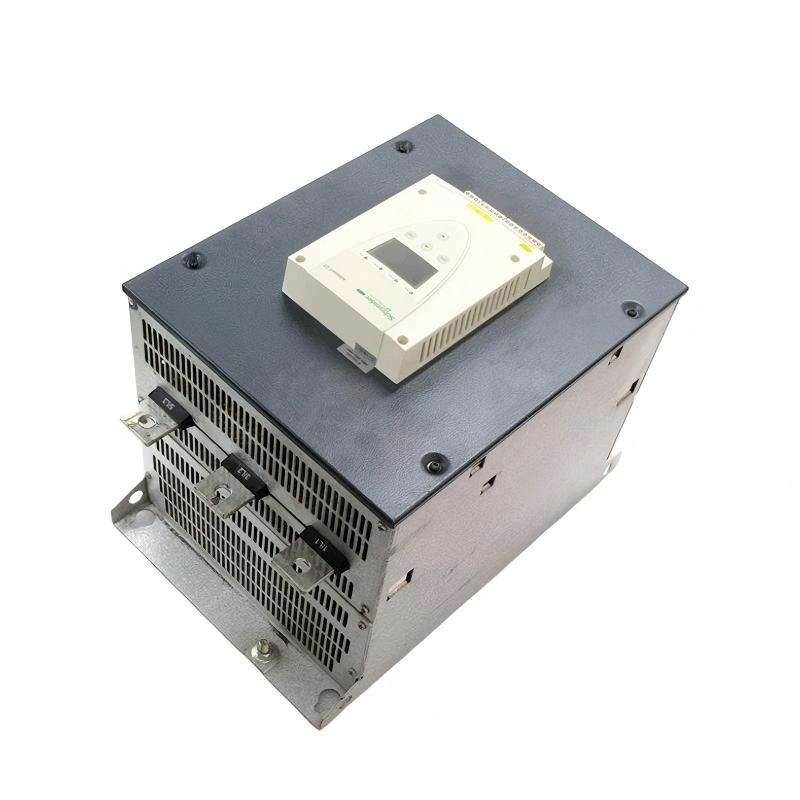

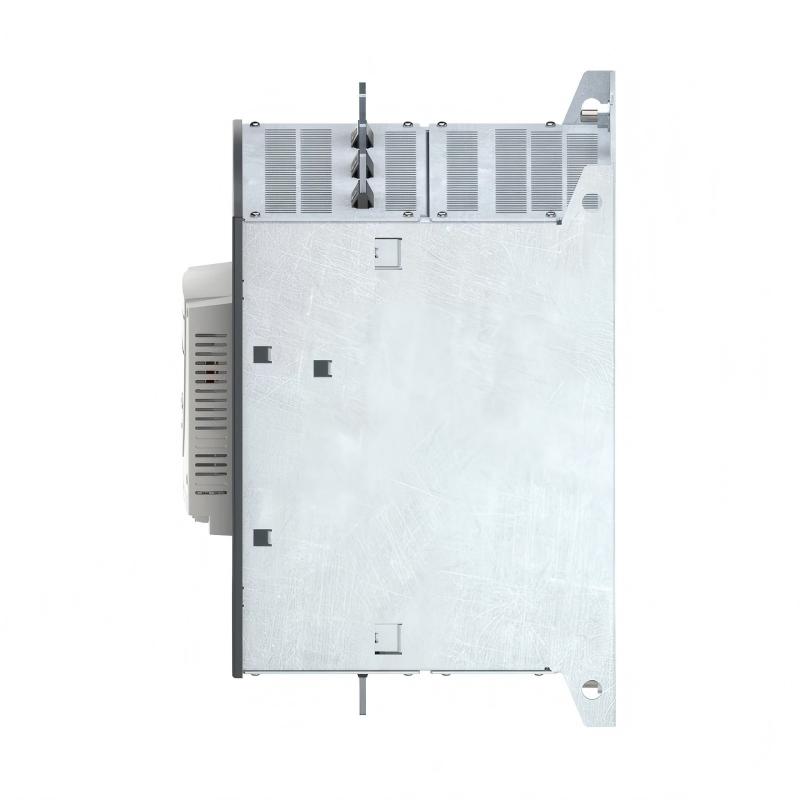

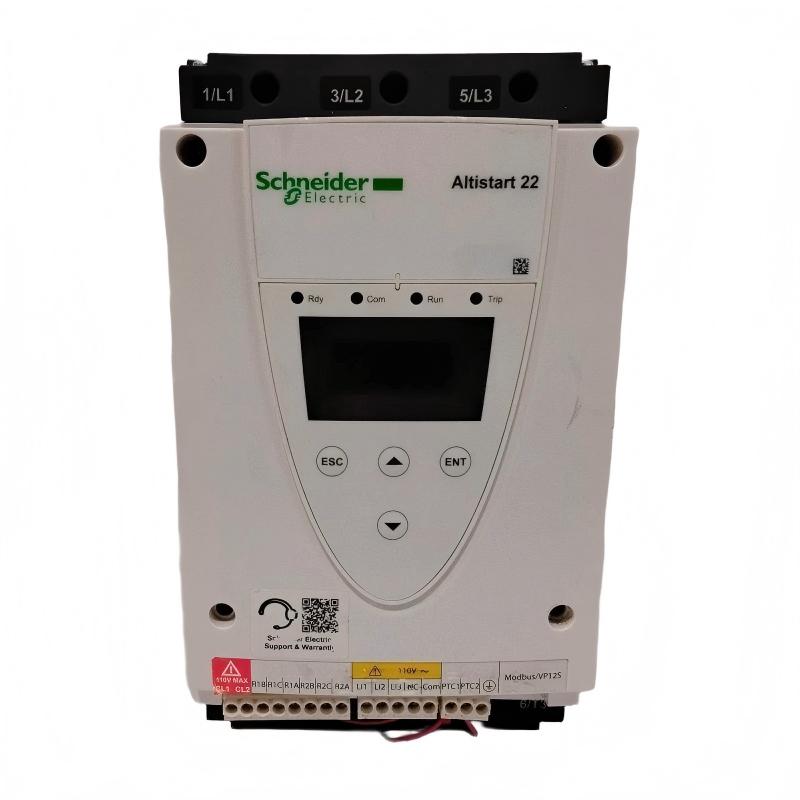

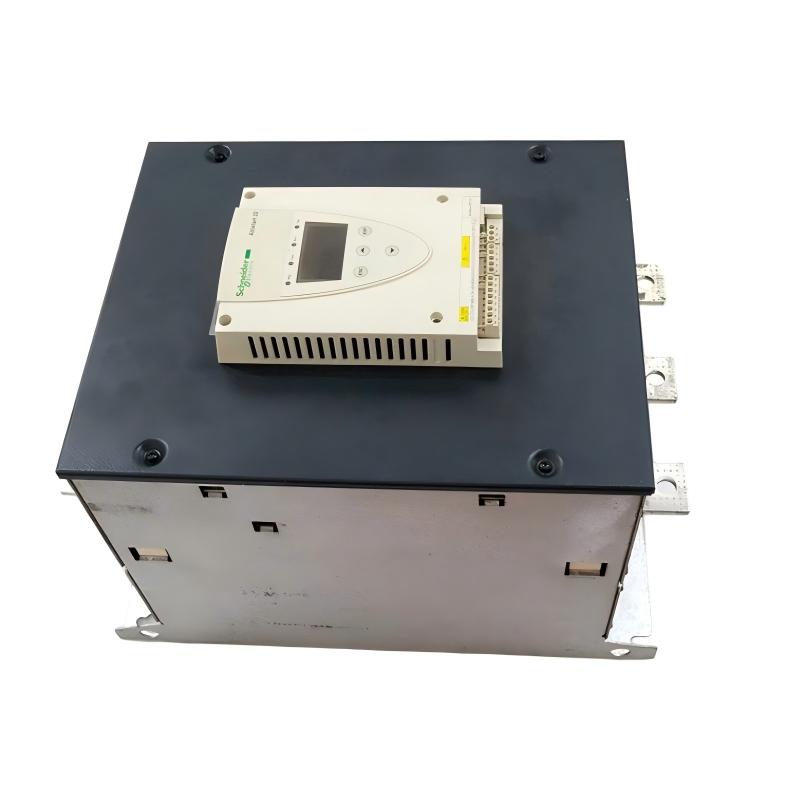

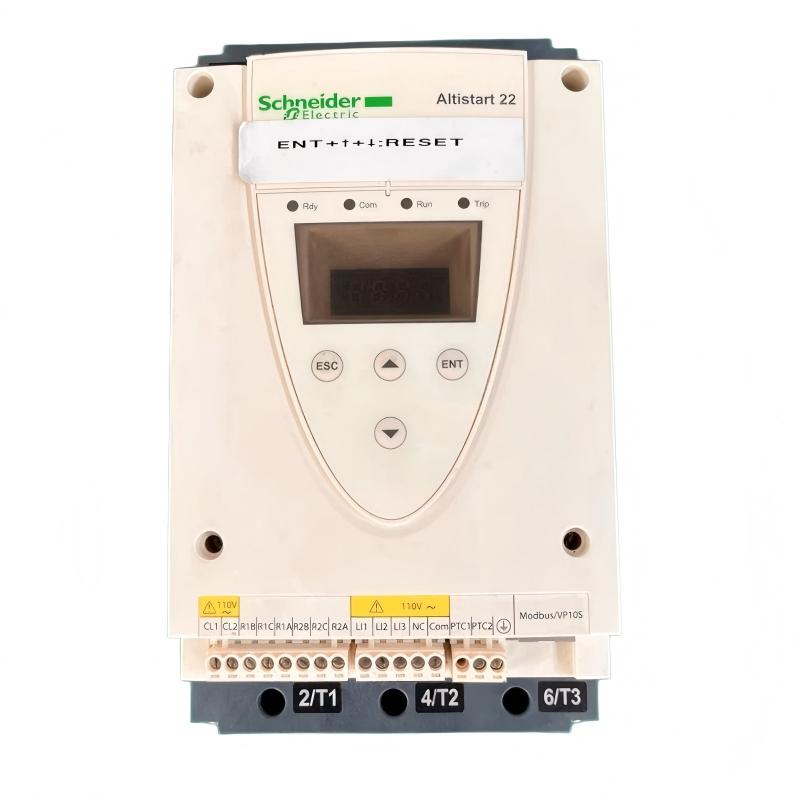

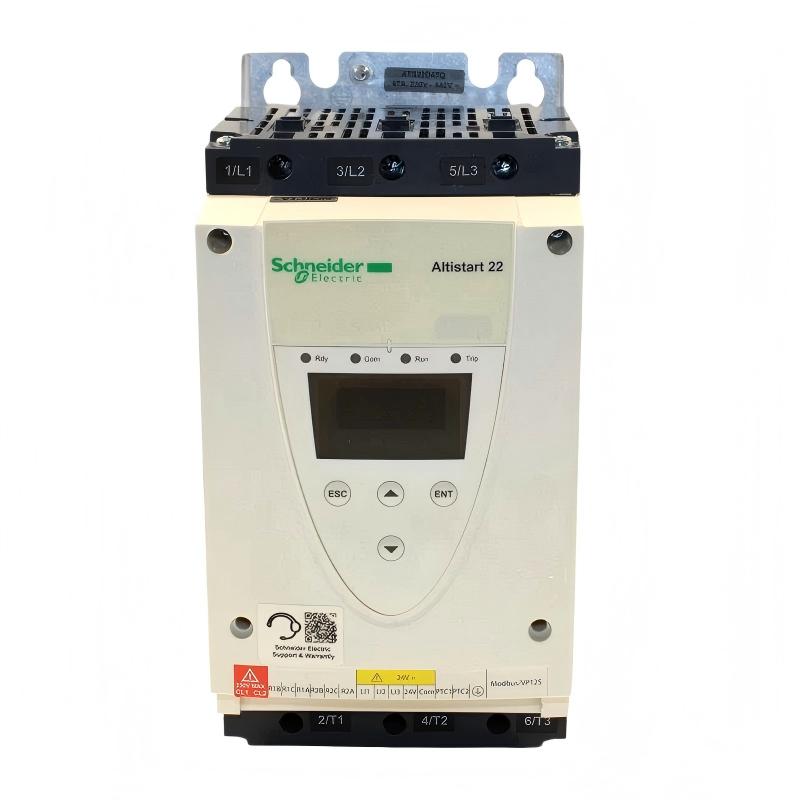

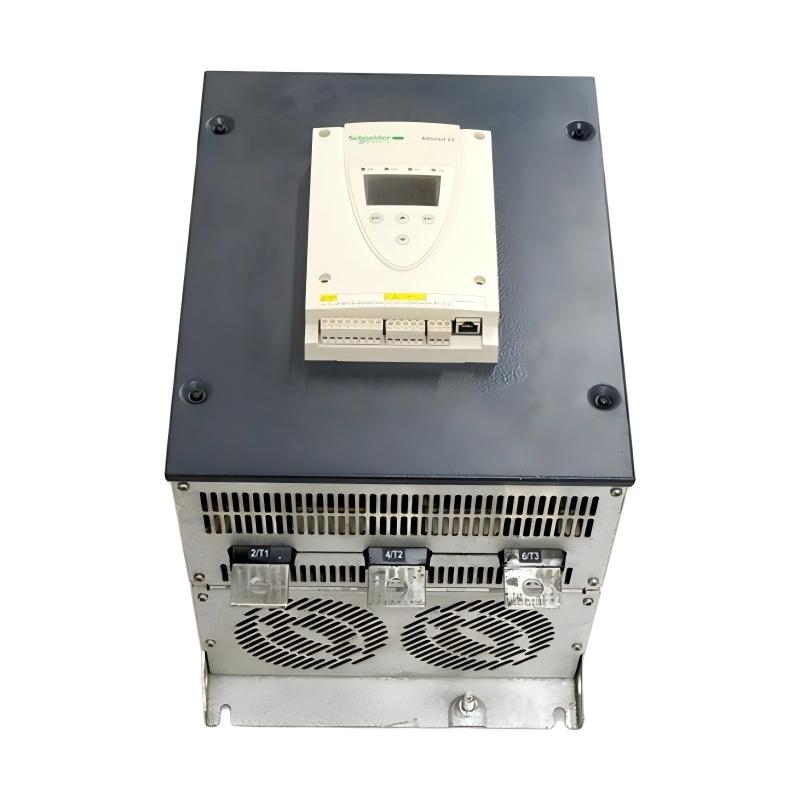

Schneider ATS22C59Q Soft Starter

Overview

The Schneider ATS22C59Q is an Altistart 22 soft starter designed to control the acceleration and deceleration of three-phase asynchronous motors. It helps reduce starting current and mechanical stress during motor startup, making it suitable for pumps, fans, compressors, and other industrial applications requiring smooth motor operation.

General Information

Part Number: ATS22C59Q

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Product Series: Altistart 22

Product Type: Soft Starter

Motor Compatibility: Three-phase asynchronous motors

Control Function: Motor starting and stopping control

Applications: Pumping systems, ventilation equipment, compressors, and industrial machinery

Power Specifications

Rated Operational Voltage: 230–440 V AC

Rated Motor Power: Up to 30 kW at 400 V, depending on operating conditions

Rated Current: 59 A

Supply Frequency: 50/60 Hz

Starting Method: Soft start with controlled voltage ramp

Protection Functions: Motor overload protection and thermal monitoring

Communication & Interface

Control Interface: Integrated control terminals

Control Inputs: Start and stop commands

Status Indication: LED indicators and operating status display

Communication Protocol: Modbus, subject to model configuration

Monitoring Functions: Motor operating status, fault indication, and diagnostic information

Environmental

Operating Temperature: Refer to the manufacturer's specifications for the applicable installation conditions

Storage Temperature: Follow the manufacturer's storage requirements

Installation Environment: Industrial control panels with adequate ventilation

Cooling Requirements: Maintain sufficient airflow to dissipate heat during operation

Protection Rating: IP20

Dimensions & Weight

Dimensions (H × W × D): 455 × 304 × 339.7 mm

Weight: 50 kg
