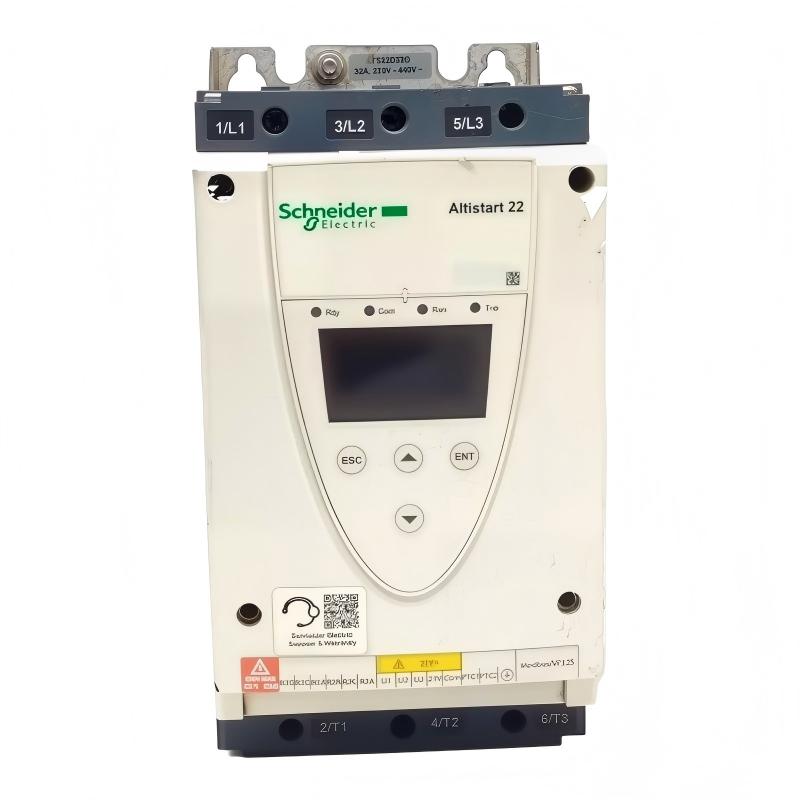

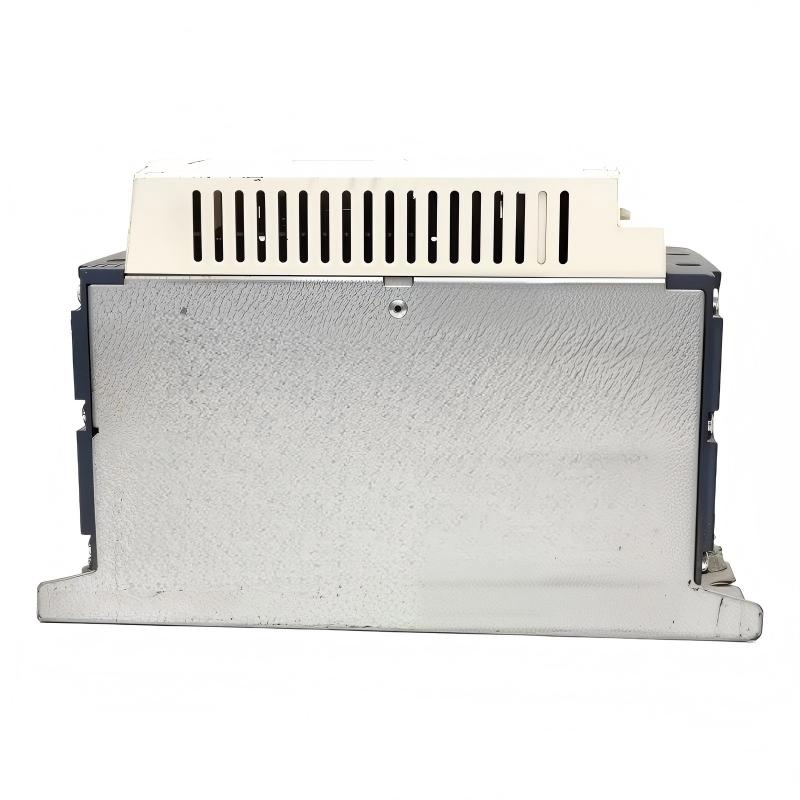

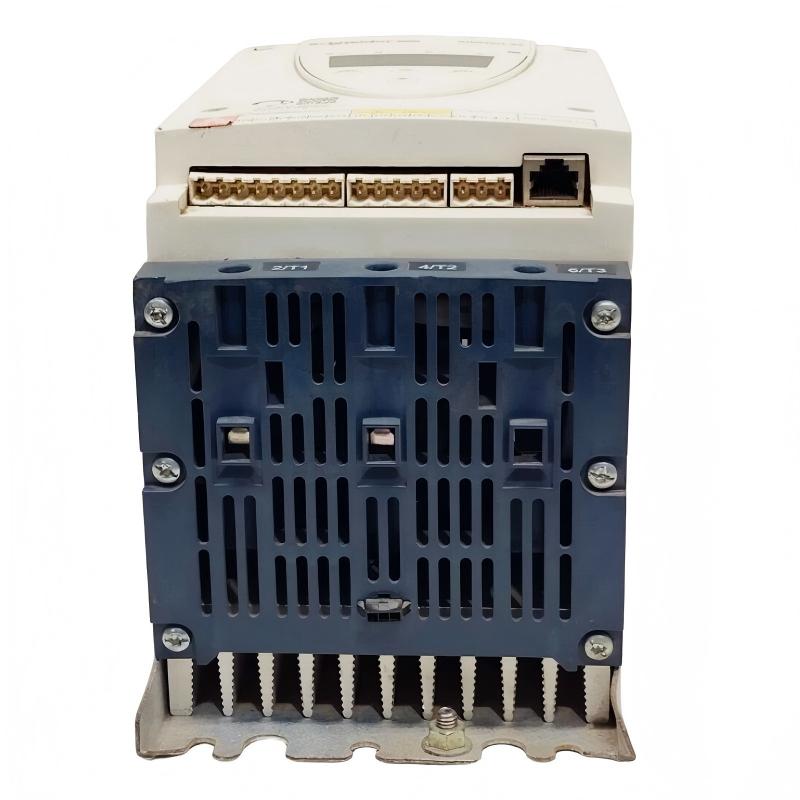

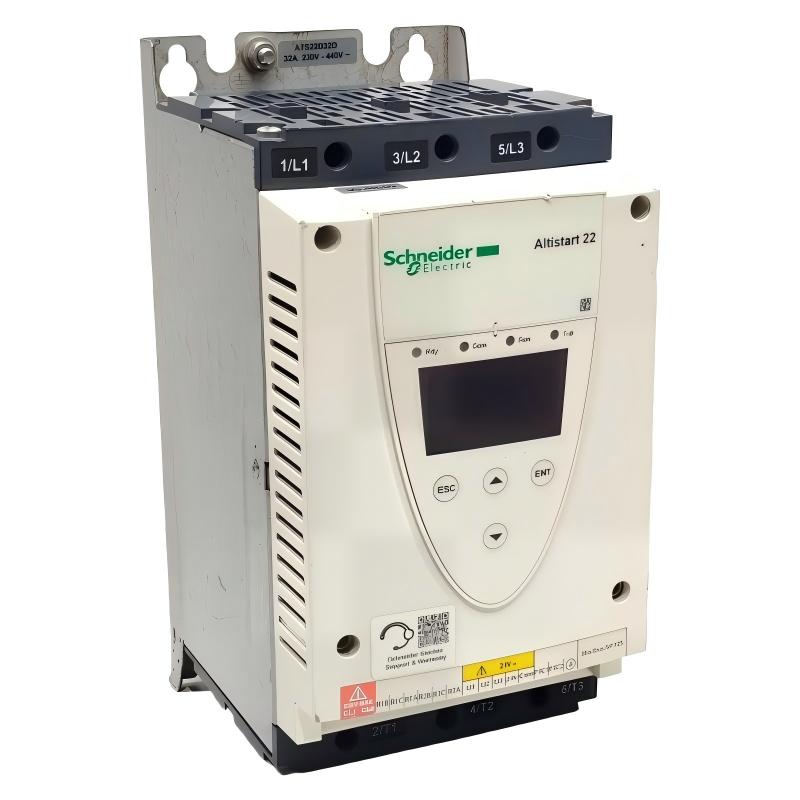

Schneider ATS22D32Q Soft Starter

Overview

The Schneider ATS22D32Q is an Altistart 22 soft starter designed to provide smooth starting and stopping for three-phase asynchronous motors. It helps limit starting current and reduce mechanical stress on motors and connected equipment, making it suitable for a range of industrial motor control applications.

General Information

Part Number: ATS22D32Q

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Product Series: Altistart 22

Product Type: Soft Starter

Motor Compatibility: Three-phase asynchronous motors

Control Function: Soft starting and stopping

Applications: Pumps, fans, compressors, conveyors, and industrial machinery

Power Specifications

Rated Current: 32 A

Rated Operational Voltage: 230–440 V AC

Rated Motor Power: Depends on the supply voltage and operating conditions

Supply Frequency: 50/60 Hz

Starting Method: Controlled voltage ramp

Motor Protection: Integrated motor thermal protection functions

Current Limitation: Helps reduce high inrush current during motor startup

Communication & Interface

Control Interface: Integrated control terminals

Control Inputs: Start and stop commands

Status Indication: LED indicators and operating status display

Communication Interface: Modbus, subject to the product configuration

Monitoring Functions: Operating status, fault indication, and diagnostic information

System Integration: Suitable for compatible industrial motor control systems

Environmental

Operating Temperature: Refer to the manufacturer's specifications

Storage Temperature: Follow the manufacturer's recommended storage conditions

Installation Environment: Industrial control panels with adequate ventilation

Cooling Requirements: Maintain sufficient airflow during operation

Protection Rating: IP20

Dimensions & Weight

Dimensions (H × W × D): 265 × 130 × 169 mm

Weight: 7 kg
