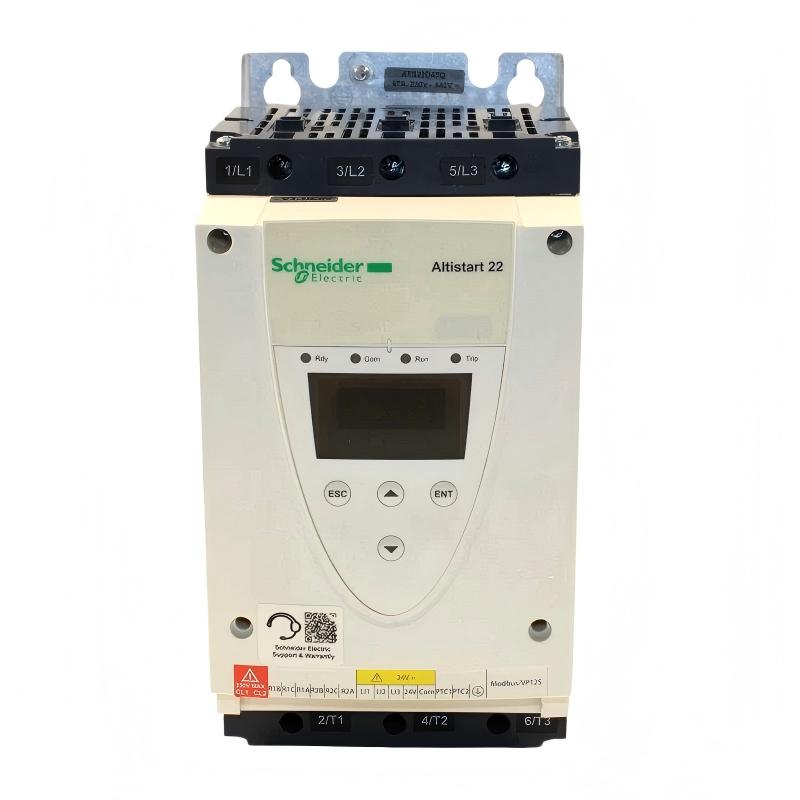

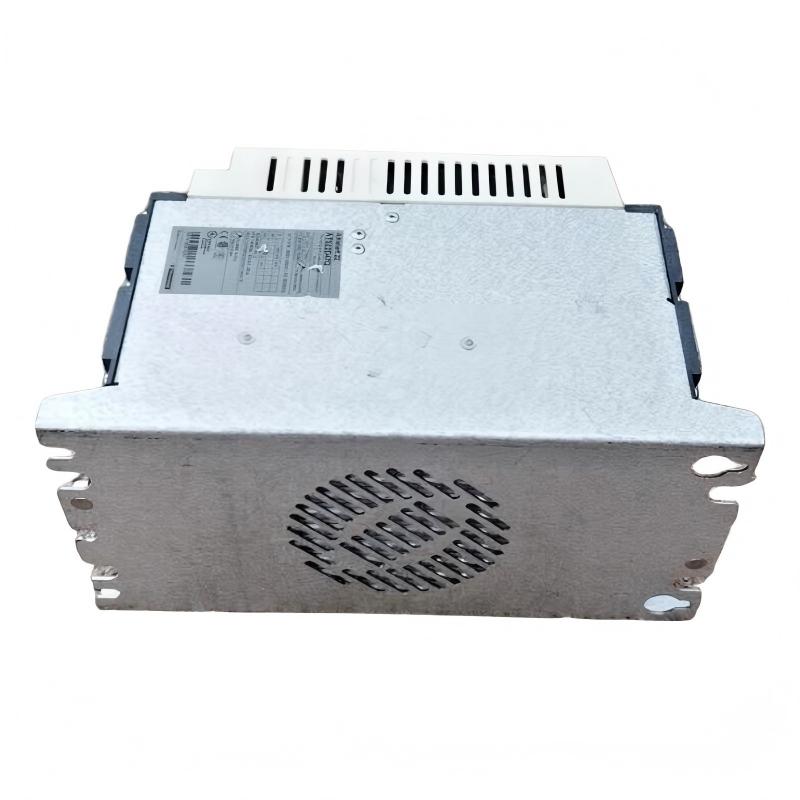

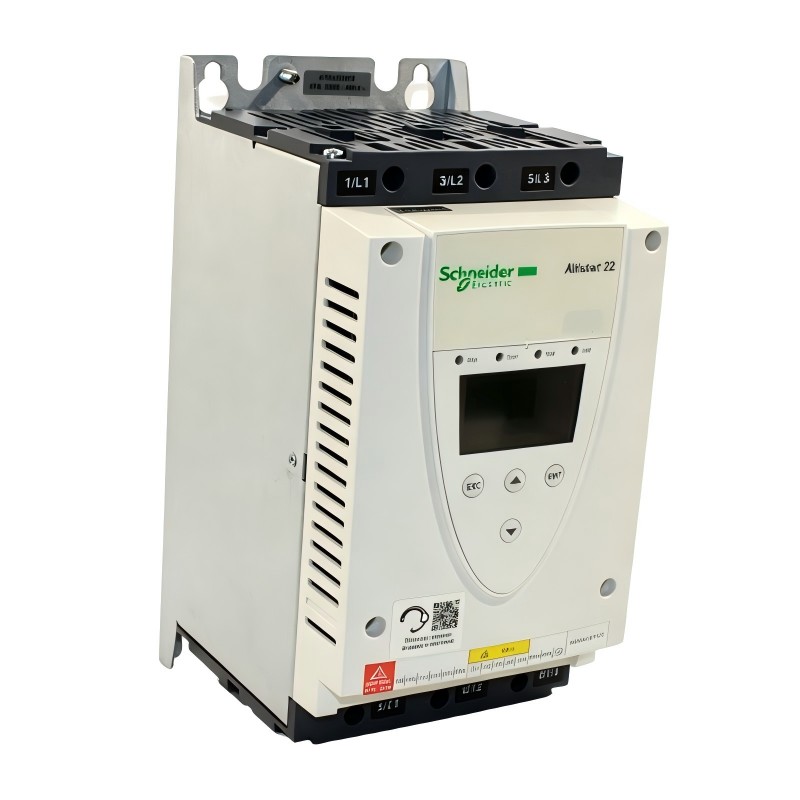

Schneider ATS22D47Q Soft Starter

Overview

The Schneider ATS22D47Q is an Altistart 22 soft starter designed to provide controlled acceleration and deceleration for three-phase asynchronous motors. It helps reduce starting current and mechanical stress on motors and connected equipment, making it suitable for industrial applications that require smooth startup and reliable motor operation.

General Information

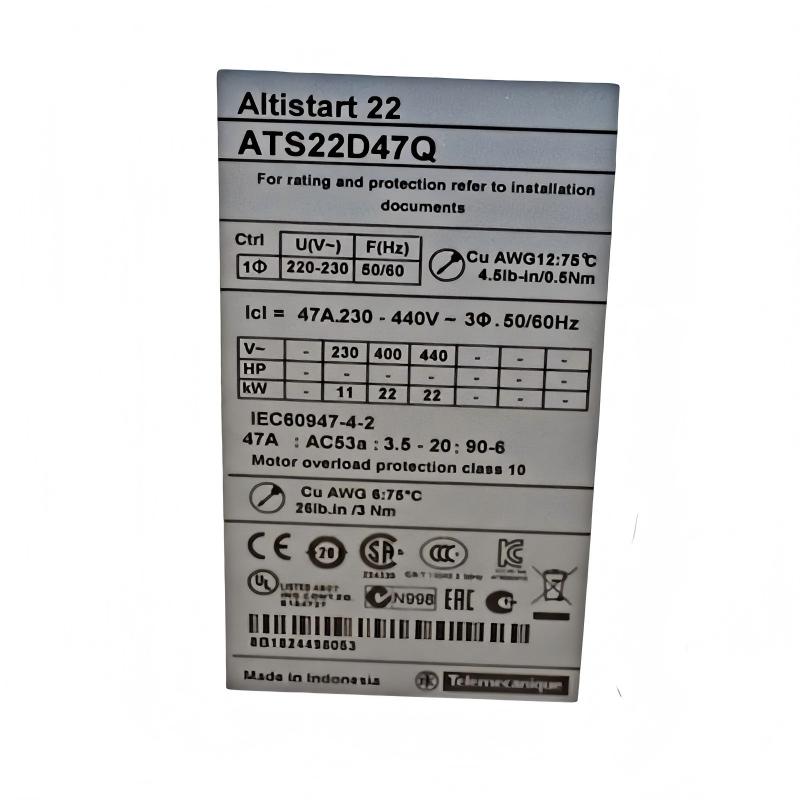

Part Number: ATS22D47Q

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Product Series: Altistart 22

Product Type: Soft Starter

Motor Compatibility: Three-phase asynchronous motors

Control Function: Soft starting and stopping

Applications: Pumps, fans, compressors, conveyors, and industrial machinery

Power Specifications

Rated Current: 47 A

Rated Operational Voltage: 230–440 V AC

Rated Motor Power: Depends on the supply voltage and operating conditions

Supply Frequency: 50/60 Hz

Starting Method: Controlled voltage ramp

Motor Protection: Integrated motor thermal protection functions

Current Limitation: Helps reduce high inrush current during motor startup

Communication & Interface

Control Interface: Integrated control terminals

Control Inputs: Start and stop commands

Status Indication: LED indicators and operating status display

Communication Interface: Modbus, subject to the product configuration

Monitoring Functions: Operating status, fault indication, and diagnostic information

System Integration: Suitable for compatible industrial motor control systems

Environmental

Operating Temperature: Refer to the manufacturer's specifications

Storage Temperature: Follow the manufacturer's recommended storage conditions

Installation Environment: Industrial control panels with adequate ventilation

Cooling Requirements: Maintain sufficient airflow during operation

Protection Rating: IP20

Dimensions & Weight

Dimensions (H × W × D): 265 × 130 × 169 mm

Weight: 7 kg
