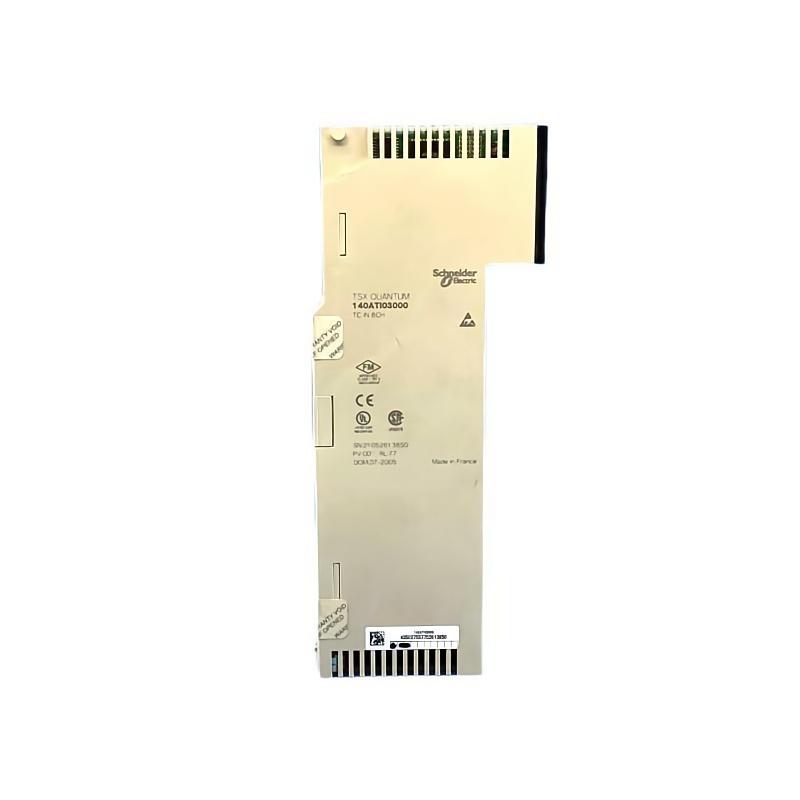

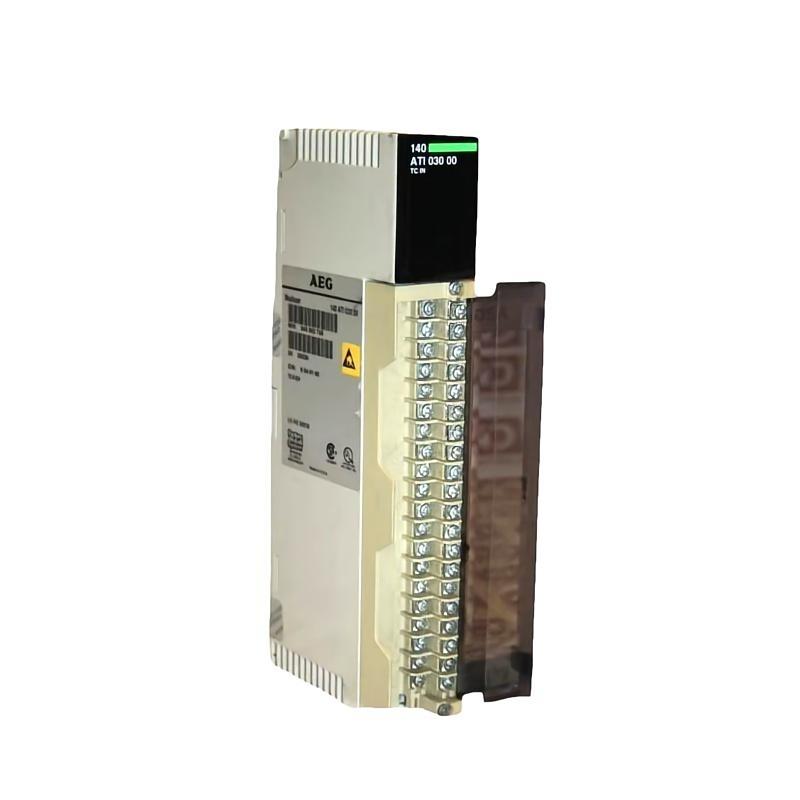

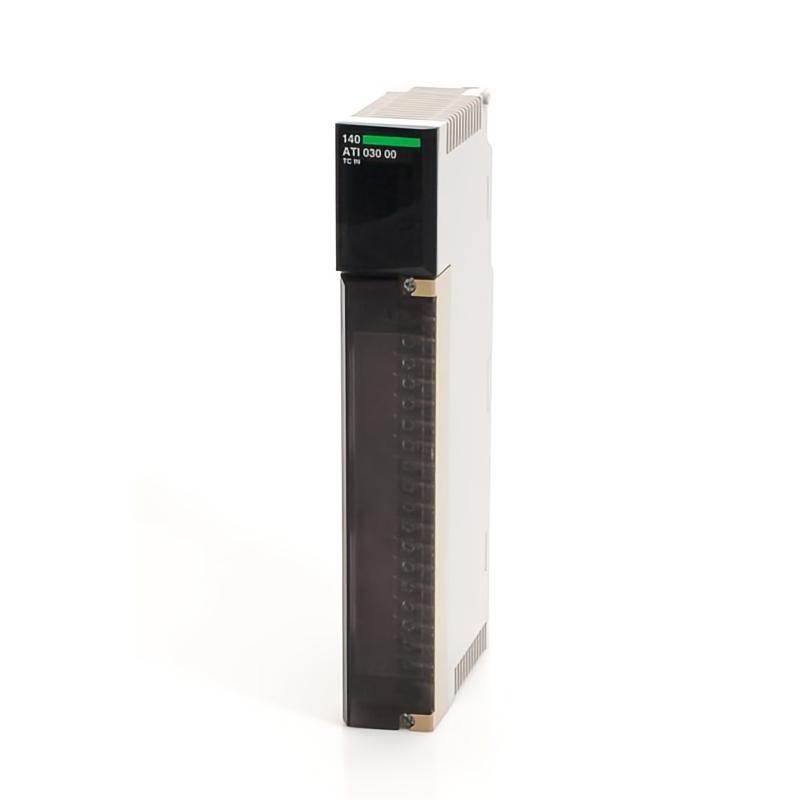

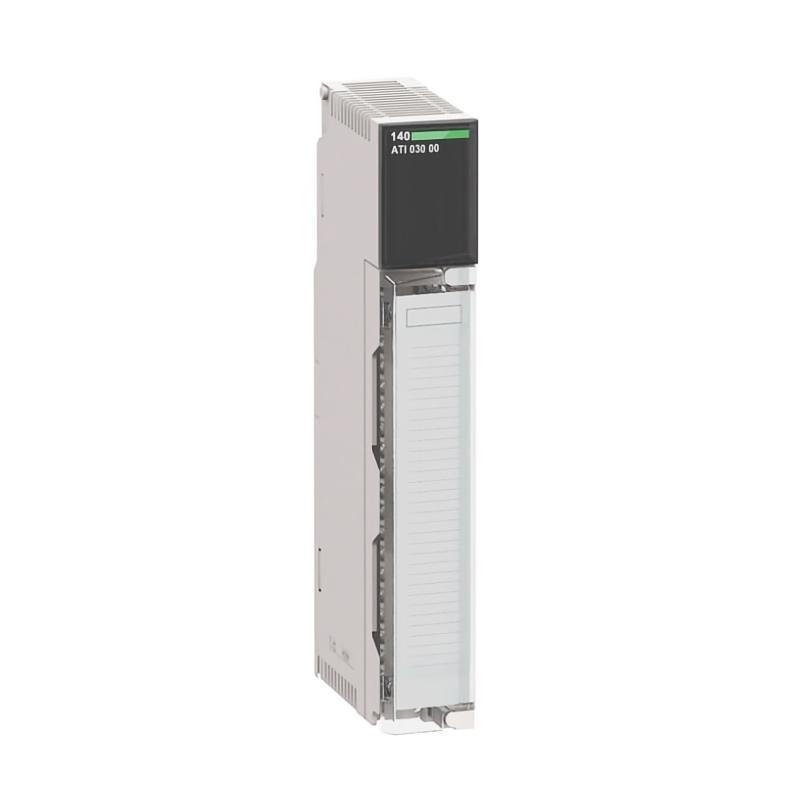

Schneider 140ATI03000 Analog Input Module

Overview

The Schneider 140ATI03000 is an analog input module designed for Schneider industrial automation systems. It provides precise analog signal acquisition from field devices, enabling accurate measurement and seamless integration into control systems for process monitoring and automation.

General Information

Part Number: 140ATI03000

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon 140

Type: Analog Input Module

Mounting: Panel or DIN rail installation within control cabinets

Technology: Analog signal processing, modular system integration, high-precision measurement

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, input status, and fault

Communication & Interface

Bus Interface: Compatible with Modicon 140 series PLC systems

Function: Captures analog input signals from connected field devices

Diagnostics: Monitors module health, input integrity, and fault conditions

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset via controller interface

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
