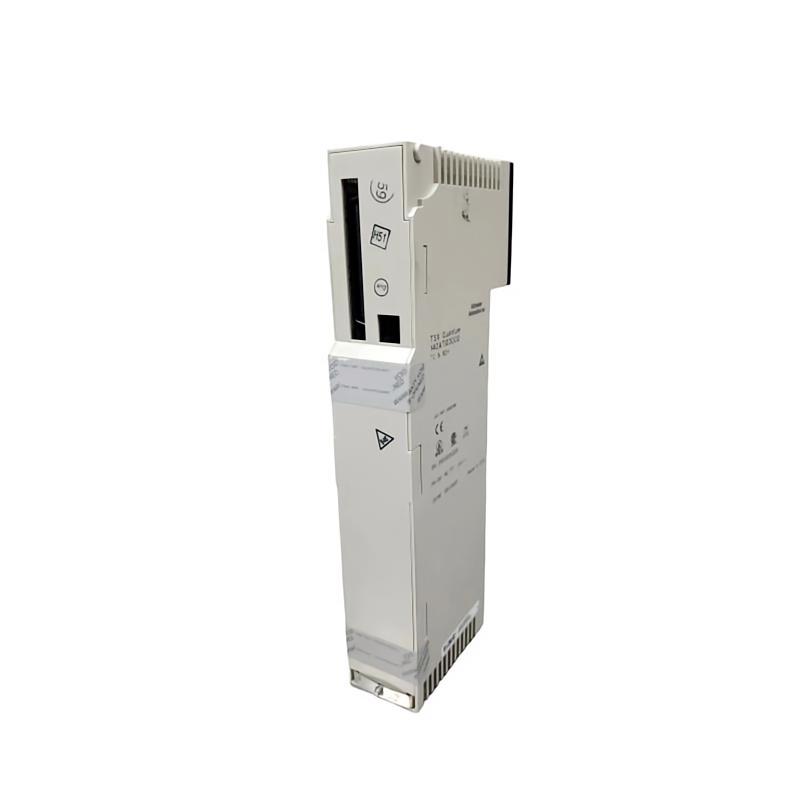

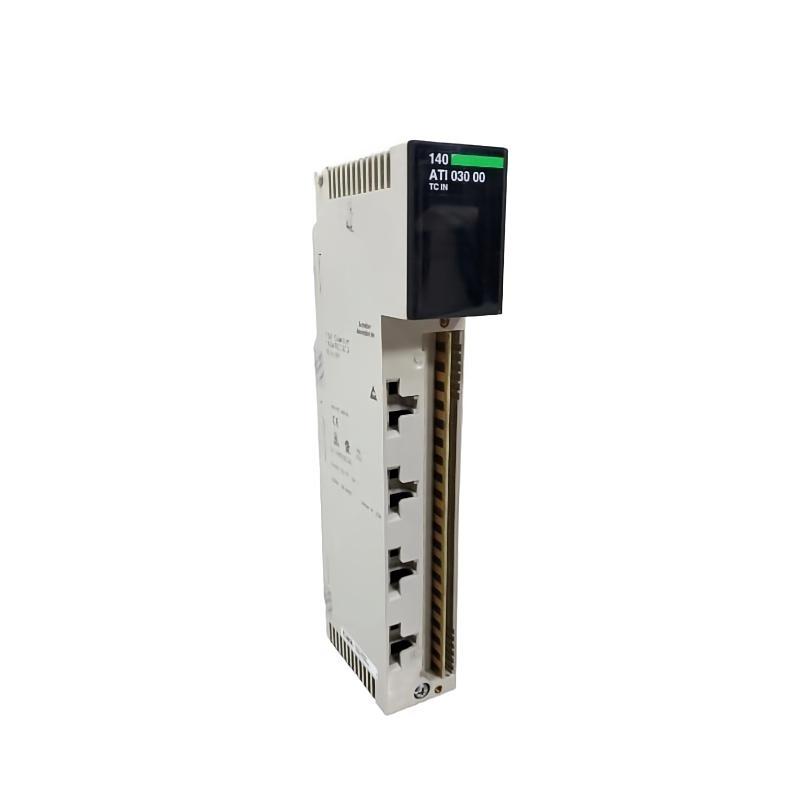

Schneider 140ATI03000C Analog Input Module

Overview

The Schneider 140ATI03000C is an analog input module designed for Schneider industrial automation systems. It provides high-precision analog signal acquisition from field devices, enabling accurate measurement and seamless integration into control systems for process monitoring and automation.

General Information

Part Number: 140ATI03000C

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon 140

Type: Analog Input Module

Mounting: Panel or DIN rail installation within control cabinets

Technology: Analog signal processing, modular system integration, high-precision measurement

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, input status, and fault

Communication & Interface

Bus Interface: Compatible with Modicon 140 series PLC systems

Function: Captures analog input signals from connected field devices

Diagnostics: Monitors module health, input integrity, and fault conditions

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset via controller interface

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
