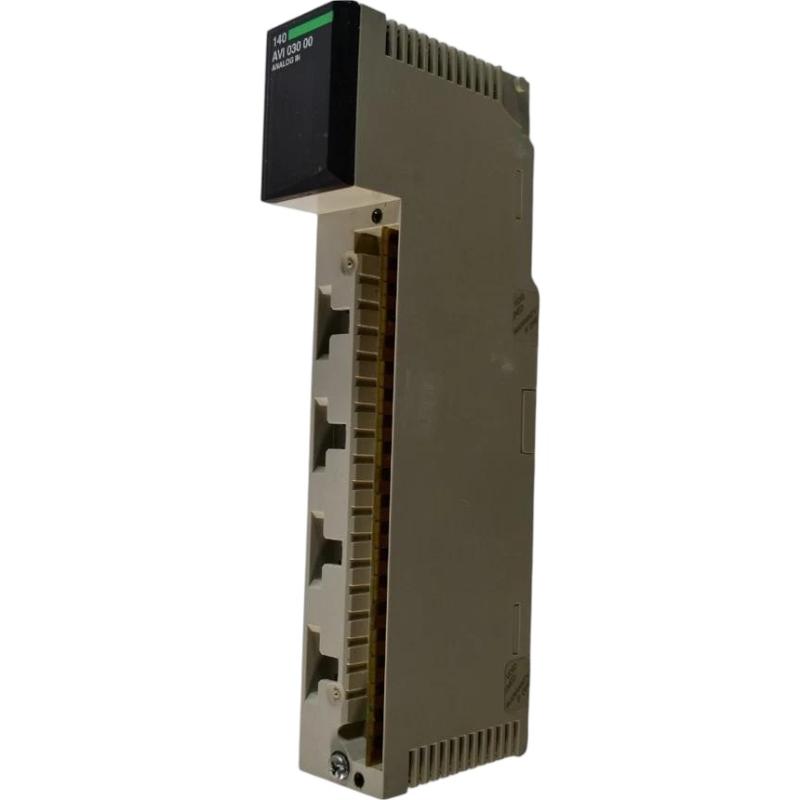

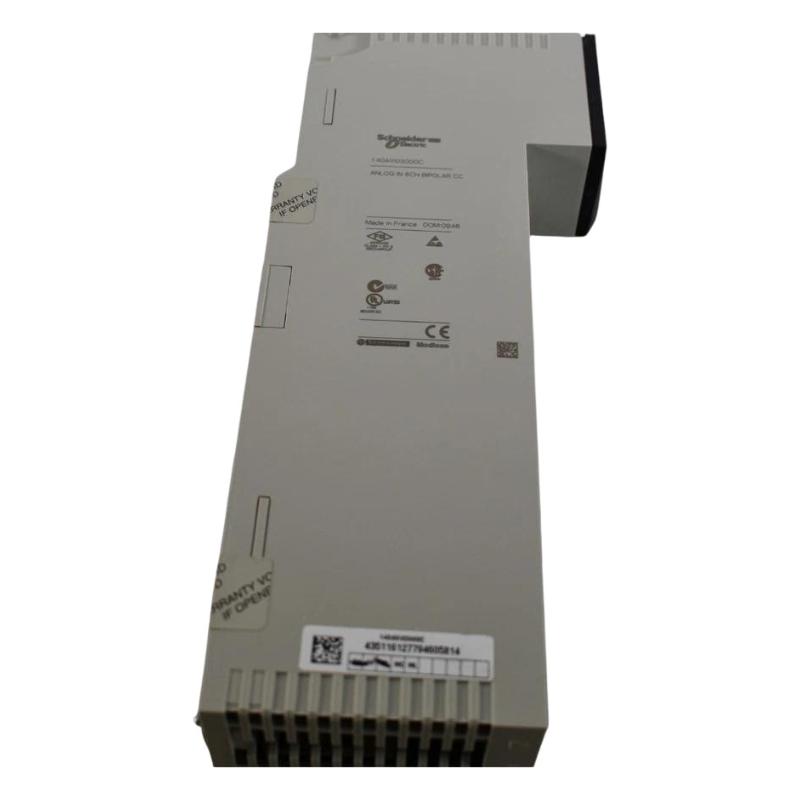

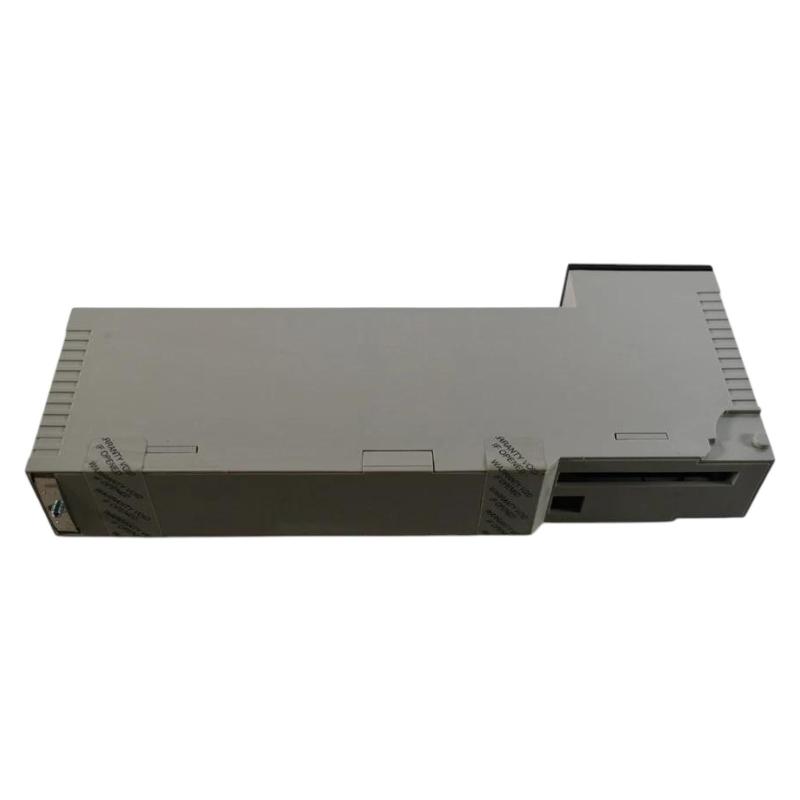

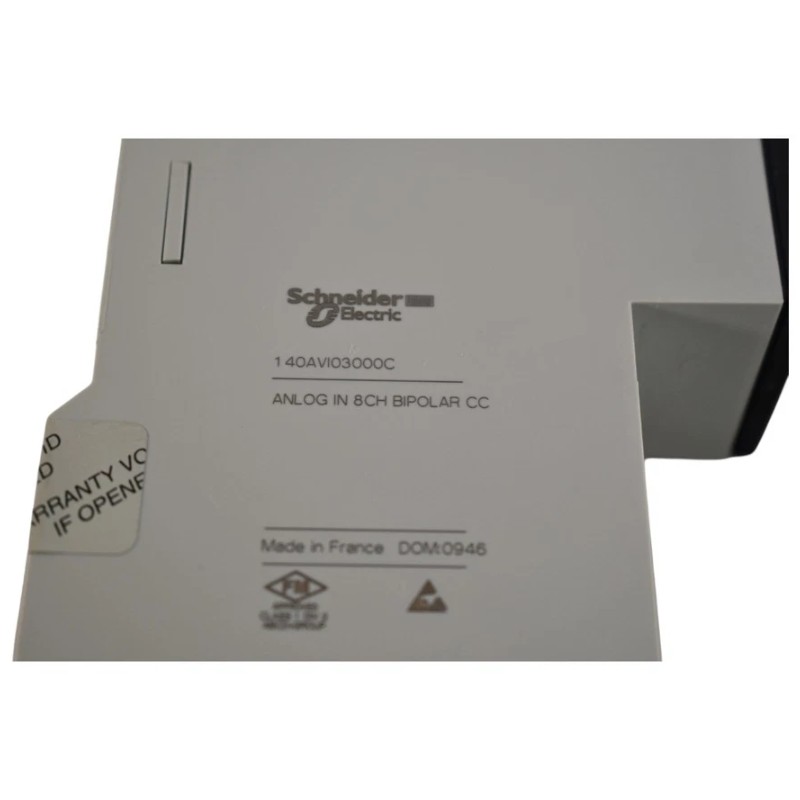

Schneider 140AVI03000C Analog Input Module

Overview

The Schneider 140AVI03000C is an analog input module designed for Schneider Electric’s Modicon automation systems. It provides accurate acquisition of analog signals from field devices such as sensors and transducers, enabling precise process monitoring and control. The module supports high-speed signal processing and seamless integration with Modicon controllers.

General Information

Part Number: 140AVI03000C

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon I/O Modules

Type: Analog Input Module

Mounting: DIN rail or backplane mounting in control cabinets

Technology: High-precision analog input, signal conditioning, LED diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered from system backplane

Protection: Short-circuit and reverse polarity protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Modicon controller backplane

Input Channels: Multiple analog inputs configurable for 0–10 V, 4–20 mA, or thermocouple signals

Diagnostics: Individual channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators for module health and input activity

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: ~ 0.3 kg
