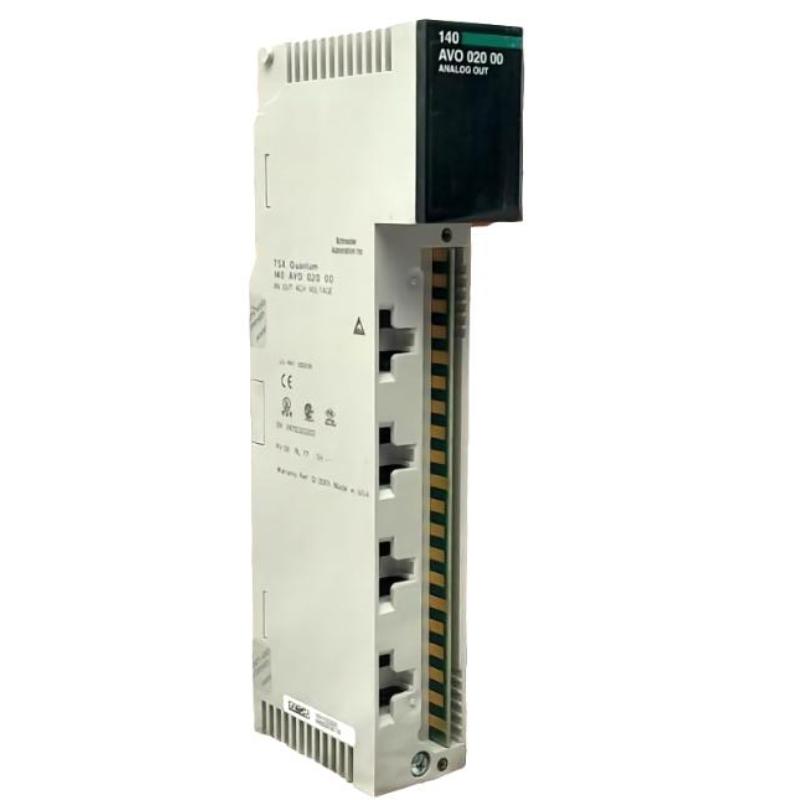

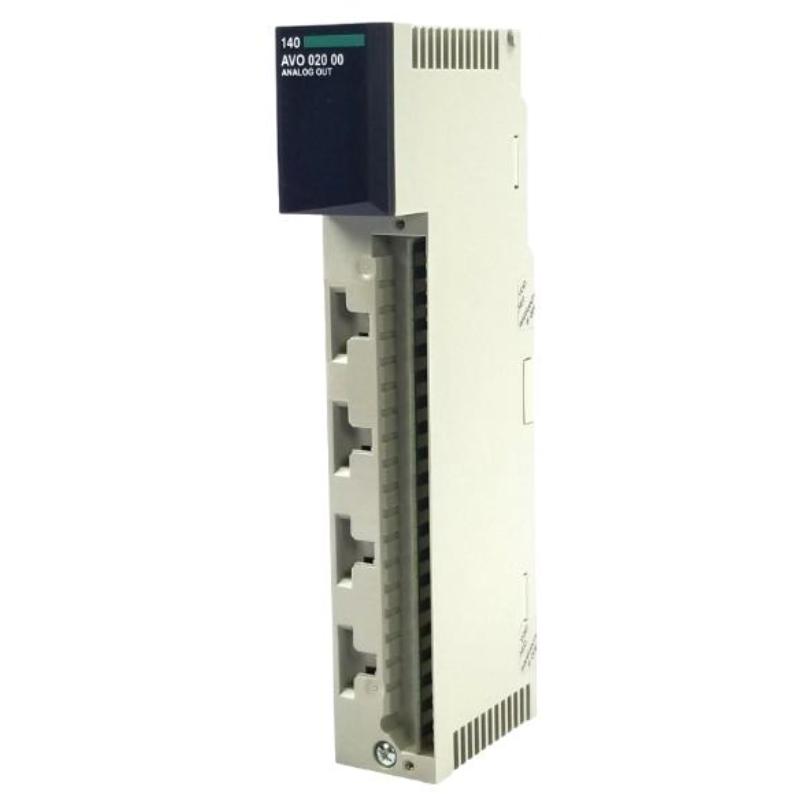

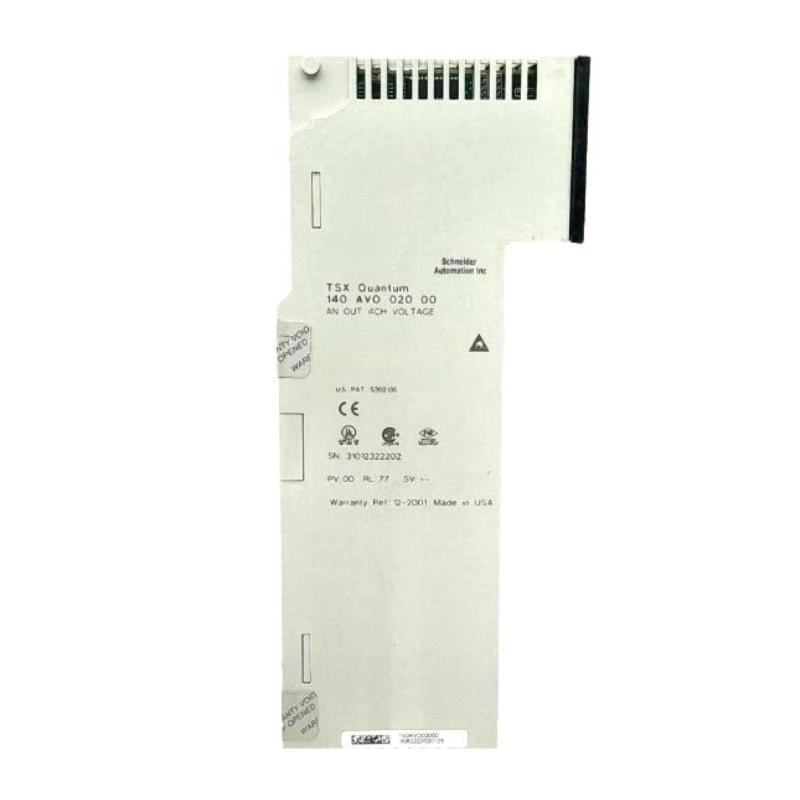

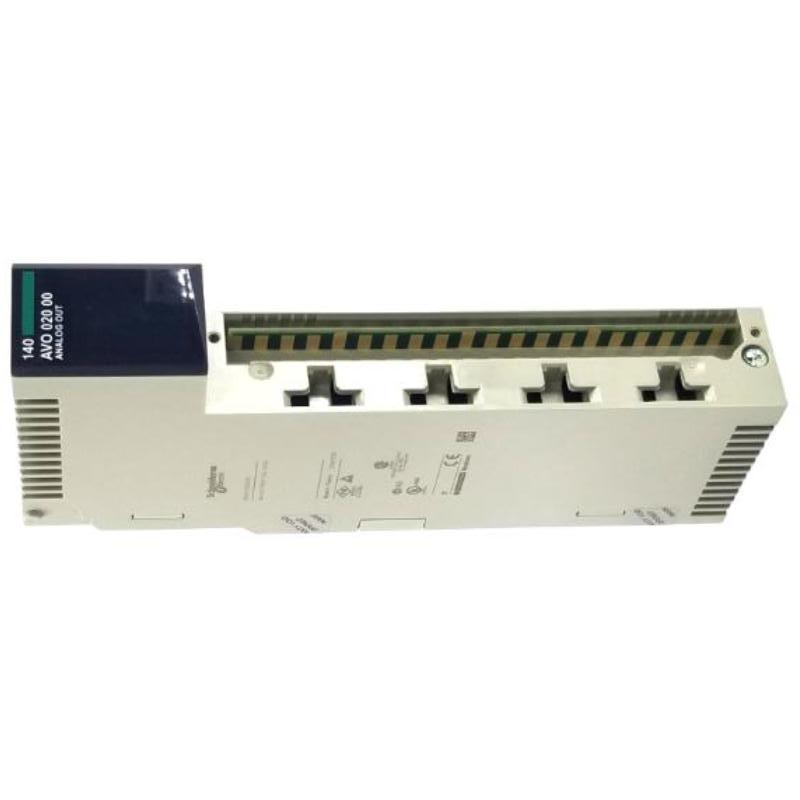

Schneider 140AVO02000C Analog Output Module

Overview

The Schneider 140AVO02000C is an analog output module designed for Schneider Electric’s Modicon automation systems. It delivers precise analog signal outputs to field devices such as actuators, valves, and transducers, ensuring accurate process control. The module supports high-speed response and integrates seamlessly with Modicon controllers.

General Information

Part Number: 140AVO02000C

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon I/O Modules

Type: Analog Output Module

Mounting: DIN rail or backplane mounting in control cabinets

Technology: High-precision analog output, LED diagnostics, system integration support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered from system backplane

Protection: Short-circuit and reverse polarity protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Modicon controller backplane

Output Channels: Multiple analog outputs configurable for 0–10 V or 4–20 mA signals

Diagnostics: Individual channel monitoring, fault detection, and system alerts

Operator Interface: LED indicators for module health and output activity

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: ~ 0.3 kg
