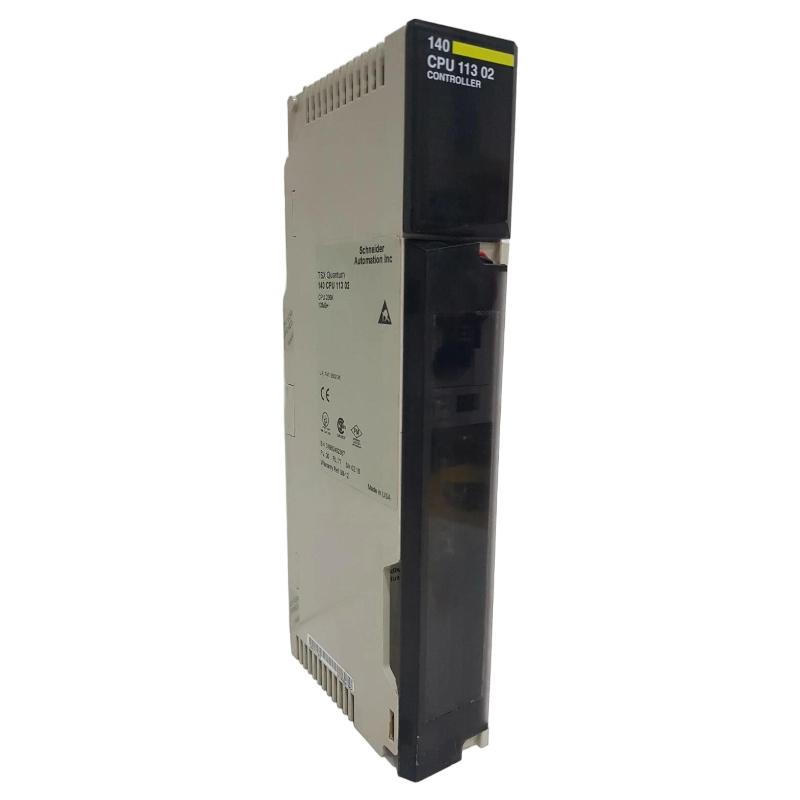

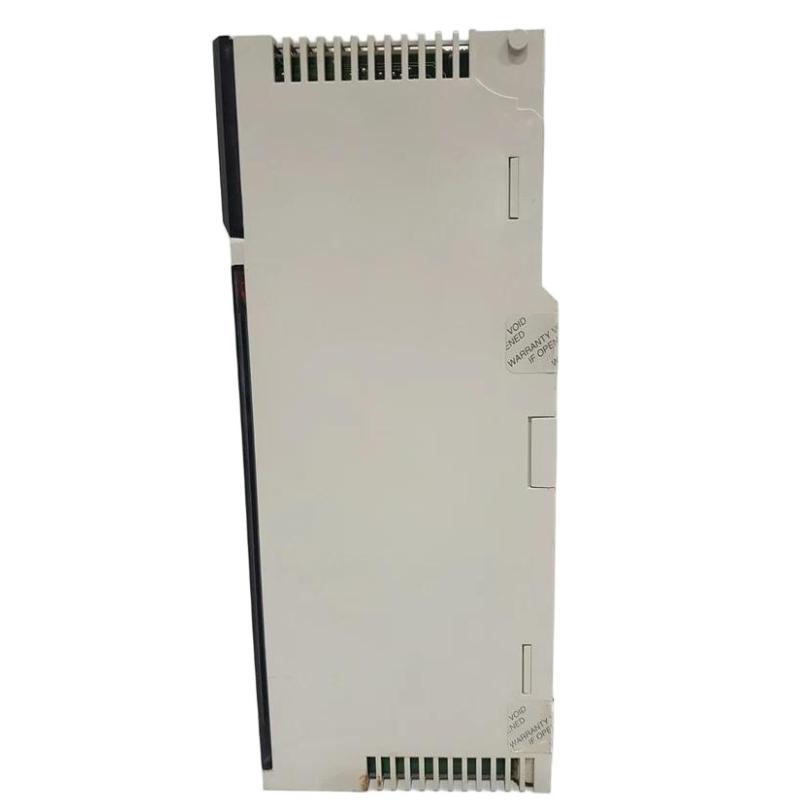

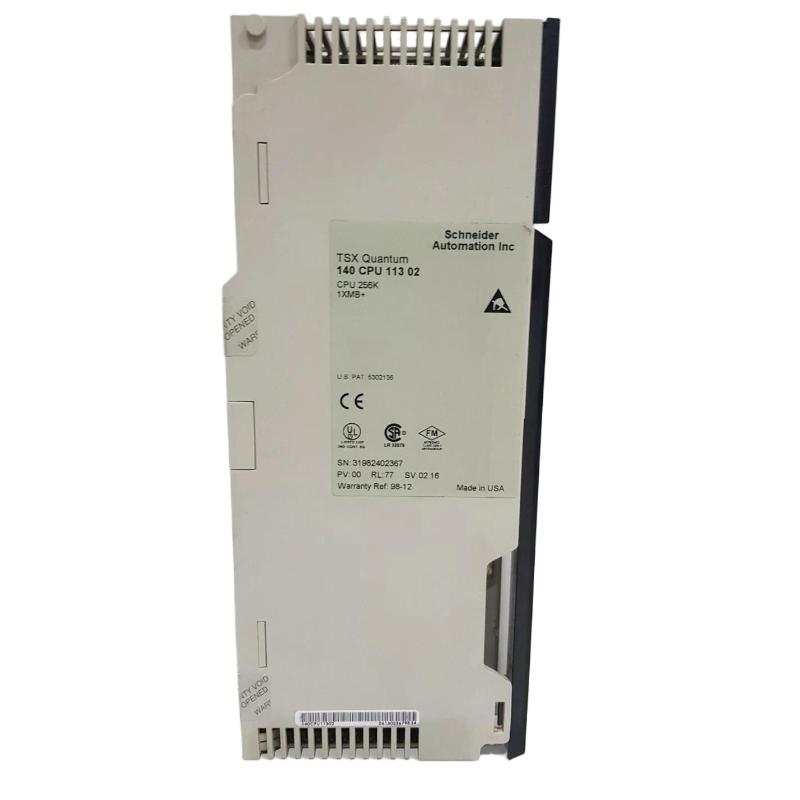

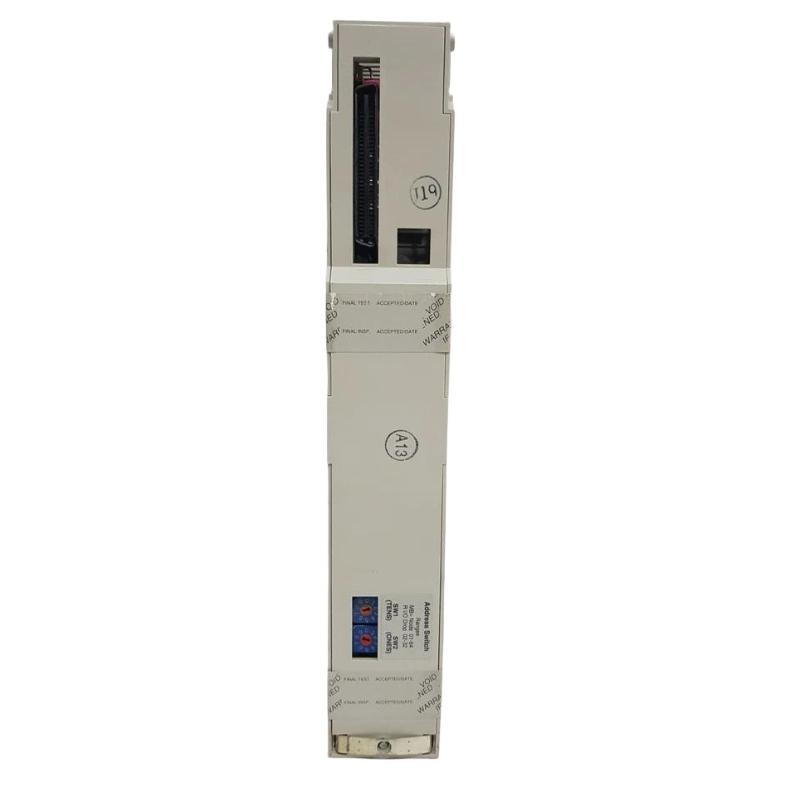

Schneider 140CPU11302 Concept Processor

Overview
The Schneider 140CPU11302 is a high-performance Concept Processor designed for Modicon Concept PLC systems. It serves as the central processing unit of the PLC, executing control programs, managing communications, and ensuring reliable operation of all connected modules in industrial automation applications.

General Information

Part Number: 140CPU11302

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon Concept

Type: Concept Processor / PLC CPU

Technology: High-speed processing for PLC control, logic, and communication

Mounting: Rack-mounted within Modicon PLC chassis

Indicators: LED indicators for power, CPU status, and fault diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Optimized for full PLC operation

Protection: Overvoltage, overload, and short-circuit protection managed by module and rack

Communication & Interface

Interface: Integrated backplane communication with PLC modules

Protocol Support: Supports standard PLC programming, I/O control, and network communications

Diagnostics: Monitored via PLC software for CPU status, fault detection, and operational integrity

Operator Interface: LED indicators display CPU status and errors

Reset Features: Supports soft and hardware reset via PLC software

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: Designed for industrial automation environments

Protection Rating: IP20 when installed inside a protective cabinet

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.65 kg
