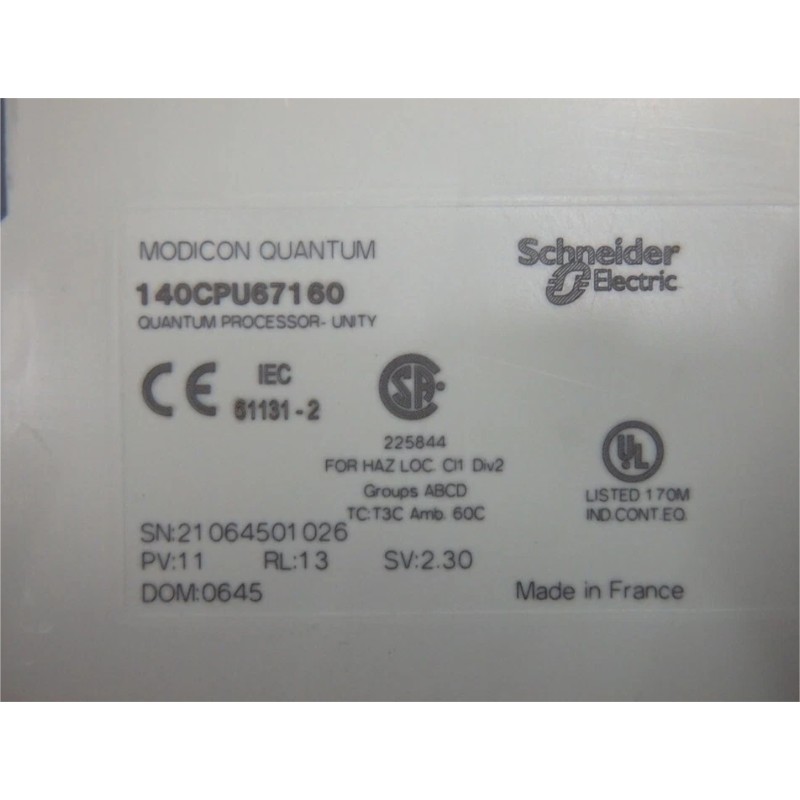

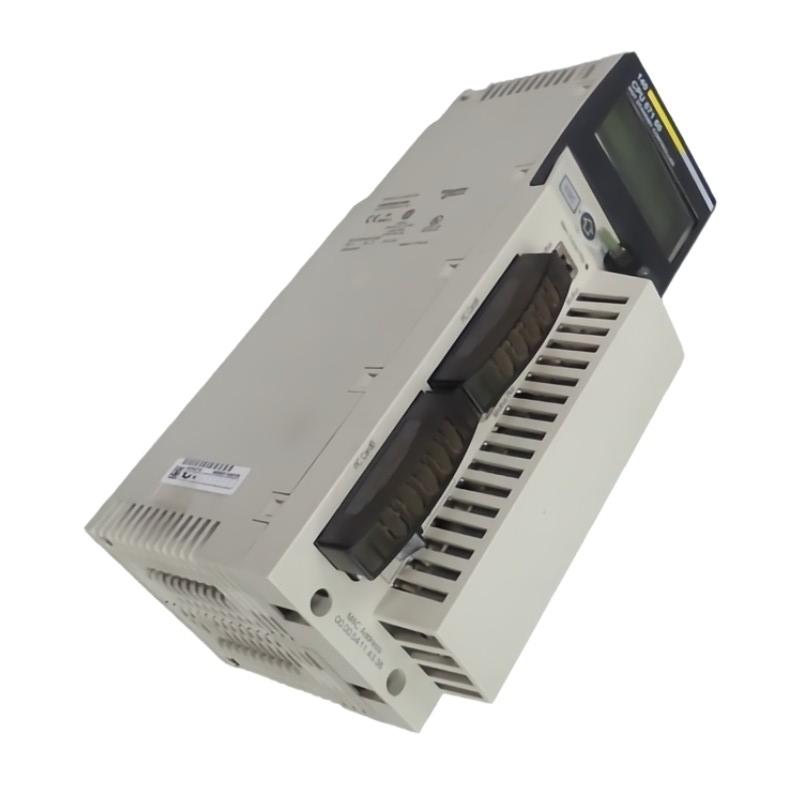

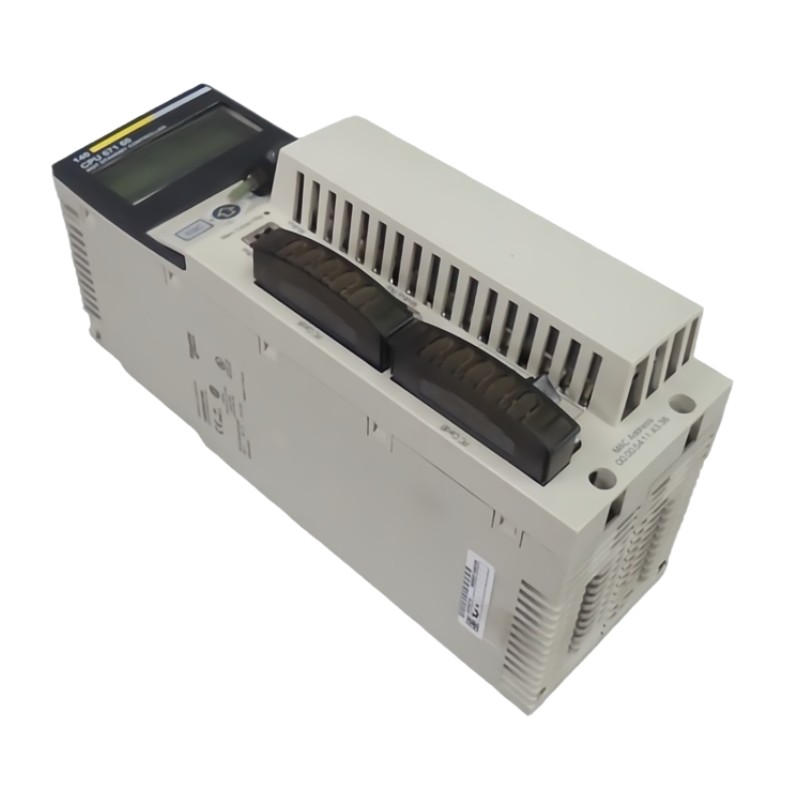

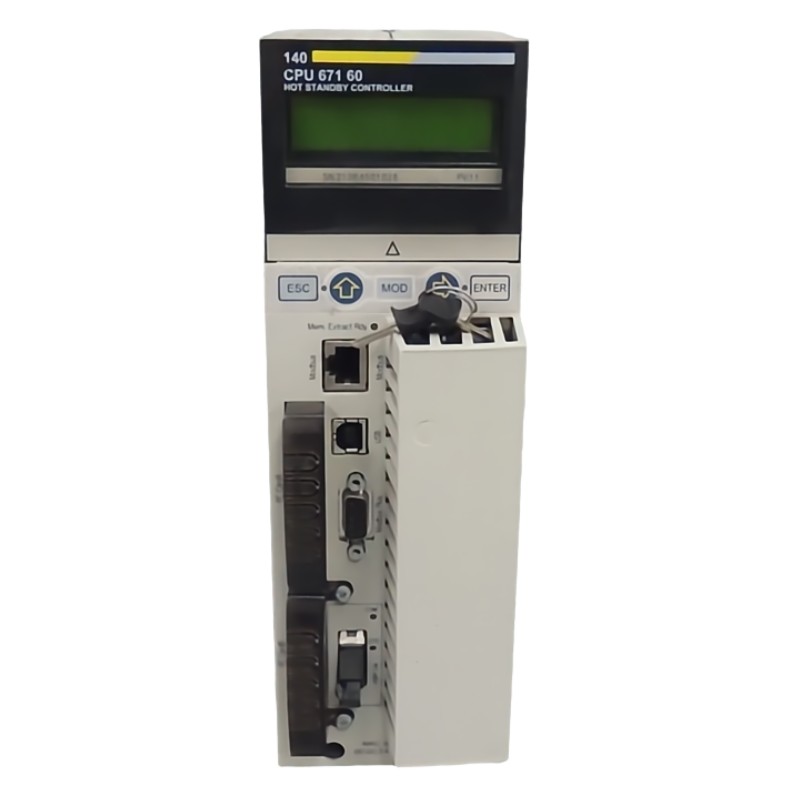

Schneider 140CPU67160 Unity Hot Standby Processor With Multimode Ethernet

Overview

The Schneider 140CPU67160 is a Unity hot standby processor designed for industrial automation systems requiring high availability. It provides real-time control, logic execution, and communication management, with seamless failover support to maintain continuous operation in critical processes. Its multimode Ethernet interface allows versatile network connectivity for modern industrial applications.

General Information

Part Number: 140CPU67160

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Unity

Type: Hot Standby Processor / Control Module

Mounting: Panel or DIN-rail installation within control cabinets

Technology: Real-time processing, fault-tolerant control, and multimode Ethernet communication

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 30 W

Input: Powered via industrial power supply or system backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LEDs for power, system status, communication, and fault

Communication & Interface

Data Interface: Multimode Ethernet and Unity automation bus

Input Channels: Multiple digital and analog signal inputs

Output Channels: Control outputs for connected devices and actuators

Diagnostics: Real-time monitoring, error logging, fault reporting, and failover status

Operator Interface: LED indicators, push-buttons, and optional HMI integration

Reset Features: Supports hardware and software reset with automatic failover

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for standard industrial panel environments

Dimensions & Weight

Dimensions (L × W × H): 81 × 135 × 250 mm

Weight: 1.36 kg

Ensure Continuous Operation with Reliable Hot Standby Performance!
