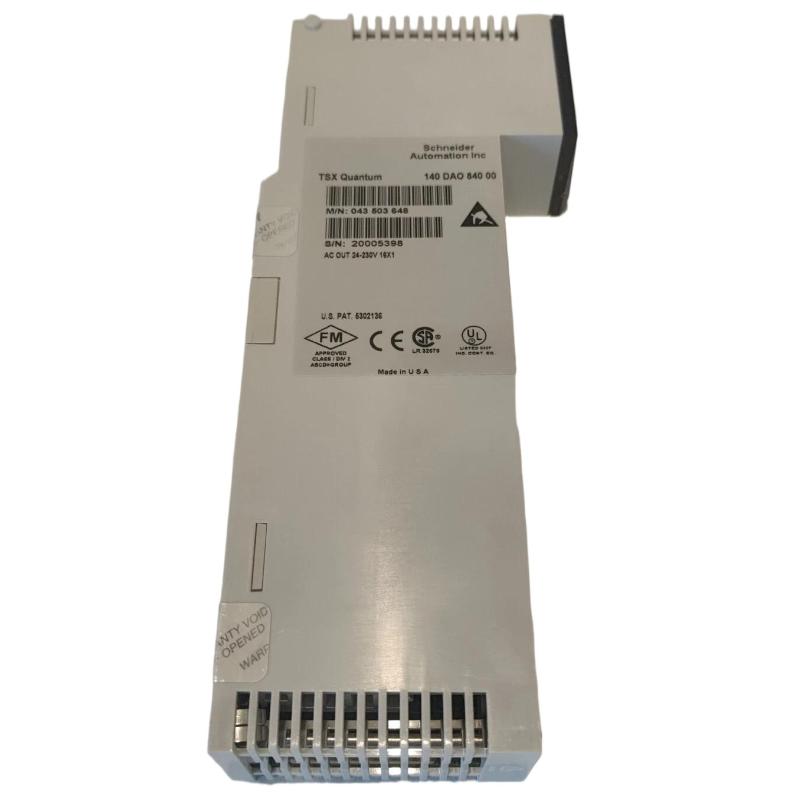

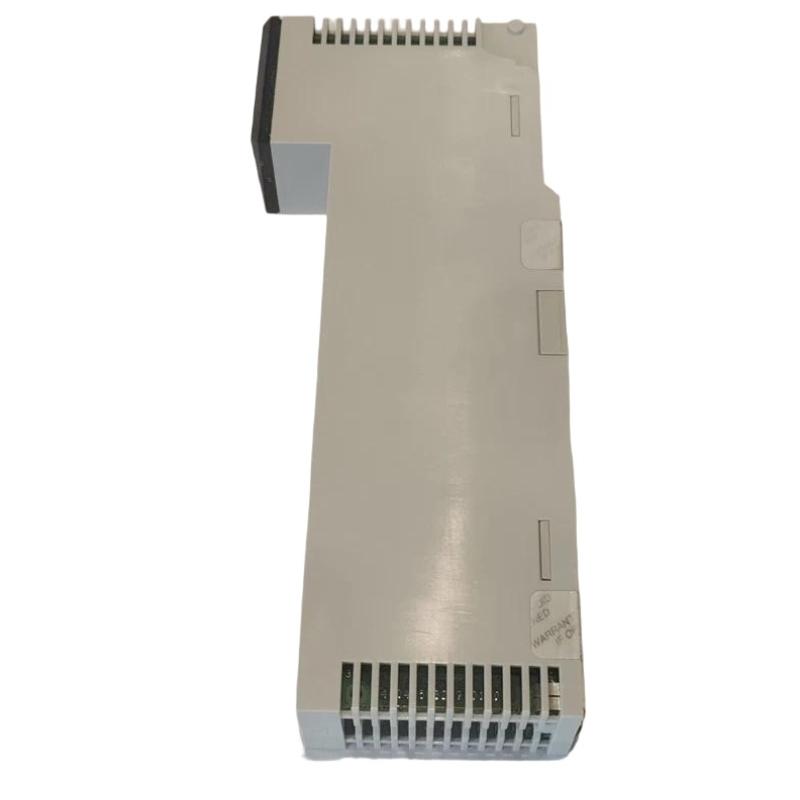

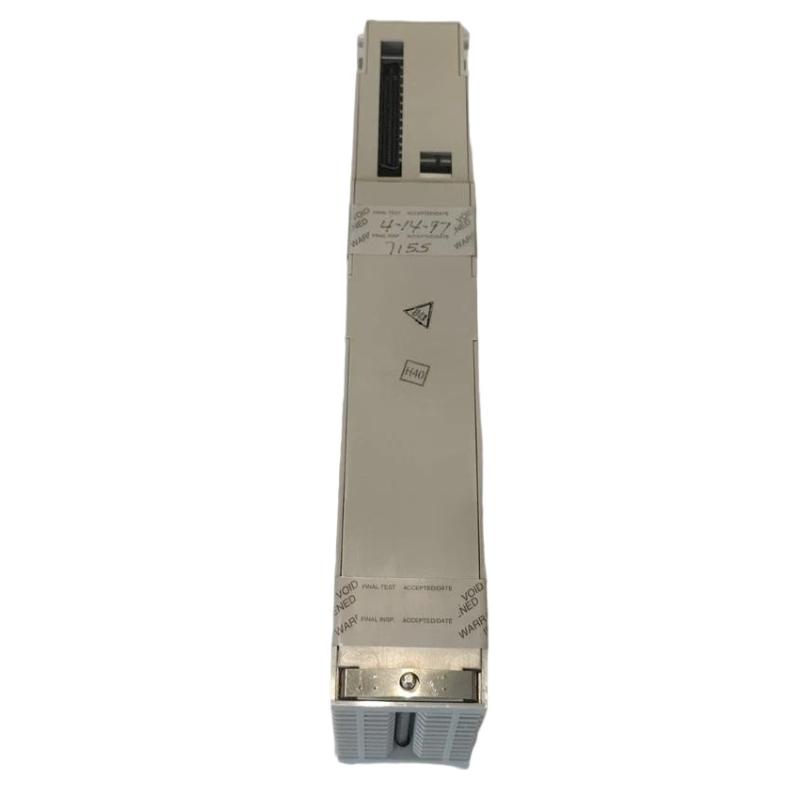

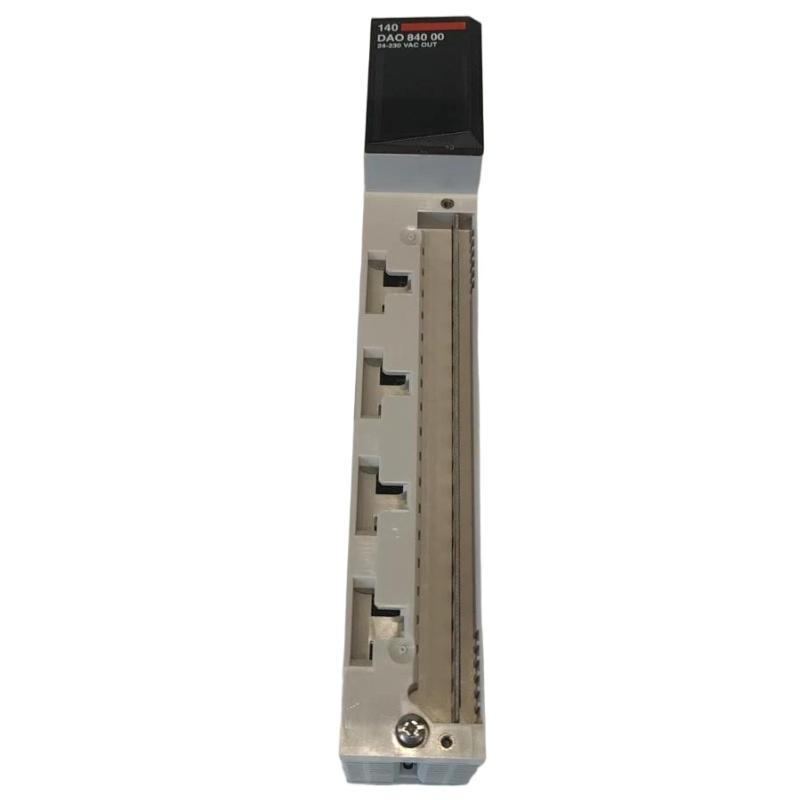

Schneider 140DAO84000 Discrete Output Module

Overview

The 140DAO84000 is a discrete output module designed for Schneider Electric’s Modicon automation systems. It provides reliable switching of field devices such as relays, solenoids, and indicators, ensuring precise control in industrial applications.

General Information

Part Number: 140DAO84000

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider / France

Series: Modicon

Type: Discrete Output Module

Mounting: DIN rail or panel mount

Technology: Solid-state digital output with fast response time and robust protection

Power Specifications

Output Voltage: 24 V DC

Output Current: 0.5–2 A per channel

Protection: Overcurrent, short-circuit, and thermal protection

Indicators: LEDs for each channel indicating ON/OFF status

Communication & Interface

Control Interface: Connects to Modicon PLC for digital output control

Diagnostics: Channel fault detection, module status monitoring

Remote Control: Supports diagnostics via PLC interface

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (standard for industrial cabinets)

Vibration: Tested to industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.485 kg
