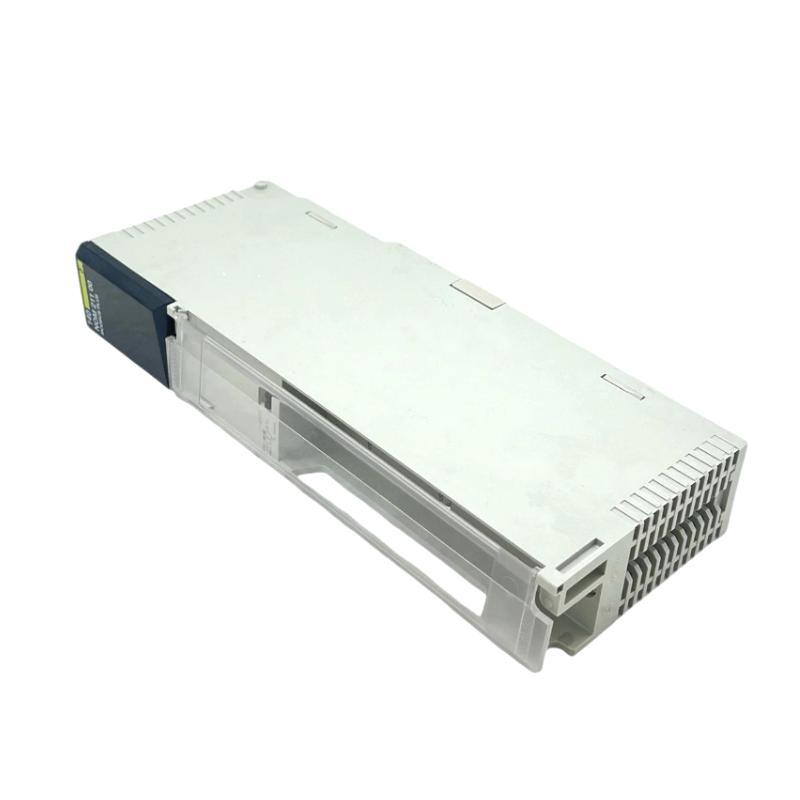

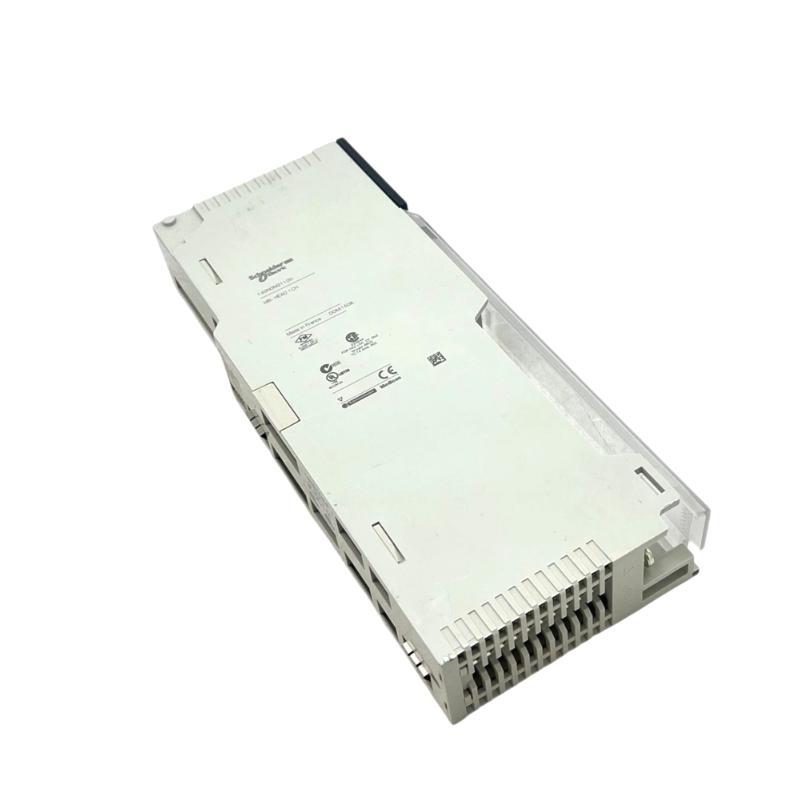

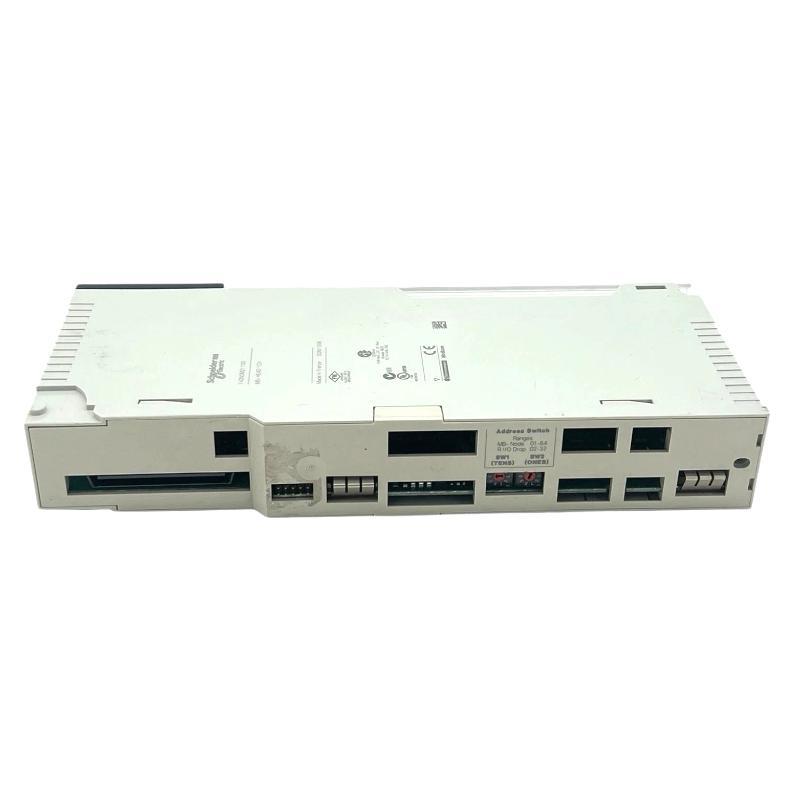

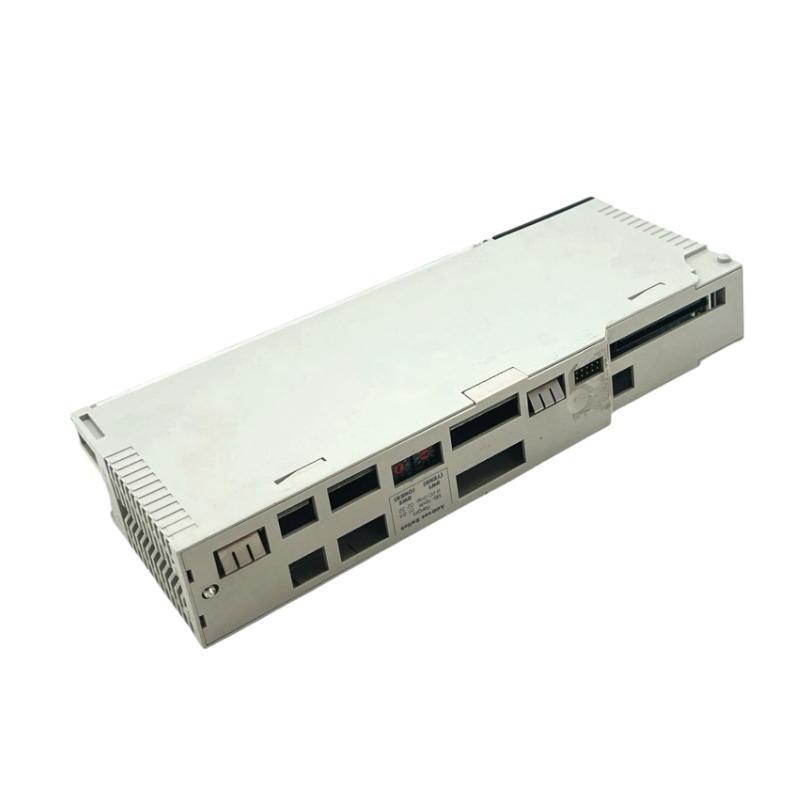

Schneider 140EDK21100 Communication Processor Module

Overview

The Schneider 140EDK21100 is a communication processor module designed for industrial automation systems. It enables reliable data exchange between controllers, I/O modules, and field devices, supporting efficient network communication and system integration in demanding control environments.

General Information

Part Number: 140EDK21100

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon Quantum Series

Type: Communication Processor Module

Mounting: Rack-mounted installation

Technology: Industrial communication processing and network management

Power Specifications

Supply Voltage: 5 V DC (backplane powered)

Power Consumption: ≤ 8 W

Input Power Source: System backplane

Protection Features: Overvoltage and internal electronic protection

Status Indicators: LED indicators for module status, communication activity, and fault status

Communication & Interface

Communication Protocol: Industrial Ethernet / system-specific communication interface

Network Ports: Integrated communication connectors for controller network integration

Data Transfer: High-speed cyclic and acyclic data exchange

Network Functions: Controller communication, I/O coordination, and network data routing

Diagnostics: Built-in network diagnostics and fault detection

Configuration: Configurable via Schneider engineering software

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial control cabinet installation

Vibration Resistance: Designed for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
