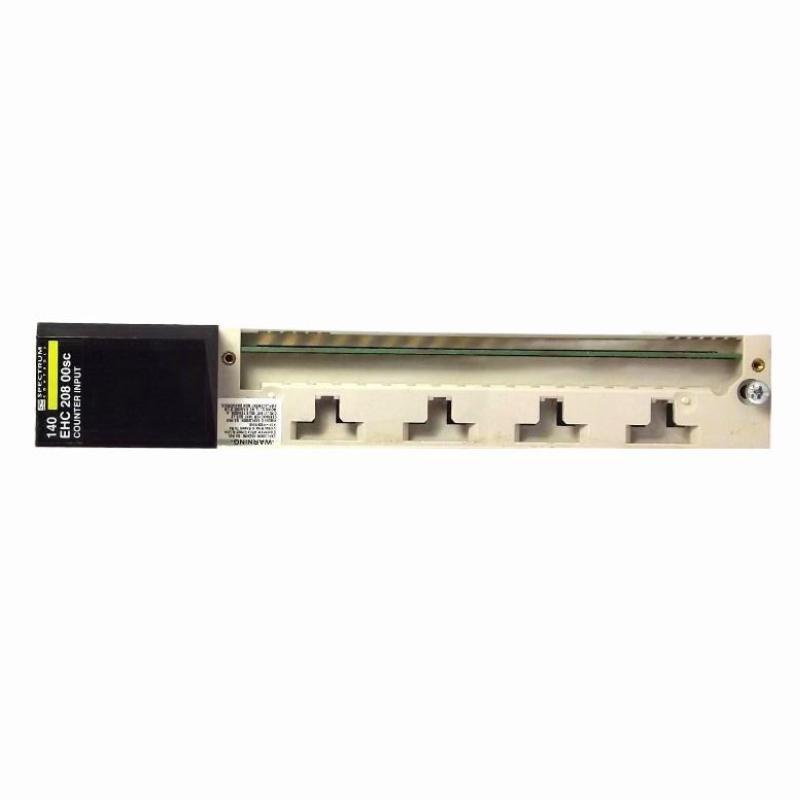

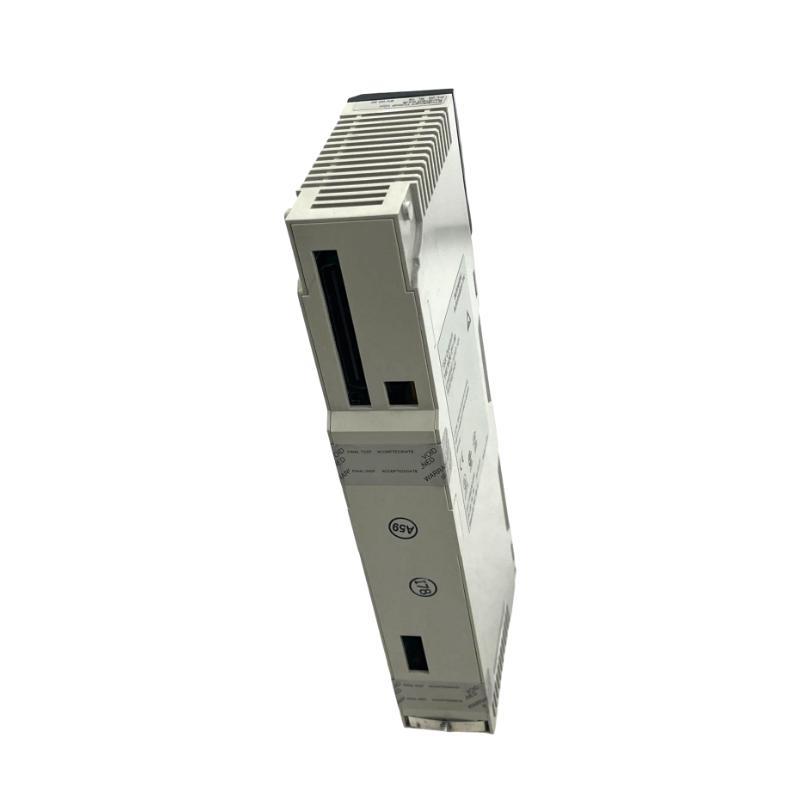

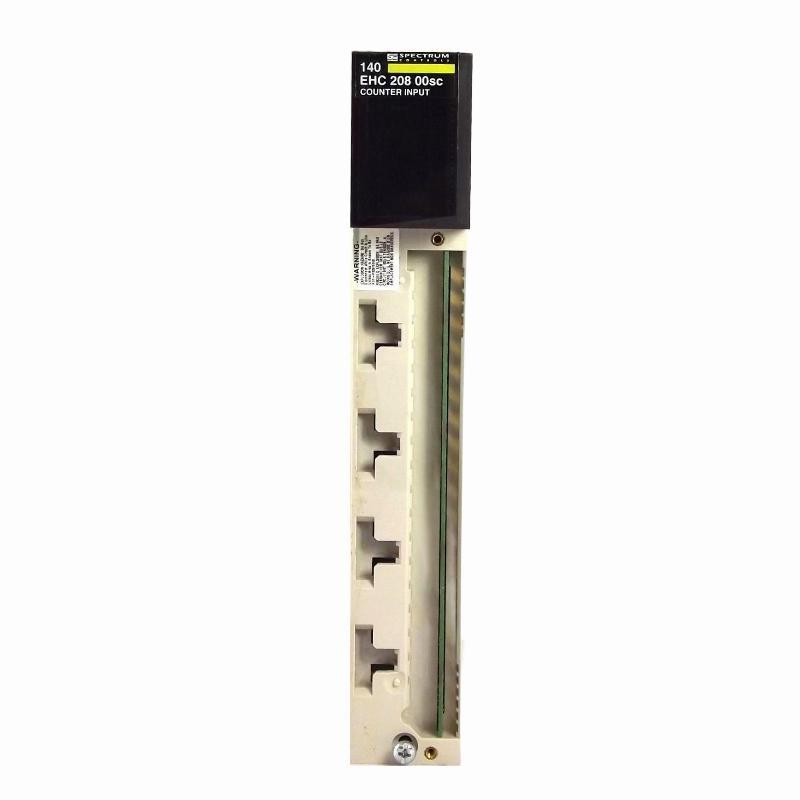

Schneider 140EHC20800 Analog Counter Module

Overview

The Schneider 140EHC20800 is an analog counter module designed for industrial automation systems. It combines high-speed counting capabilities with analog signal processing, enabling precise measurement, monitoring, and control of industrial processes where both pulse and analog inputs are required.

General Information

Part Number: 140EHC20800

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon Quantum Series

Type: Analog Counter Module

Mounting: Rack-mounted installation

Technology: Hybrid analog and digital signal processing for counting applications

Power Specifications

Supply Voltage: 5 V DC (system backplane powered)

Power Consumption: ≤ 9 W

Input Power Source: System backplane

Protection Features: Overvoltage and short-circuit protection

Status Indicators: LED indicators for module status, channel activity, and fault conditions

Communication & Interface

Input Type: Analog and high-speed digital pulse inputs

Signal Processing: Supports combined analog measurement and pulse counting

Channel Support: Multi-channel input processing capability

System Interface: Integrated with Modicon Quantum backplane system

Diagnostics: Built-in fault detection and signal monitoring

Configuration: Software-configurable via Schneider engineering tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial control cabinet installation

Vibration Resistance: Designed for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
