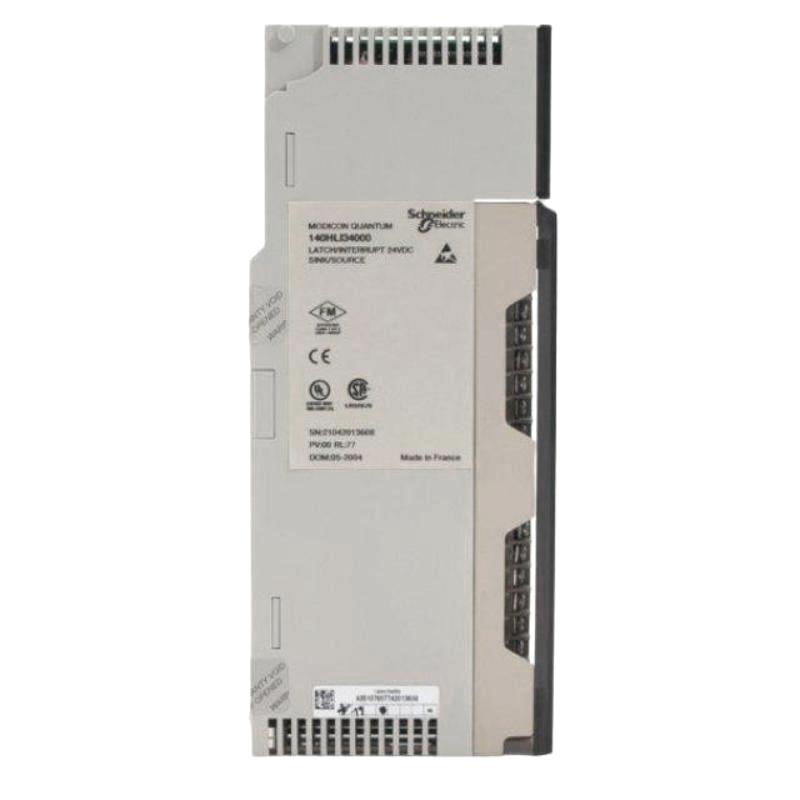

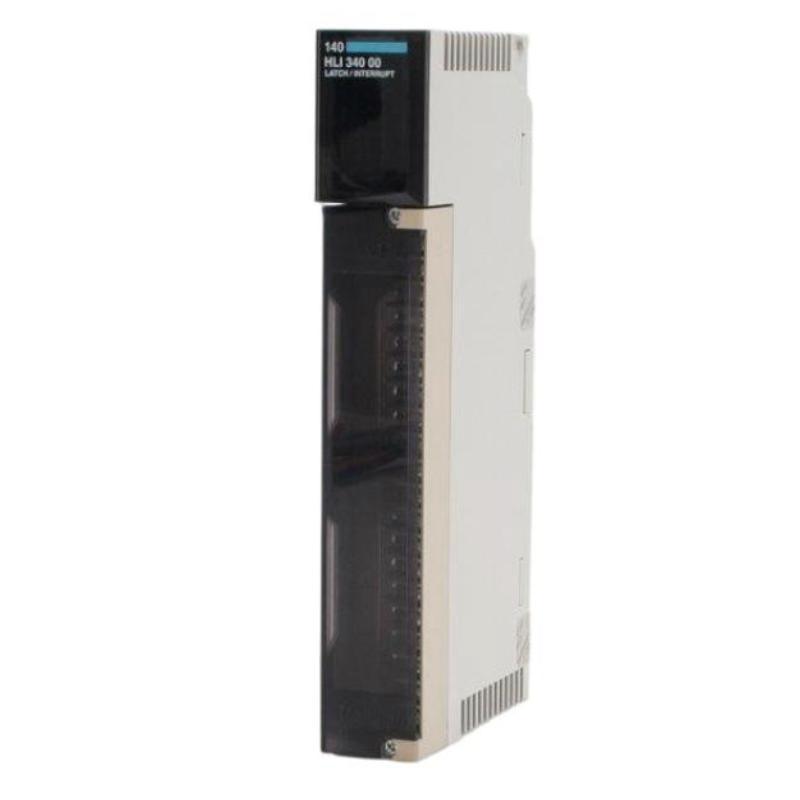

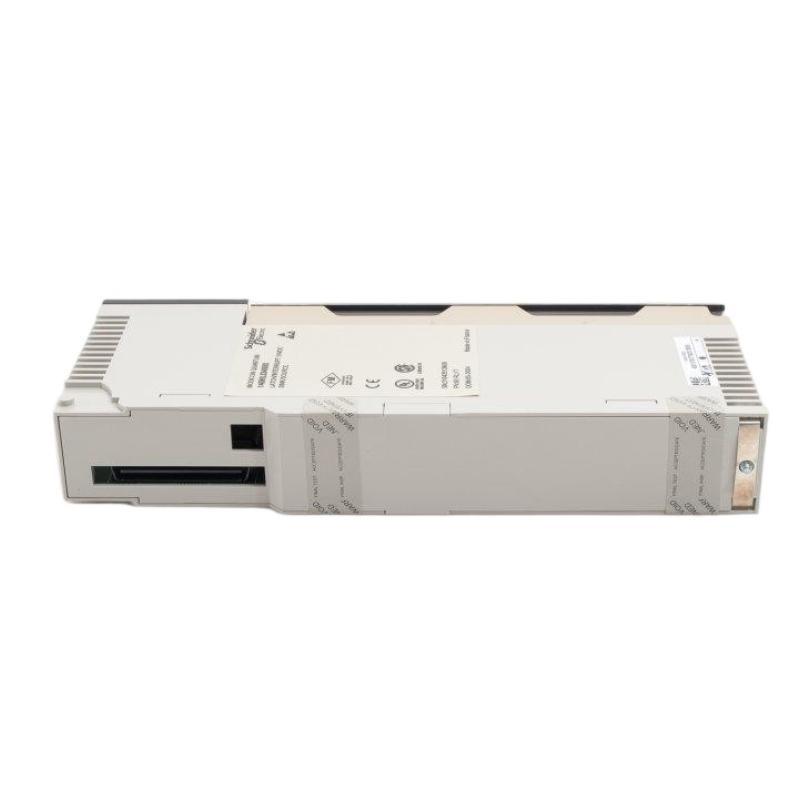

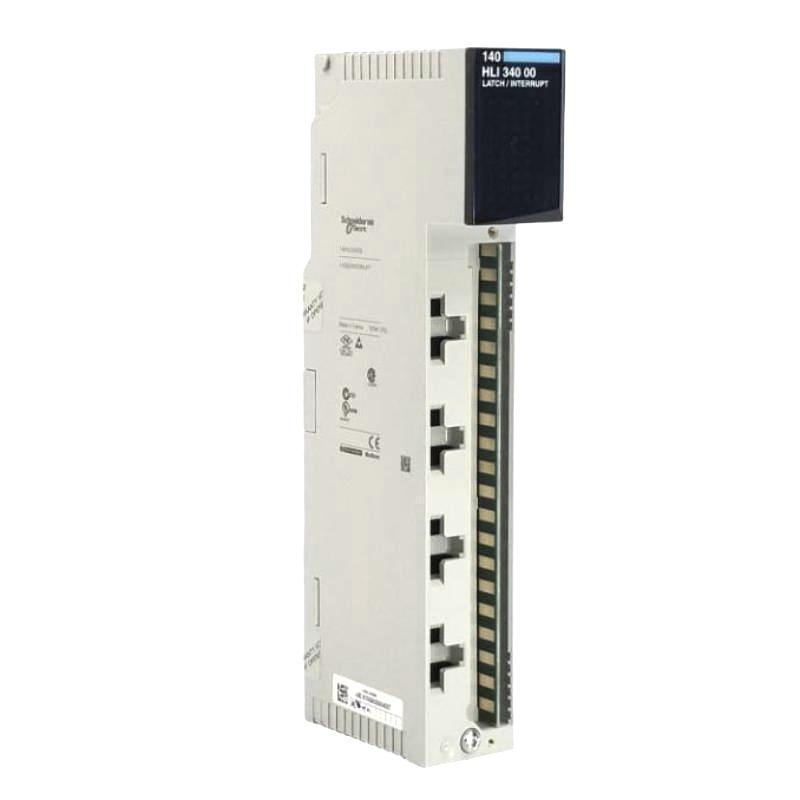

Schneider 140HLI34000 Latch/Interrupt Module

Overview

The Schneider 140HLI34000 is a latch/interrupt module designed for industrial automation systems. It provides fast and reliable event latching and interrupt handling, allowing precise monitoring and response to high-speed input signals in complex control processes.

General Information

Part Number: 140HLI34000

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon Quantum Series

Type: Latch/Interrupt Module

Mounting: Rack-mounted installation

Technology: Event latching and interrupt signal processing

Power Specifications

Supply Voltage: 5 V DC (system backplane powered)

Power Consumption: ≤ 9 W

Input Power Source: System backplane

Protection Features: Overvoltage and short-circuit protection

Status Indicators: LED indicators for module status, channel activity, and fault detection

Communication & Interface

Input Type: High-speed digital signals

Functionality: Latching of events and handling of interrupt signals for rapid process response

Channel Support: Multi-channel input monitoring and processing

System Interface: Integrated with Modicon Quantum backplane system

Diagnostics: Built-in fault detection and status monitoring

Configuration: Configurable via Schneider engineering tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial control cabinet installation

Vibration Resistance: Designed for high-speed industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 45 × 165 × 315 mm

Weight: 0.408 kg
