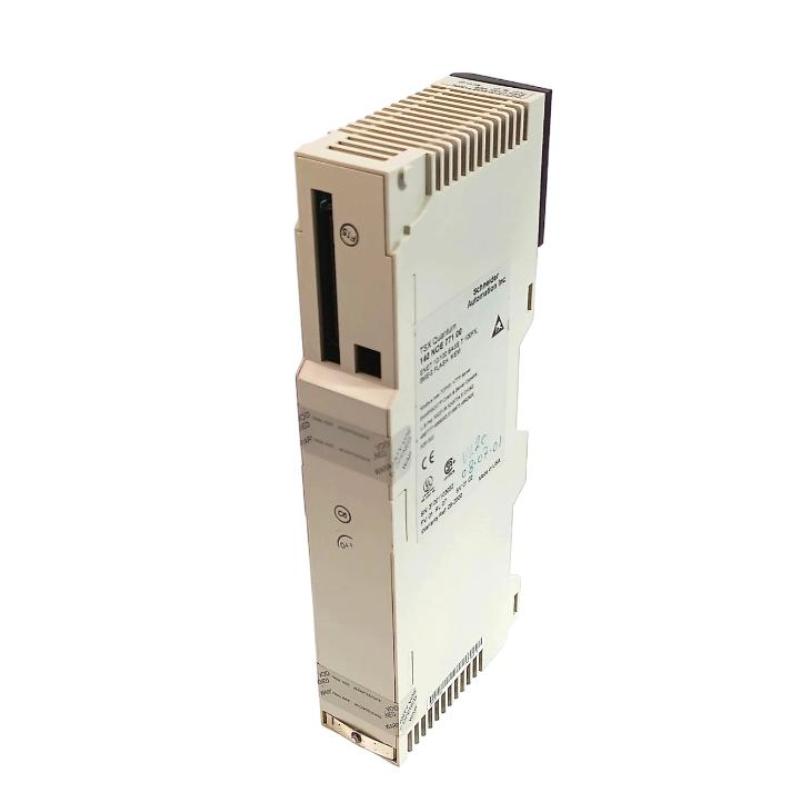

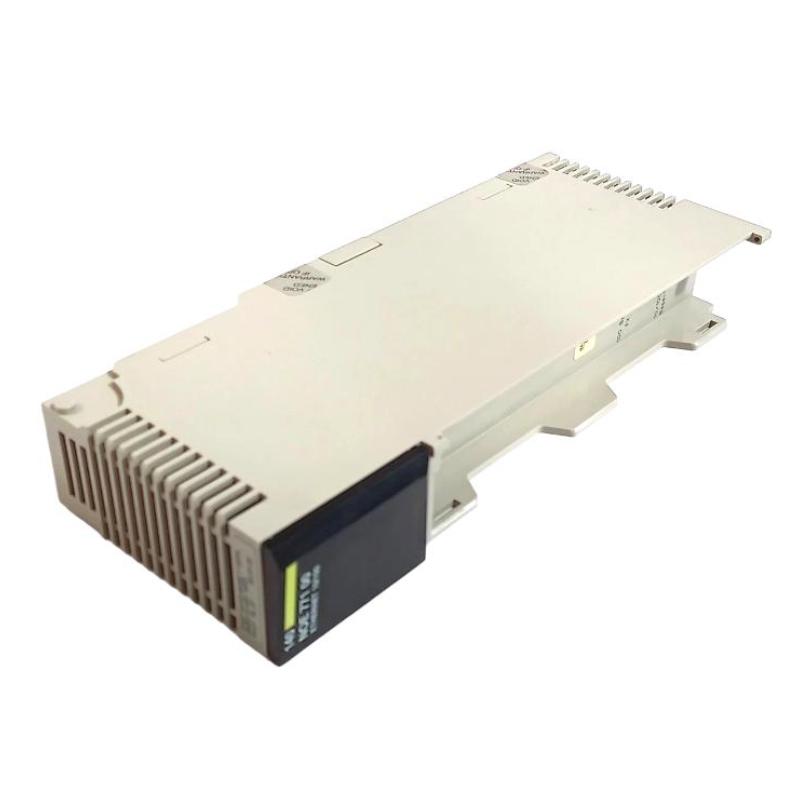

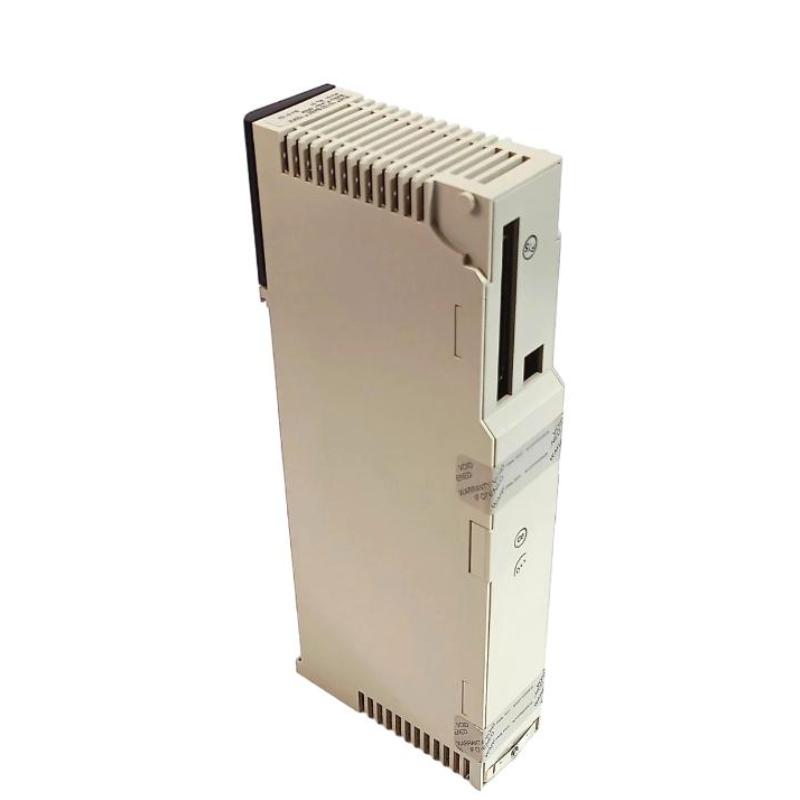

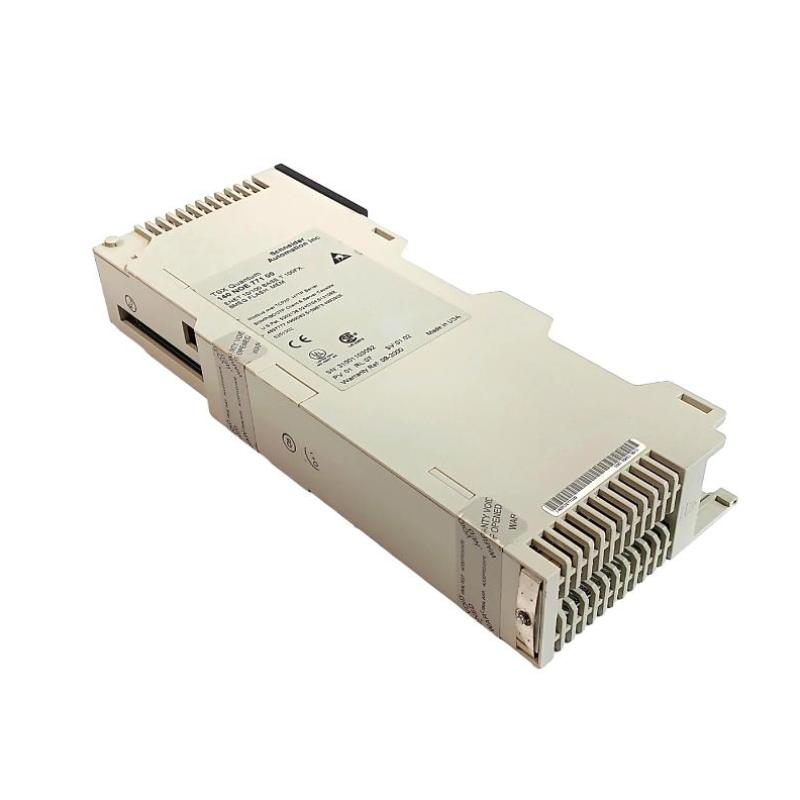

Schneider 140NOE35100C Ethernet SY/MAX Fiber Optic Module

Overview
The Schneider 140NOE35100C Ethernet SY/MAX Fiber Optic Module is an industrial communication module designed for Modicon Quantum PLC systems. It enables Ethernet networking over fiber optic infrastructure with SY/MAX protocol support, delivering high-speed, noise-immune data transmission for complex industrial automation and control environments.

General Information
Part Number: 140NOE35100C

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Type: Ethernet SY/MAX Fiber Optic Communication Module

Function: Industrial Ethernet communication via fiber optic network

Application: PLC networking, SCADA systems, distributed control systems, industrial automation networks

Power Specifications
Supply Voltage: Powered via PLC backplane

Power Consumption: Low-power industrial communication module (system dependent)

Backplane Power: Required for Modicon Quantum rack integration

Protection: Electrical isolation and fiber-based signal immunity

Status Indication: LED indicators for link, activity, and module health

Communication & Interface
Network Type: Ethernet over Fiber Optic (SY/MAX protocol support)

Interface Role: Enables high-speed communication between PLC systems and industrial networks

Data Handling: Deterministic and non-deterministic high-speed data transmission

Diagnostics: Network monitoring, fault detection, and communication status reporting

Configuration: Managed via Unity Pro / EcoStruxure control software

Environmental
Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Humidity Range: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet standard

Protection Class: IP20 (rack-mounted installation required)

Dimensions & Weight
Dimensions (H × W × D): 103.9 × 40.3 × 250 mm

Weight: 0.5 kg

High-Speed Fiber Networking for Mission-Critical Automation – Built for Maximum Signal Integrity!
