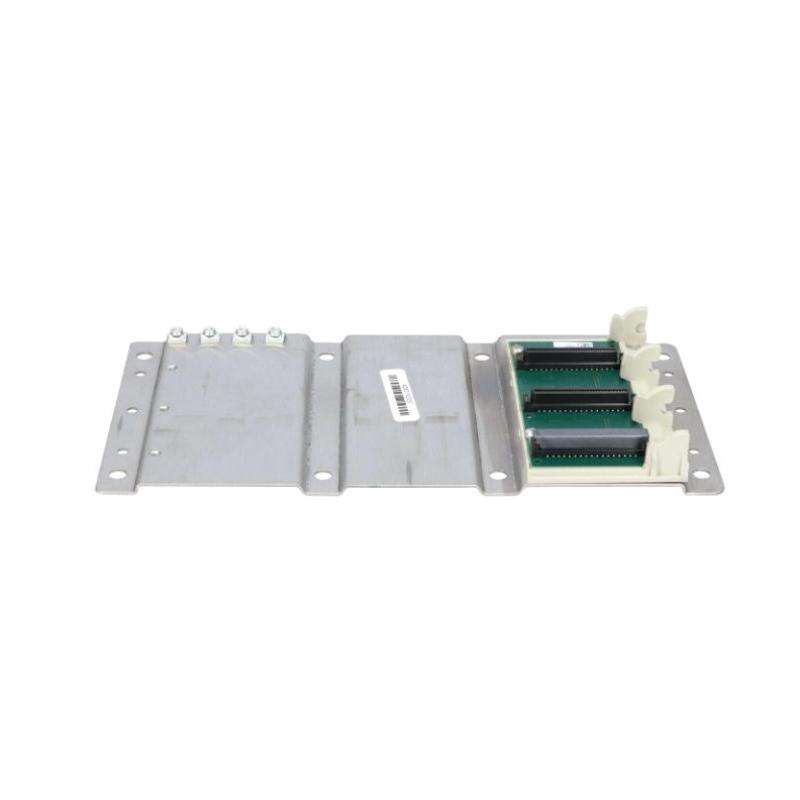

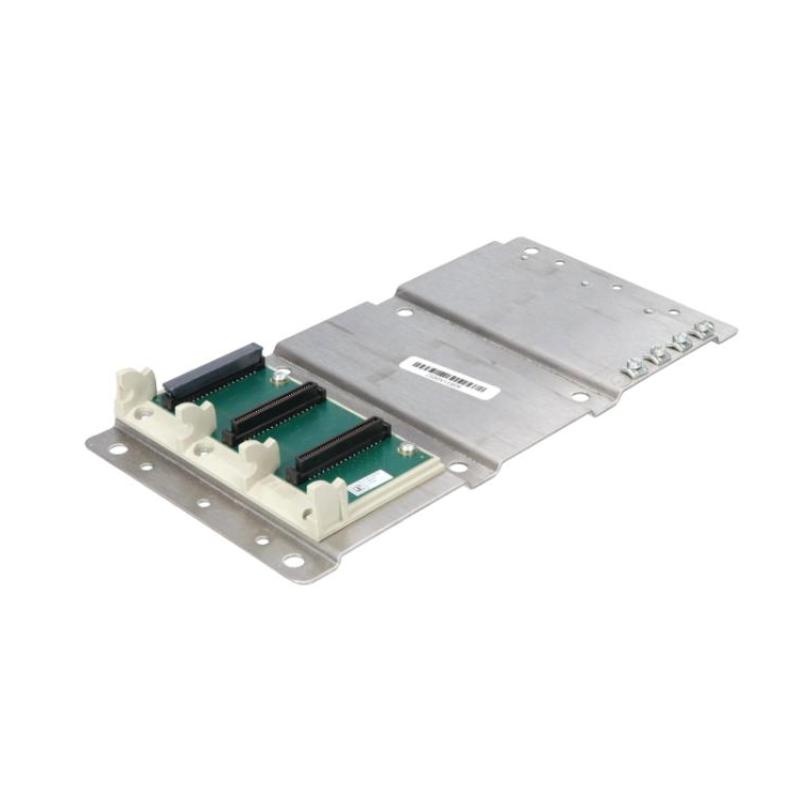

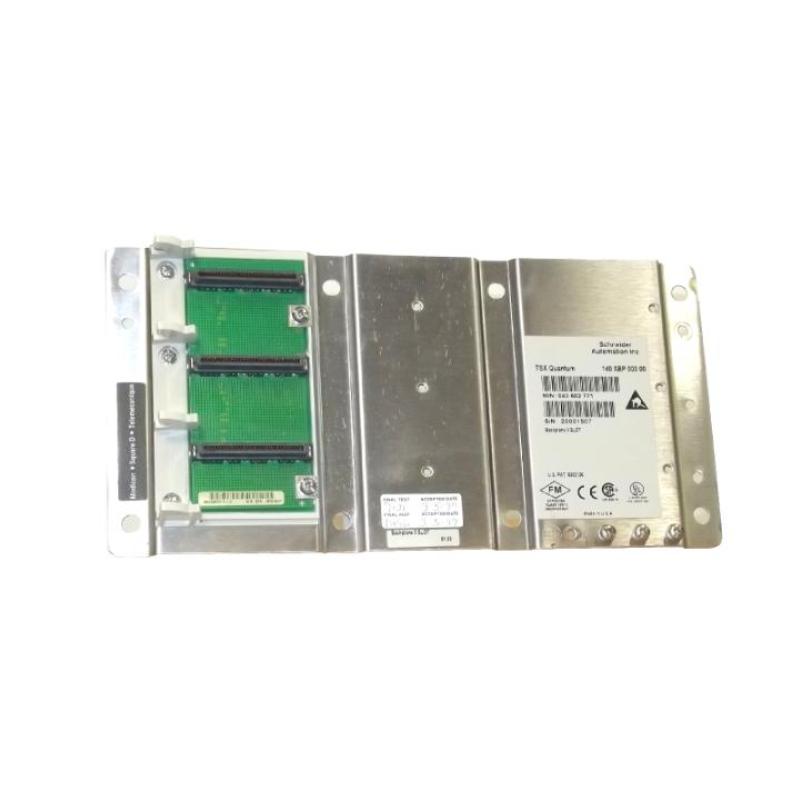

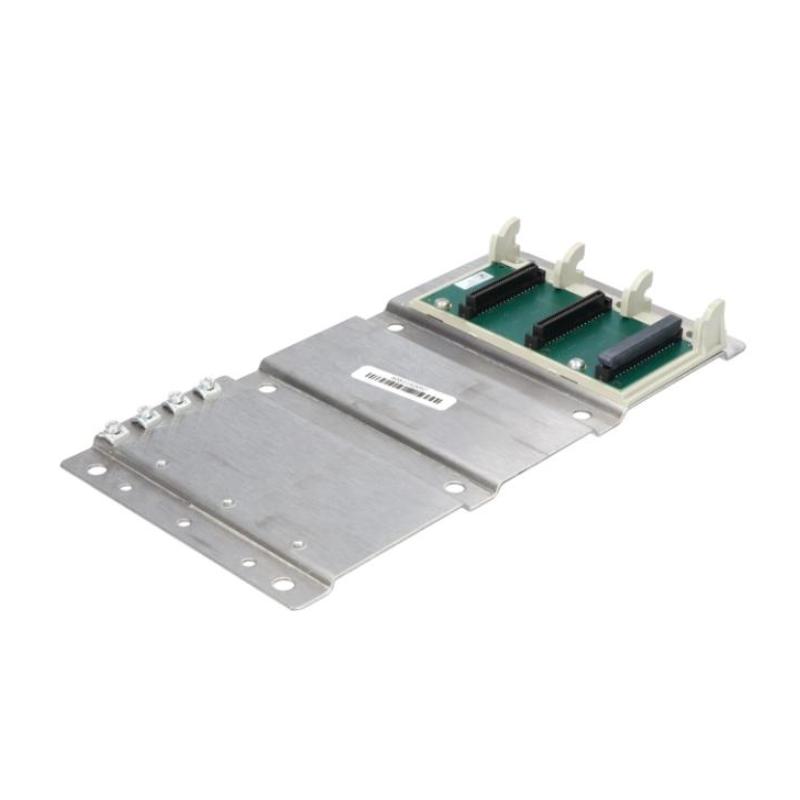

Schneider 140XBP00300 4-Slot Rackmount Backplane

Overview

The Schneider 140XBP00300 is a 4-slot rackmount backplane designed for Modicon Quantum automation systems. It provides the physical and electrical foundation for installing CPU, I/O, and communication modules, ensuring stable data transfer and power distribution within the PLC rack.

General Information

Part Number: 140XBP00300

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: Rackmount Backplane

Mounting Type: Rack installation in Quantum cabinet system

Function: Provides module mounting, power distribution, and system communication bus

Design: Industrial backplane chassis for modular PLC configuration

Power Specifications

Supply Voltage: 5 V DC (via system power supply module)

Power Distribution: Backplane distributes power to installed modules

Power Consumption: Passive component (no active electronics)

Protection: Electrical grounding and isolation structure

Start-Up: Automatic activation when connected to system power supply

Communication & Interface

Interface Type: Quantum system backplane bus

Slot Capacity: 4 module slots

Data Bus: High-speed internal PLC communication bus

Diagnostics: System-level module detection via CPU

System Integration: Compatible with Modicon Quantum CPU and I/O modules

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial IEC-standard compliant

Protection Rating: IP20 (when installed in cabinet)

Installation Environment: Industrial control cabinet required

Dimensions & Weight

Dimensions (H × W × D): 50 × 245 × 295 mm

Weight: 0.34 kg
