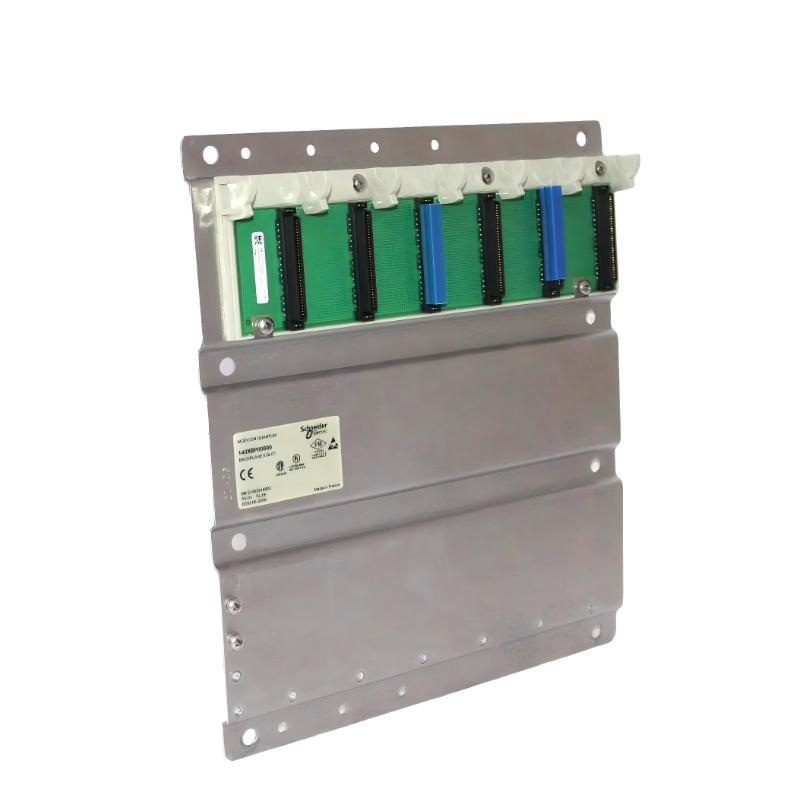

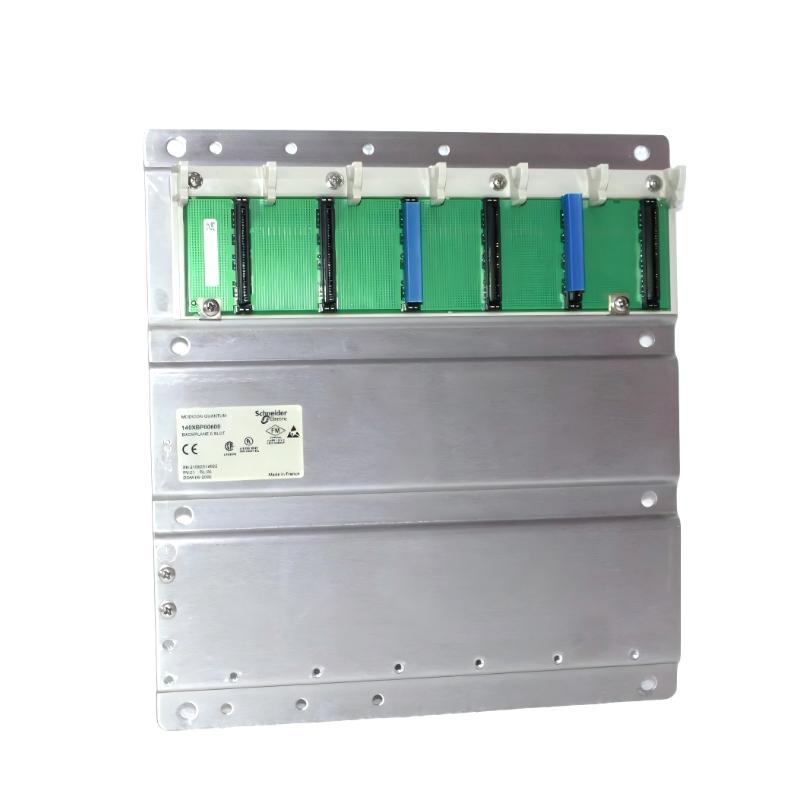

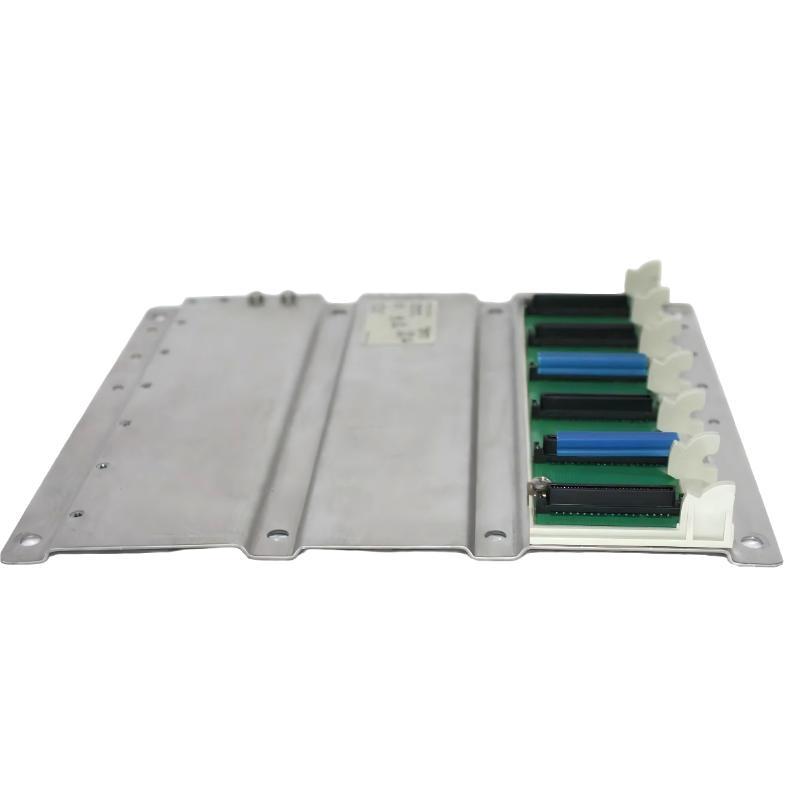

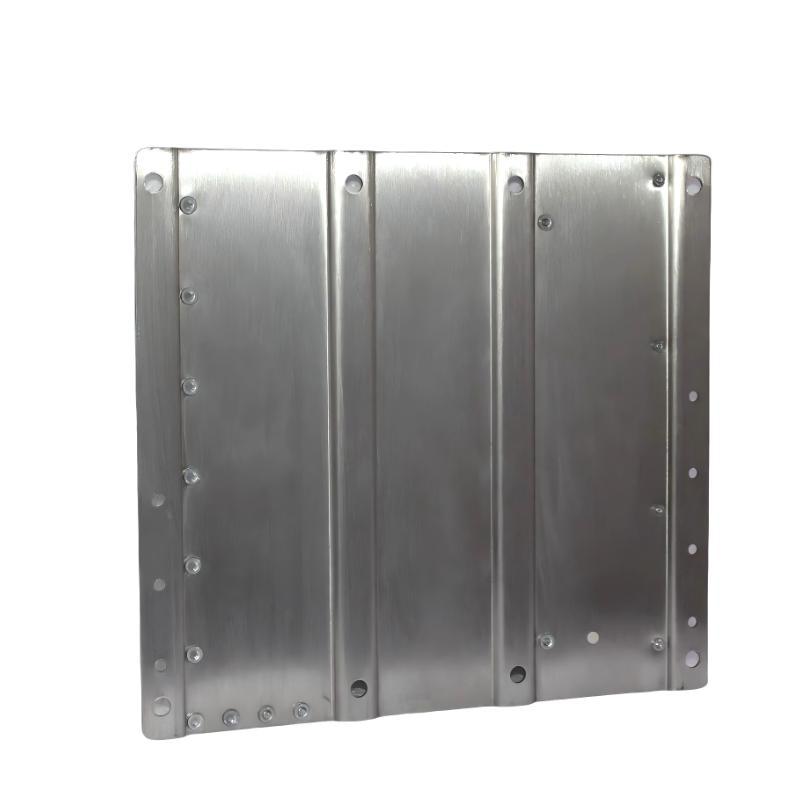

Schneider 140XBP00600 6-Slot Rack Backplane

Overview

The Schneider 140XBP00600 is a 6-slot rack backplane designed for Modicon Quantum automation systems. It provides the mechanical structure and internal communication bus required to mount and interconnect PLC modules, including CPU, I/O, and communication modules. It ensures stable power distribution and reliable system-level data exchange.

General Information

Part Number: 140XBP00600

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: Rack Backplane

Mounting Type: Rack installation in Quantum control cabinet

Function: Supports module mounting, system communication, and power distribution

Design: Industrial modular backplane for PLC expansion systems

Power Specifications

Supply Voltage: 5 V DC (via system power supply module)

Power Distribution: Backplane distributes power to all installed modules

Power Consumption: Passive component (no active electronics)

Protection: Electrical grounding and shielding for system stability

Start-Up: Activated automatically when connected to system power supply

Communication & Interface

Interface Type: Quantum backplane communication bus

Slot Capacity: 6 module slots

Data Bus: High-speed internal PLC communication architecture

Diagnostics: Module recognition via CPU system diagnostics

System Integration: Compatible with Modicon Quantum CPU and I/O modules

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial IEC-standard compliant

Protection Rating: IP20 (installed in cabinet)

Installation Environment: Industrial control cabinet required

Dimensions & Weight

Dimensions (H × W × D): 265 × 29.1 × 290 mm

Weight: 0.64 kg
