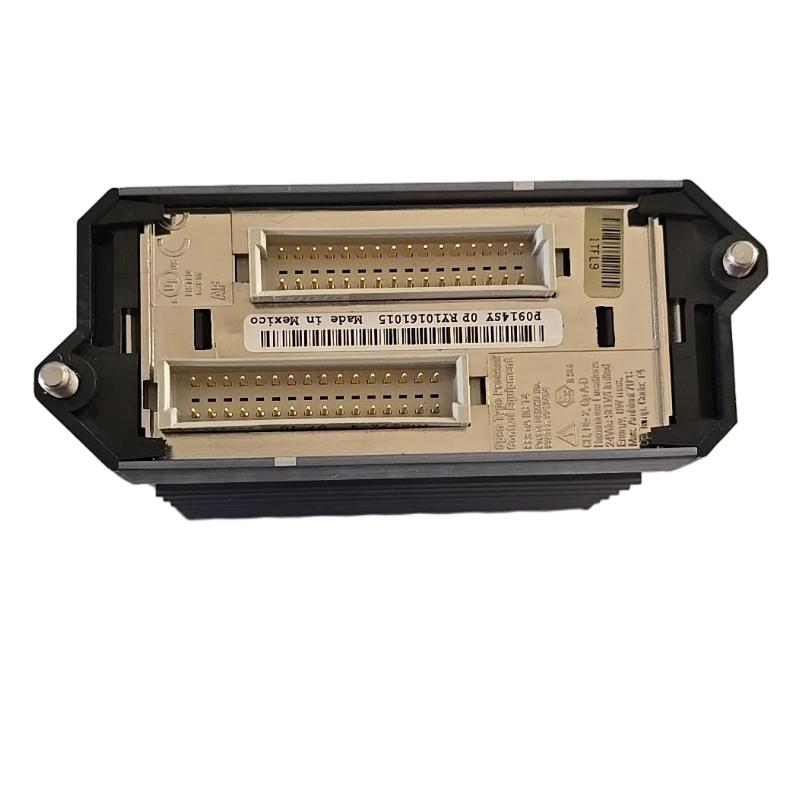

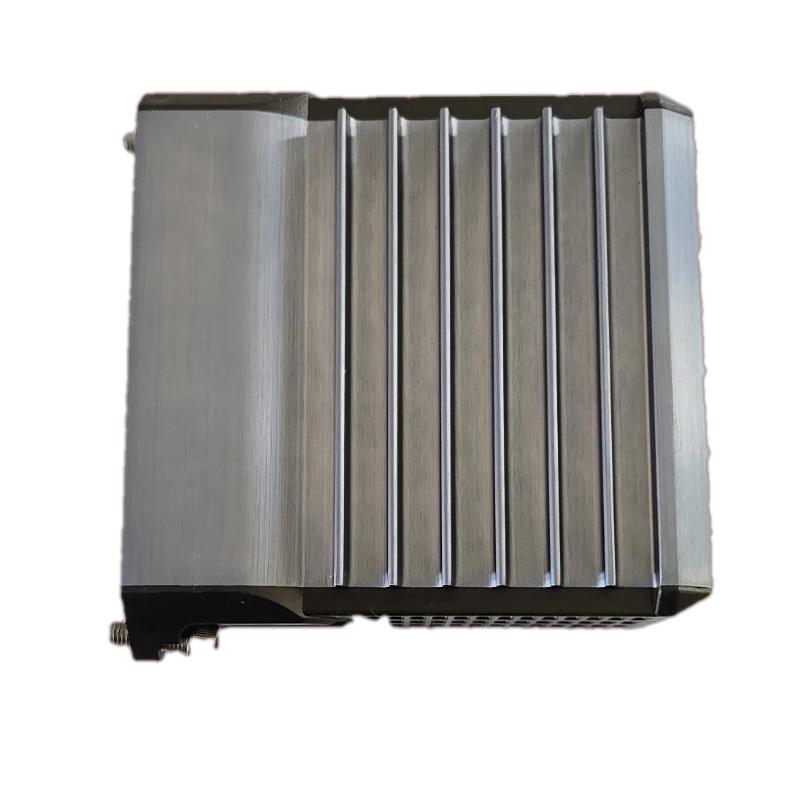

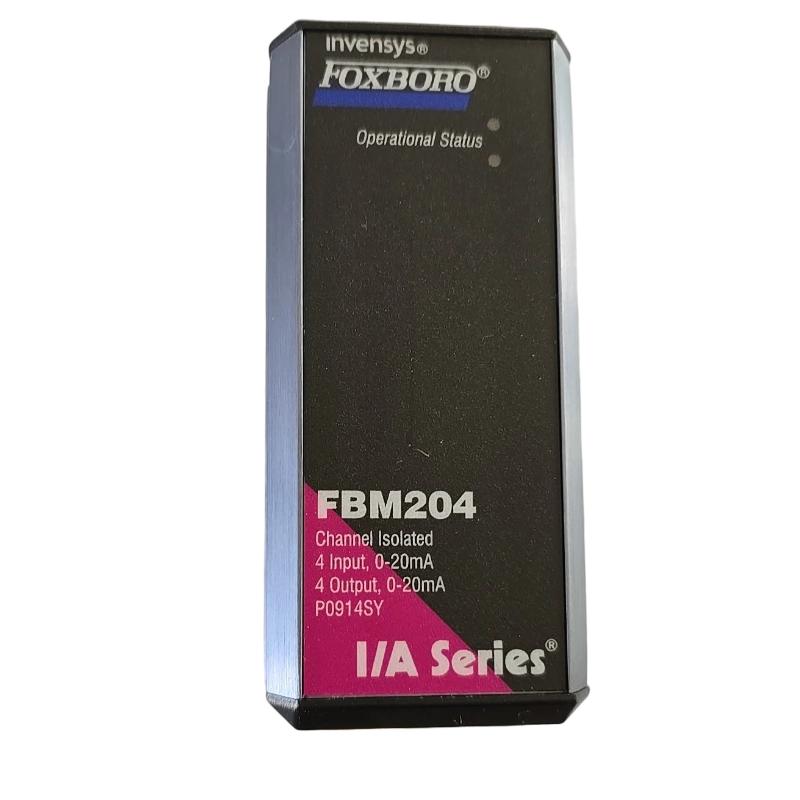

Schneider FBM204 I/O Interface Module

Overview

The Schneider FBM204 I/O Interface Module is an industrial interface module designed for reliable signal processing and field device connection in automation control systems. It provides an effective link between field instruments and control platforms, supporting accurate data acquisition and stable system operation.

The FBM204 is commonly used in process automation applications where dependable I/O communication, signal conditioning, and modular system integration are required.

General Information

Part Number: FBM204

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Foxboro FBM Series

Type: I/O Interface Module

Application: Process control, field signal connection, and automation monitoring

Module Function: Provides input/output signal interface between field devices and control systems

Installation: Mounted in industrial control cabinets or modular I/O racks

Design: Modular construction for flexible system expansion

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power industrial operation

Power Input: Powered through the system backplane

Protection Features: Electrical isolation and signal protection design

Status Indicators: LED indicators for module status and communication condition

Communication & Interface

I/O Channels: Supports field signal connection for industrial process applications

Signal Interface: Provides communication between field devices and control processors

Communication Function: Transfers process data between I/O modules and automation systems

Diagnostics: Supports module status monitoring and fault indication

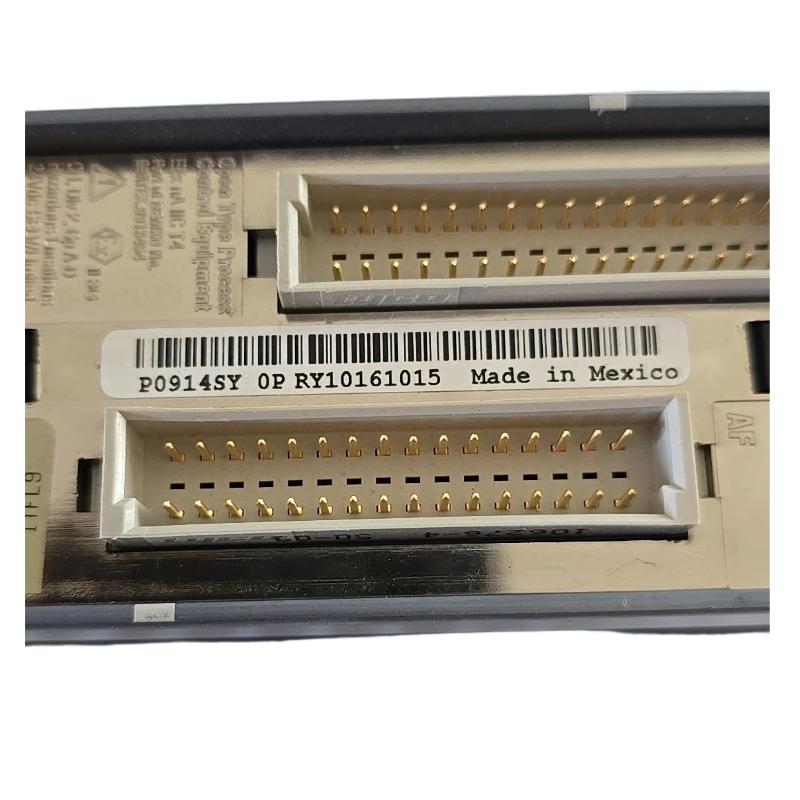

Connection Type: Terminal block field wiring interface

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: Suitable for industrial storage conditions

Relative Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for installation inside industrial cabinets

Installation Environment: Suitable for process control rooms, automation panels, and industrial systems

Reliability Design: Built for continuous operation in industrial environments

Dimensions & Weight

Dimensions (L × W × H): 114 × 45 × 104 mm

Weight: 0.284 kg
