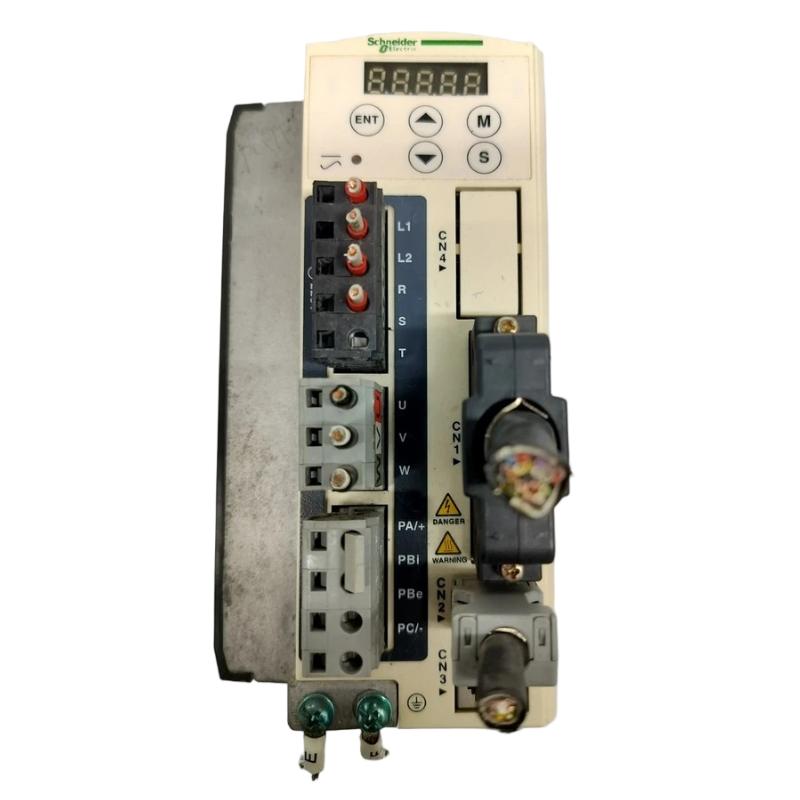

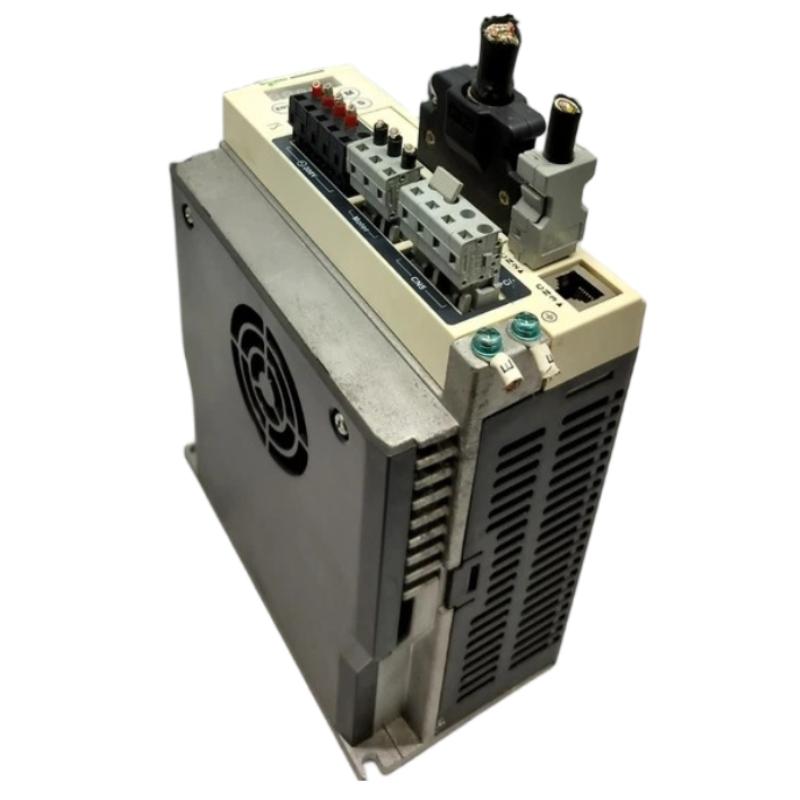

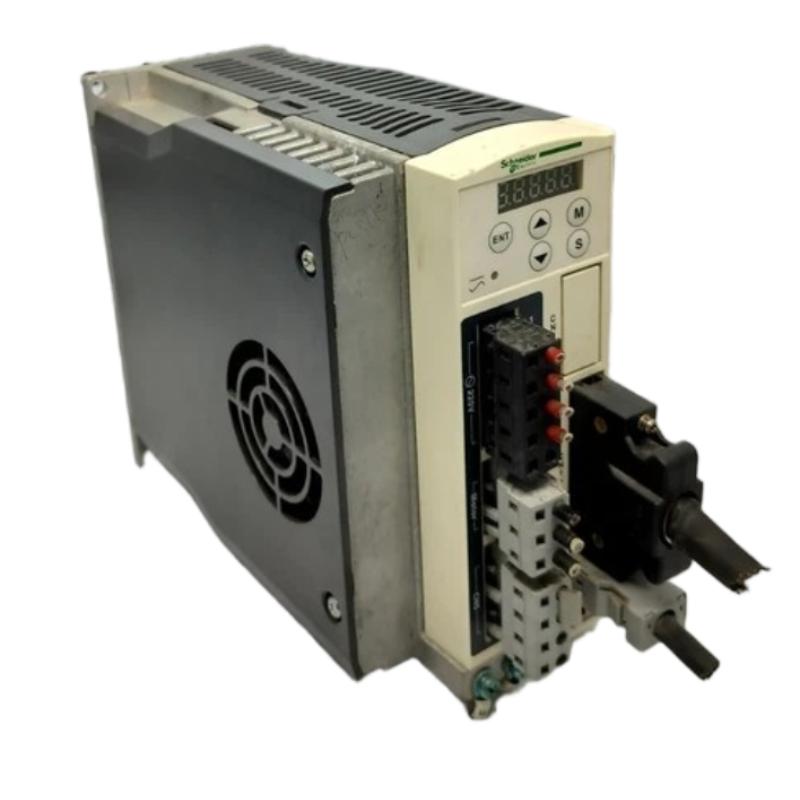

Schneider LXM23DU10M3X Motion Servo Drive

Overview

The Schneider LXM23DU10M3X Motion Servo Drive is a reliable servo control device designed for high-precision motion applications in industrial automation systems. It provides accurate positioning, smooth speed regulation, and stable torque control, making it suitable for packaging machines, robotics, CNC equipment, and automated production lines.

General Information

Part Number: LXM23DU10M3X

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Lexium 23

Product Type: Motion Servo Drive

Mounting: Panel Mount

Application: Servo Motor Control and Industrial Motion Systems

Power Specifications

Input Voltage: 200–230 V AC, Three-Phase

Rated Power: 1.0 kW

Output: Three-Phase AC Motor Drive Output

Control Power Supply: Integrated Internal Power Circuit

Protection: Overvoltage, Overcurrent, Overload, Short Circuit, and Overtemperature Protection

Status Indicators: Power, Run, Alarm, and Communication LEDs

Communication & Interface

Control Interface: Pulse Train and Analog Command Control

Communication Port: RS-232 / RS-485

Feedback Support: Encoder Feedback Interface

Programming: Parameter Configuration and Drive Setup Software

Control Modes: Position, Speed, and Torque Control

Diagnostics: Real-Time Fault Detection and Operating Status Monitoring

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +65°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 85 × 162 × 180 mm

Weight: 2.2 kg

In Stock Now – Fast Processing and Reliable Automation Performance.
