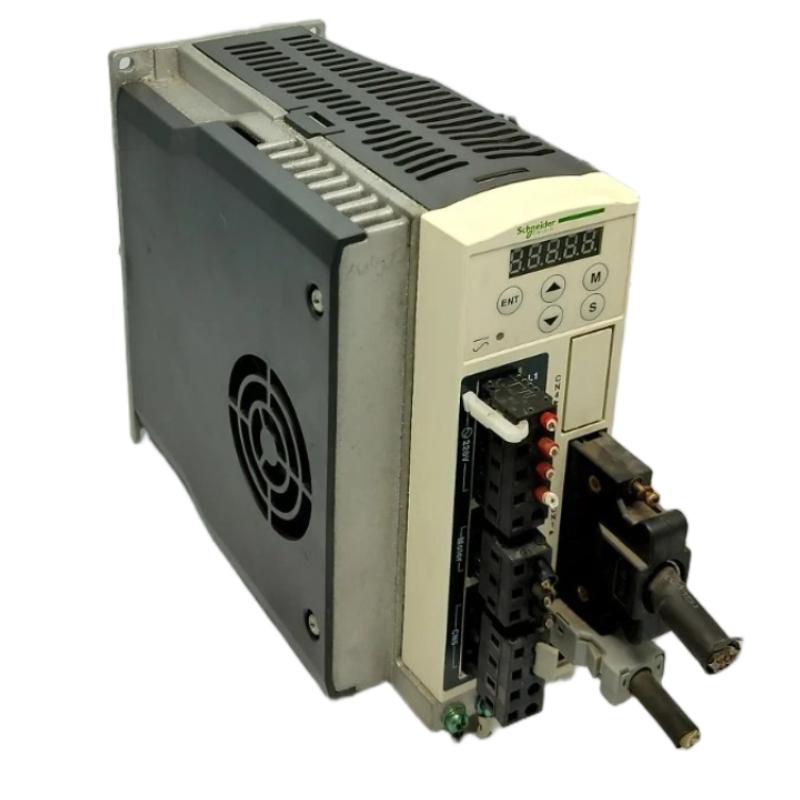

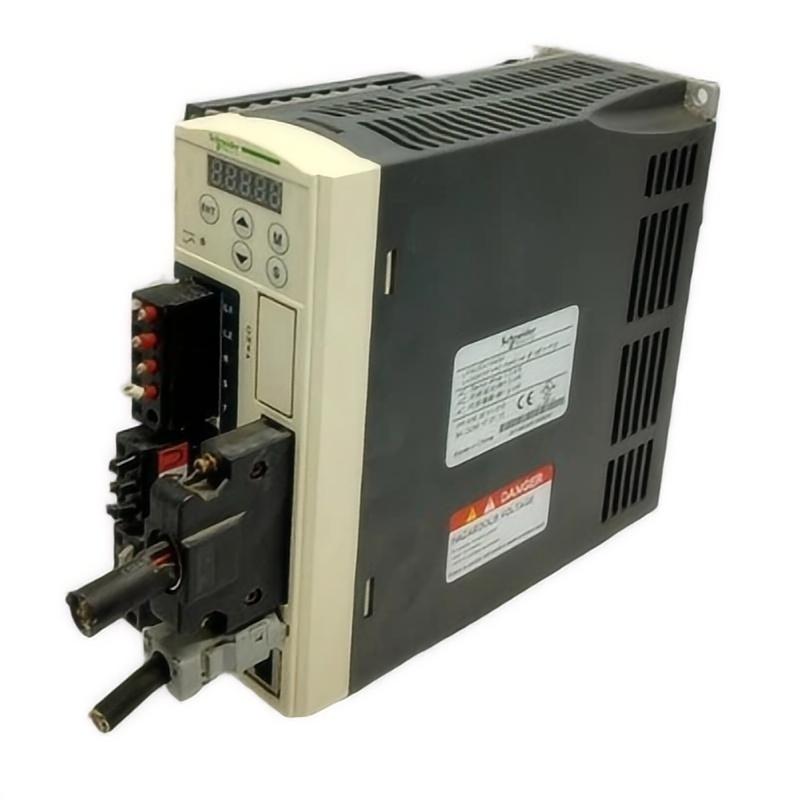

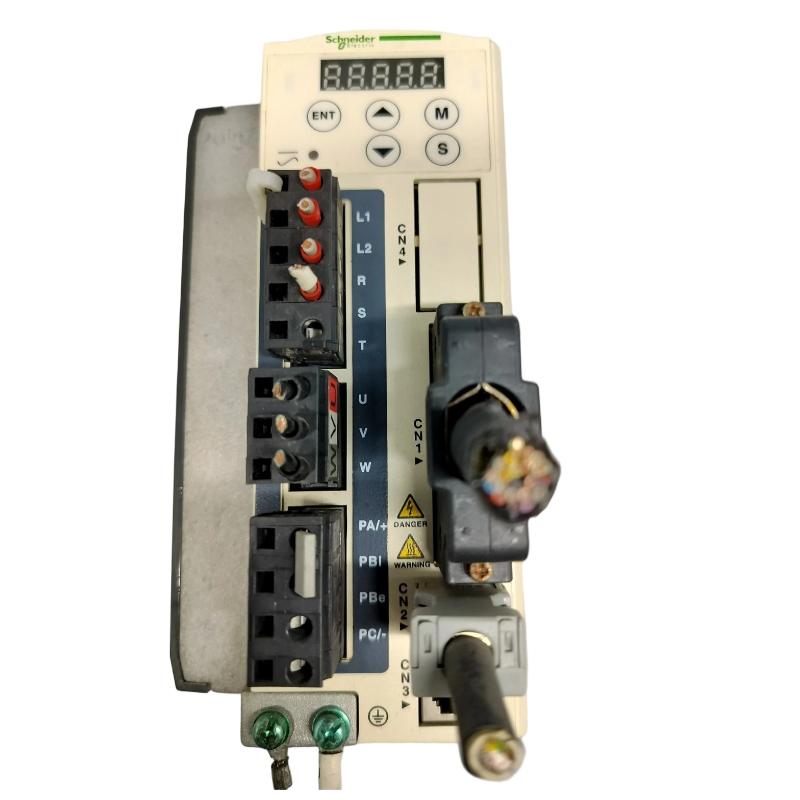

Schneider LXM23DU15M3X Motion Servo Drive

Overview

The Schneider LXM23DU15M3X Motion Servo Drive is a high-performance servo drive designed for precise and reliable motion control in industrial automation systems. It provides accurate positioning, smooth speed regulation, and stable torque management, making it suitable for packaging equipment, robotics, CNC machines, and automated production applications.

General Information

Part Number: LXM23DU15M3X

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Lexium 23

Product Type: Motion Servo Drive

Mounting: Panel Mount

Application: Servo Motor Control and Precision Motion Systems

Power Specifications

Input Voltage: 200–230 V AC, Three-Phase

Rated Power: 1.5 kW

Output: Three-Phase AC Motor Drive Output

Control Power Supply: Integrated Internal Power Circuit

Protection: Overvoltage, Overcurrent, Overload, Short Circuit, and Overtemperature Protection

Status Indicators: Power, Run, Alarm, and Communication LEDs

Communication & Interface

Control Interface: Pulse Train and Analog Command Control

Communication Port: RS-232 / RS-485

Feedback Support: Encoder Feedback Interface

Programming: Parameter Configuration and Drive Setup Software

Control Modes: Position, Speed, and Torque Control

Diagnostics: Real-Time Fault Detection and Operating Status Monitoring

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +65°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 85 × 162 × 180 mm

Weight: 2.2 kg
