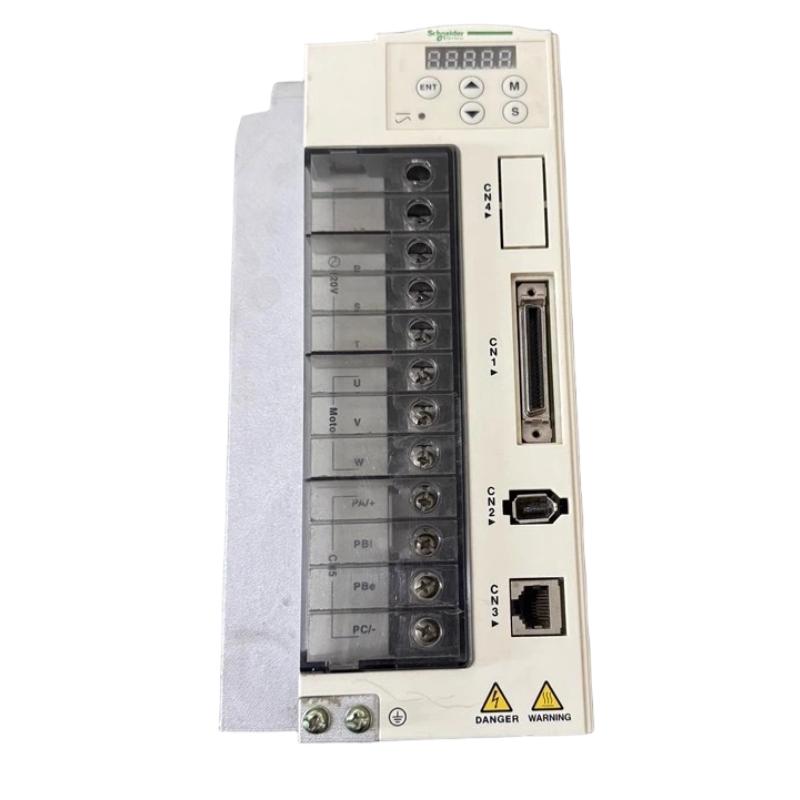

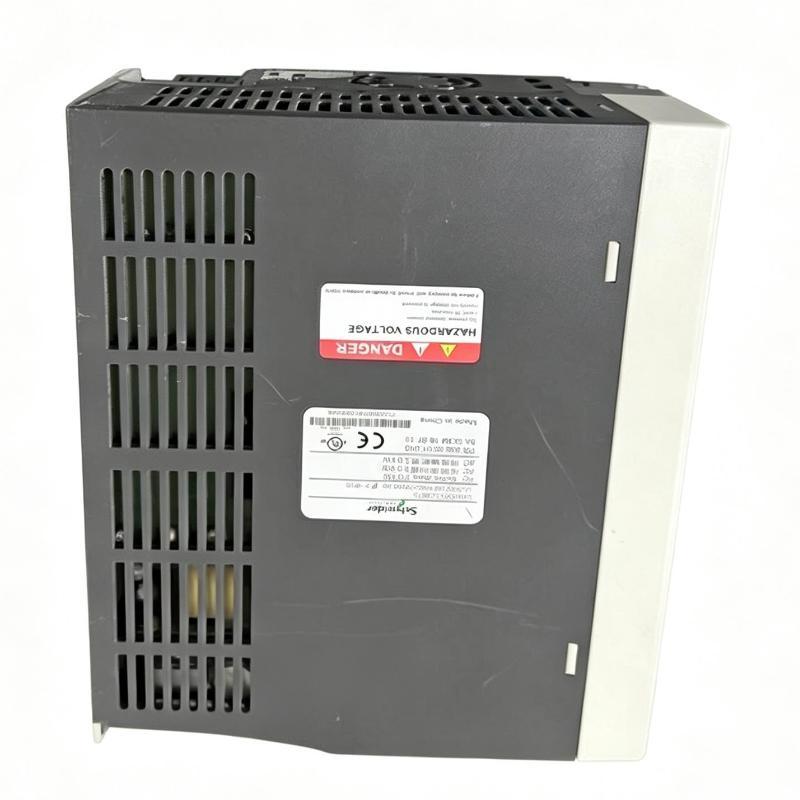

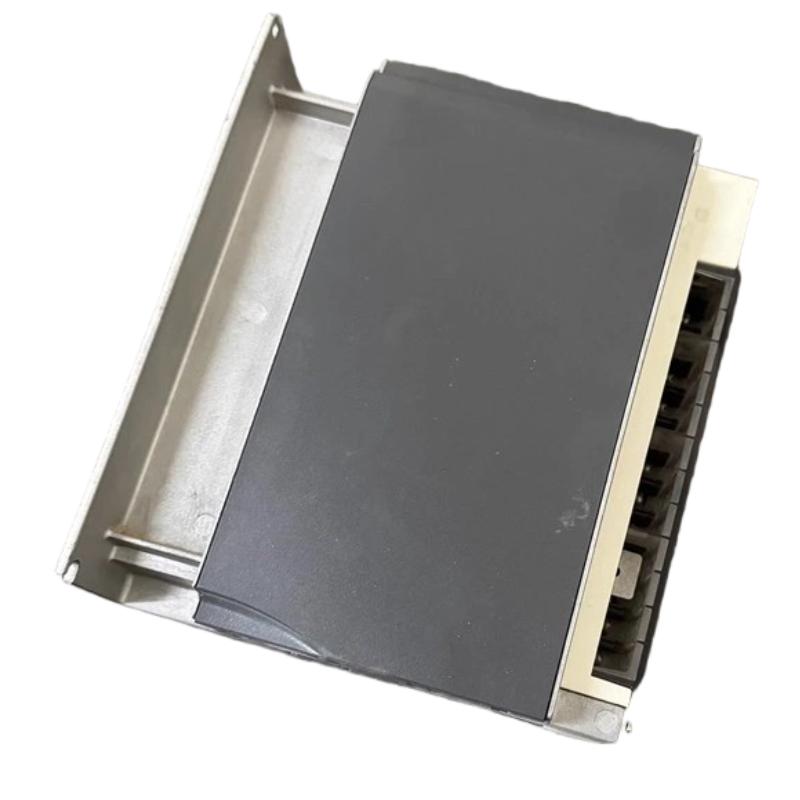

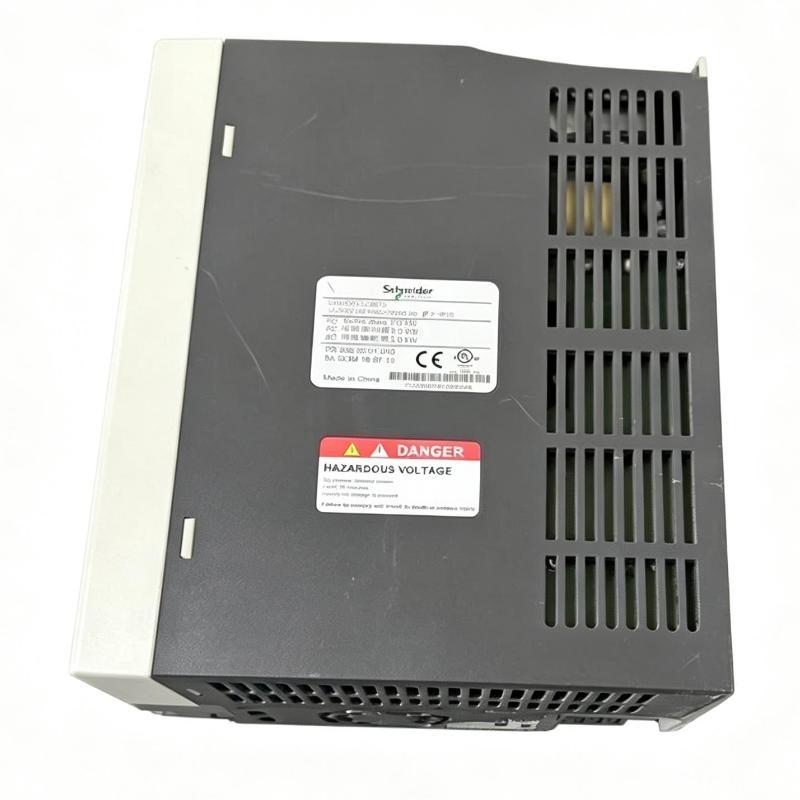

Schneider LXM23DU30M3X Motion Servo Drive

Overview

The Schneider LXM23DU30M3X Motion Servo Drive is a high-performance AC servo drive designed for demanding industrial motion control applications. It delivers precise positioning, smooth speed regulation, and accurate torque control, making it ideal for packaging machines, CNC equipment, robotics, material handling systems, and automated production lines.

General Information

Part Number: LXM23DU30M3X

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Lexium 23

Product Type: Motion Servo Drive

Motor Compatibility: Lexium 23 AC Servo Motors

Mounting Method: Panel Mount

Application: Industrial Motion Control and Precision Automation

Power Specifications

Input Voltage: 200–230 V AC, Three-Phase

Input Frequency: 50/60 Hz

Continuous Output Power: 3.0 kW

Continuous Output Current: 19.4 A

Control Modes: Position, Speed, and Torque Control

Protection Features: Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature, Encoder Error, Short-Circuit Protection

Cooling Method: Integrated Cooling Fan

Communication & Interface

Communication Ports: RS-232, RS-485 (Modbus)

Digital Inputs: 8 Programmable Inputs

Digital Outputs: 5 Outputs

Feedback Device: Incremental Encoder

Configuration: PC-Based Parameter Setup and Servo Tuning

Diagnostic Functions: Alarm History, Real-Time Monitoring, Fault Detection

Motion Functions: Electronic Gearing, Homing, Positioning, Multi-Speed Control

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +65°C

Relative Humidity: 5% to 85% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Indoor Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 114 × 225 × 195 mm

Weight: 3.2 kg
