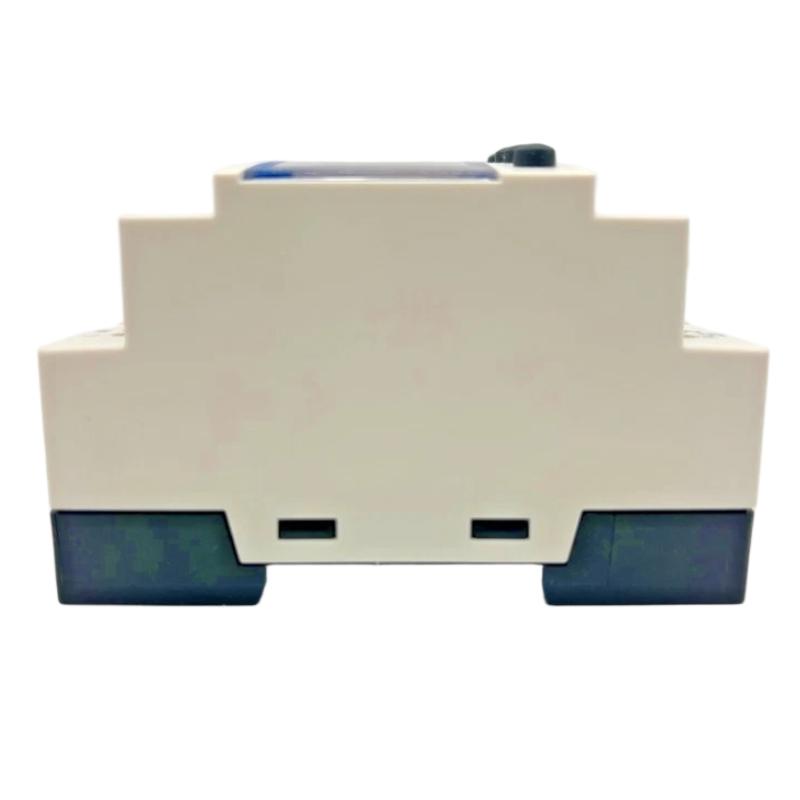

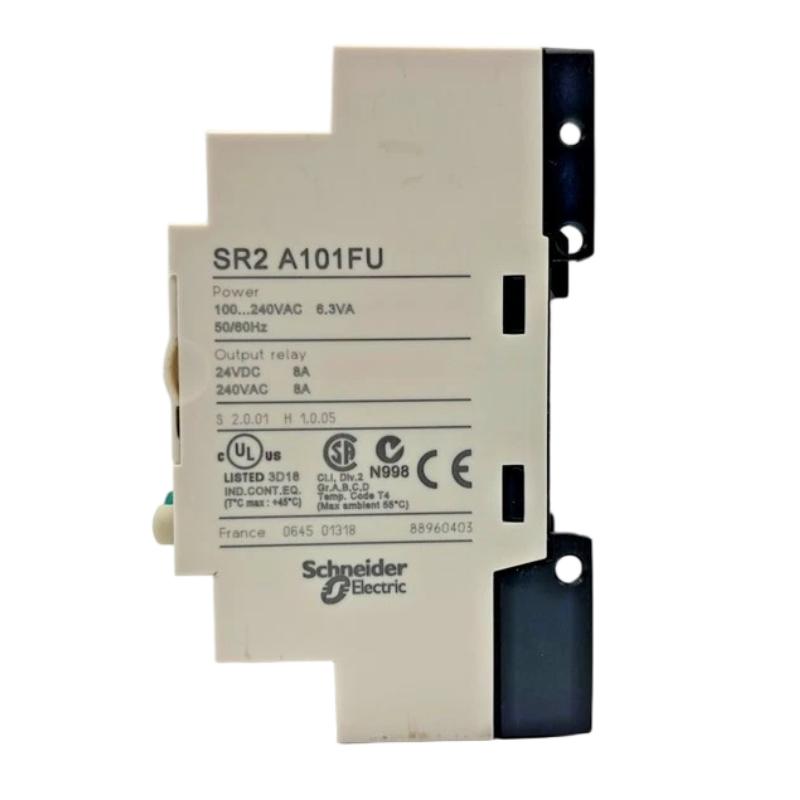

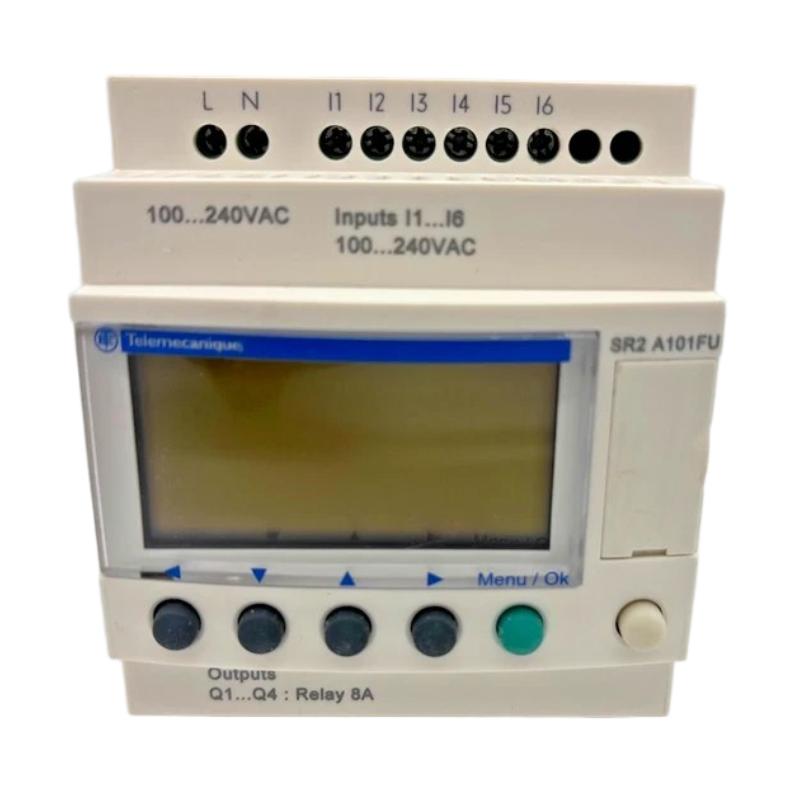

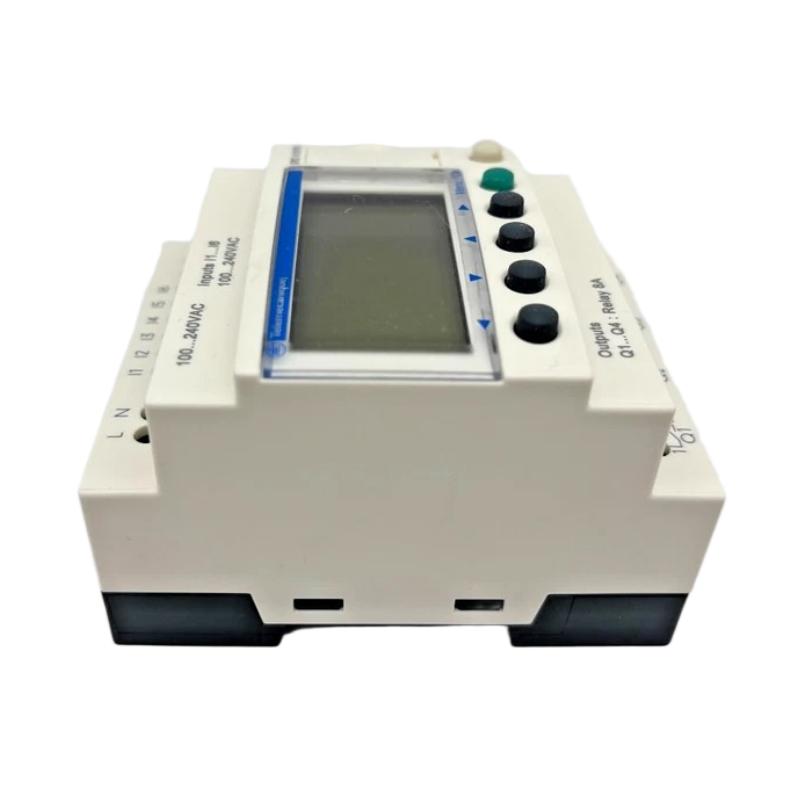

Schneider SR2A101FU Compact Smart Relay

Overview

The Schneider SR2A101FU Compact Smart Relay is a flexible and compact control device designed for simple automation tasks and small-scale machine control applications. It provides reliable logic control, easy programming, and efficient operation for applications such as lighting systems, pump control, building automation, and compact industrial equipment.

General Information

Part Number: SR2A101FU

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Zelio Logic

Product Type: Compact Smart Relay

Control Type: Programmable Logic Control Relay

Mounting Method: DIN Rail Mount

Application: Small Automation Systems, Machine Control, Building Automation

Power Specifications

Supply Voltage: 100–240 V AC

Frequency: 50/60 Hz

Power Consumption: Low Power Operation

Input Type: Digital Inputs

Output Type: Relay Outputs

Protection Features: Overvoltage Protection, Short-Circuit Protection, Thermal Protection

Status Indicators: LED Status Display for Power and Operation Monitoring

Communication & Interface

Programming Interface: PC Programming Connection

Programming Method: Function Block Diagram (FBD) and Ladder Logic

Digital Inputs: 10 Inputs

Relay Outputs: 6 Outputs

Display Interface: Integrated LCD Display and Keypad

Diagnostic Functions: System Monitoring, Error Display, Program Verification

Environmental

Operating Temperature: -20°C to +55°C

Storage Temperature: -40°C to +70°C

Relative Humidity: 10% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Indoor Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 107.6 × 71.2 × 59.5 mm

Weight: 0.25 kg

Ready Stock Available with Quick Delivery Service.
