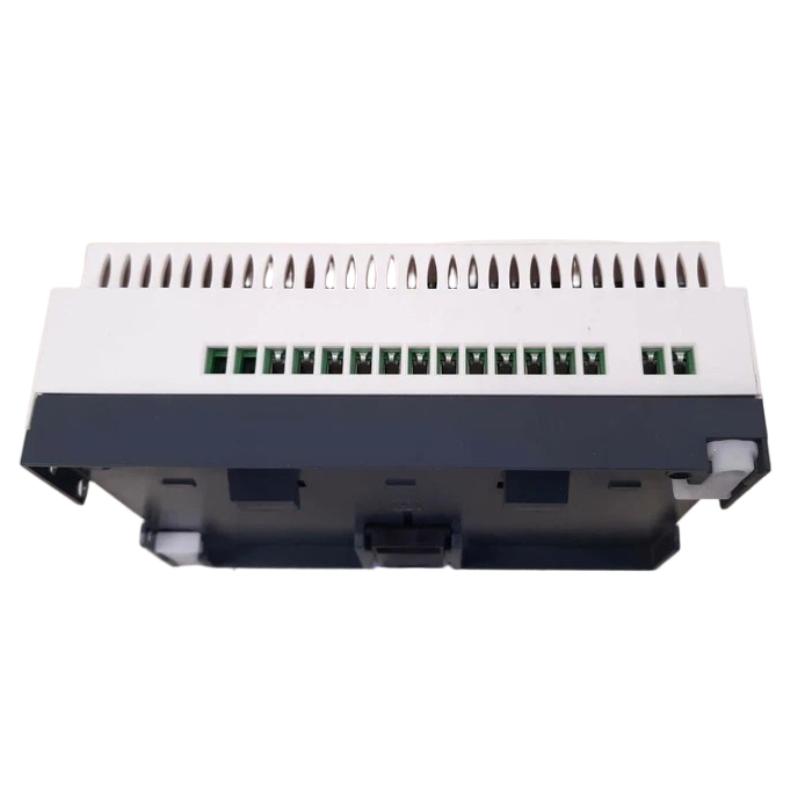

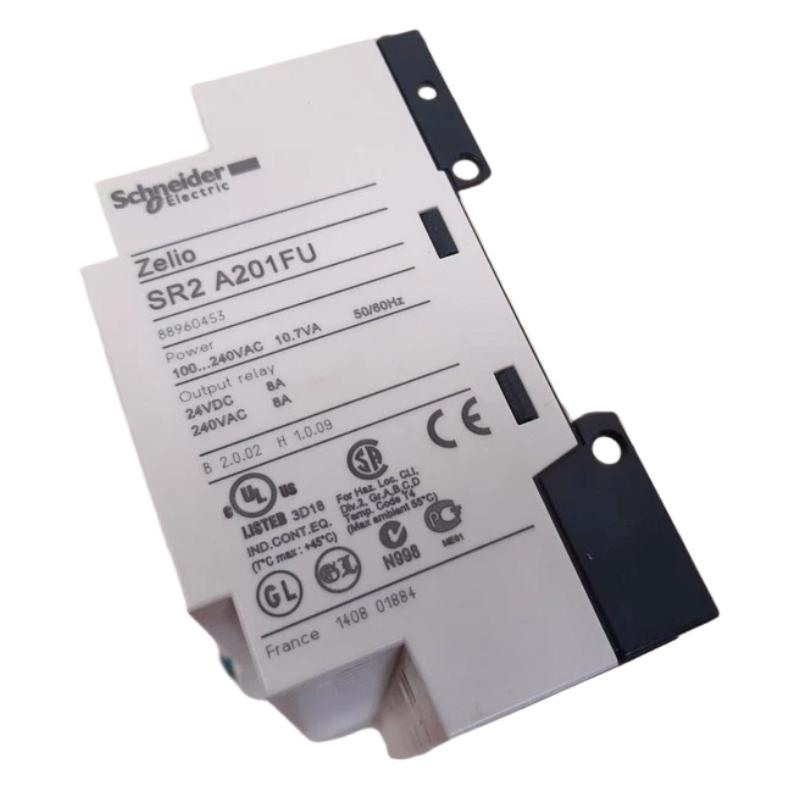

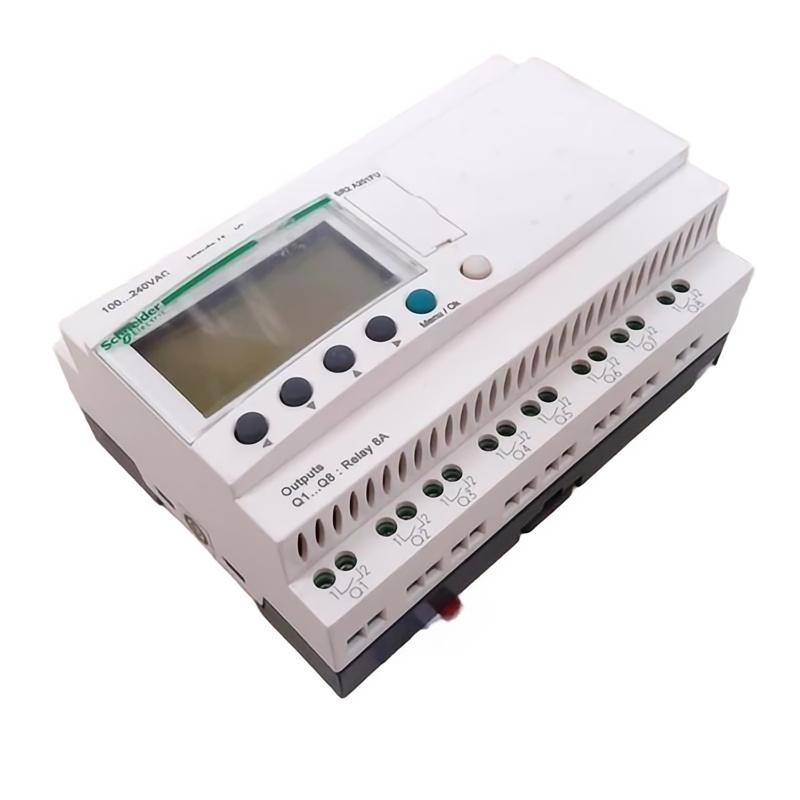

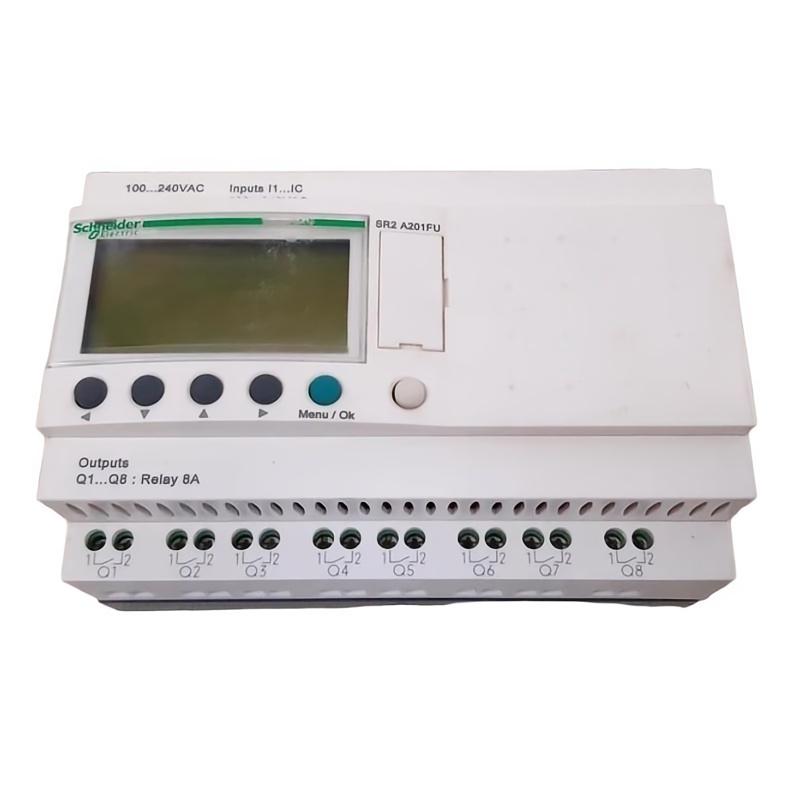

Schneider SR2A201FU Compact Smart Relay

Overview

The Schneider SR2A201FU Compact Smart Relay is a programmable control device designed for efficient automation management in small and medium-sized control applications. It provides flexible logic programming, reliable relay control, and easy integration into industrial and commercial automation systems, including machine control, lighting management, HVAC systems, and simple process automation.

General Information

Part Number: SR2A201FU

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Zelio Logic

Product Type: Compact Smart Relay

Control Type: Programmable Logic Control Relay

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Building Control, Small Machine Systems

Power Specifications

Supply Voltage: 100–240 V AC

Frequency: 50/60 Hz

Power Consumption: Low Power Operation

Input Type: Digital Inputs

Output Type: Relay Outputs

Protection Features: Overvoltage Protection, Short-Circuit Protection, Thermal Protection

Status Indicators: LED Indicators for Power, Run, and Fault Status

Communication & Interface

Programming Interface: PC Programming Connection

Programming Method: Ladder Logic and Function Block Diagram (FBD)

Digital Inputs: 12 Inputs

Relay Outputs: 8 Outputs

Display Interface: Integrated LCD Display and Keypad

Diagnostic Functions: Program Monitoring, Fault Display, System Diagnostics

Expansion Capability: Supports Additional Expansion Modules for Extended Control Functions

Environmental

Operating Temperature: -20°C to +55°C

Storage Temperature: -40°C to +70°C

Relative Humidity: 10% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Indoor Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 124.6 × 107.6 × 59.5 mm

Weight: 0.38 kg
