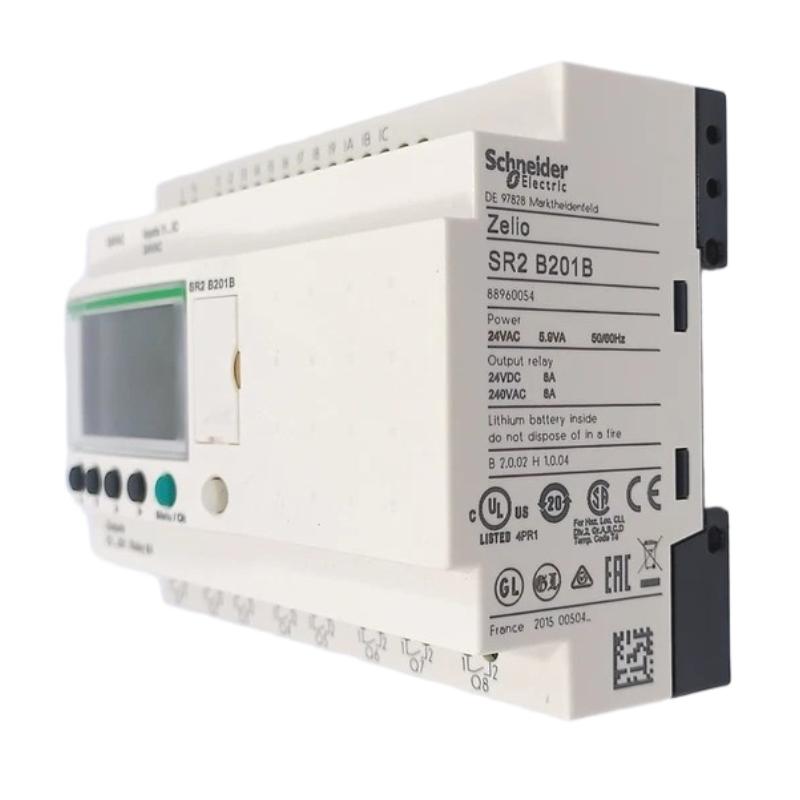

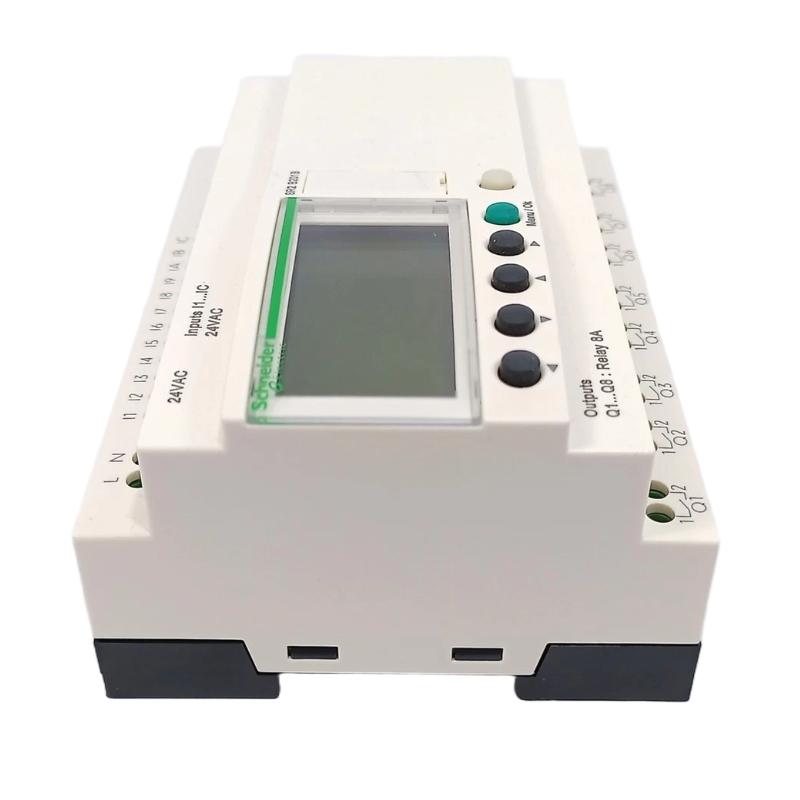

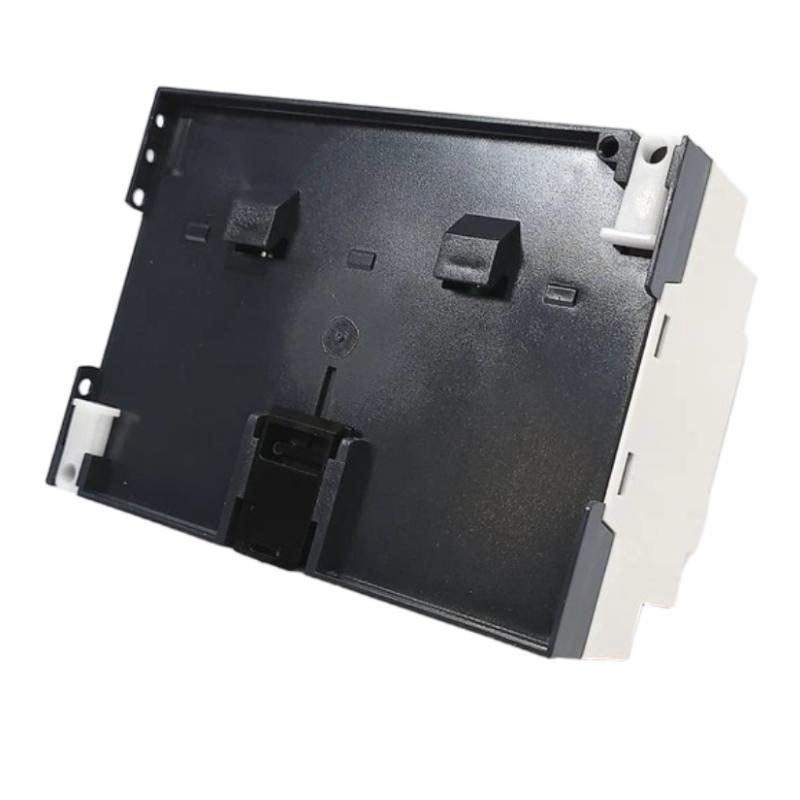

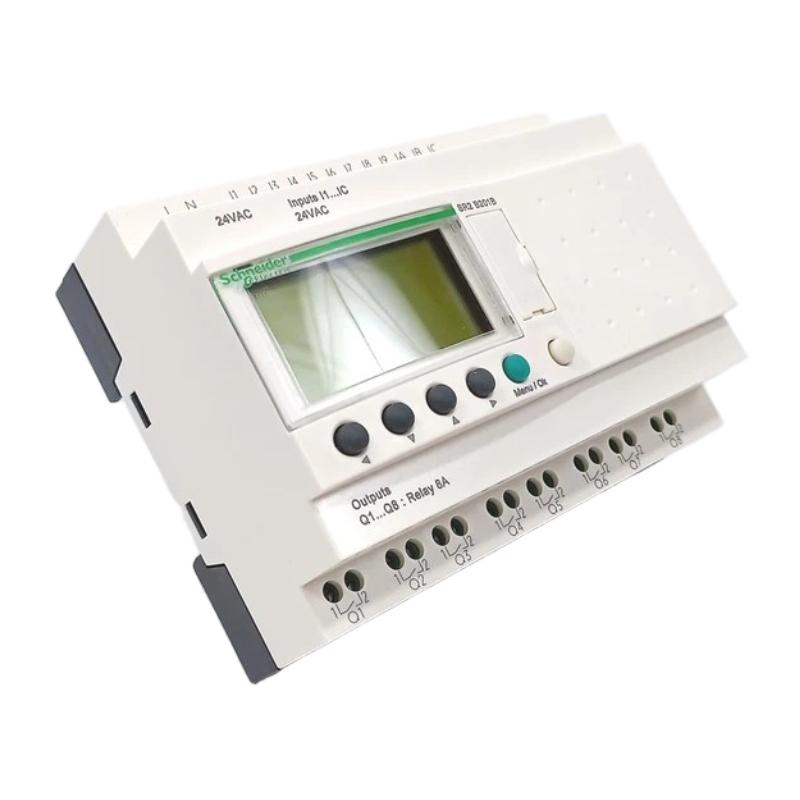

Schneider SR2B201B Compact Smart Relay

Overview

The Schneider SR2B201B Compact Smart Relay is a programmable control device designed for efficient management of small and medium automation applications. It provides reliable logic processing, flexible programming functions, and simple installation for industrial machines, building systems, lighting control, and compact automation solutions.

General Information

Part Number: SR2B201B

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Zelio Logic

Product Type: Compact Smart Relay

Control Type: Programmable Logic Control Relay

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Machine Control, Building Management Systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Operation

Input Type: Digital Inputs

Output Type: Relay Outputs

Protection Features: Overvoltage Protection, Short-Circuit Protection, Thermal Protection

Status Indicators: LED Indicators for Power, Run, and Fault Status

Memory Function: Program Storage with Data Retention

Communication & Interface

Programming Interface: PC Programming Connection

Programming Method: Ladder Logic and Function Block Diagram (FBD)

Digital Inputs: 12 Inputs

Relay Outputs: 8 Outputs

Display Interface: Integrated LCD Display and Keypad

Diagnostic Functions: Program Monitoring, Fault Display, System Diagnostics

Expansion Capability: Supports Expansion Modules for Additional I/O Functions

Environmental

Operating Temperature: -20°C to +55°C

Storage Temperature: -40°C to +70°C

Relative Humidity: 10% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Indoor Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 124.6 × 107.6 × 59.5 mm

Weight: 0.38 kg

Reliable Automation Solutions with Quick Availability.
