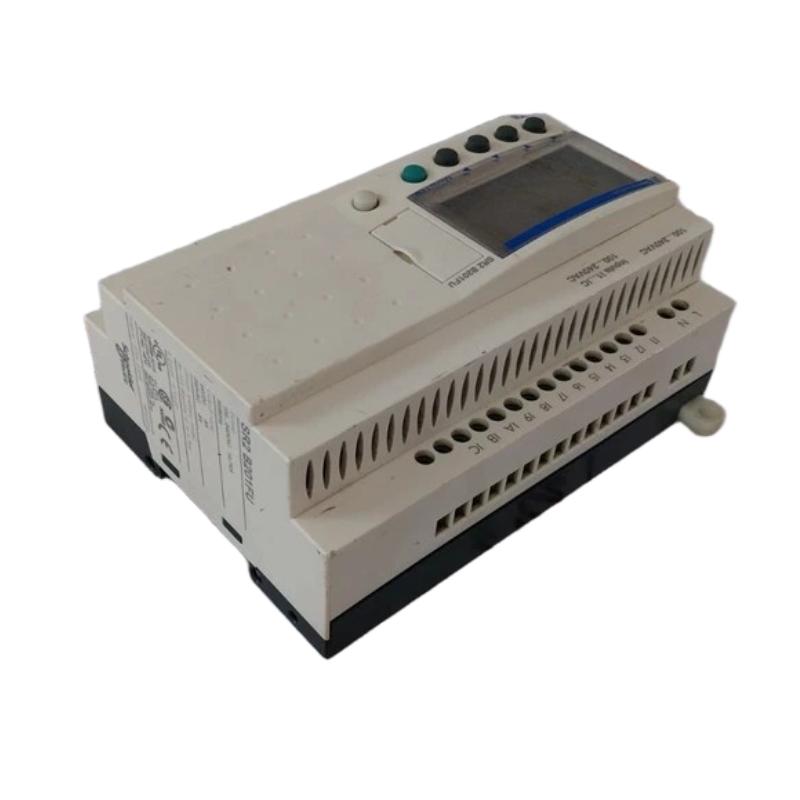

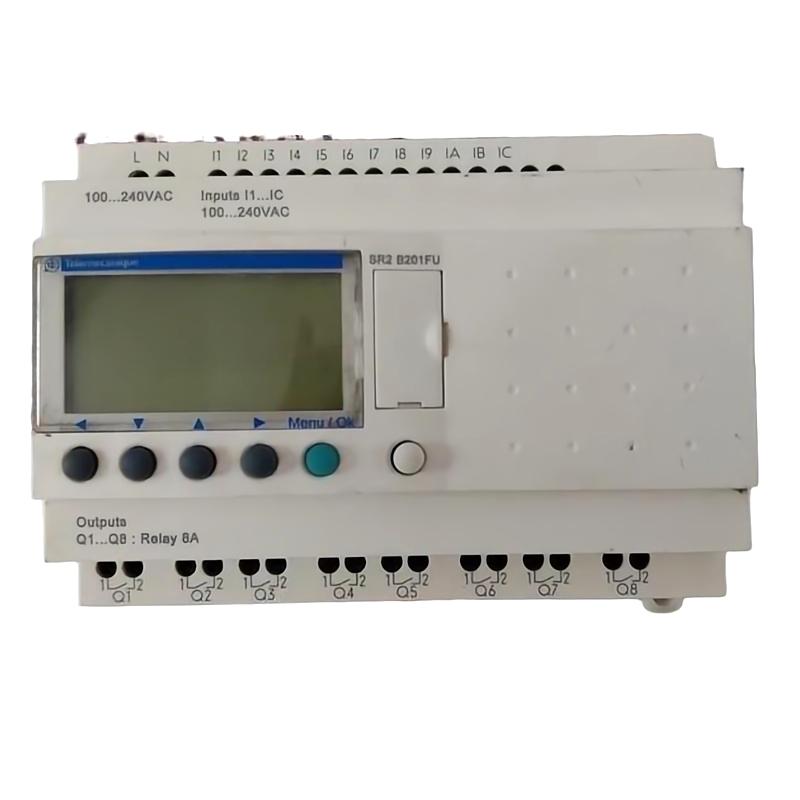

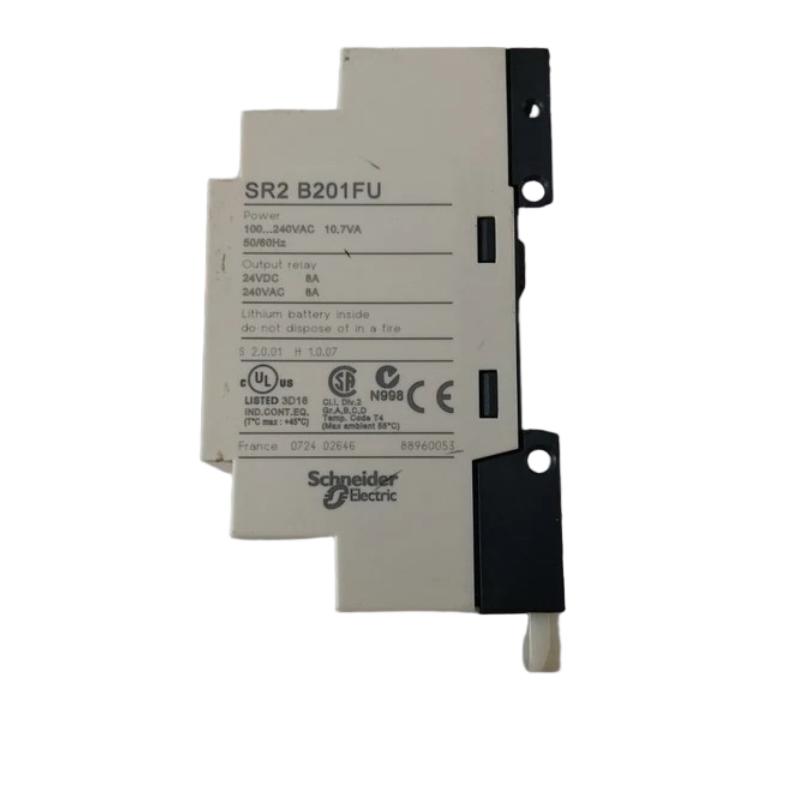

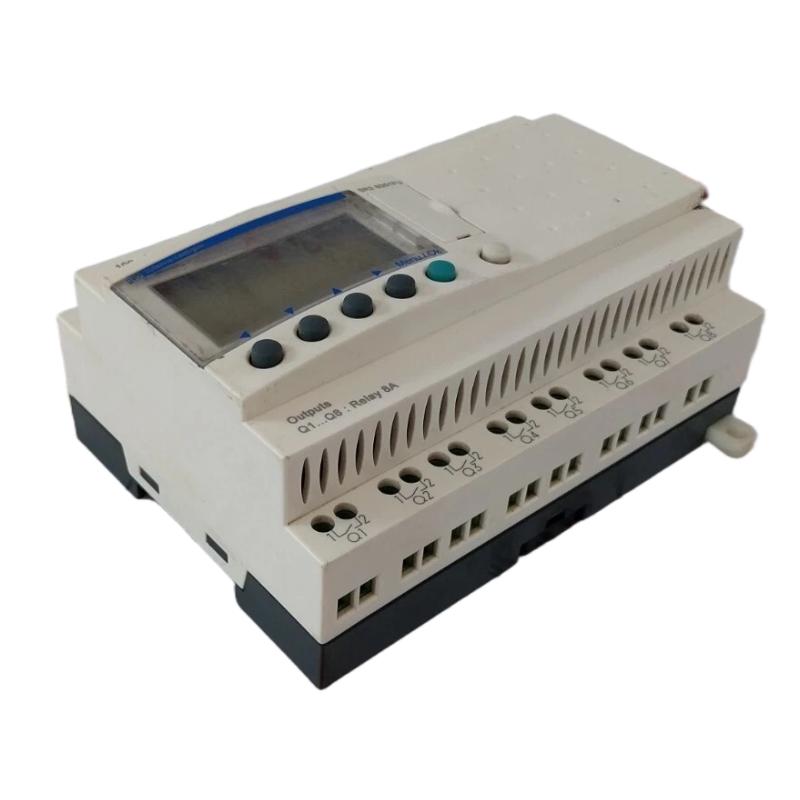

Schneider SR2B201FU Compact Smart Relay

Overview

The Schneider SR2B201FU Compact Smart Relay is a programmable control device designed for flexible and efficient automation of small and medium-sized systems. It provides reliable logic processing, simple configuration, and stable relay control performance for industrial machines, building automation, lighting control, and compact process applications.

General Information

Part Number: SR2B201FU

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Zelio Logic

Product Type: Compact Smart Relay

Control Type: Programmable Logic Control Relay

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Machine Control, Building Management Systems

Power Specifications

Supply Voltage: 100–240 V AC

Frequency: 50/60 Hz

Power Consumption: Low Power Operation

Input Type: Digital Inputs

Output Type: Relay Outputs

Protection Features: Overvoltage Protection, Short-Circuit Protection, Thermal Protection

Status Indicators: LED Indicators for Power, Run, and Fault Status

Memory Function: Program Storage with Data Retention

Communication & Interface

Programming Interface: PC Programming Connection

Programming Method: Ladder Logic and Function Block Diagram (FBD)

Digital Inputs: 12 Inputs

Relay Outputs: 8 Outputs

Display Interface: Integrated LCD Display and Keypad

Diagnostic Functions: Program Monitoring, Fault Display, System Diagnostics

Expansion Capability: Supports Expansion Modules for Additional I/O Functions

Environmental

Operating Temperature: -20°C to +55°C

Storage Temperature: -40°C to +70°C

Relative Humidity: 10% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Indoor Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 124.6 × 107.6 × 59.5 mm

Weight: 0.38 kg

Efficient Automation Control with Reliable Stock Availability.
