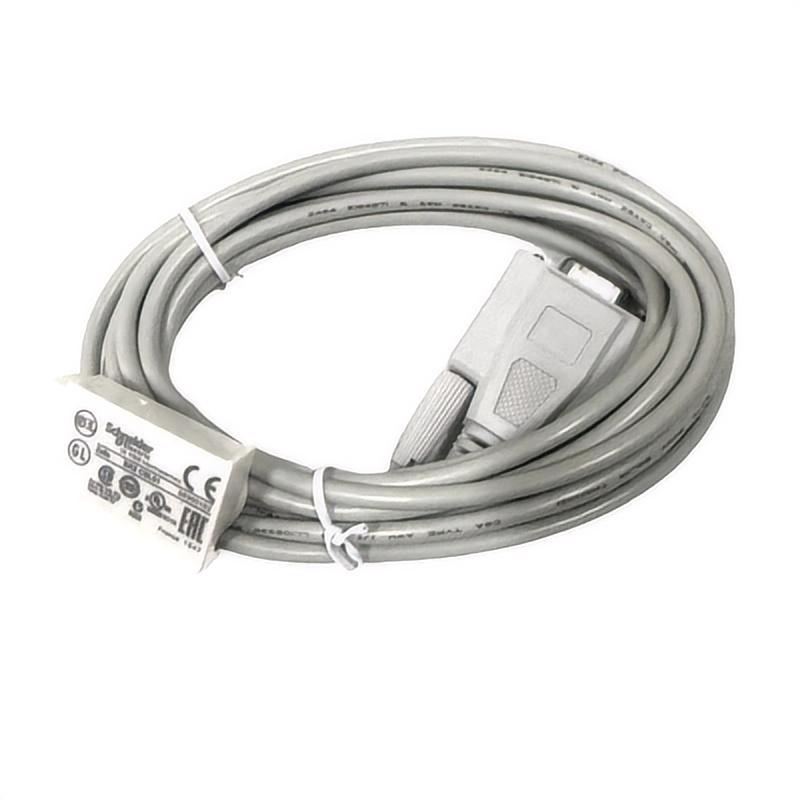

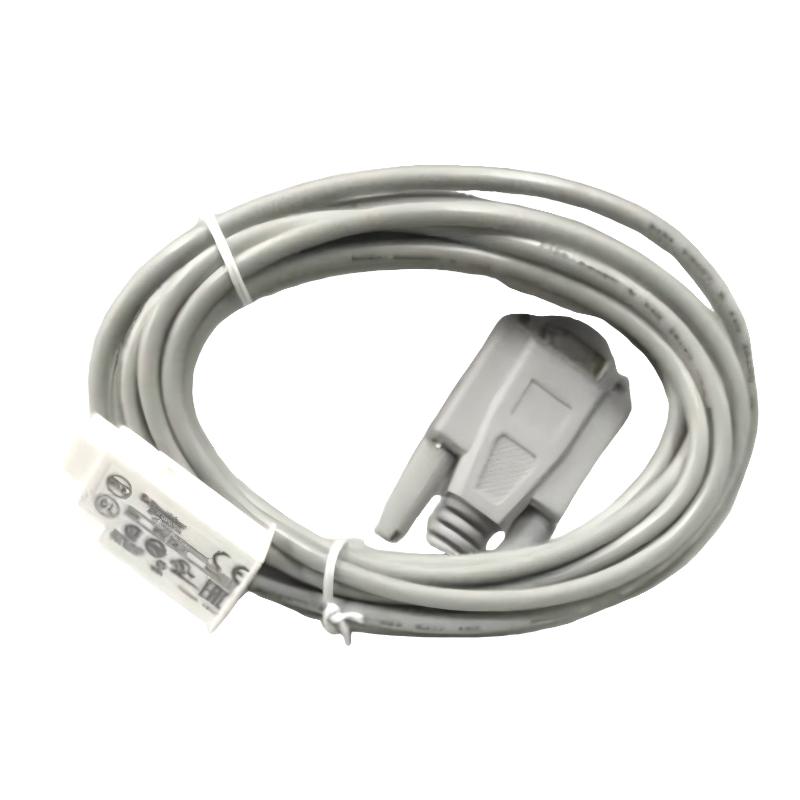

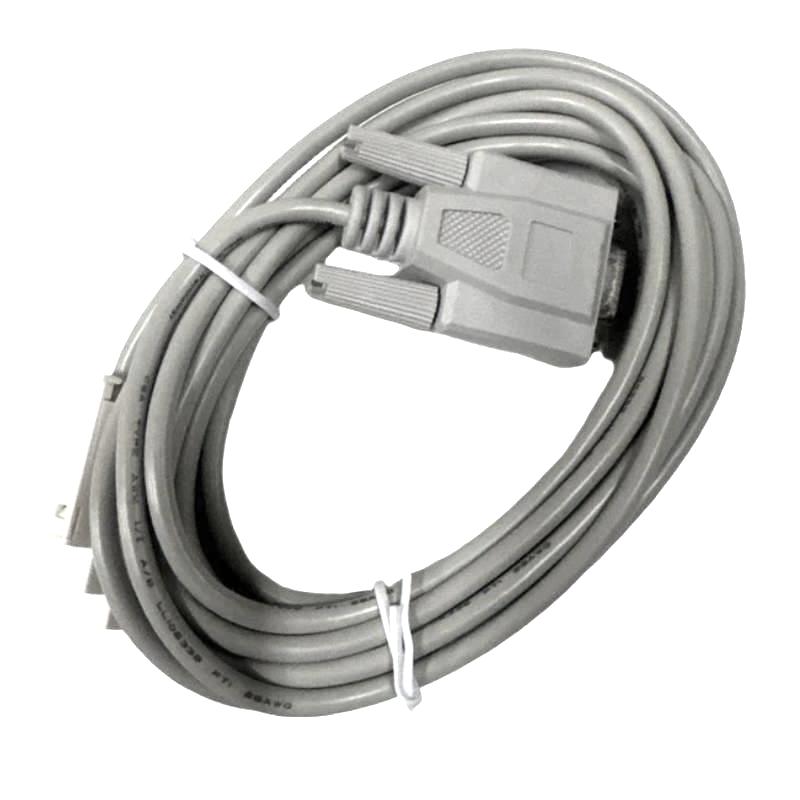

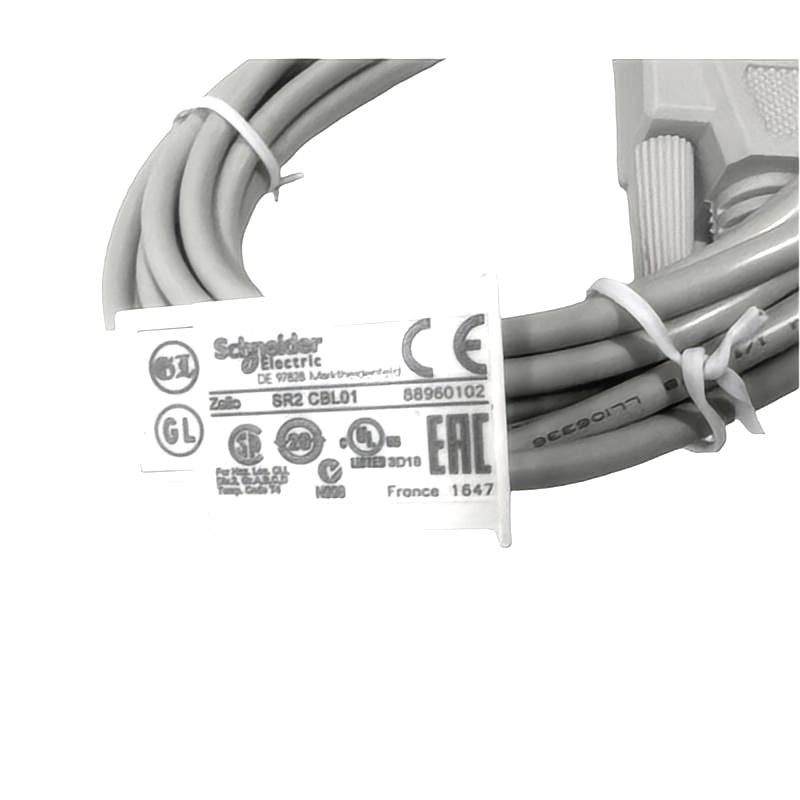

Schneider SR2CBL01 9-Pin PC Cable

Overview

The Schneider SR2CBL01 is a 9-pin PC programming cable designed for communication between a computer and compatible smart relay devices. It provides a reliable connection for program transfer, configuration, monitoring, and troubleshooting tasks in automation applications.

General Information

Part Number: SR2CBL01

Manufacturer: Schneider Electric

Brand: Schneider

Country of Origin: France

Series: Zelio Logic Accessories

Type: 9-Pin PC Programming Cable

Application: Smart relay programming, configuration, diagnostics, and maintenance

Cable Type: Serial communication cable

Connector Type: 9-Pin D-Sub connector

Cable Length: 3 meters

Technology: Wired communication interface for controller setup and data exchange

Power Specifications

Power Supply: Passive communication cable, no external power required

Operating Voltage: Supplied through connected equipment interface

Power Consumption: None

Protection: Designed for standard industrial communication environments

Signal Transmission: Stable serial data communication between PC and automation device

Communication & Interface

Connector Interface: 9-Pin D-Sub serial connector

Communication Type: PC-to-controller serial communication

Connection Function: Enables programming, configuration, and monitoring operations

Data Transfer: Supports user program upload and download

Application Interface: Used with compatible smart relay programming software

Diagnostics: Supports device communication testing and troubleshooting

Environmental

Operating Temperature: Standard industrial operating conditions

Storage Temperature: Suitable for normal storage environments

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, maintenance areas, and automation workstations

Protection Rating: Standard cable protection

Mechanical Design: Flexible cable structure for repeated installation use

Dimensions & Weight

Cable Length: 3 meters

Weight: 0.15 kg
