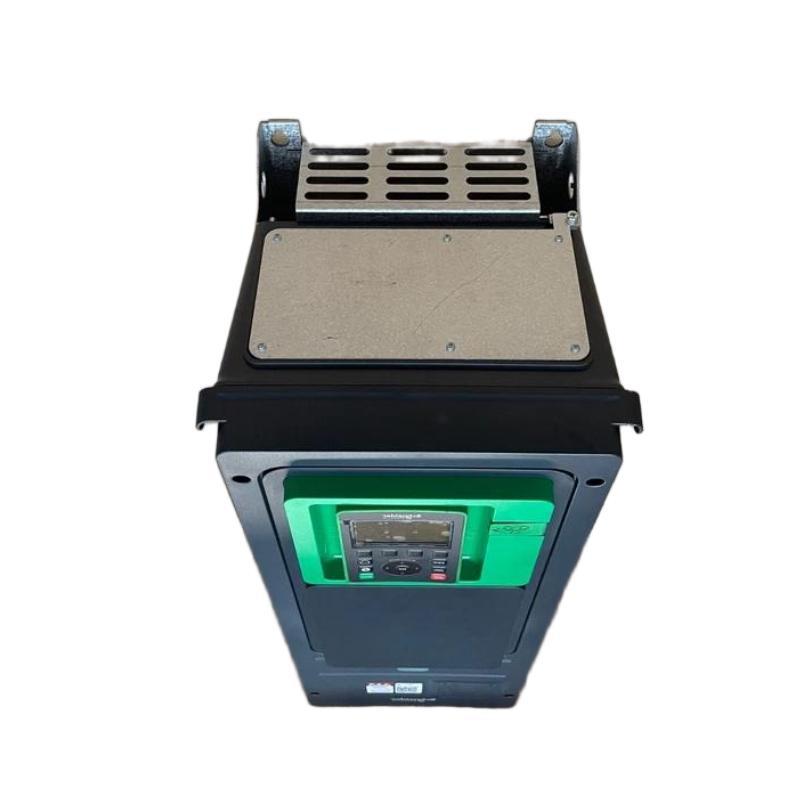

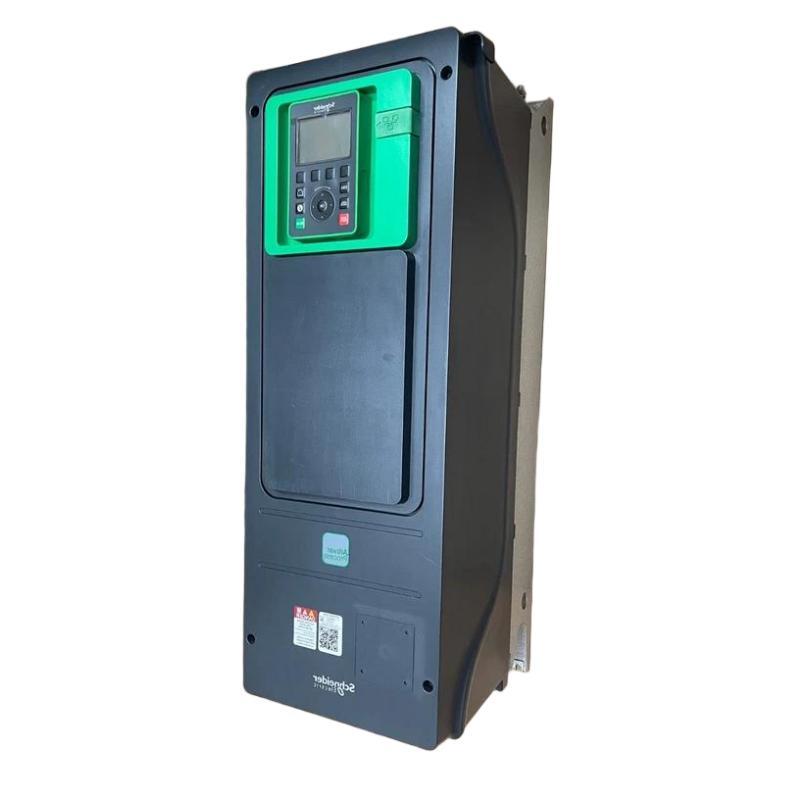

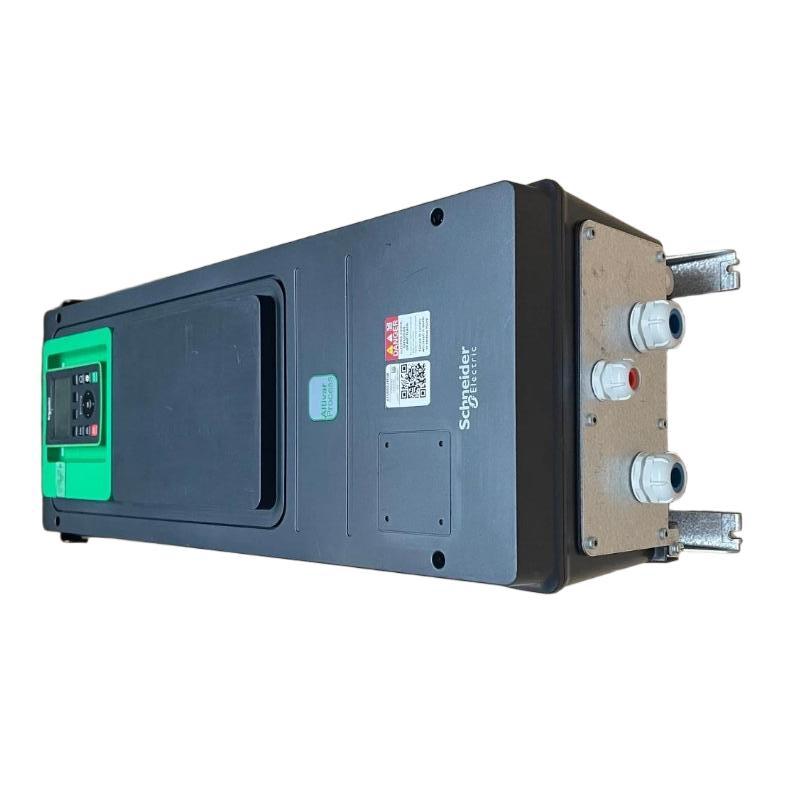

Schneider ATV650U15N4E Variable Speed Drive

Overview
The Schneider ATV650U15N4E is an Altivar Process variable speed drive designed for reliable three-phase motor control in industrial environments. It provides smooth speed regulation, energy-efficient operation, and advanced monitoring functions for pumps, fans, conveyors, and process machinery.

General Information

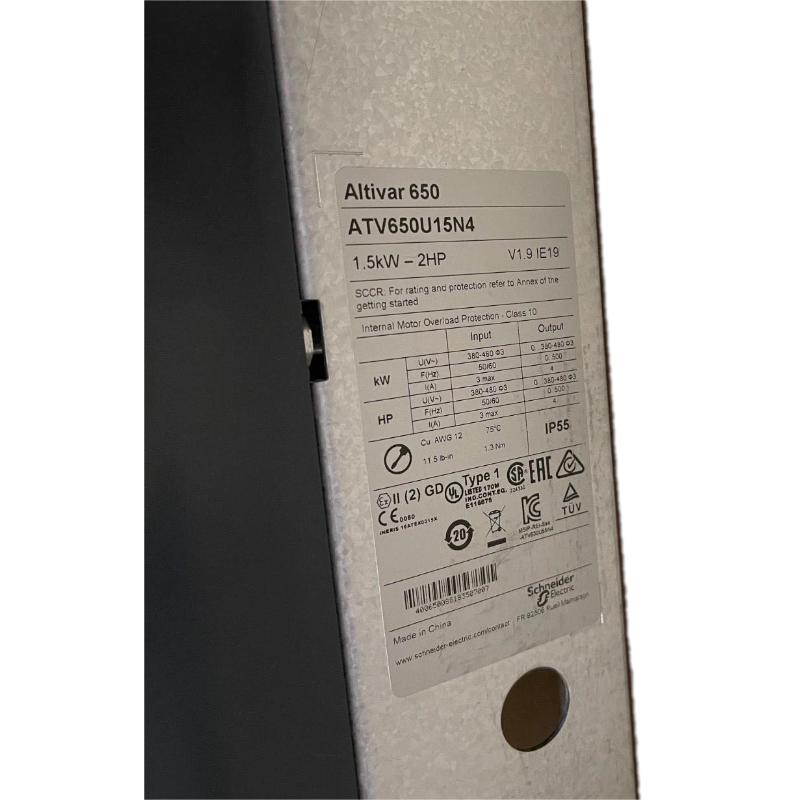

Part Number: ATV650U15N4E

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Altivar Process ATV650

Type: Variable Speed Drive / Frequency Converter

Application: Industrial automation, HVAC systems, water treatment, and general motor control

Mounting: Wall-mounted installation

Technology: Advanced motor control with integrated diagnostics, monitoring, and protection features

Power Specifications
Rated Power: 1.5 kW

Supply Voltage: 380–480 V AC

Input Phase: Three-phase

Rated Output Current: Approximately 4.1 A

Motor Compatibility: Supports asynchronous and synchronous motors

Output Frequency: 0.1–500 Hz

Overload Capacity: Supports overload operation for demanding applications

Protection Functions: Overcurrent, overload, short circuit, overvoltage, and thermal protection

Cooling Method: Natural air cooling

Communication & Interface
Communication Ports: Ethernet, Modbus TCP, Modbus Serial

Industrial Network: Supports integration with PLC systems and automation networks

Ethernet Interface: Integrated communication for remote monitoring and control

Serial Interface: RS-485 Modbus communication

Digital Inputs: Configurable inputs for external commands and sensors

Analog Inputs: Supports analog signal control and feedback

Analog Outputs: Provides monitoring and control feedback signals

Operator Interface: Display terminal for parameter setting, operation, and diagnostics

Environmental
Operating Temperature: −15 to +60 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial environments with suitable ventilation

Protection Rating: IP55

Altitude: Up to 1000 m without derating

Dimensions & Weight
Dimensions (L × W × H): 264 × 678 × 300 mm

Weight: 10.5 kg
