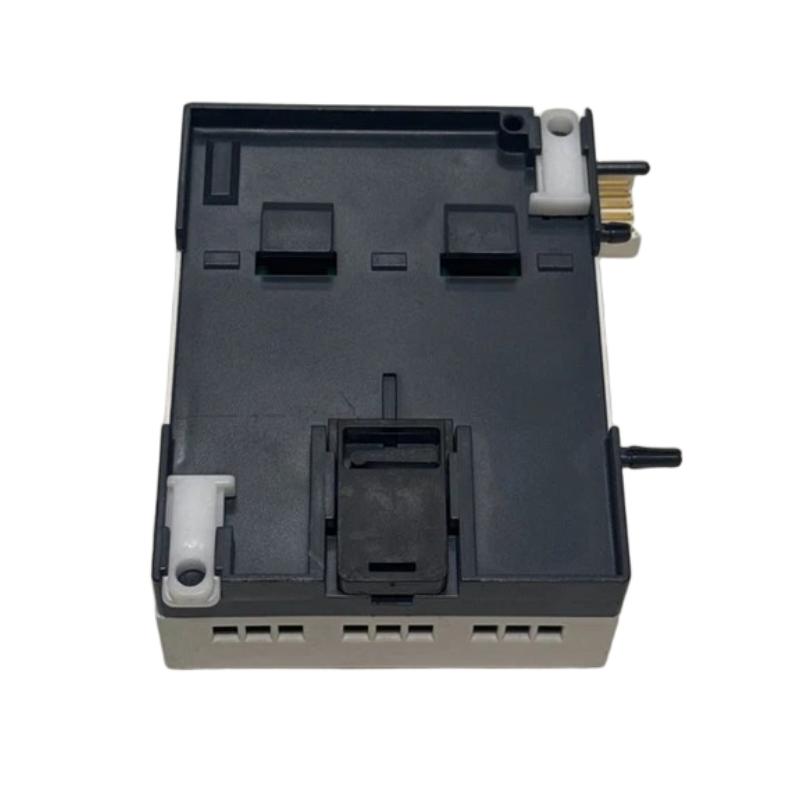

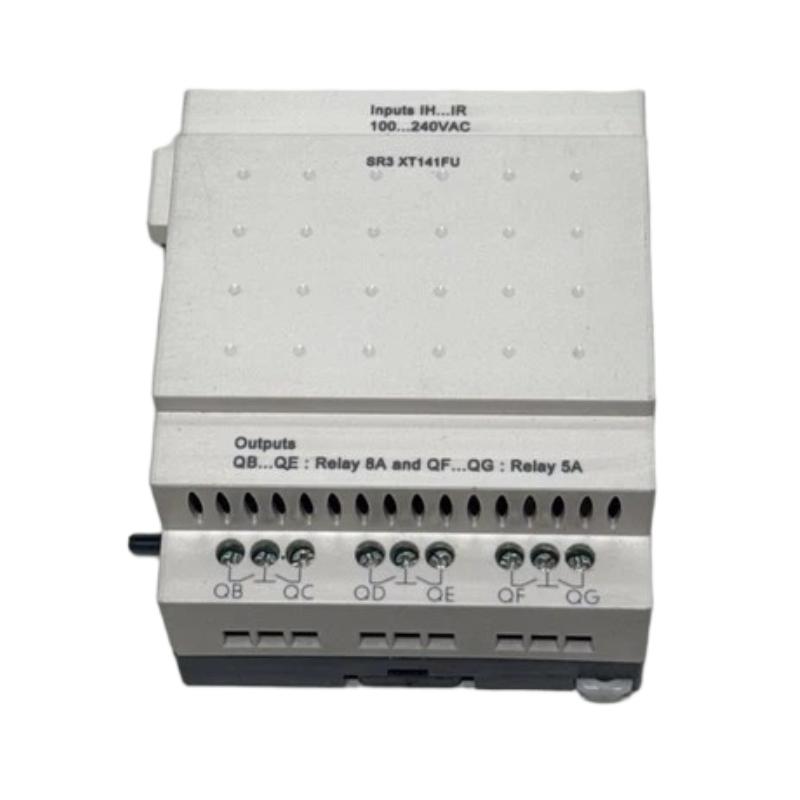

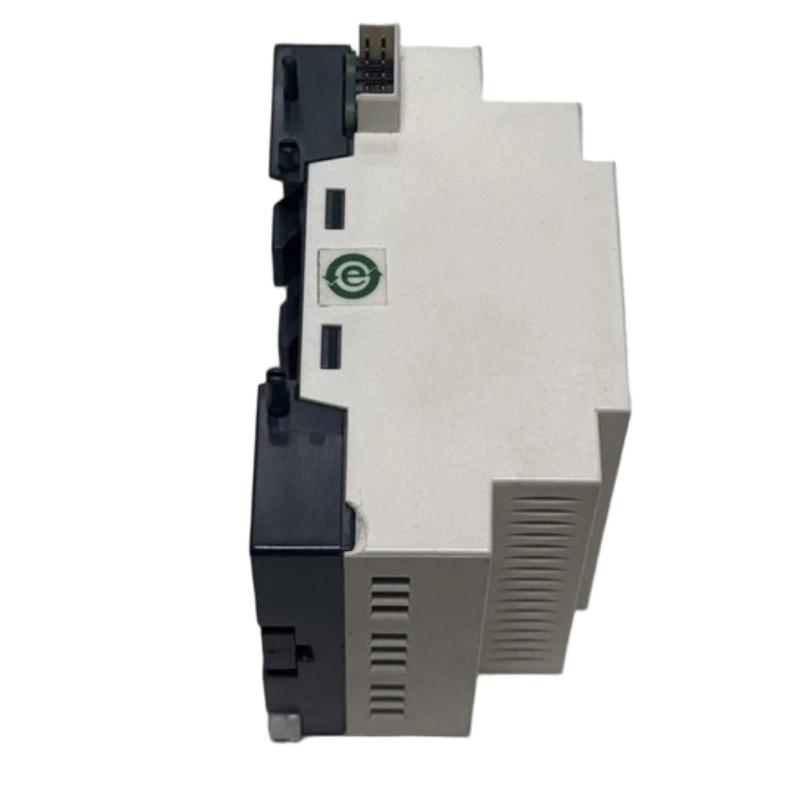

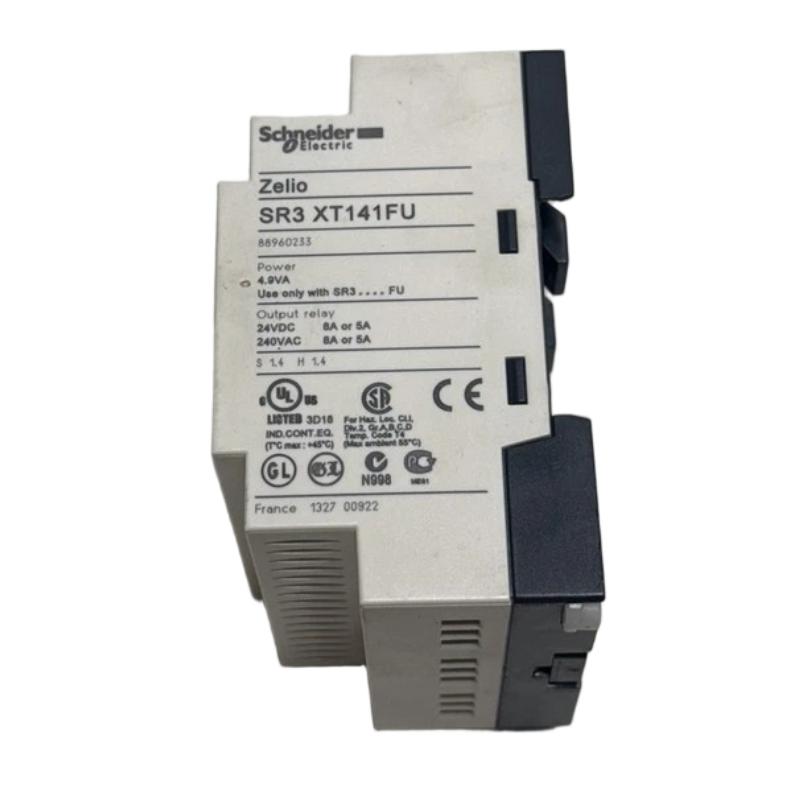

Schneider SR3XT141FU Discrete IO Extension Module

Overview

The Schneider SR3XT141FU Discrete IO Extension Module is a compact expansion module designed for Schneider Zelio Logic smart relay systems. It provides additional digital input and output capacity, enabling flexible system expansion for industrial automation, machine control, and building management applications.

General Information

Part Number: SR3XT141FU

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Zelio Logic

Product Type: Discrete I/O Extension Module

Application: Digital signal expansion for smart relay control systems

Mounting: DIN rail installation

Power Specifications

Supply Voltage: 24 V AC/DC

Input Type: Digital input channels

Output Type: Relay output channels

Power Consumption: Low-power modular design

Protection Features: Designed for stable operation in industrial control environments

Communication & Interface

System Compatibility: Schneider Zelio Logic Smart Relay Series

I/O Expansion: Provides additional discrete input and output points for control systems

Connection Type: Direct connection to compatible Zelio Logic relay modules

Signal Processing: Handles ON/OFF signals from sensors, switches, and actuators

Diagnostics: Integrated LED indicators for operating status monitoring

Environmental

Operating Temperature: Suitable for industrial automation environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for installation inside control cabinets

Application Areas: Machine Automation, Building Control, Packaging Equipment, and Industrial Control Systems

Dimensions & Weight

Dimensions (L × W × H): 107.6 × 72 × 59.5 mm

Weight: 0.22 kg

Efficient Expansion for Reliable Automation Control
