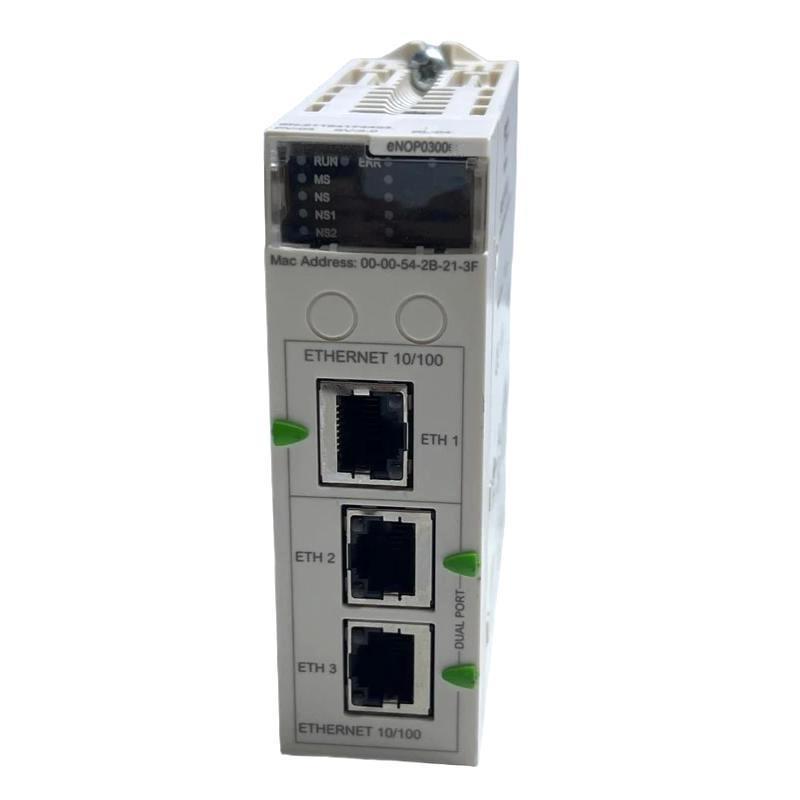

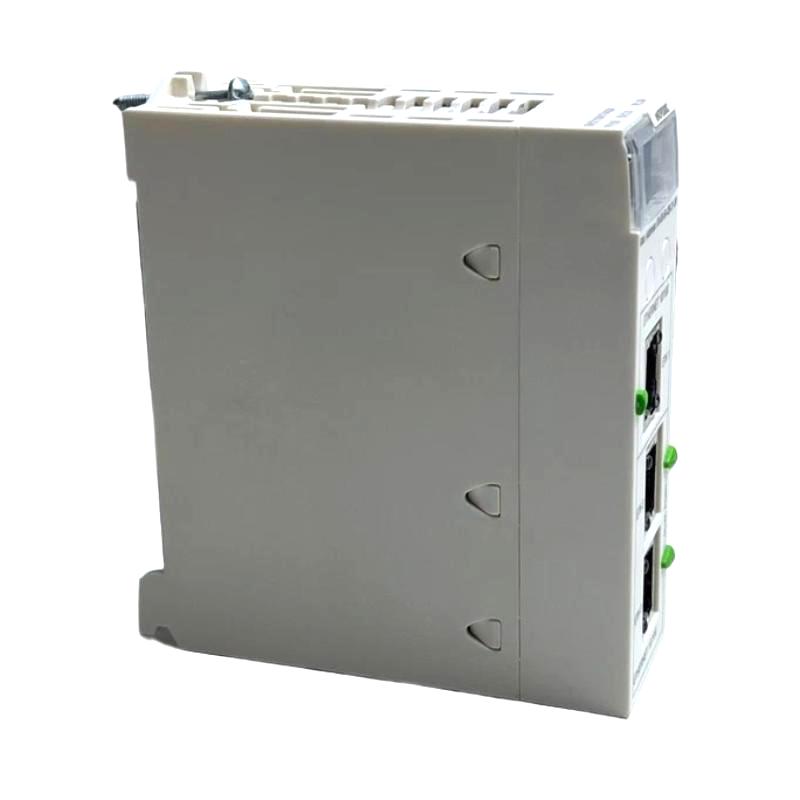

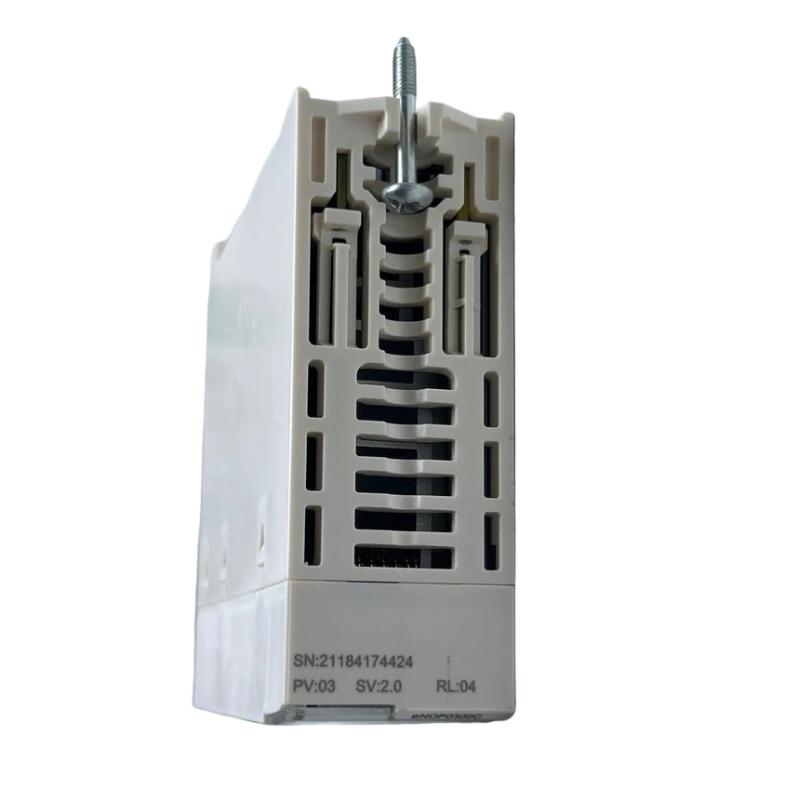

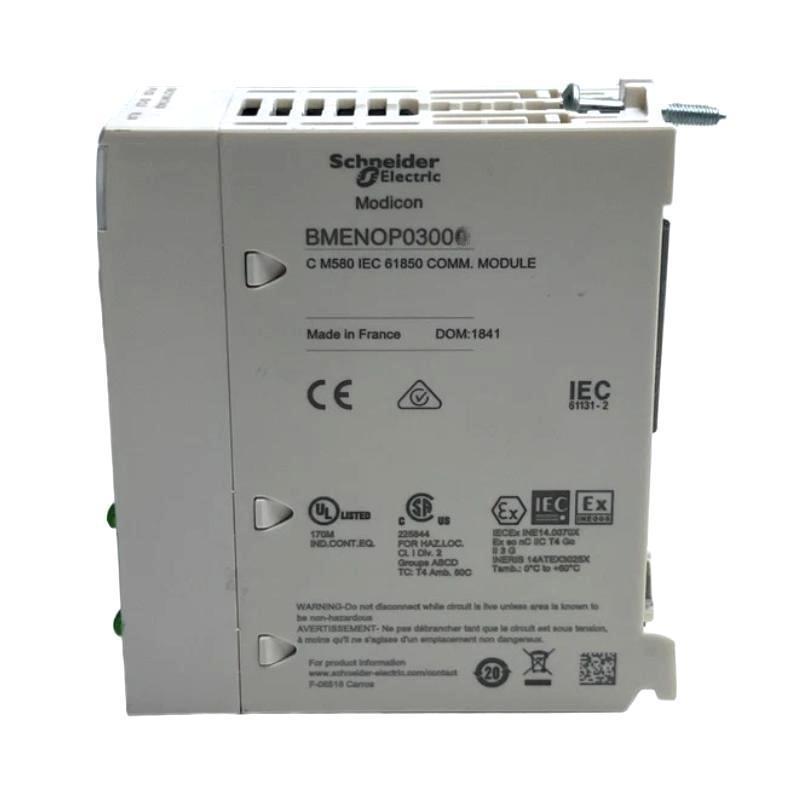

Schneider BMENOP0300 Communication Module

Overview

The Schneider BMENOP0300 is a Modicon M580 communication module designed to provide advanced network connectivity for industrial automation systems. It supports IEC 61850 communication functions and enables reliable data exchange between M580 PAC controllers and Ethernet-based devices in power, energy, and industrial applications.

General Information

Part Number: BMENOP0300

Brand: Schneider Electric

Country of Origin: France

Series: Modicon M580

Type: Communication Module

Application: Industrial Ethernet communication, power automation, and control system networking

Compatibility: Designed for Modicon M580 PAC platforms

Communication Protocols: IEC 61850 MMS, GOOSE, Modbus TCP, RSTP, IP forwarding

Module Format: Standard rack-mounted module

Power Specifications

Supply Voltage: 3.3 V DC internal supply from backplane

Current Consumption: 1250 mA

Power Input: Supplied through M580 backplane system

Protection: Designed for stable industrial operation and reliable communication performance

Communication & Interface

Ethernet Ports: 3 × Ethernet 10/100BASE-TX interfaces

Transmission Medium: Ethernet cable

Communication Speed: 10/100 Mbps

Supported Services: IEC 61850 client/server messaging, GOOSE communication, Modbus TCP messaging

Network Features: RSTP support and IP forwarding

Diagnostics: Communication status monitoring and network management functions

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Operating Altitude: Up to 2000 m

Installation Environment: Industrial control cabinet environment

Dimensions & Weight

Dimensions (H × W × D): 56 × 120 × 118 mm

Weight: 0.24 kg
