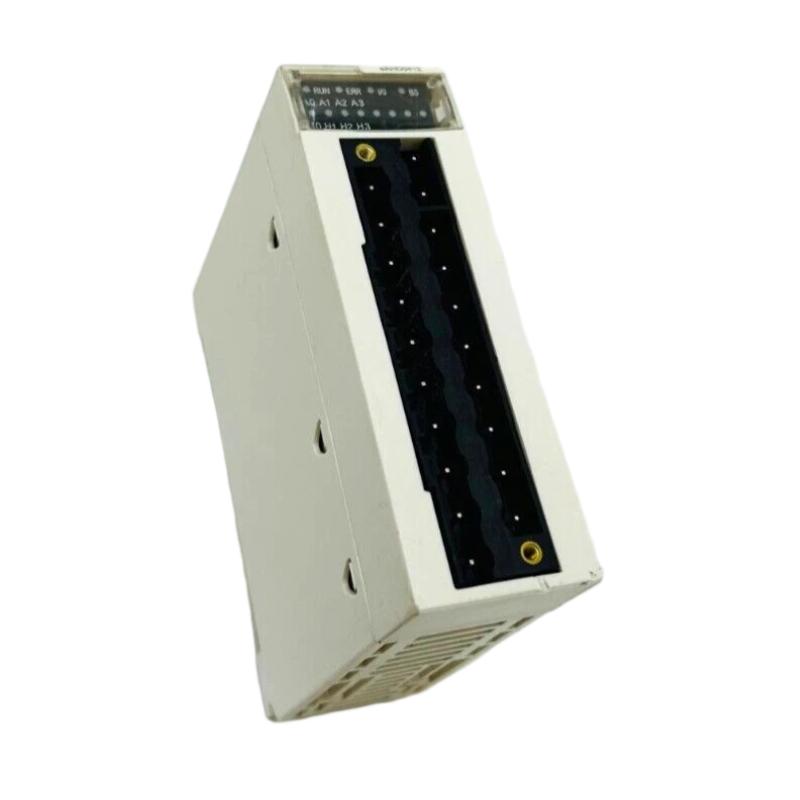

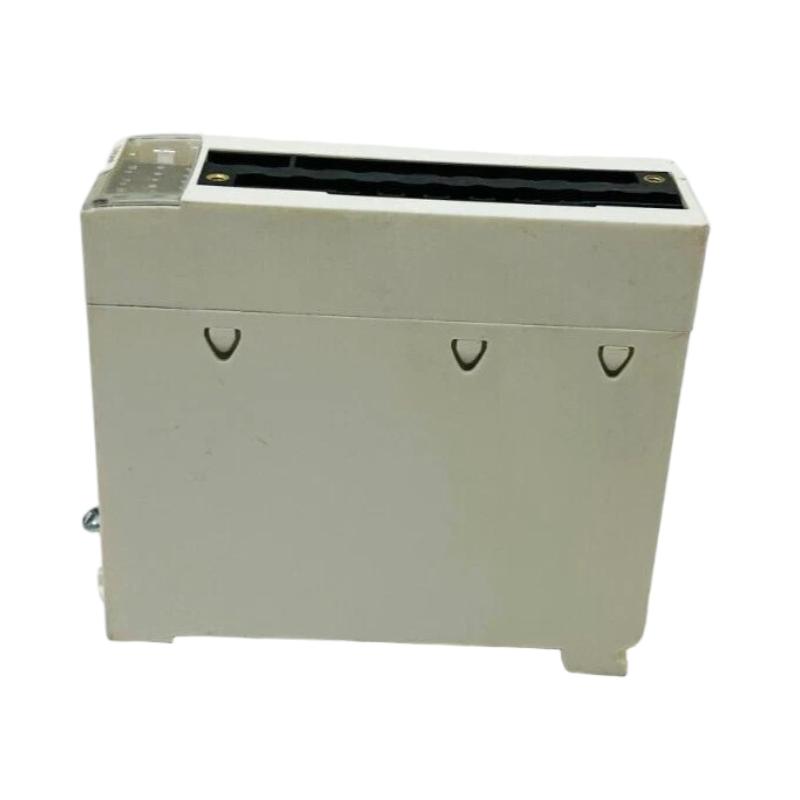

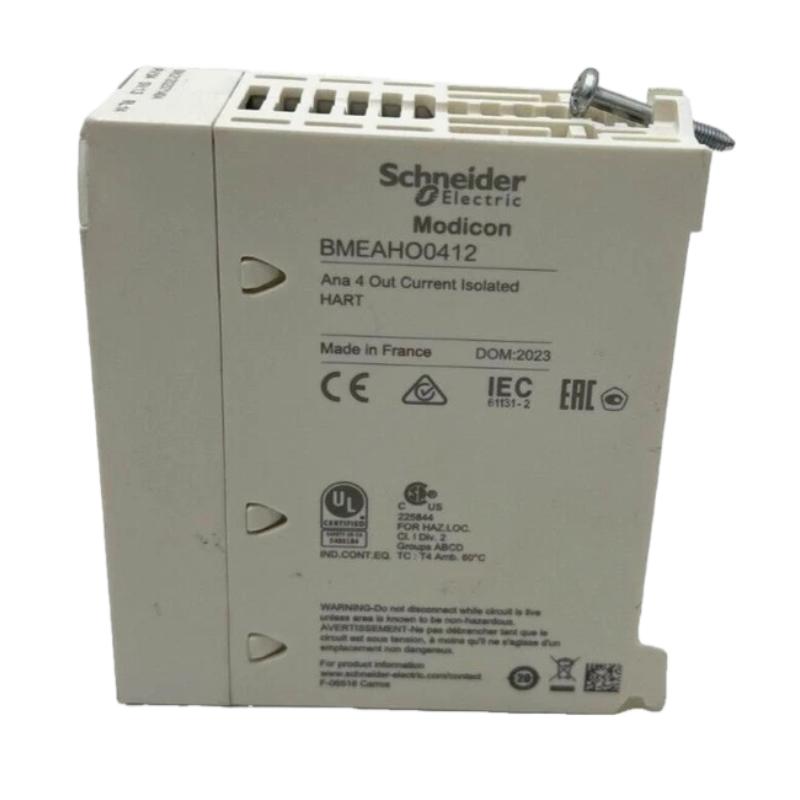

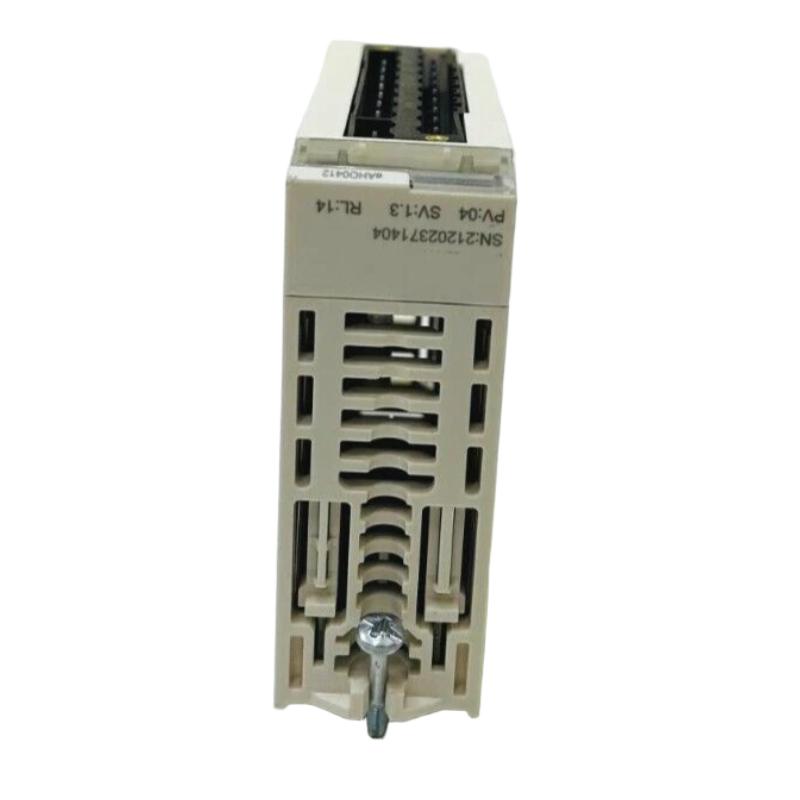

Schneider BMEAHO0412 Analog Output Module

Overview

The Schneider BMEAHO0412 is a Modicon X80 analog output module designed to provide reliable current output control for industrial automation systems. It features isolated analog outputs with HART communication capability, enabling accurate signal transmission for process control, monitoring, and distributed automation applications.

General Information

Part Number: BMEAHO0412

Brand: Schneider Electric

Country of Origin: France

Series: Modicon X80

Type: Analog Output Module

Output Channels: 4 isolated analog outputs

Output Signal: 4–20 mA current output

Resolution: 15 bits + sign

Application: Process control, industrial automation, and remote I/O systems

Compatibility: Designed for Modicon M580 PAC and X80 I/O platforms

Power Specifications

Supply Voltage: Supplied through Modicon X80 backplane

Power Consumption: Low-power industrial module design

Isolation Voltage: Channel-to-channel and channel-to-ground isolation

Output Range: 4–20 mA current output

Protection: Designed with electrical isolation and industrial noise resistance for stable operation

Communication & Interface

Communication Type: HART communication support

Output Channels: 4 analog current outputs

Connection Method: 20-way removable terminal block

Signal Transmission: Isolated analog output signals for field devices

Diagnostics: Channel monitoring, fault detection, and module status indication

System Integration: Supports integration with Modicon automation controllers and distributed I/O architectures

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinet environment

Dimensions & Weight

Dimensions (H × W × D): 100 × 32 × 86 mm

Weight: 0.223 kg
