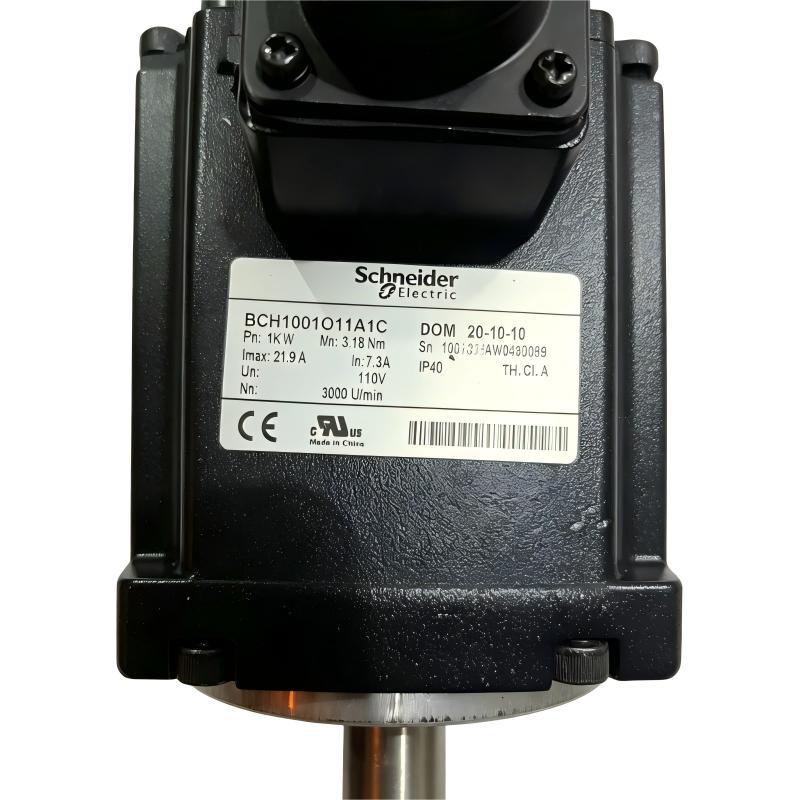

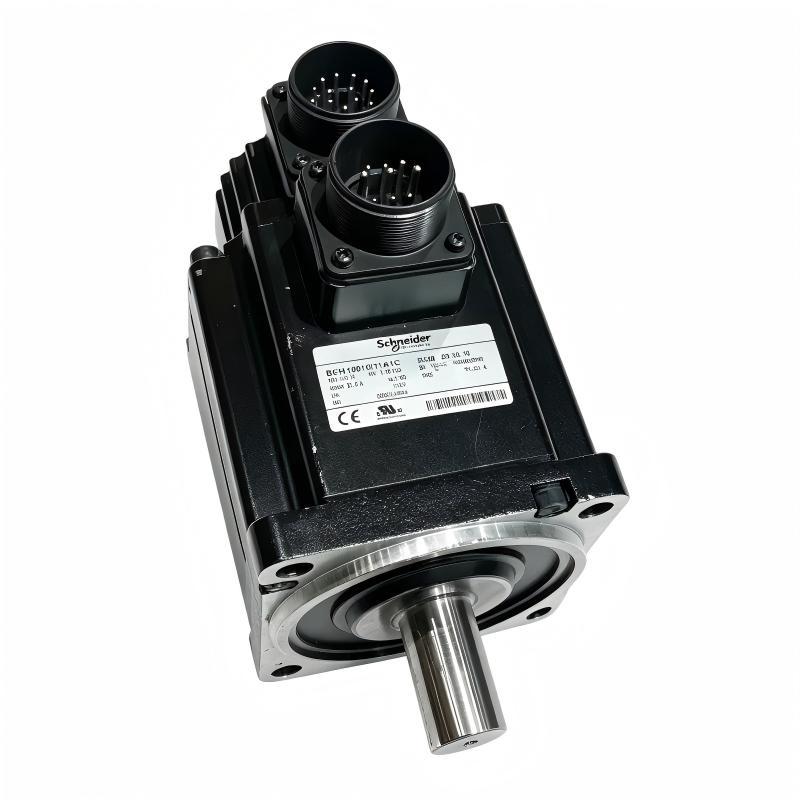

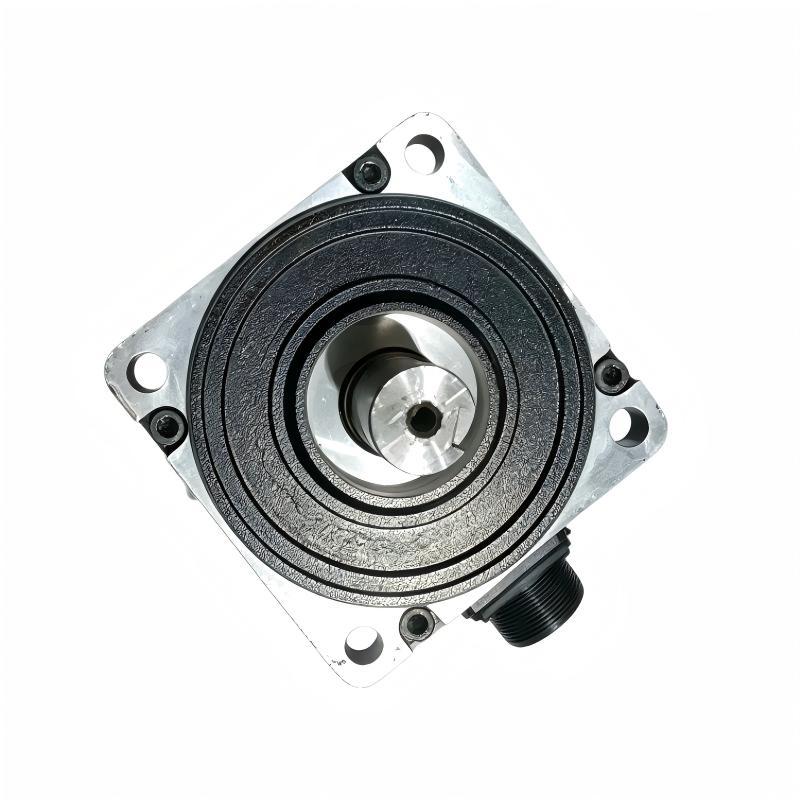

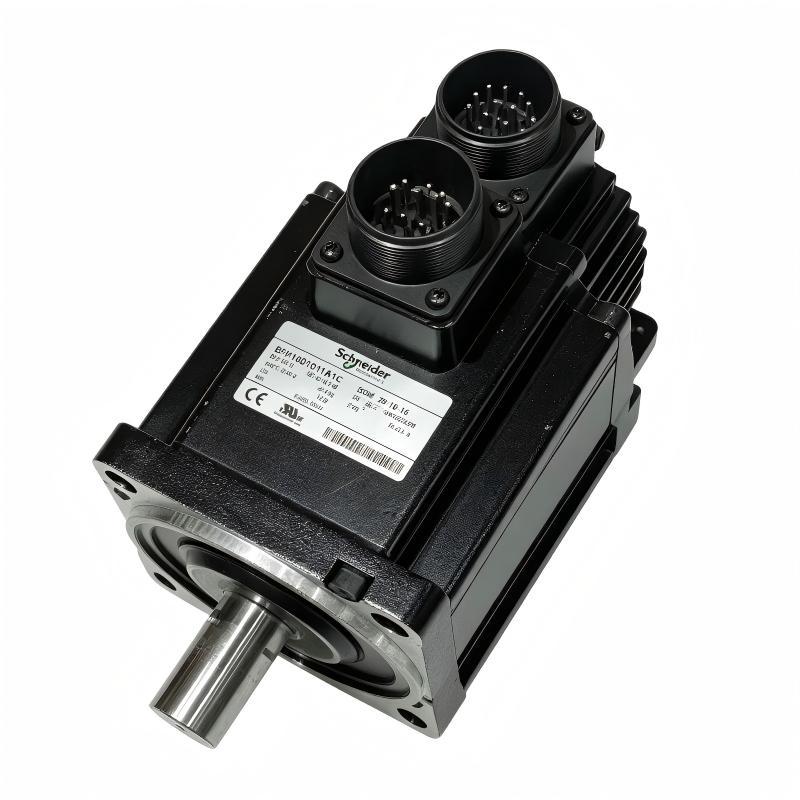

Schneider BCH1001011A1C Servo Motor

Overview

The Schneider BCH1001011A1C is a BCH series servo motor designed for high-performance motion control applications. It provides precise speed and position control with reliable dynamic response, making it suitable for industrial automation equipment, machine tools, packaging systems, and other demanding motion applications.

General Information

Part Number: BCH1001011A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 100 mm flange servo motor

Application: Precision motion control, industrial automation, and machine positioning systems

Cooling Method: Natural convection cooling

Feedback Type: Single-turn SinCos Hiperface encoder

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 1000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 5000 rpm

Rated Torque: Approx. 1.9 N·m

Peak Torque: Higher intermittent torque capability for dynamic applications

Insulation Class: Industrial-grade insulation design

Protection: Designed for reliable operation in industrial environments

Communication & Interface

Feedback Interface: Hiperface encoder feedback

Encoder Function: Provides accurate speed and position feedback to servo drives

Drive Compatibility: Designed for use with Schneider servo drive systems

Connection Method: Power and encoder connectors

Control Function: Supports closed-loop speed, torque, and position control

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65 (shaft and connectors excluded)

Installation Environment: Suitable for industrial automation cabinets and machine equipment

Dimensions & Weight

Motor Length: 128.6 mm

Weight: 3.34 kg
