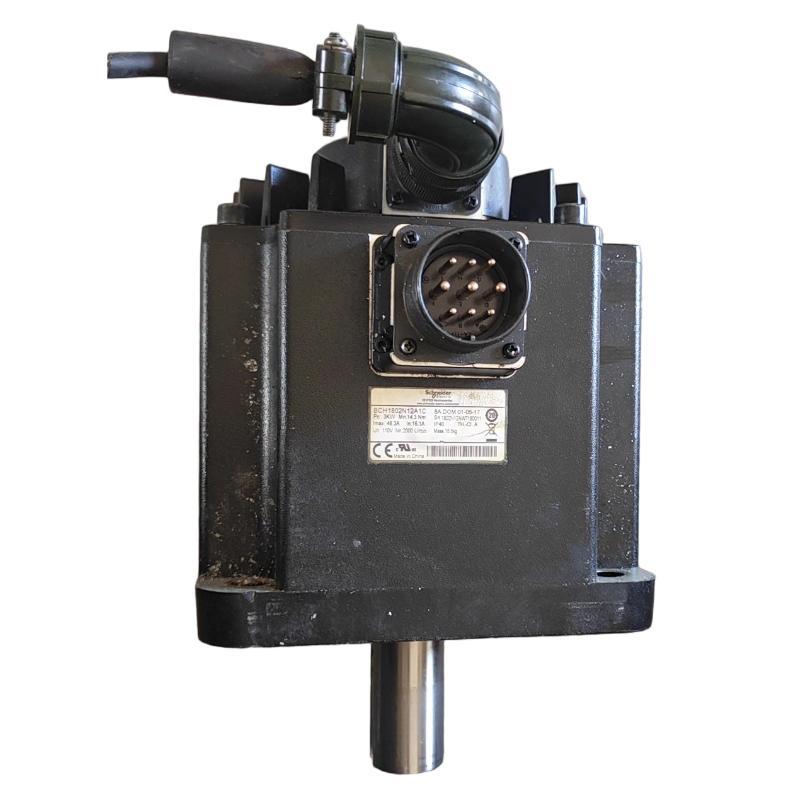

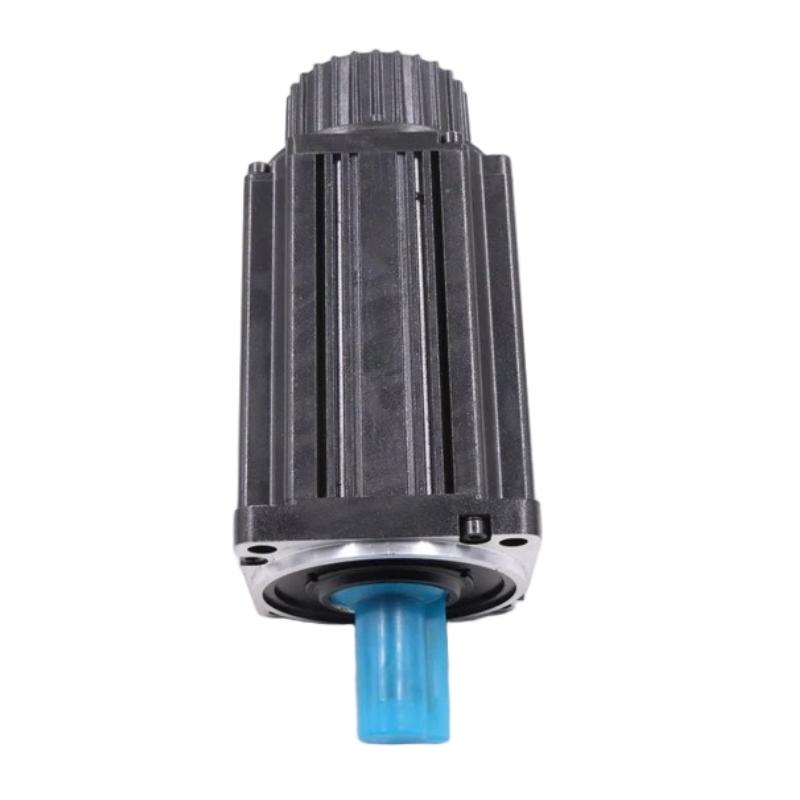

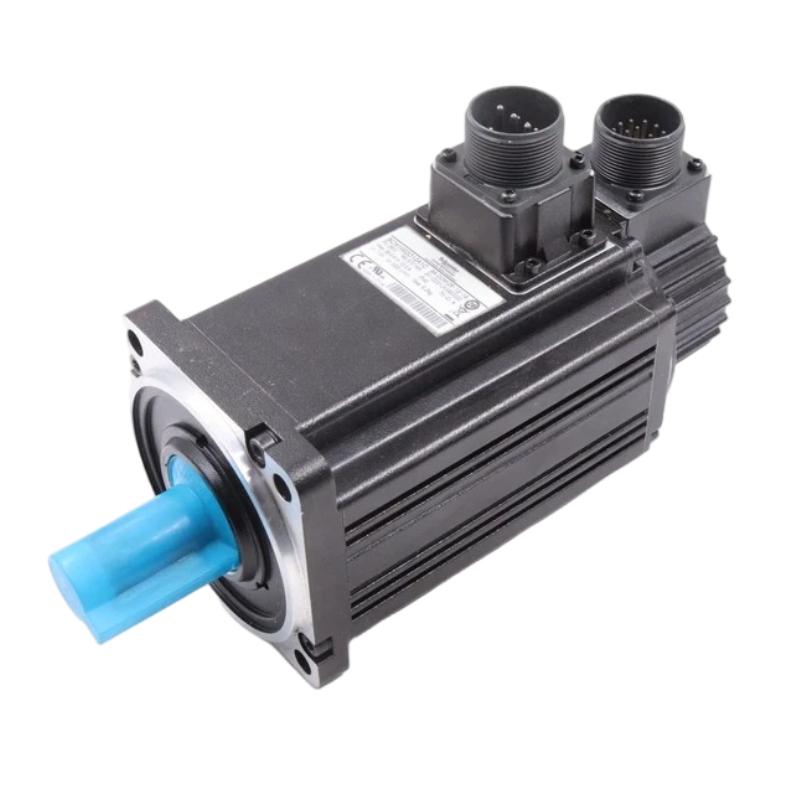

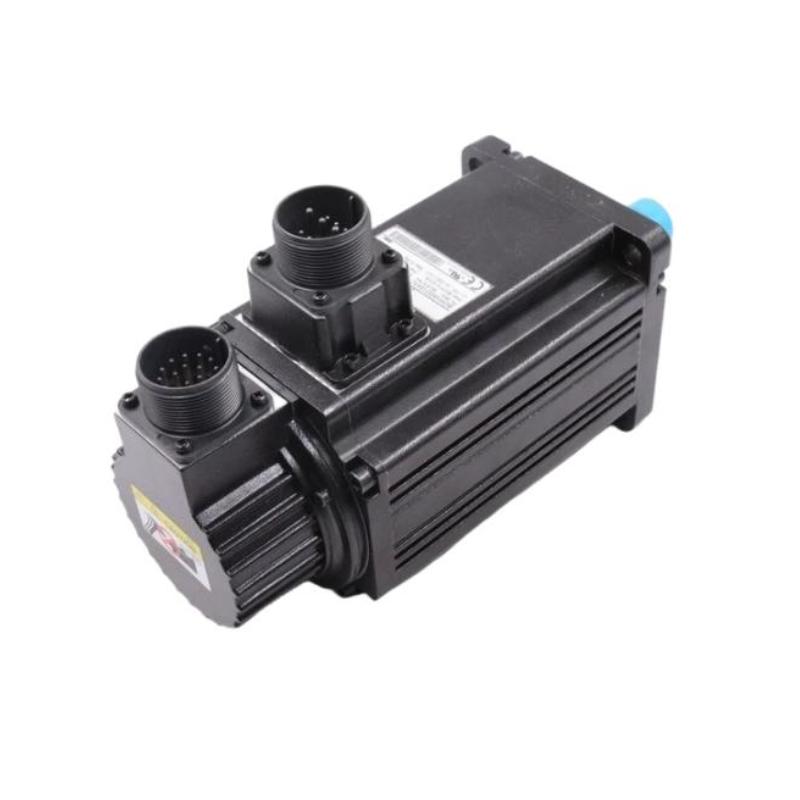

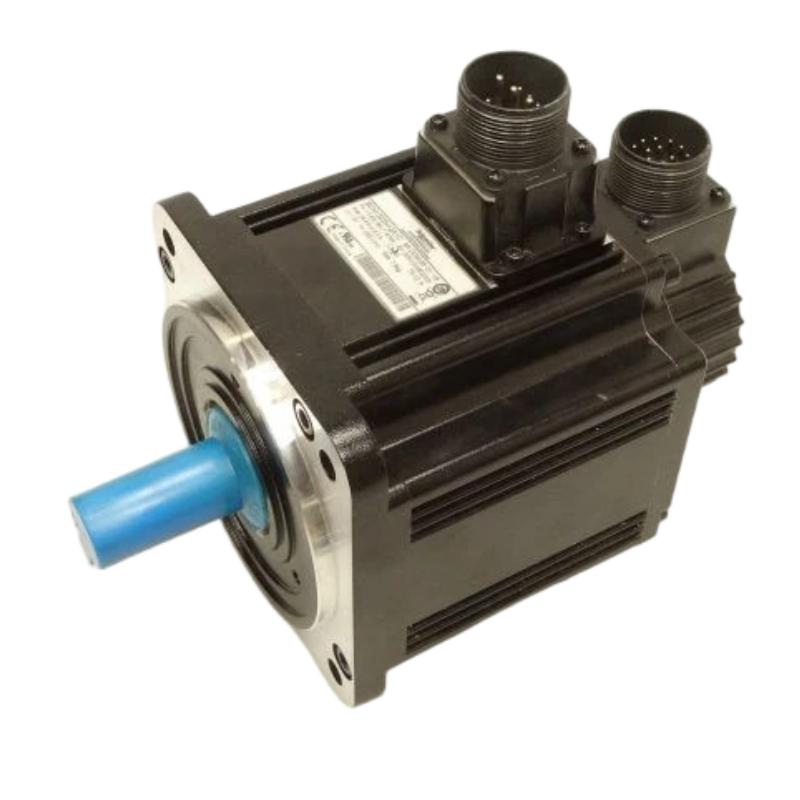

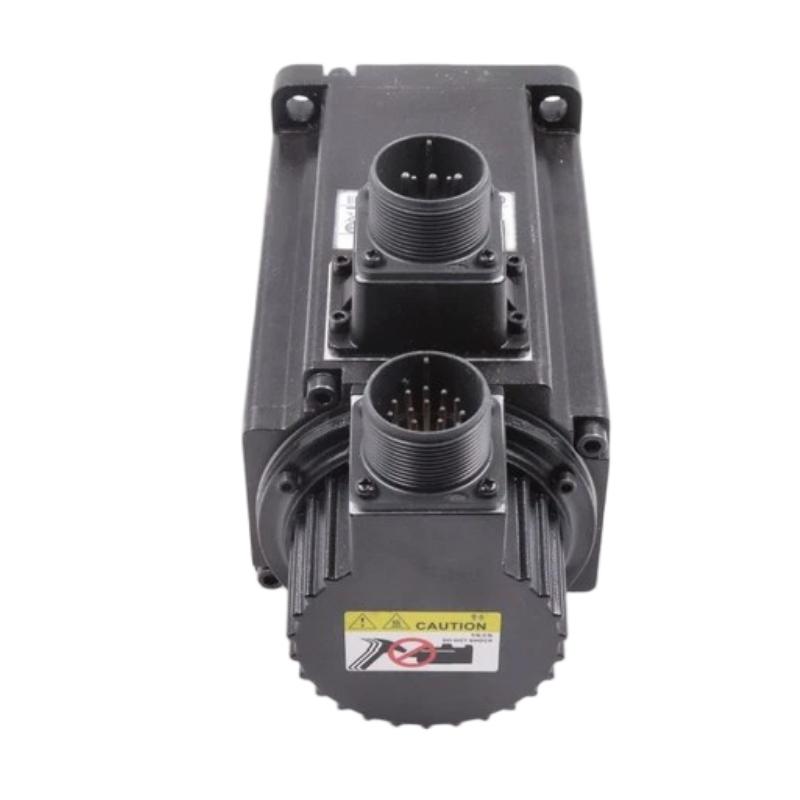

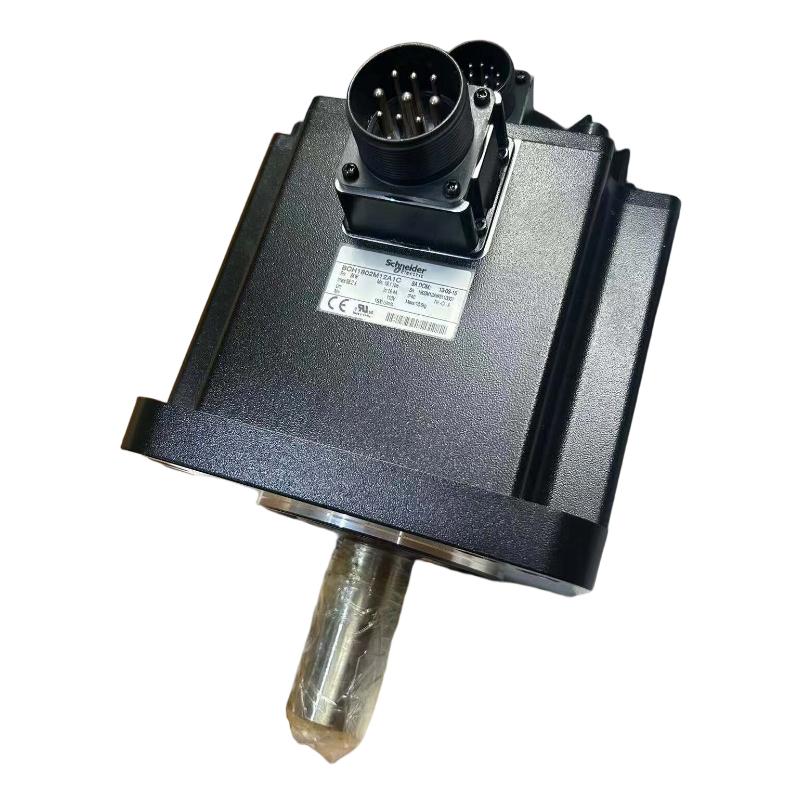

Schneider BCH1002O12A1C Servo Motor

Overview

The Schneider BCH1002O12A1C is a BCH series servo motor designed for precise motion control and reliable performance in industrial automation applications. It delivers stable torque output and accurate positioning control for machine tools, packaging equipment, robotics, and other automated systems requiring high dynamic response.

General Information

Part Number: BCH1002O12A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 100 mm flange servo motor

Application: Industrial motion control, machine automation, and precision positioning systems

Cooling Method: Natural convection cooling

Feedback Type: Encoder feedback system

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 2000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 5000 rpm

Rated Torque: Approx. 3.8 N·m

Peak Torque: Supports short-term overload operation for dynamic motion requirements

Insulation Class: Industrial-grade insulation design

Protection: Designed for reliable operation in demanding automation environments

Communication & Interface

Feedback Interface: Encoder feedback connection

Encoder Function: Provides accurate position and speed feedback to servo drives

Drive Compatibility: Designed for Schneider servo drive systems

Connection Method: Power and feedback connectors

Control Function: Supports closed-loop torque, speed, and position control

System Integration: Suitable for automated machinery and motion control platforms

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Installation Environment: Suitable for industrial automation equipment and control systems

Dimensions & Weight

Motor Length: 199 mm

Weight: 6.2 kg
