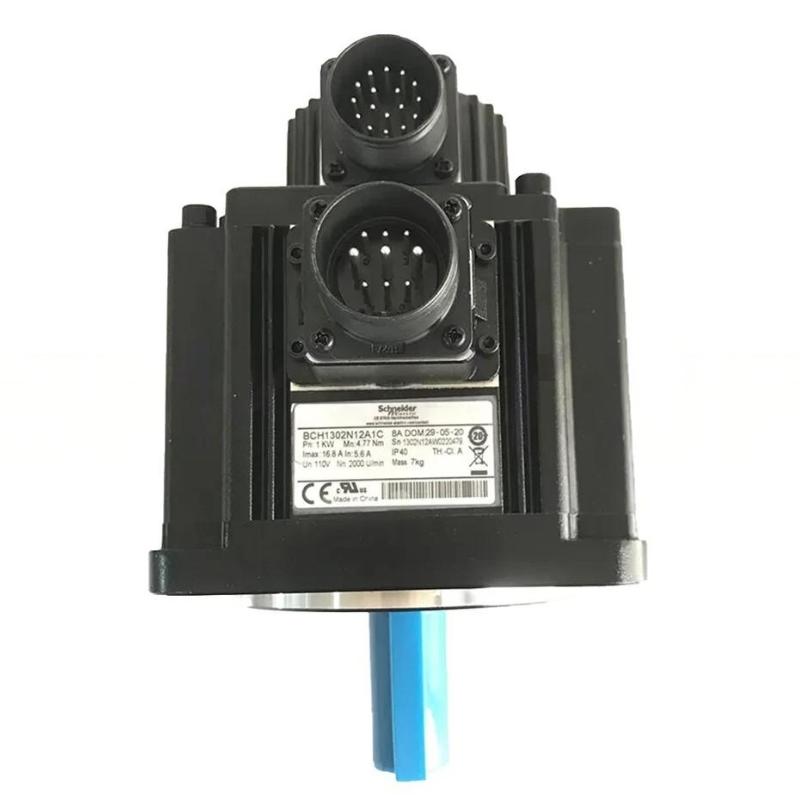

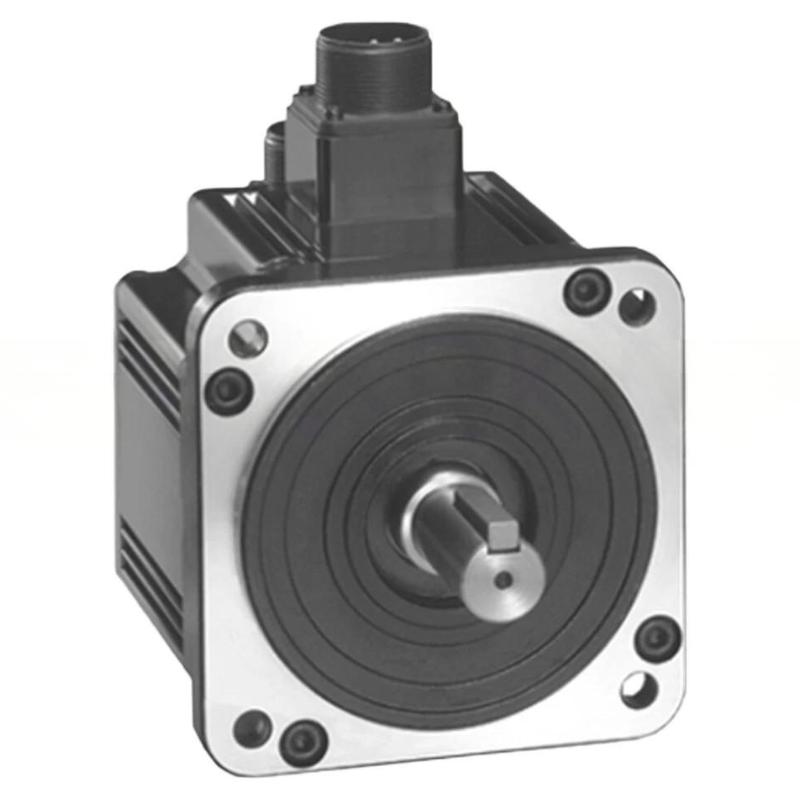

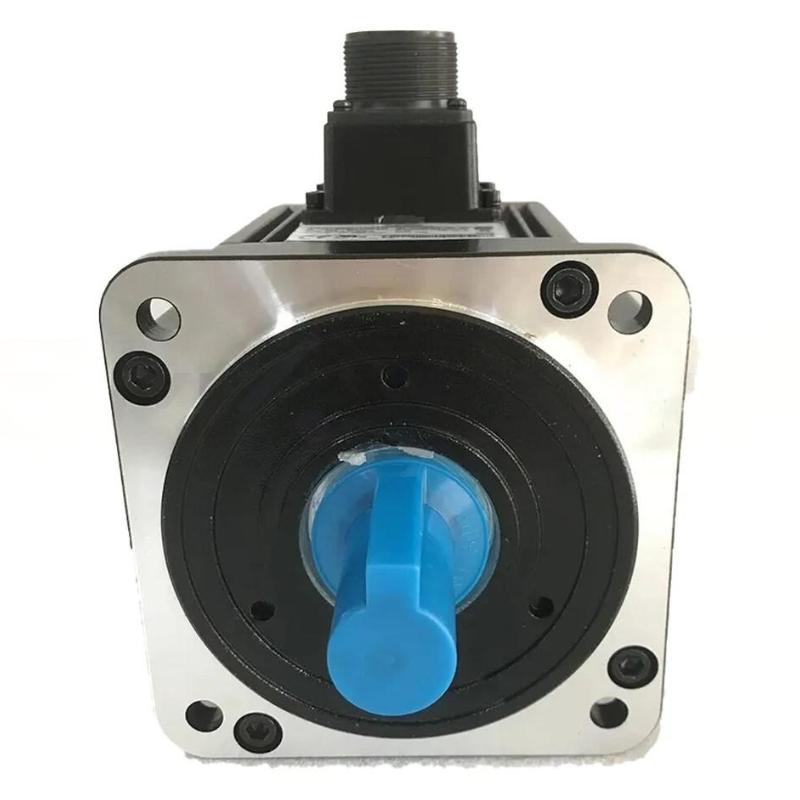

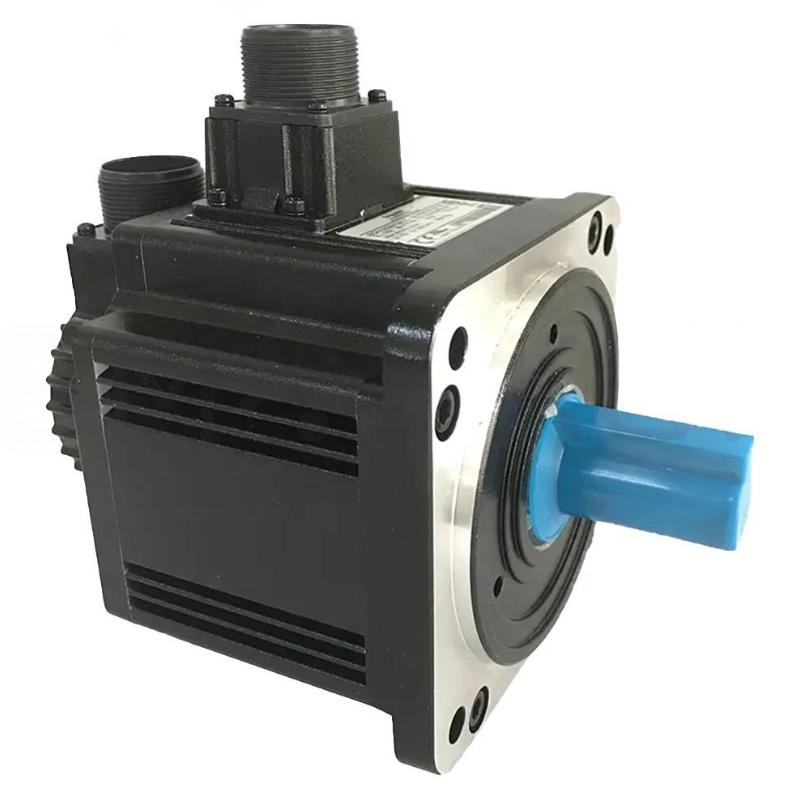

Schneider BCH1302N12A1C Servo Motor

Overview

The Schneider BCH1302N12A1C is a BCH series servo motor designed for precise motion control and reliable operation in industrial automation systems. It delivers stable torque performance, accurate positioning, and fast response for applications including machine tools, packaging equipment, robotics, and automated production systems.

General Information

Part Number: BCH1302N12A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 130 mm flange servo motor

Application: Industrial motion control, precision positioning, and automation equipment

Cooling Method: Natural convection cooling

Feedback Type: Encoder feedback system

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 2000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 3000 rpm

Rated Torque: Approx. 6.4 N·m

Peak Torque: Supports short-duration overload operation for dynamic motion applications

Insulation Class: Industrial-grade insulation design

Protection: Designed for stable performance in demanding industrial environments

Communication & Interface

Feedback Interface: Encoder feedback connection

Encoder Function: Provides accurate speed and position feedback to servo drives

Drive Compatibility: Designed for Schneider servo drive systems

Connection Method: Power and feedback connectors

Control Function: Supports closed-loop torque, speed, and position control

System Integration: Suitable for automated machinery and advanced motion control applications

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Installation Environment: Suitable for industrial automation equipment and machine control systems

Dimensions & Weight

Motor Length: 147.5 mm

Weight: 7 kg

In Stock Now – Fast Delivery and Reliable Motion Solutions!
