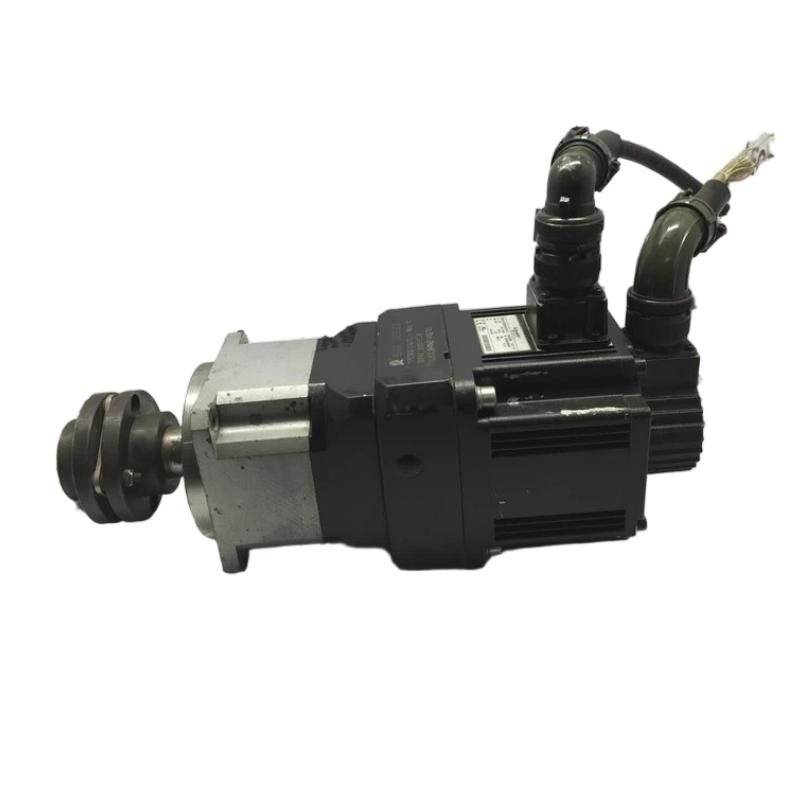

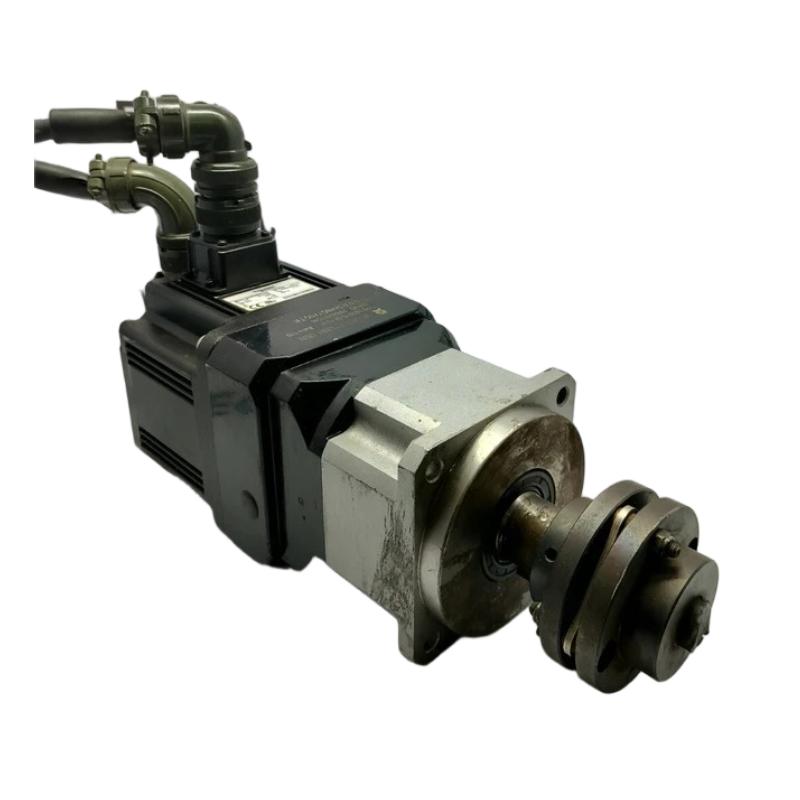

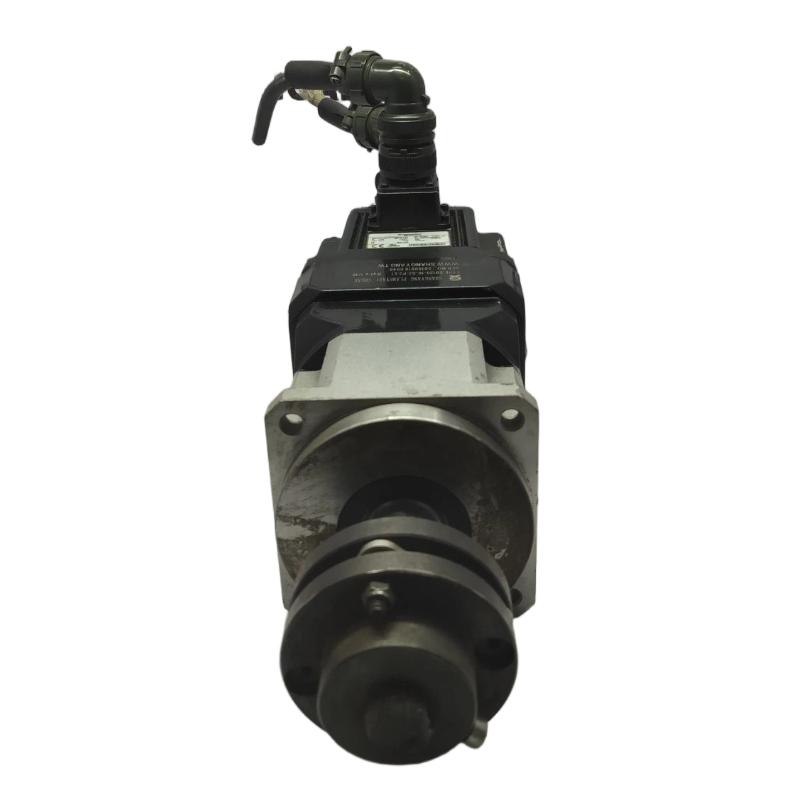

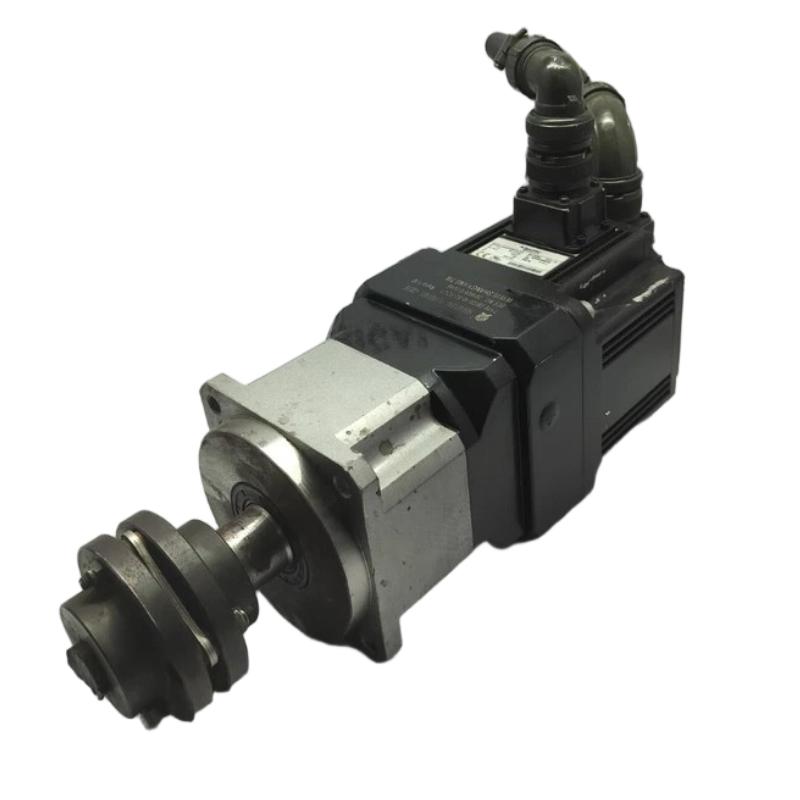

Schneider BCH1302N32A1C Servo Motor

Overview

The Schneider BCH1302N32A1C is a BCH series servo motor designed for high-precision motion control and reliable performance in industrial automation applications. It provides stable torque output, accurate positioning, and responsive operation for machine tools, robotics, packaging equipment, and other automated systems.

General Information

Part Number: BCH1302N32A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 130 mm flange servo motor

Application: Industrial motion control, precision positioning, and automated machinery

Cooling Method: Natural convection cooling

Feedback Type: Encoder feedback system

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 2000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 3000 rpm

Rated Torque: Approx. 6.4 N·m

Peak Torque: Supports short-term overload operation for dynamic motion requirements

Insulation Class: Industrial-grade insulation design

Protection: Designed for reliable operation in demanding industrial environments

Communication & Interface

Feedback Interface: Encoder feedback connection

Encoder Function: Provides accurate speed and position feedback to servo drives

Drive Compatibility: Designed for Schneider servo drive systems

Connection Method: Power and feedback connectors

Control Function: Supports closed-loop torque, speed, and position control

System Integration: Suitable for industrial automation platforms and precision motion systems

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Installation Environment: Suitable for industrial machinery and automated production systems

Dimensions & Weight

Motor Length: 147.5 mm

Weight: 7 kg

Ready to Ship – Reliable Motion Control with Fast Service!
