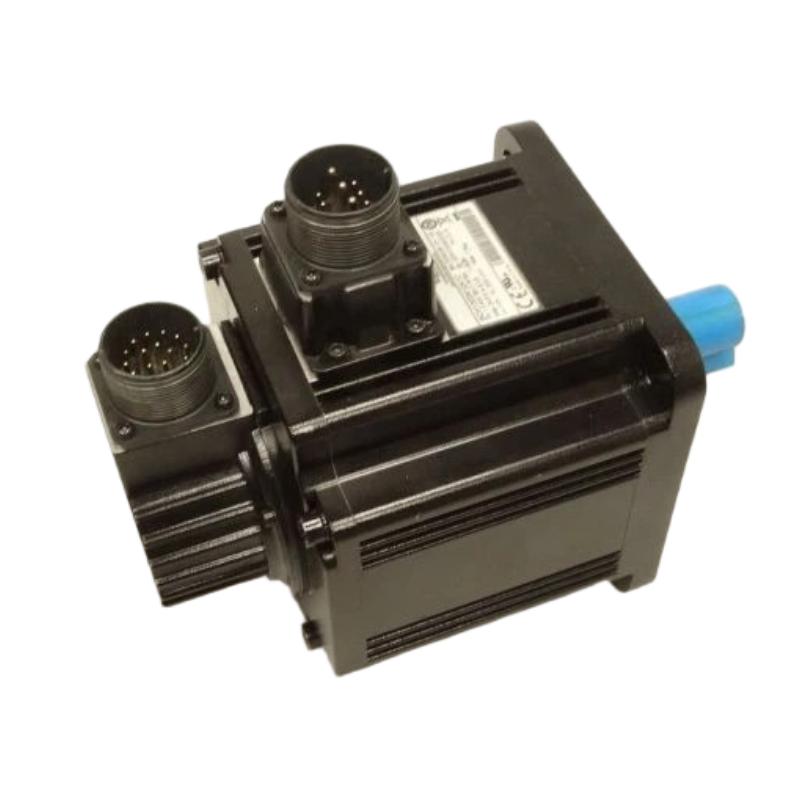

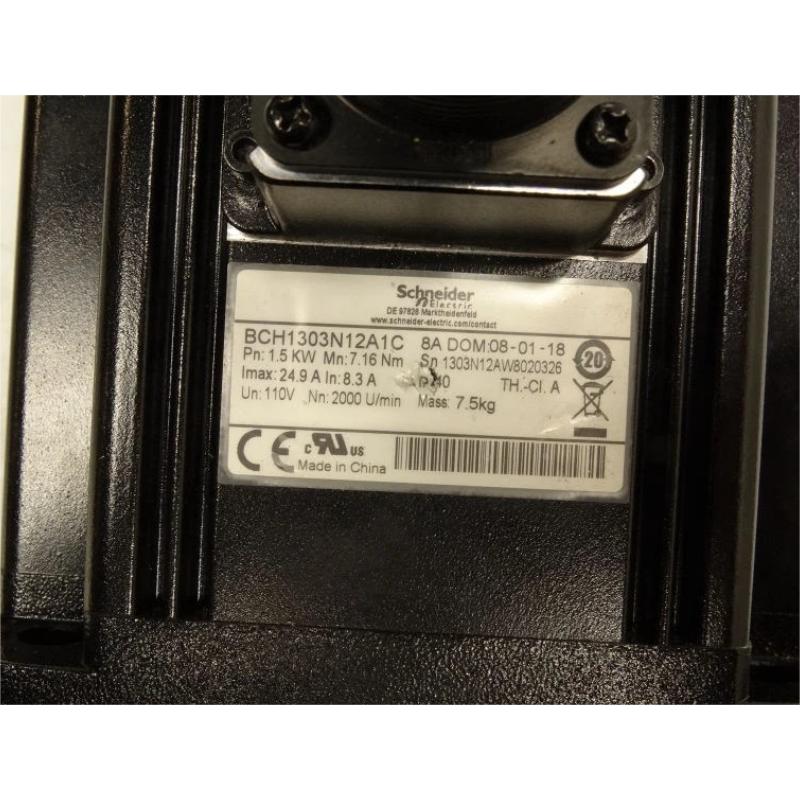

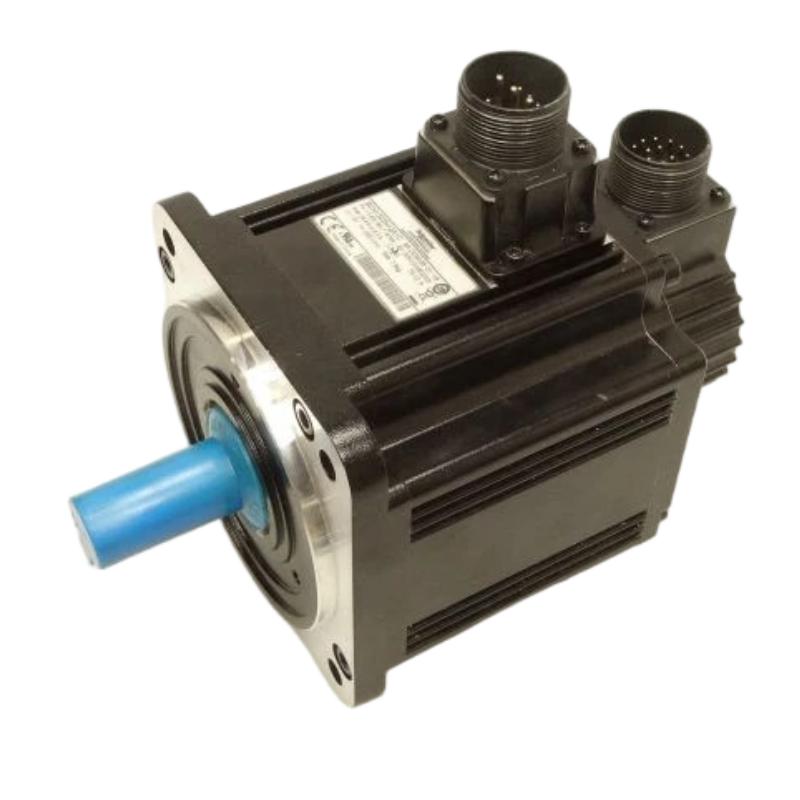

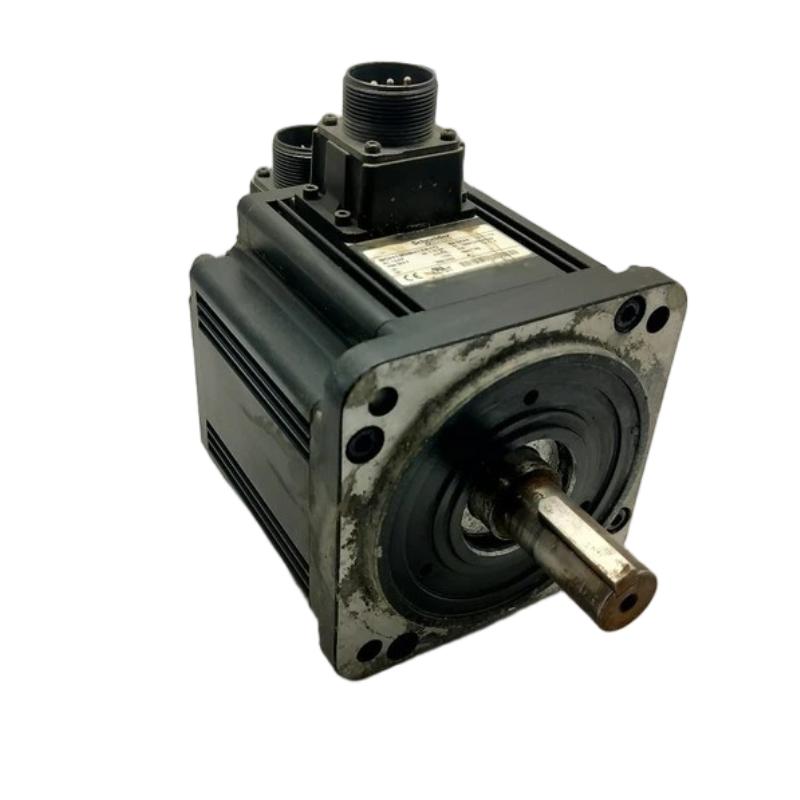

Schneider BCH1303N12A1C Servo Motor

Overview

The Schneider BCH1303N12A1C is a BCH series servo motor designed for high-performance motion control in industrial automation systems. It delivers precise positioning, stable torque output, and reliable dynamic response for applications such as machine tools, packaging equipment, robotics, and automated production lines.

General Information

Part Number: BCH1303N12A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 130 mm flange servo motor

Application: Industrial motion control, precision positioning, and automated machinery

Cooling Method: Natural convection cooling

Feedback Type: Encoder feedback system

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 3000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 3000 rpm

Rated Torque: Approx. 9.6 N·m

Peak Torque: Supports short-duration overload operation for demanding motion cycles

Insulation Class: Industrial-grade insulation design

Protection: Designed for stable operation in industrial environments

Communication & Interface

Feedback Interface: Encoder feedback connection

Encoder Function: Provides accurate speed and position feedback to servo drives

Drive Compatibility: Designed for Schneider servo drive systems

Connection Method: Power and feedback connectors

Control Function: Supports closed-loop torque, speed, and position control

System Integration: Suitable for advanced automation equipment and precision motion applications

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Installation Environment: Suitable for industrial automation equipment and machine control systems

Dimensions & Weight

Motor Length: 167.5 mm

Weight: 7.5 kg
