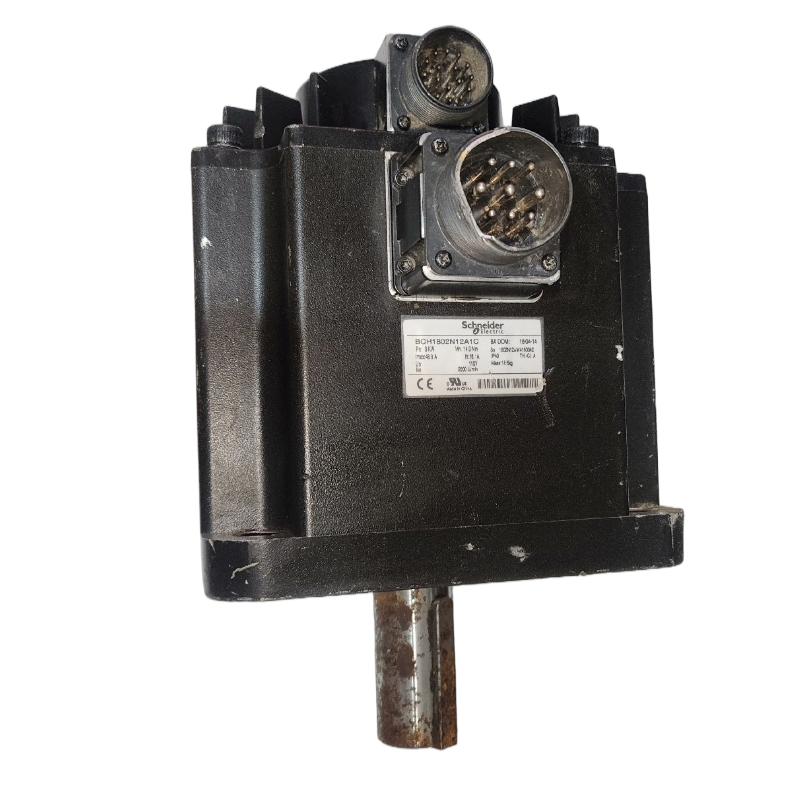

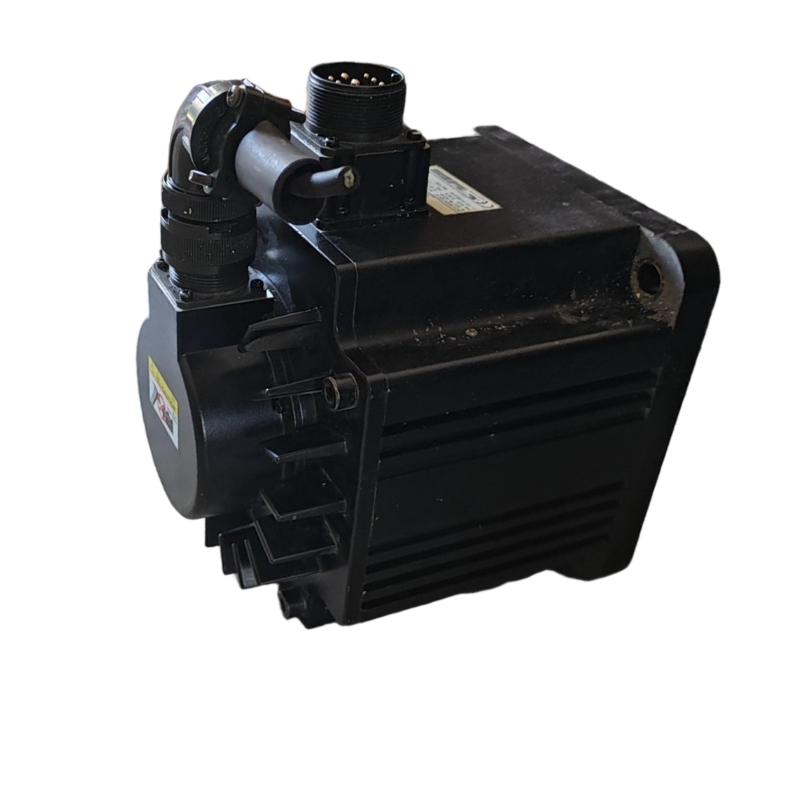

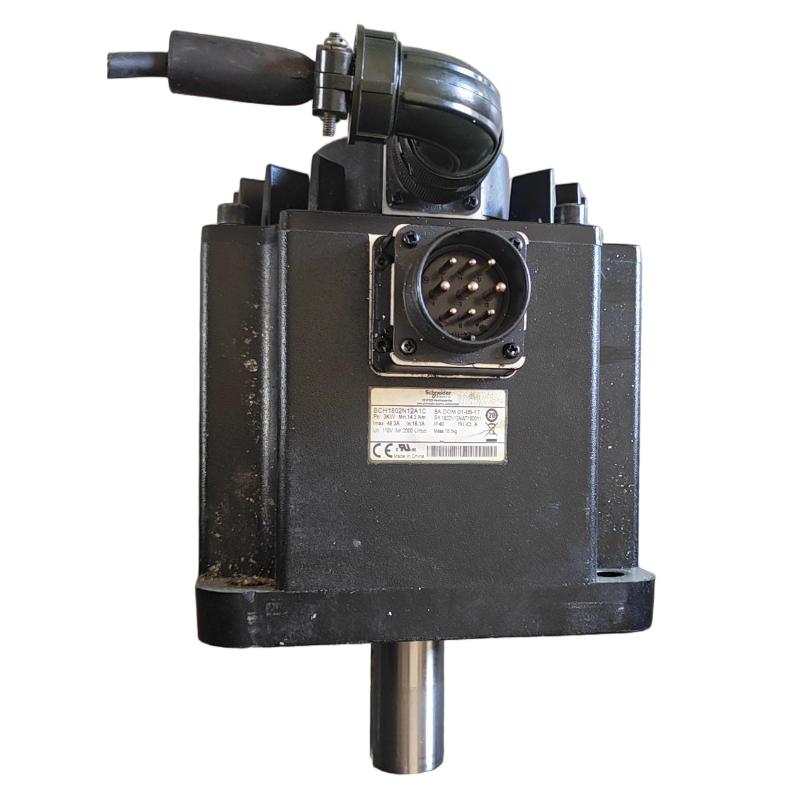

Schneider BCH1802N12A1C Servo Motor

Overview

The Schneider BCH1802N12A1C is a BCH series servo motor designed for reliable and precise motion control in industrial automation applications. It delivers high torque performance, accurate positioning capability, and stable operation for heavy-duty machinery, machine tools, robotics, and automated production systems.

General Information

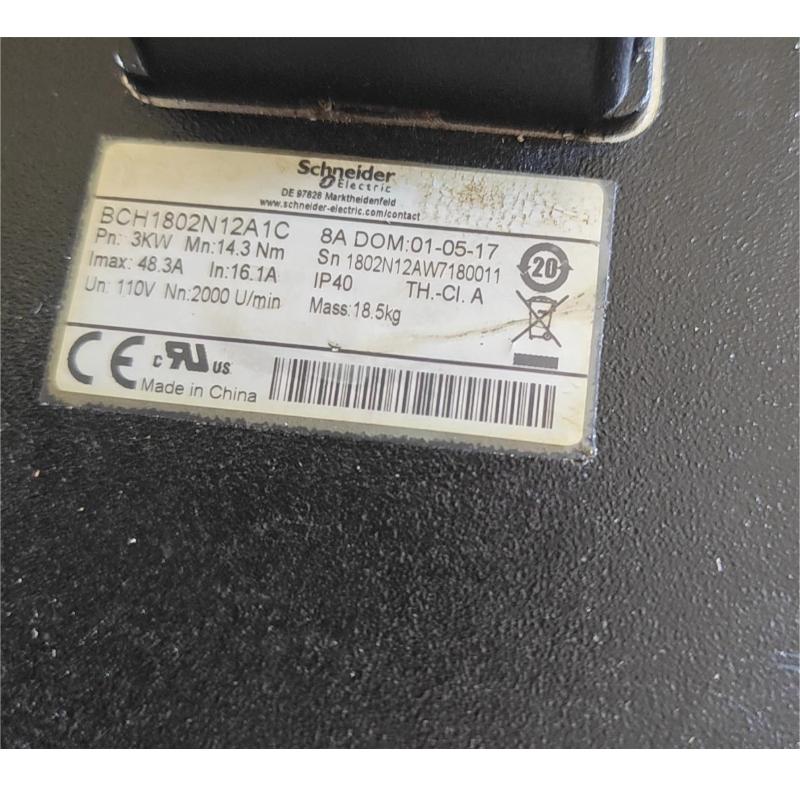

Part Number: BCH1802N12A1C

Brand: Schneider Electric

Country of Origin: France

Series: BCH Servo Motor

Type: AC Servo Motor

Motor Size: 180 mm flange servo motor

Application: Industrial motion control, precision positioning, and heavy-duty automation equipment

Cooling Method: Natural convection cooling

Feedback Type: Encoder feedback system

Mounting: Flange-mounted installation

Power Specifications

Rated Power: 2000 W

Rated Voltage: 230 V AC class

Motor Speed: Up to 3000 rpm

Rated Torque: Approx. 6.4 N·m

Peak Torque: Supports short-term overload operation for dynamic motion applications

Insulation Class: Industrial-grade insulation design

Protection: Designed for reliable performance in demanding industrial environments

Communication & Interface

Feedback Interface: Encoder feedback connection

Encoder Function: Provides accurate speed and position feedback to servo drives

Drive Compatibility: Designed for Schneider servo drive systems

Connection Method: Power and feedback connectors

Control Function: Supports closed-loop torque, speed, and position control

System Integration: Suitable for automated machinery and precision motion control platforms

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Installation Environment: Suitable for industrial automation equipment and machine control systems

Dimensions & Weight

Motor Length: 202.1 mm

Weight: 18.5 kg

In Stock Now – Reliable Motion Control with Fast Delivery!
