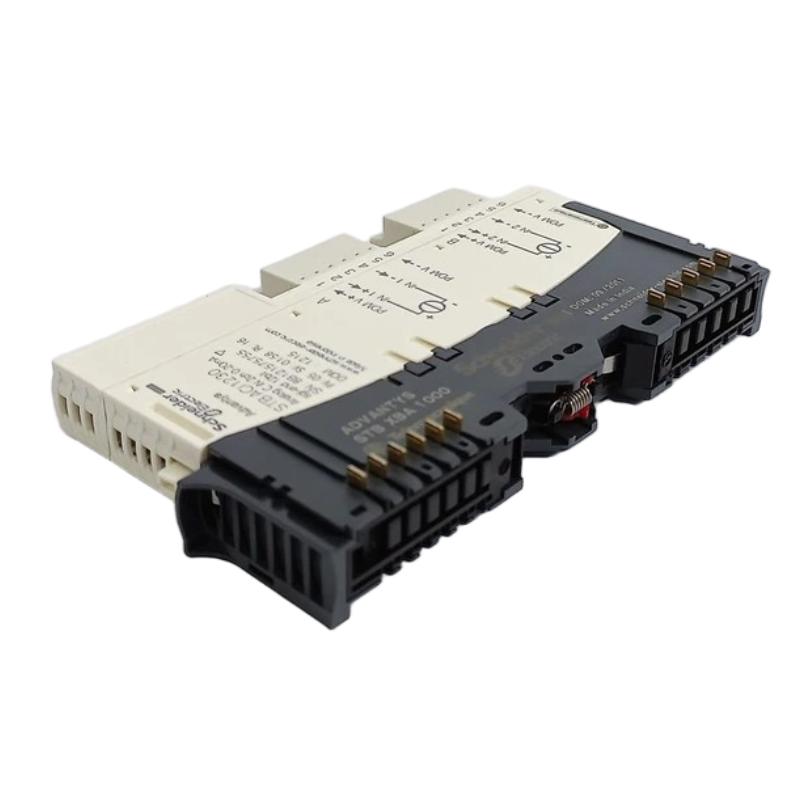

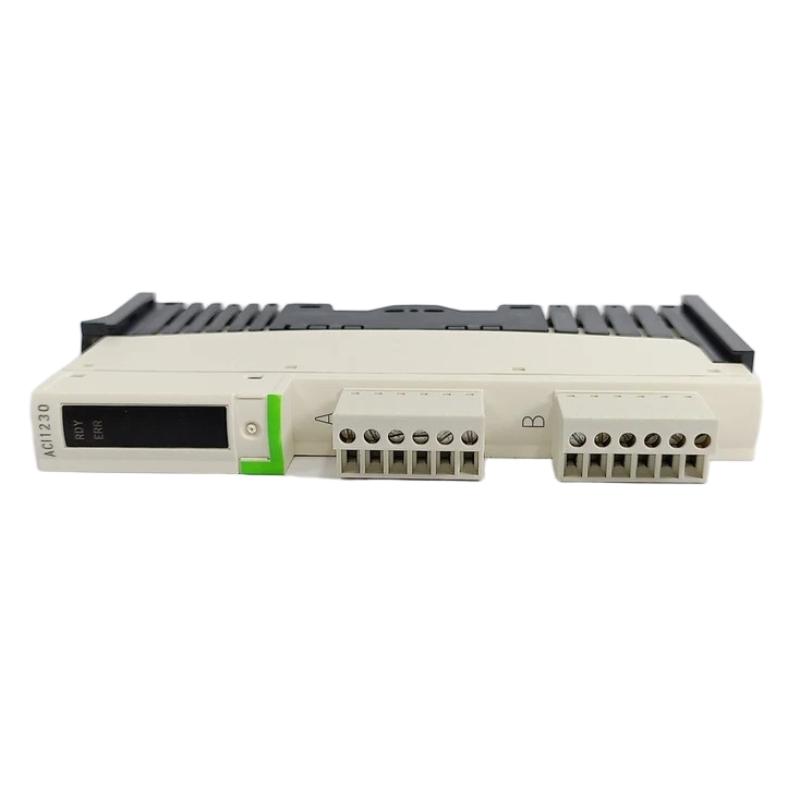

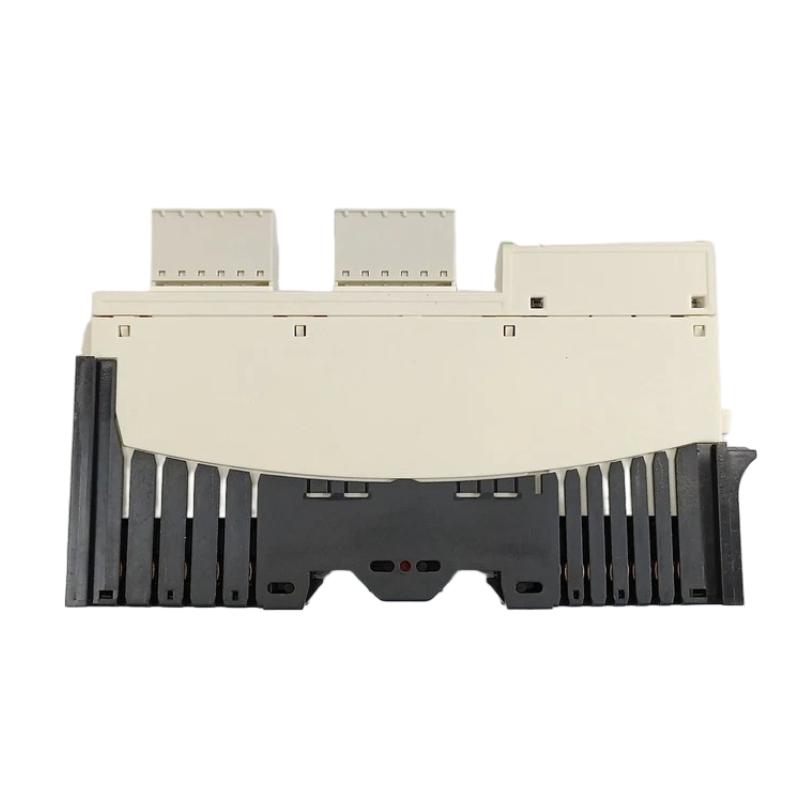

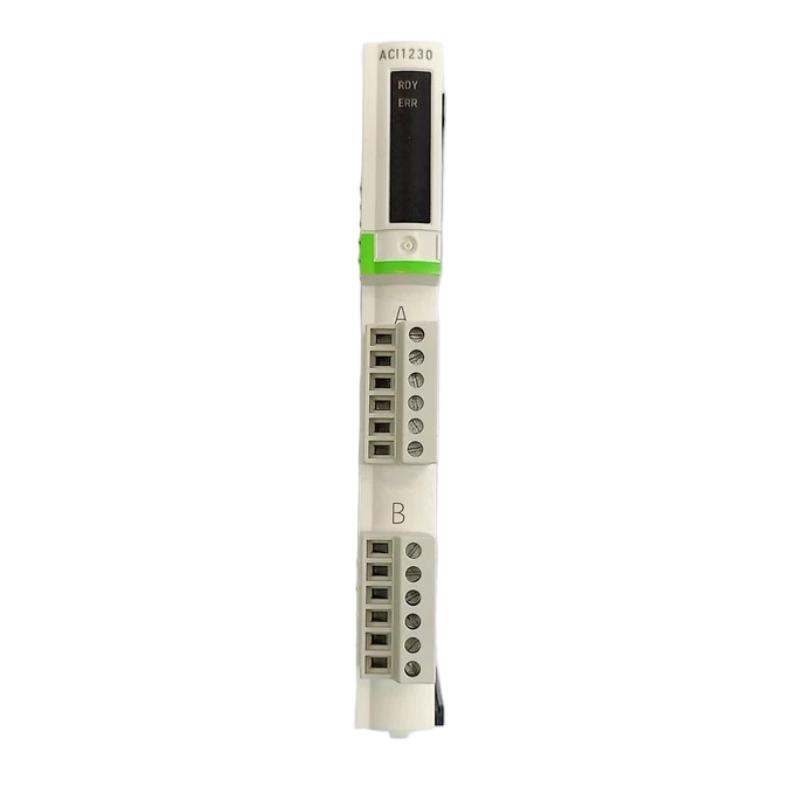

Schneider STBACI1230K Standard Analog Input Kit

Overview

The Schneider STBACI1230K is a Standard Analog Input Kit designed for the Modicon STB distributed I/O platform. It is used for collecting analog signals from industrial field devices and converting them into reliable digital data for automation controllers.

With stable signal processing capability and a compact modular design, the STBACI1230K is suitable for process monitoring, machine automation, and distributed control applications requiring accurate analog measurement.

General Information

Part Number: STBACI1230K

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon STB

Type: Standard Analog Input Kit

Function: Analog signal acquisition and input data processing

Application: Industrial automation, process control, and remote I/O systems

Mounting: DIN rail installation within Modicon STB island architecture

Design: Modular plug-in structure for flexible system configuration and maintenance

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power modular I/O operation

Input Type: Standard analog voltage and current input

Signal Processing: Converts analog field signals into digital values for controller analysis

Protection: Integrated input protection for improved operational stability

Status Indicators: LED indicators for module status, power, and diagnostics

Communication & Interface

System Connection: Modicon STB island bus interface

Communication Method: Internal bus communication through STB network interface modules

Input Channels: Analog input channels for industrial sensors and transmitters

Signal Interface: Supports standard analog measurement signals

Configuration: Software-based parameter configuration and module setup

Diagnostics: Channel monitoring, fault detection, and status feedback

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for industrial control cabinets and automation equipment panels

Dimensions & Weight

Dimensions (L × W × H): 13.9 × 128.3 × 70 mm

Weight: 0.116 kg
