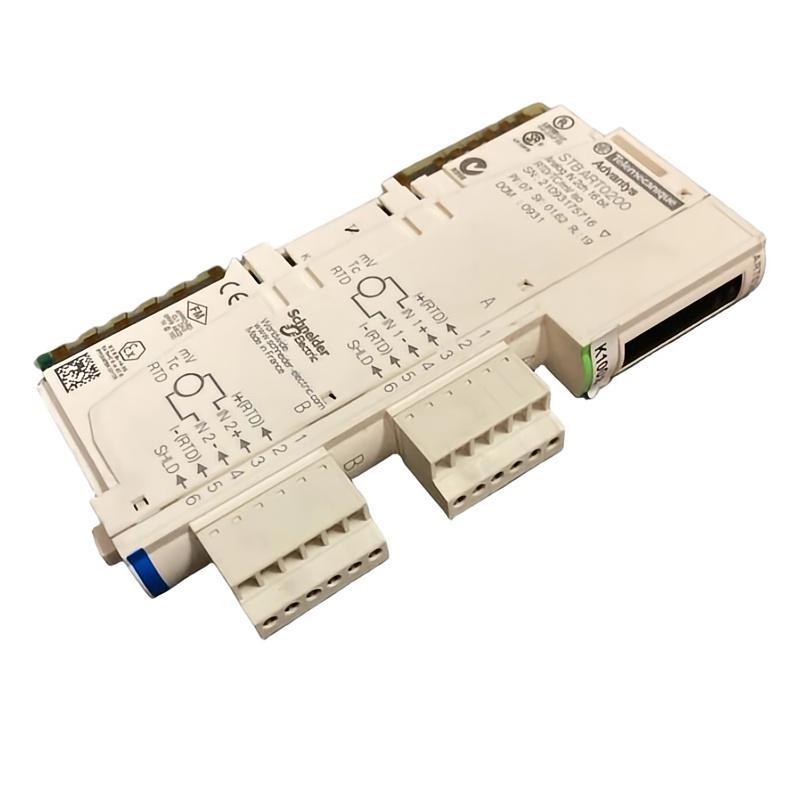

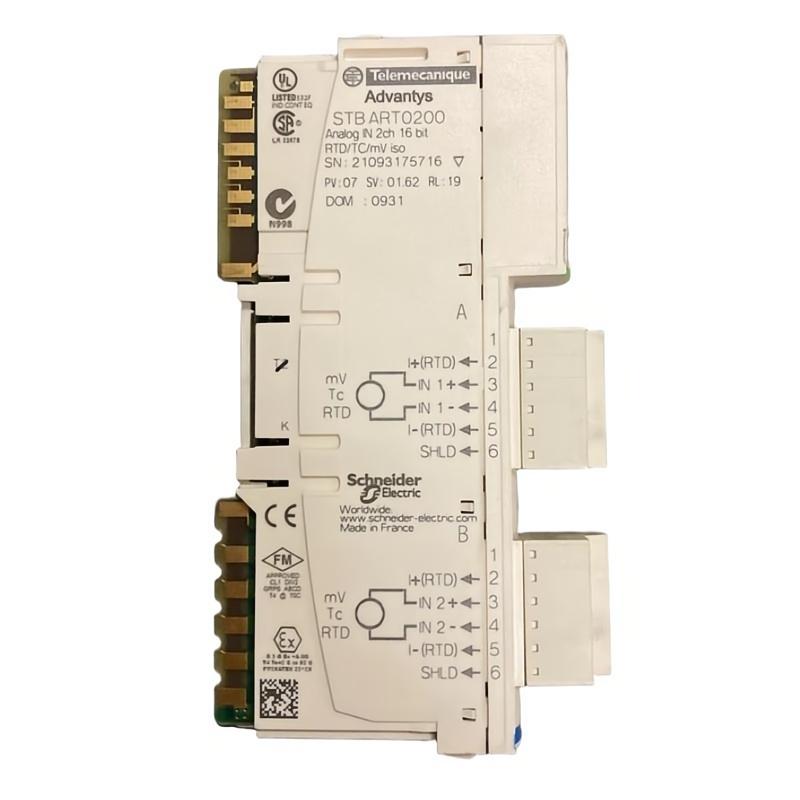

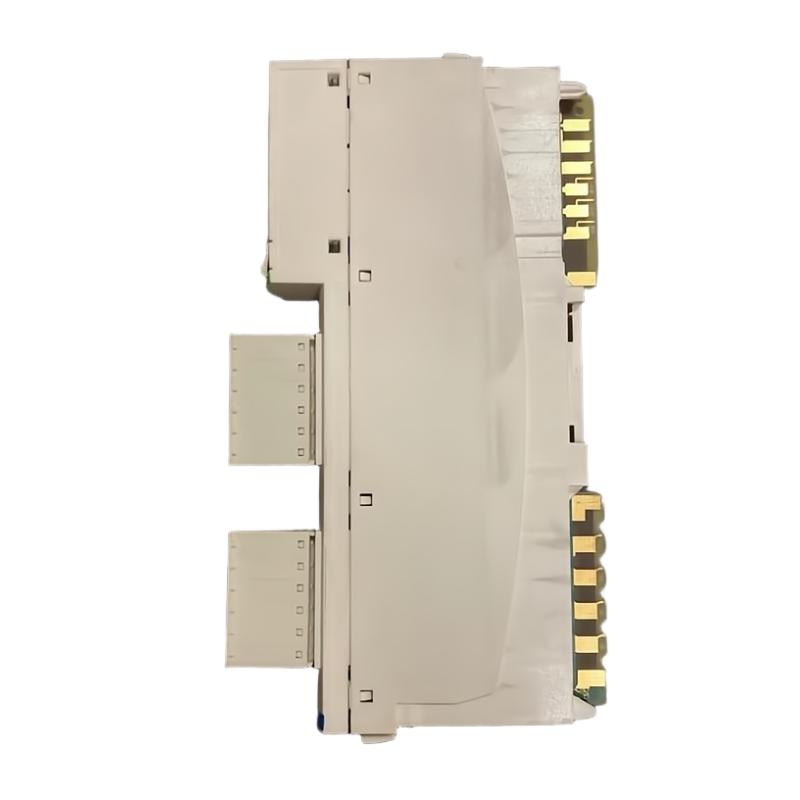

Schneider STBART0200K Standard Analog Input Kit

Overview

The Schneider STBART0200K is a Standard Analog Input Kit designed for the Modicon STB distributed I/O platform. It provides reliable analog signal acquisition for industrial automation systems, enabling accurate measurement and monitoring of connected field devices.

With its compact modular structure and stable signal processing capability, the STBART0200K is suitable for process control, machine automation, and distributed monitoring applications requiring dependable analog input performance.

General Information

Part Number: STBART0200K

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon STB

Type: Standard Analog Input Kit

Function: Analog signal acquisition and input data processing

Application: Industrial automation, process monitoring, and distributed I/O systems

Mounting: DIN rail installation within Modicon STB island architecture

Design: Modular plug-in structure for simple installation, expansion, and maintenance

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power modular I/O operation

Input Type: Standard analog input signals

Signal Processing: Converts analog field signals into digital values for controller processing

Protection: Integrated input protection for improved system reliability

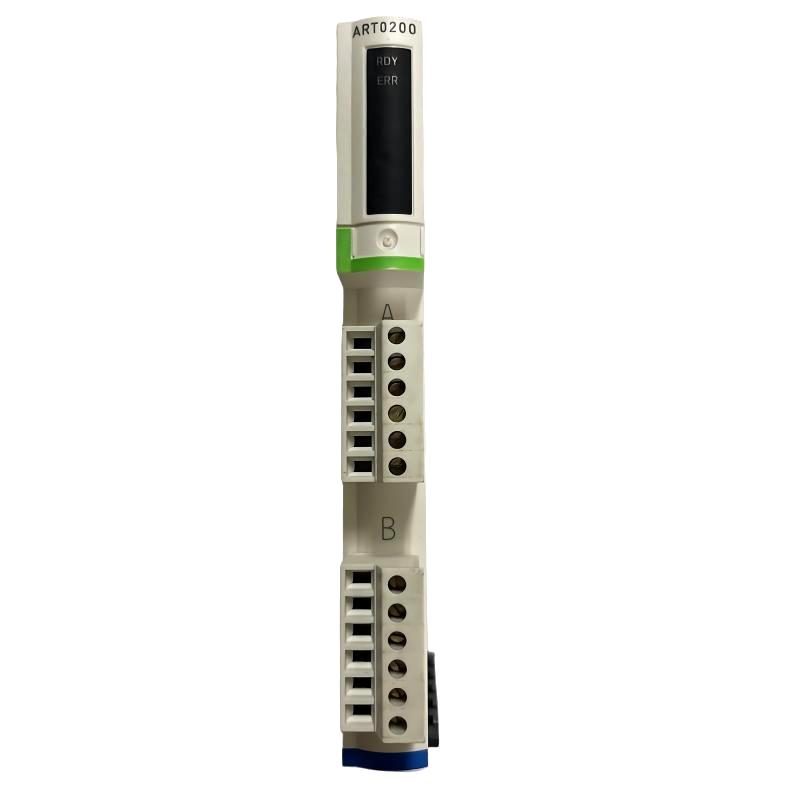

Status Indicators: LED indicators for power, module status, and diagnostics

Communication & Interface

System Connection: Modicon STB island bus interface

Communication Method: Internal bus communication through STB network interface modules

Input Channels: Analog input channels for industrial sensors and measurement devices

Signal Interface: Supports standard analog field signal connection

Configuration: Software-based parameter setting and module configuration

Diagnostics: Channel monitoring, fault detection, and operating status feedback

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for industrial control cabinets and automation equipment panels

Dimensions & Weight

Dimensions (L × W × H): 18.4 × 128.3 × 70 mm

Weight: 0.082 kg
