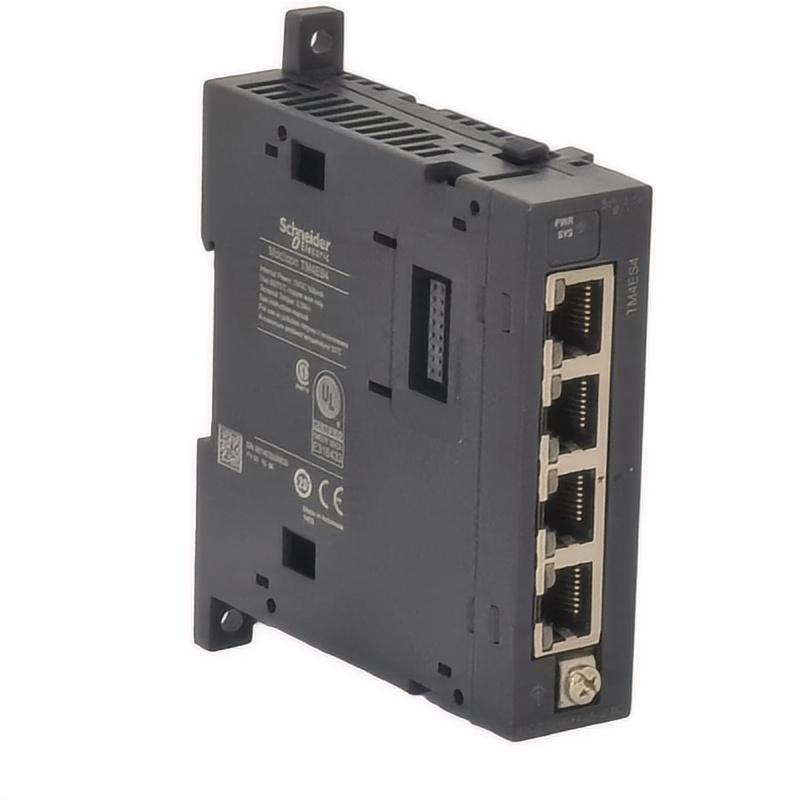

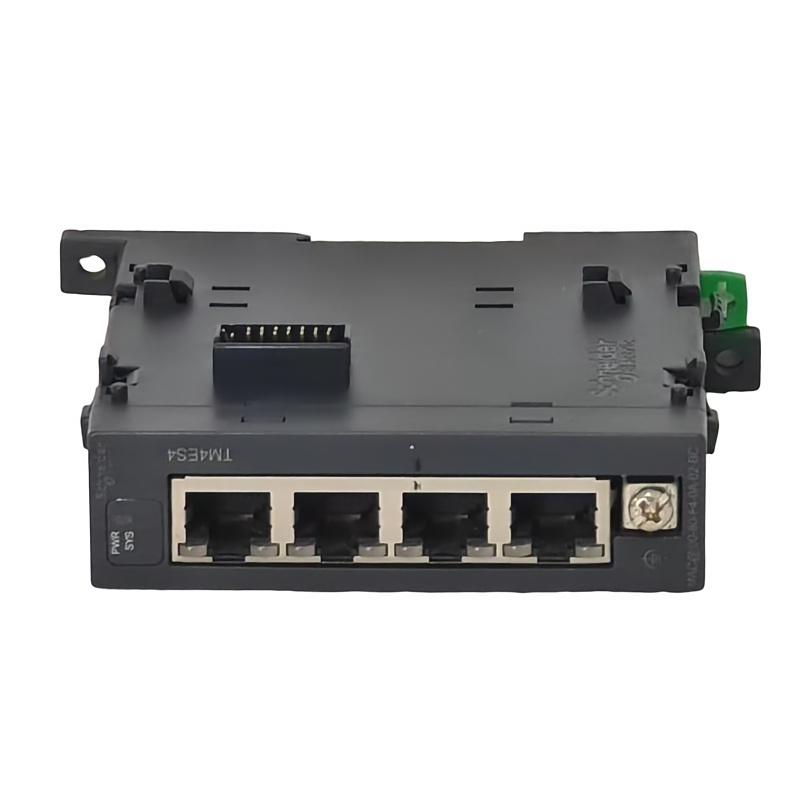

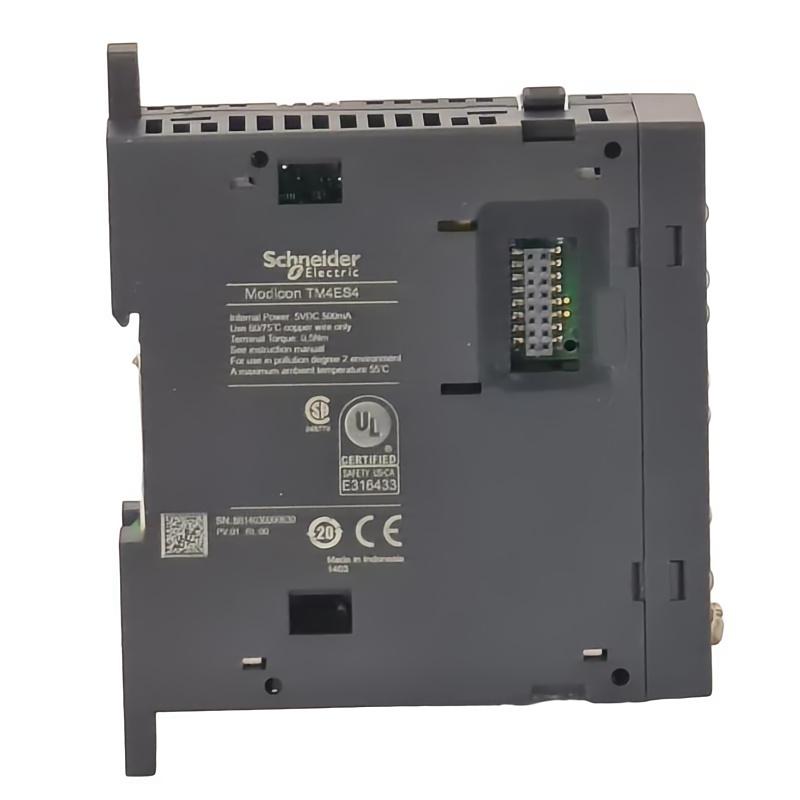

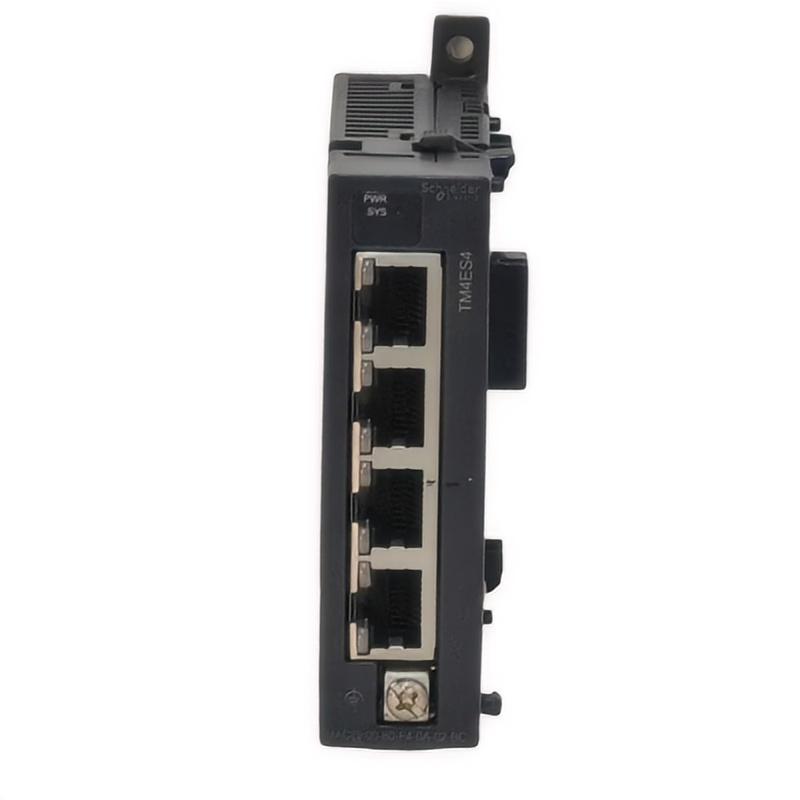

Schneider TM4ES4 Ethernet Switch Expansion Module

Overview

The Schneider TM4ES4 is an Ethernet Switch Expansion Module designed to extend communication capabilities within Schneider automation systems. It provides additional Ethernet connectivity for controllers and devices, enabling efficient network expansion and reliable data communication.

With a compact design and flexible installation structure, the TM4ES4 is suitable for industrial automation applications requiring stable Ethernet communication and simplified network integration.

General Information

Part Number: TM4ES4

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM4

Type: Ethernet Switch Expansion Module

Function: Ethernet communication expansion and network connection

Application: Industrial automation, machine control, and Ethernet-based control networks

Mounting: Direct installation on compatible controller systems

Design: Compact modular expansion unit for flexible system configuration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power communication module operation

Power Supply Method: Powered through the controller expansion interface

Protection: Integrated electrical protection for stable network operation

Status Indicators: LED indicators for power, Ethernet link, and communication status

Communication & Interface

Communication Interface: Ethernet switch expansion interface

Ethernet Ports: Multiple Ethernet connection ports for network extension

Network Function: Supports industrial Ethernet communication and device interconnection

Data Transmission: Provides reliable communication between controllers and connected devices

Configuration: Integrated system configuration through compatible automation software

Diagnostics: Network status monitoring, connection diagnostics, and fault indication

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for industrial control cabinets and automation panels

Dimensions & Weight

Dimensions (L × W × H): 90 × 90 × 25 mm

Weight: 0.125 kg

New Arrival – Fast Availability for Industrial Automation Solutions!
