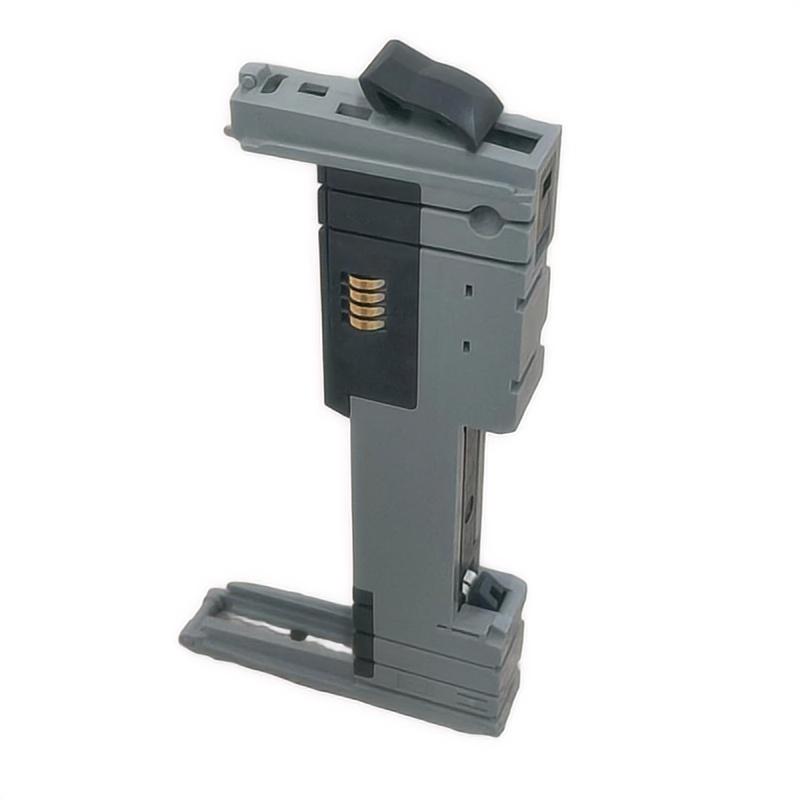

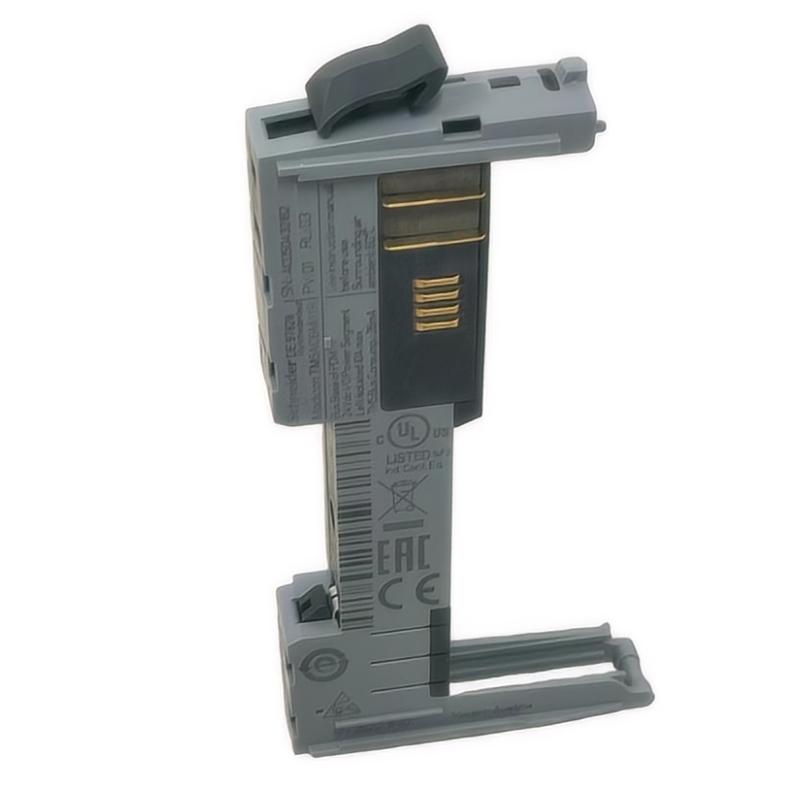

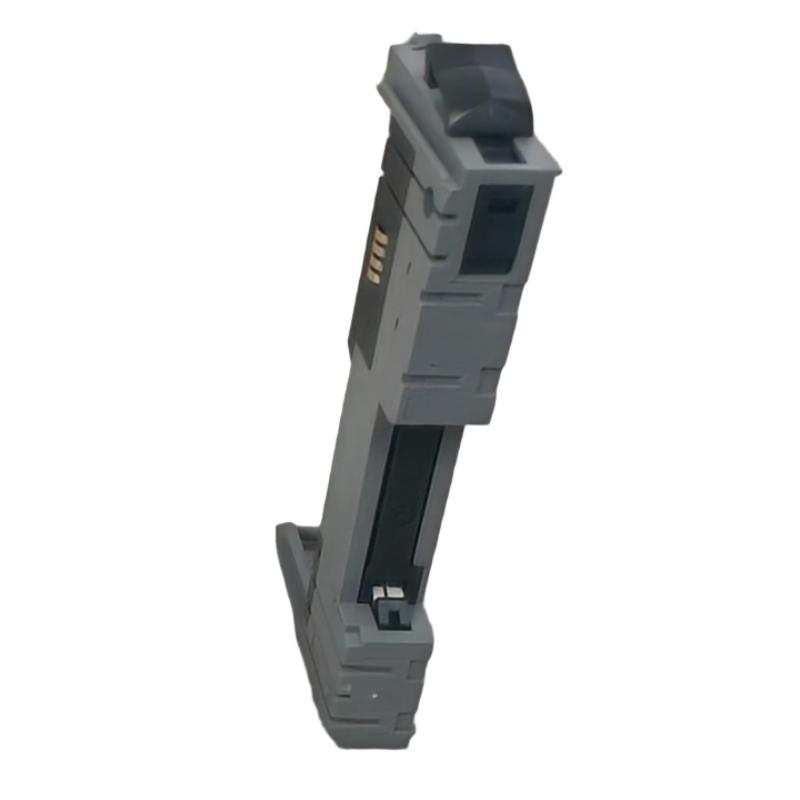

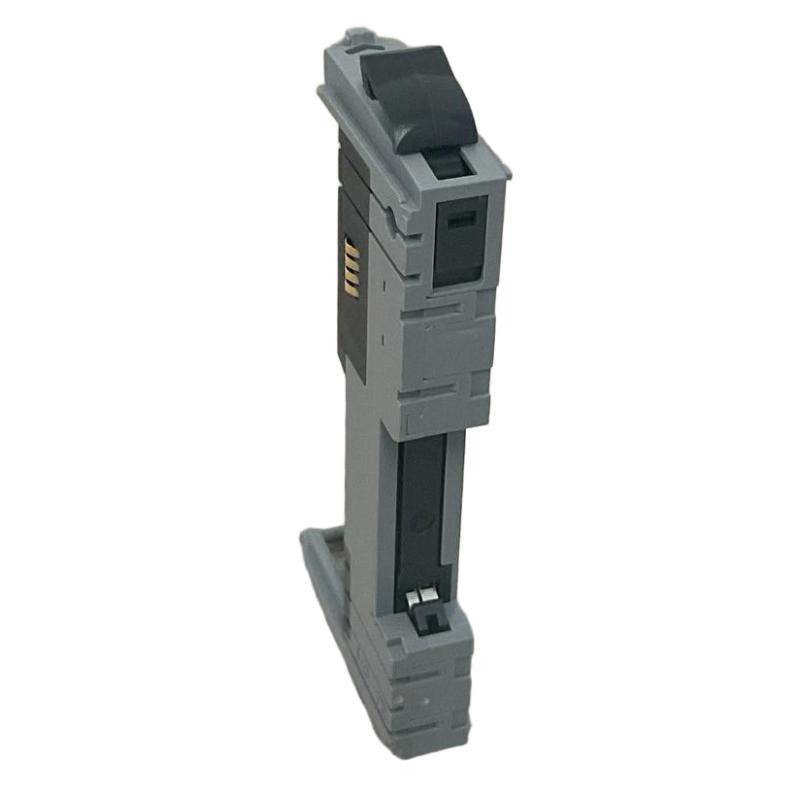

Schneider TM5ACBM01R Bus Base
| Release time | Aug 5, 2026 |
|---|---|
| Brand | Schneider PLC |
| Product Numbe | TM5ACBM01R |
| Country Of Origin | France |
| Dimensions | 25 × 73.5 × 90 mm |
| Weight | 0.02 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Schneider TM5ACBM01R is a Bus Base designed for the Modicon TM5 distributed I/O system. It provides the mechanical and electrical connection foundation between TM5 electronic modules, supporting reliable communication and power distribution within automation architectures.
With a compact modular structure, the TM5ACBM01R enables flexible I/O system expansion and simplifies installation in industrial control applications.
General Information
Part Number: TM5ACBM01R
Manufacturer: Schneider Electric
Brand: Schneider Electric
Country of Origin: France
Series: Modicon TM5
Type: Bus Base
Function: Module mounting and internal bus connection
Application: Industrial automation, machine control, and distributed I/O systems
Mounting: DIN rail installation within TM5 modular I/O configurations
Design: Compact modular base unit for quick installation and system expansion
Power Specifications
Supply Voltage: 24 V DC system power
Power Distribution: Provides internal power and communication connection between TM5 modules
Power Consumption: Low-power passive module operation
Protection: Designed for reliable industrial signal and power connection
Status Indicators: Supports system status monitoring through connected modules
Communication & Interface
System Connection: Modicon TM5 internal bus interface
Communication Method: Internal data exchange between connected TM5 modules
Module Support: Provides connection support for TM5 electronic modules
Installation Interface: Mechanical and electrical connection interface
Diagnostics: Supports system-level module status and communication monitoring
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −25 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Suitable for industrial control cabinets and automation equipment panels
Dimensions & Weight
Dimensions (L × W × H): 25 × 73.5 × 90 mm
Weight: 0.02 kg
