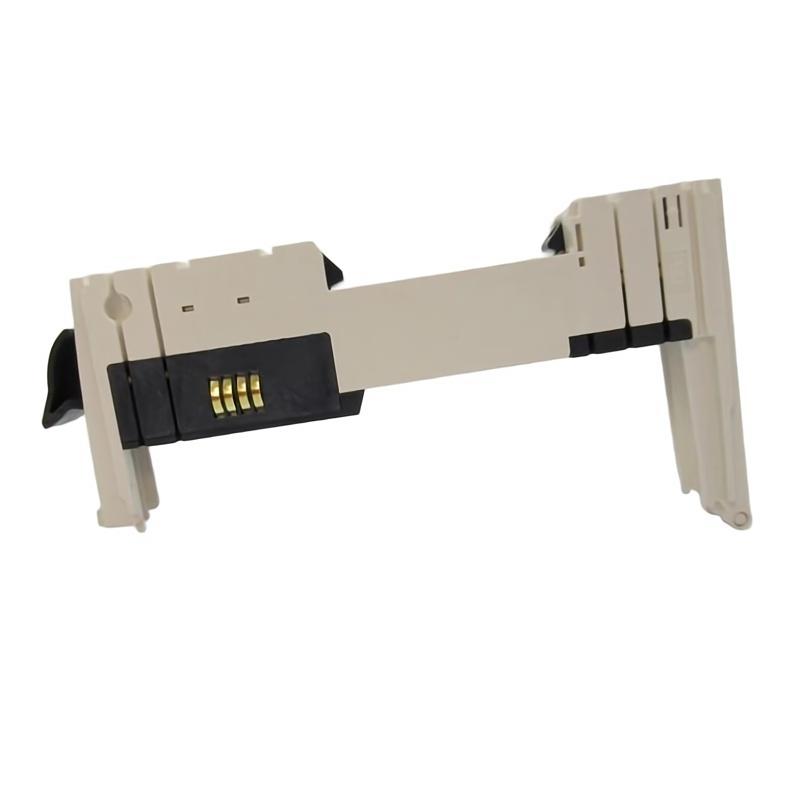

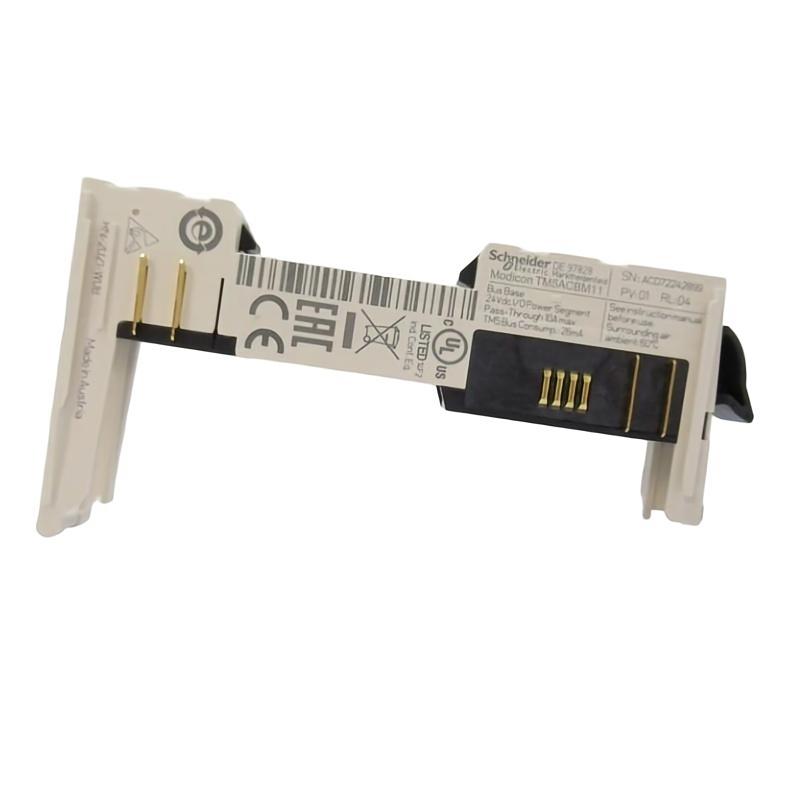

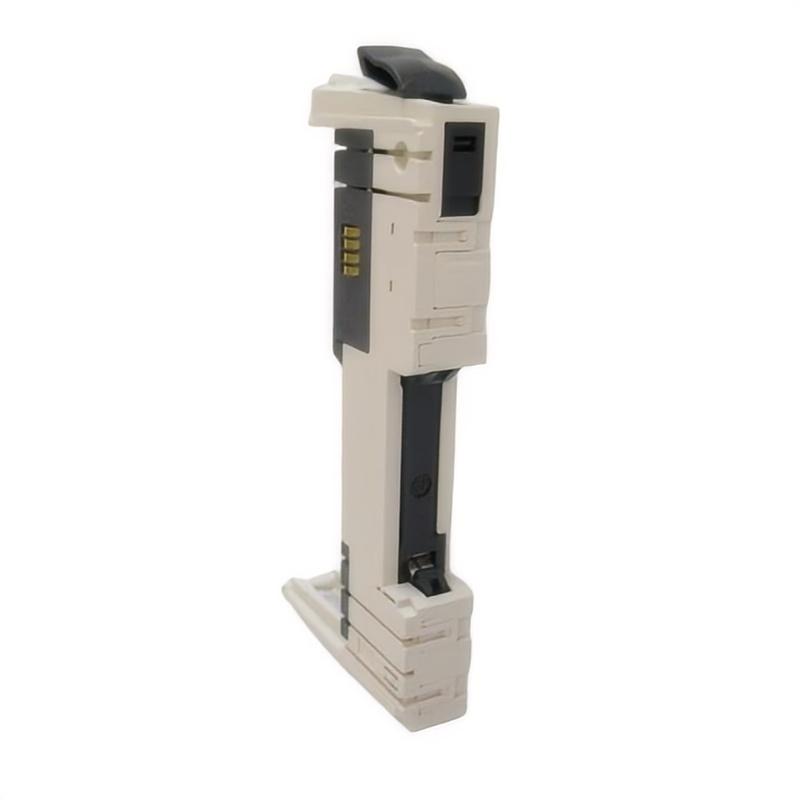

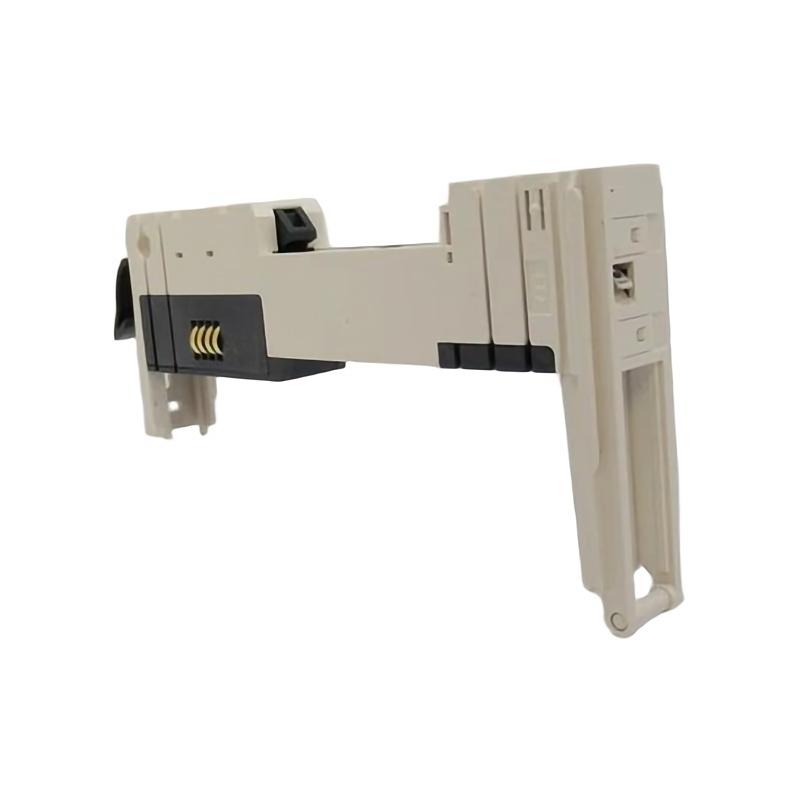

Schneider TM5ACBM11 Bus Base

Overview

The Schneider TM5ACBM11 is a Bus Base designed for the Modicon TM5 distributed I/O system. It provides the mechanical mounting structure and electrical connection interface required for integrating TM5 electronic modules into industrial automation systems.

With a compact modular design, the TM5ACBM11 supports flexible I/O expansion, reliable internal communication, and simplified maintenance in machine control and automation applications.

General Information

Part Number: TM5ACBM11

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM5

Type: Bus Base

Function: Module mounting and internal bus connection

Application: Industrial automation, machine control, and distributed I/O systems

Mounting: DIN rail installation within TM5 modular I/O configurations

Design: Compact passive base unit for connecting and supporting TM5 modules

Power Specifications

Supply Voltage: 24 V DC system power

Power Distribution: Provides internal power and communication connection between TM5 modules

Power Consumption: Low-power passive module operation

Electrical Connection: Supports power and signal distribution within the TM5 system

Protection: Designed for reliable industrial connection and long-term operation

Communication & Interface

System Connection: Modicon TM5 internal bus interface

Communication Method: Internal data exchange between connected TM5 modules

Module Support: Provides connection support for TM5 electronic modules

Installation Interface: Mechanical and electrical interface for modular expansion

Diagnostics: Supports system status monitoring through connected control modules

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for industrial control cabinets and automation equipment panels

Dimensions & Weight

Dimensions (L × W × H): 25 × 73.5 × 90 mm

Weight: 0.02 kg

Ready for Immediate Supply – Efficient Automation Components at Great Value!
