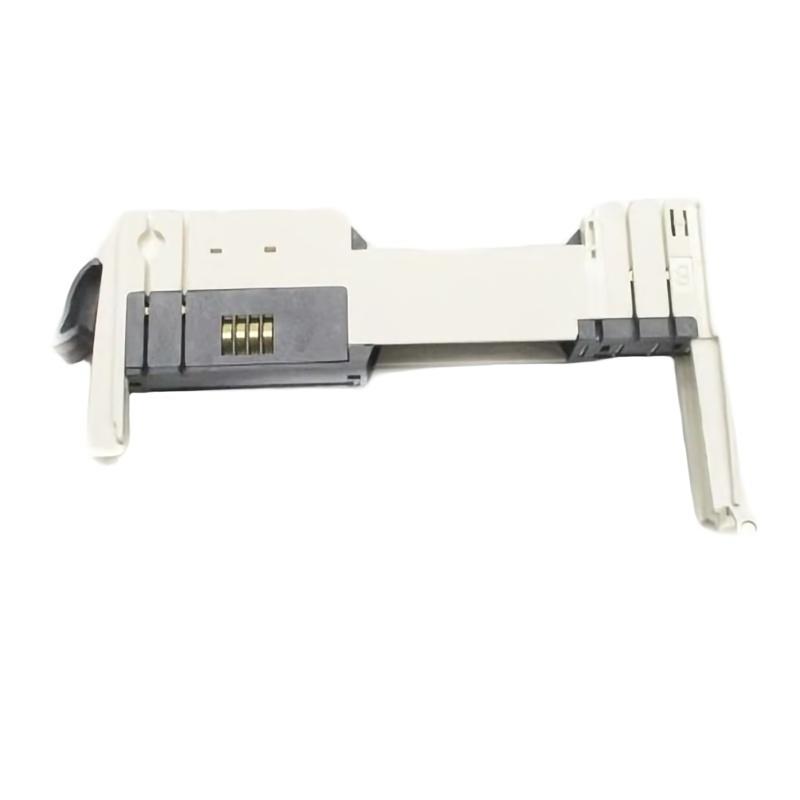

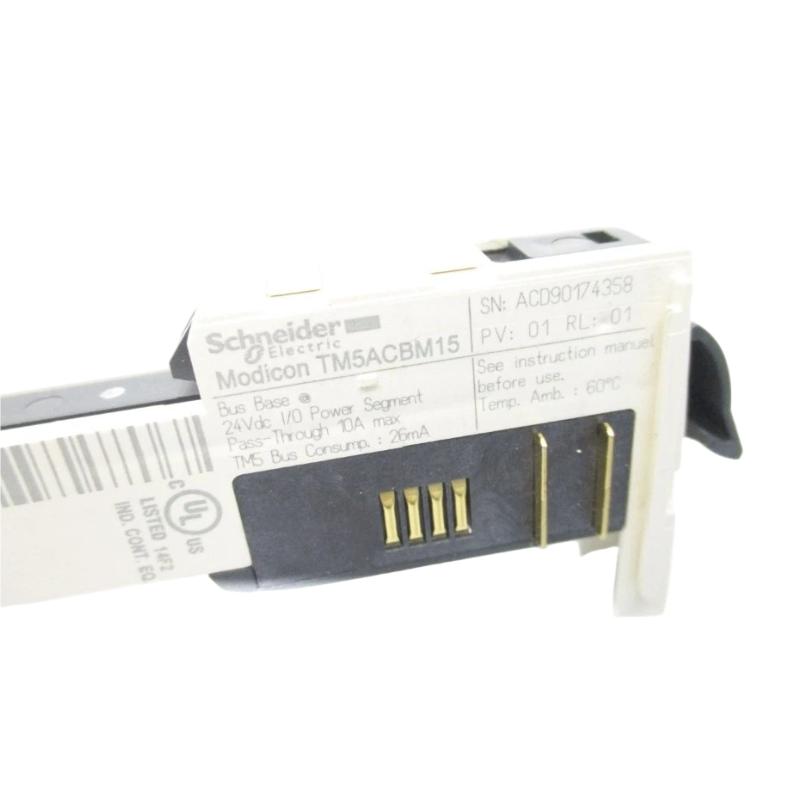

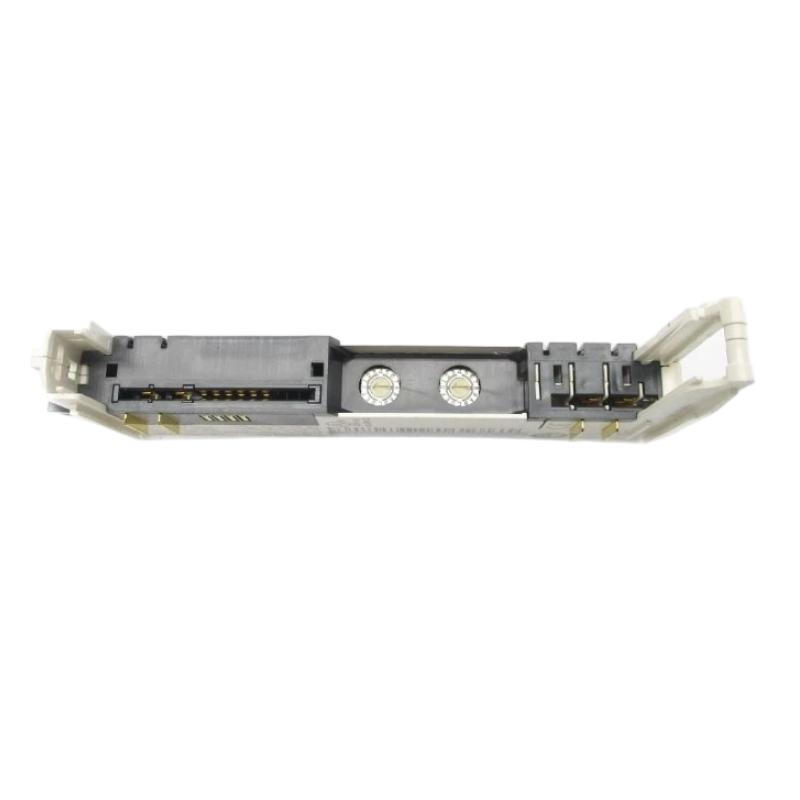

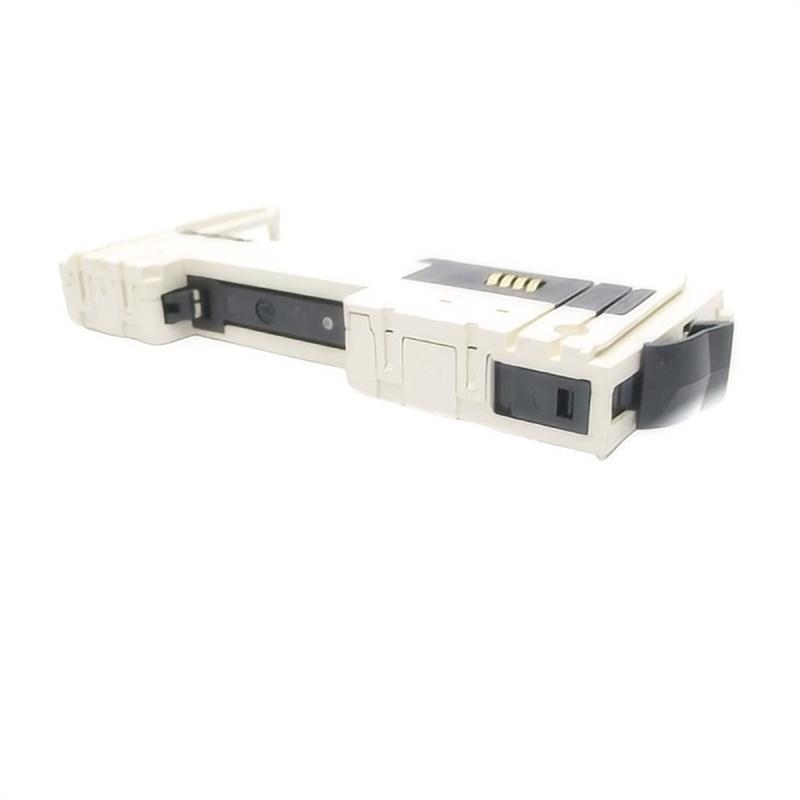

Schneider TM5ACBM15 Bus Base Module

Overview

The Schneider TM5ACBM15 is a bus base module designed for the Modicon TM5 modular automation platform. It provides a reliable connection base for TM5 expansion modules, ensuring stable mechanical installation and efficient internal bus communication within industrial control systems.

This module is suitable for machine automation applications requiring flexible I/O expansion, compact cabinet design, and dependable module integration.

General Information

Part Number: TM5ACBM15

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM5

Type: Bus Base Module

Function: Provides module mounting support and internal bus connection for TM5 I/O expansion systems

Application: Industrial automation, machine control, distributed I/O systems

Mounting Method: DIN rail installation

Design: Compact modular structure for easy system expansion and maintenance

Power Specifications

Supply Voltage: 24 V DC system power

Power Source: Supplied through the TM5 modular bus system

Power Distribution: Supports internal power and signal distribution between connected modules

Power Management: Designed for reliable operation in modular automation architectures

Protection Features: Ensures stable electrical connection and improved system reliability

Status Indication: Supports system monitoring through controller diagnostics and module indicators

Communication & Interface

Bus Interface: TM5 internal expansion bus

Communication Function: Enables data exchange between controller, base module, and connected I/O modules

Connection Type: Modular backplane bus connection

System Compatibility: Designed for Schneider Electric Modicon TM5 automation components

Diagnostics: Supports system status monitoring and fault identification through control software

Environmental

Operating Temperature: -10 to +60 °C

Storage Temperature: -25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for installation inside industrial control cabinets

Application Conditions: Designed for standard industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 99 × 38 × 75 mm

Weight: 0.08 kg

Reliable Automation Solutions!
