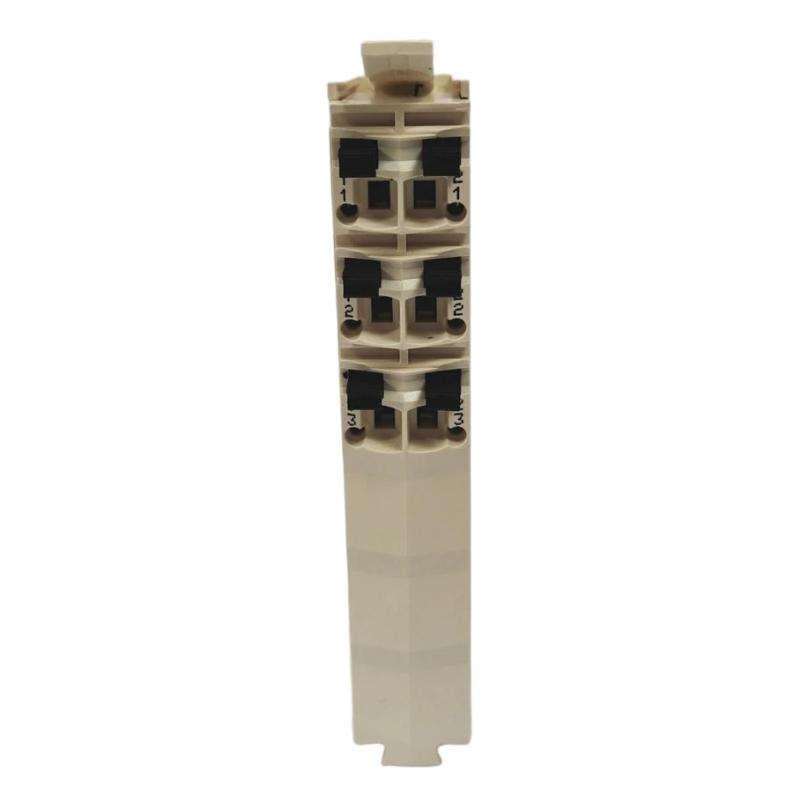

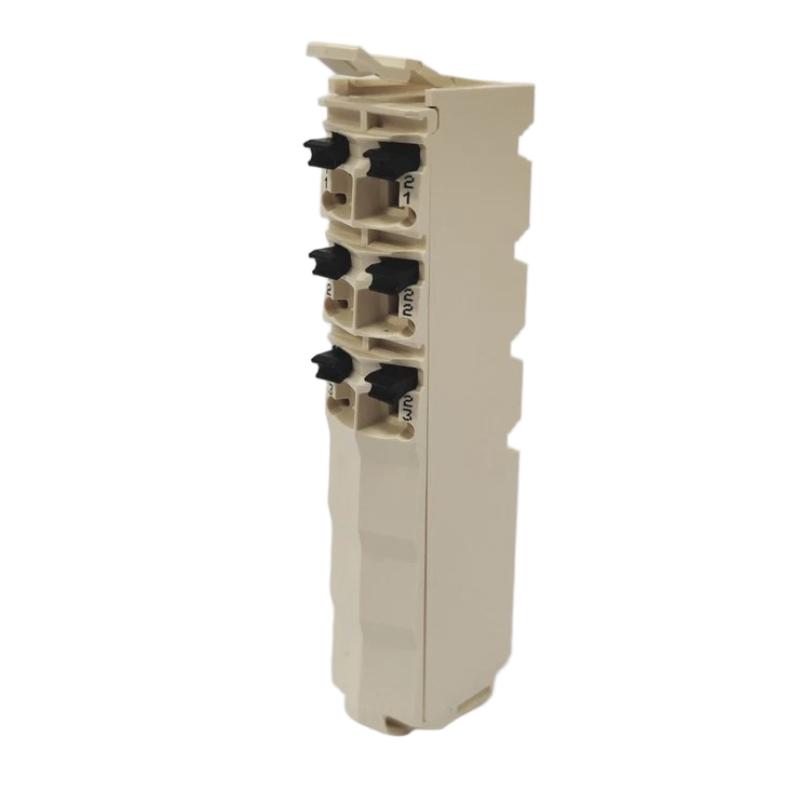

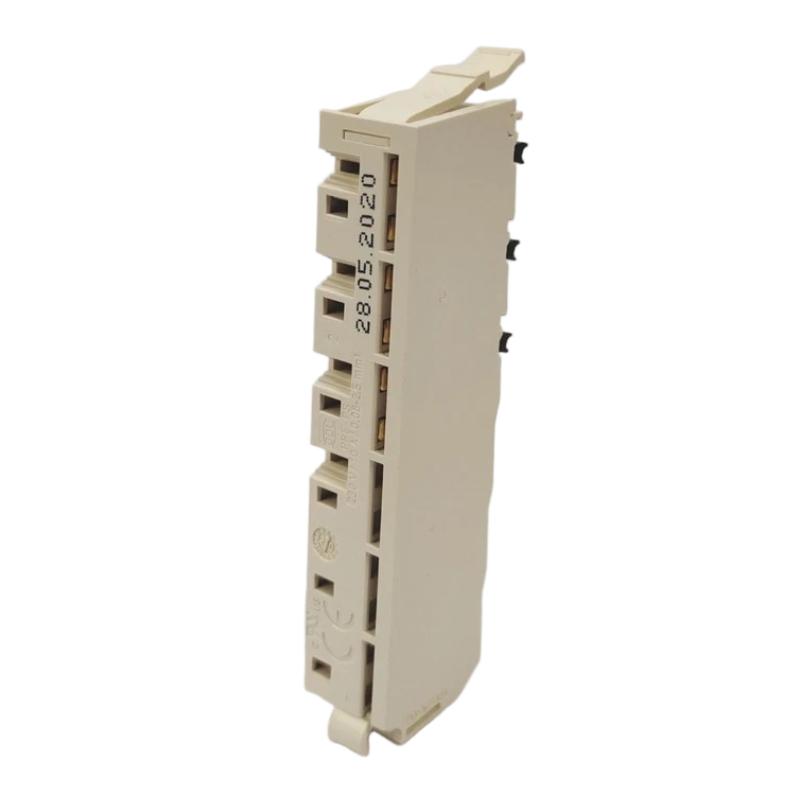

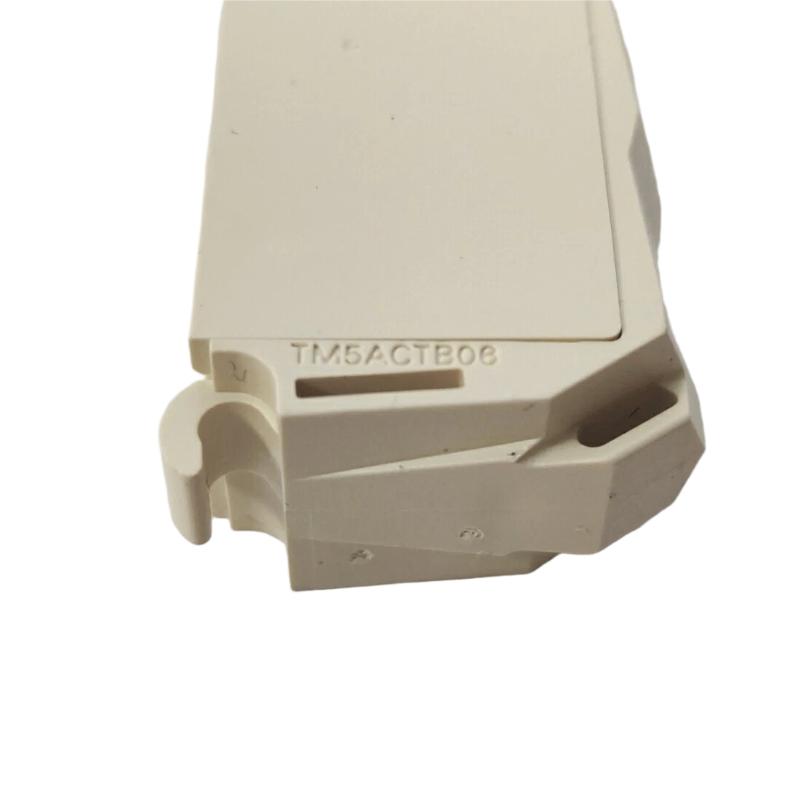

Schneider TM5ACTB06 Terminal Blocks

Overview

The Schneider TM5ACTB06 is a terminal block designed for the Modicon TM5 modular automation system. It provides a reliable wiring interface for connecting field devices and control signals, ensuring secure electrical connections within compact industrial automation installations.

This terminal block is suitable for machine control systems that require organized wiring, easy maintenance, and dependable signal transmission between field components and I/O modules.

General Information

Part Number: TM5ACTB06

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM5

Type: Terminal Block

Function: Provides electrical connection points for TM5 I/O modules

Application: Industrial automation, machine control, distributed I/O wiring systems

Connection Method: Plug-in terminal connection

Design: Compact removable structure for convenient installation and maintenance

Power Specifications

Rated Voltage: 24 V DC system applications

Electrical Function: Signal and power connection interface

Power Distribution: Provides field wiring connection between external devices and automation modules

Current Handling: Designed for standard TM5 I/O connection requirements

Protection Features: Secure terminal connection design for reliable operation

Communication & Interface

Interface Type: Plug-in terminal interface

Connection Points: Supports field signal wiring connections

Communication Function: Passive connection component, no independent communication function

System Compatibility: Designed for Modicon TM5 modular I/O components

Installation Feature: Allows quick module wiring and replacement during maintenance

Environmental

Operating Temperature: -10 to +60 °C

Storage Temperature: -25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Suitable for industrial control cabinets and automation equipment

Application Conditions: Designed for standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 80 × 24 × 14 mm

Weight: 0.016 kg
