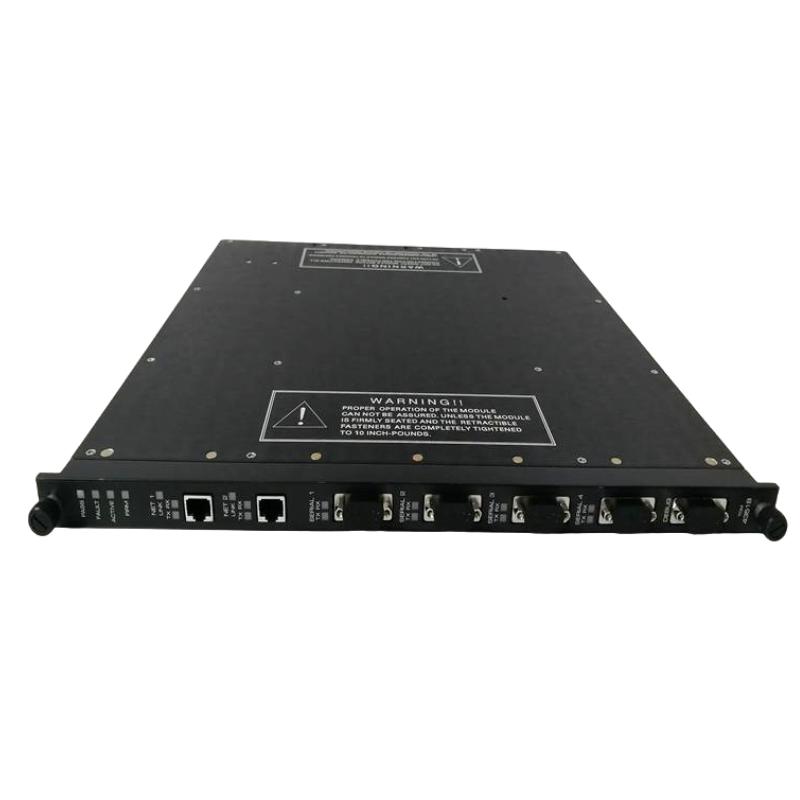

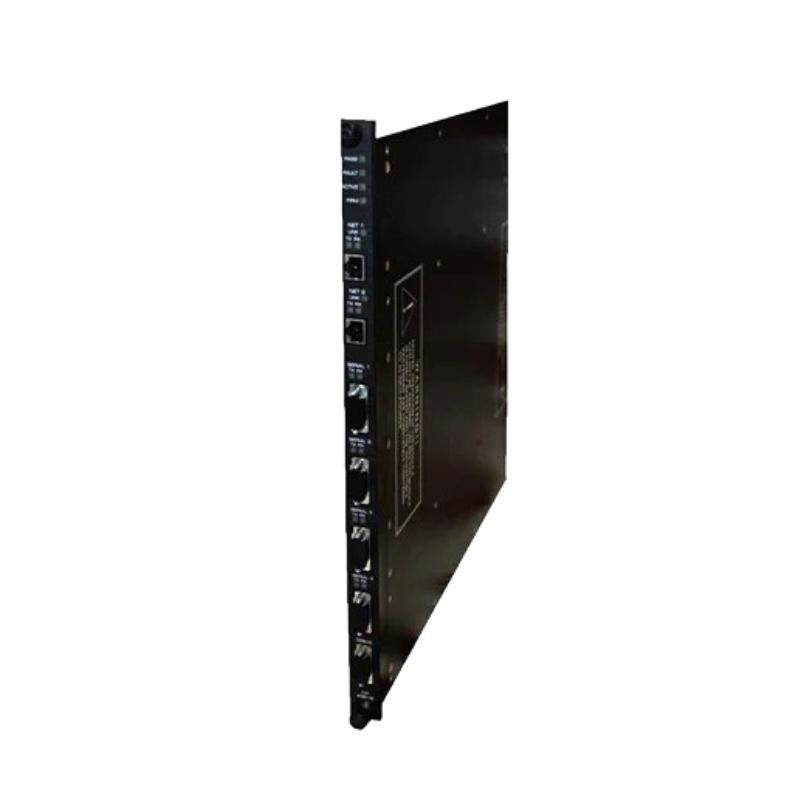

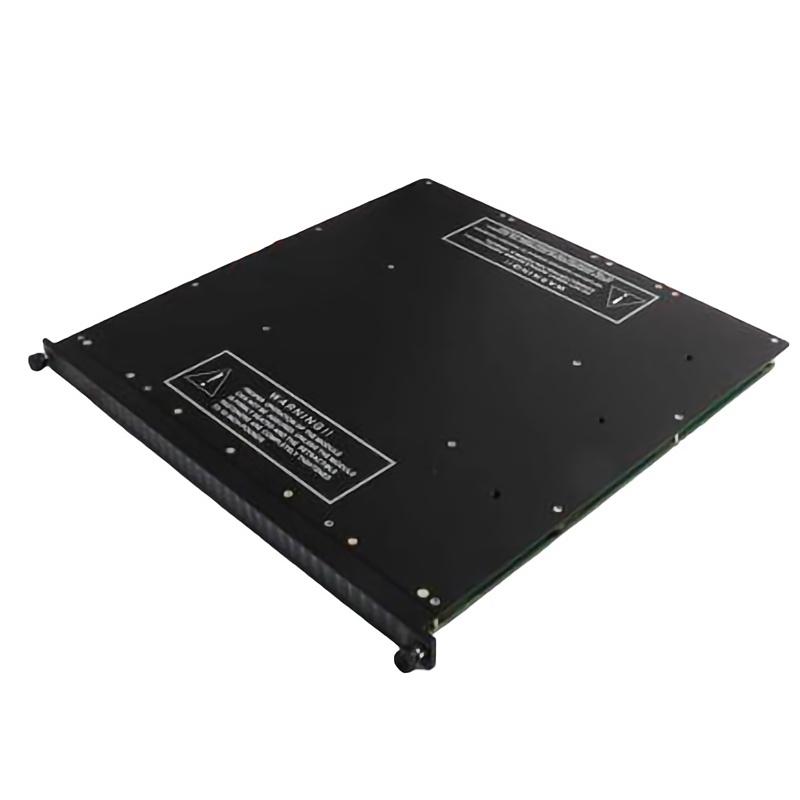

Triconex 3000250-010 Network Communication Interface Module

Overview

The Triconex 3000250-010 is a communication module designed for Tricon safety systems. It implements network interconnectivity functions to link safety controller modules with external networks and supports integration in distributed safety architectures.

General Information

• Part Number: 3000250-010

• Manufacturer: Triconex (Schneider Electric)

• Series: Tricon Communication Modules

• Type: Network Communication Interface Module

• Mounting: Slot in Tricon module rack or chassis

• Technology: Industrial communication with built-in diagnostics and network/firewall features

Power Specifications

• Power Supply: 24 V DC from system backplane

• Power Consumption: ~ 5 W

• Input: Receives power and command signals from Tricon backplane

• Outputs: Ethernet / serial network interface signals

• Protection: Surge protection and isolation for both field and network ports

• Indicators: Built-in LEDs for power, network link status, error/fault

Communication & Interface

• Ethernet Port: 10/100 Mbps (or equivalent industrial Ethernet) for network connection

• Microprocessor: Integrated CPU for protocol handling and diagnostics

• LAN Management: Includes firewall features and network port status monitoring

• Operator Interface: LEDs for link, activity, fault; physical connectors for network and serial ports

• Reset Features: Supports local and remote reset via network or controller command

I/O & Channels

• Relay Channels: None (communication module)

• External Load Support: None for power switching; only supports network traffic load

Environmental

• Operating Temperature: -20 to +70 °C

• Humidity: 5% to 95% RH, non-condensing

Dimensions

• Size (L × W × H): 200 × 150 × 60 mm

• Weight: ~1.2 kg
