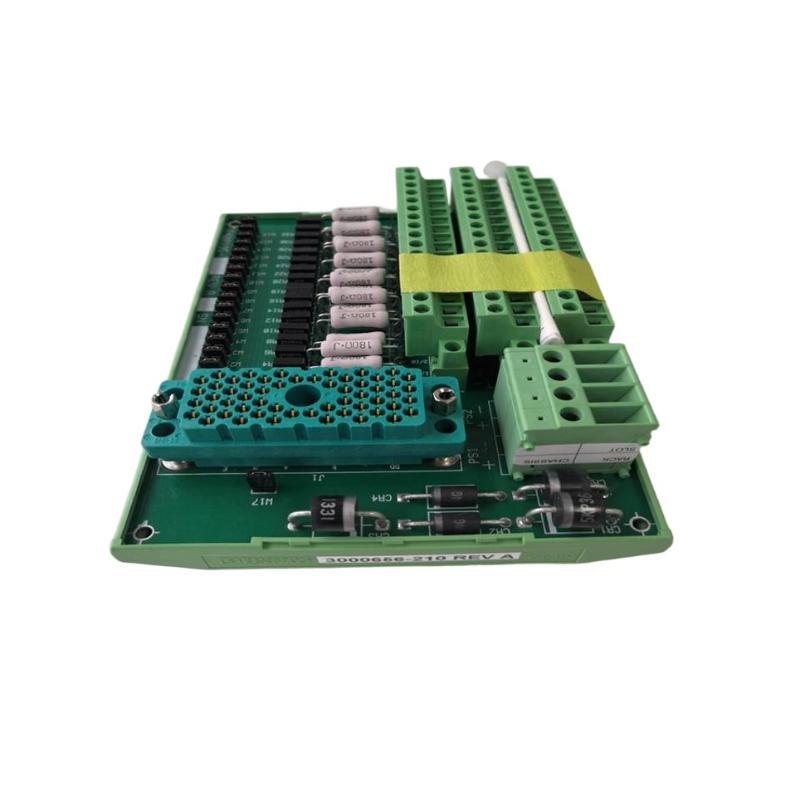

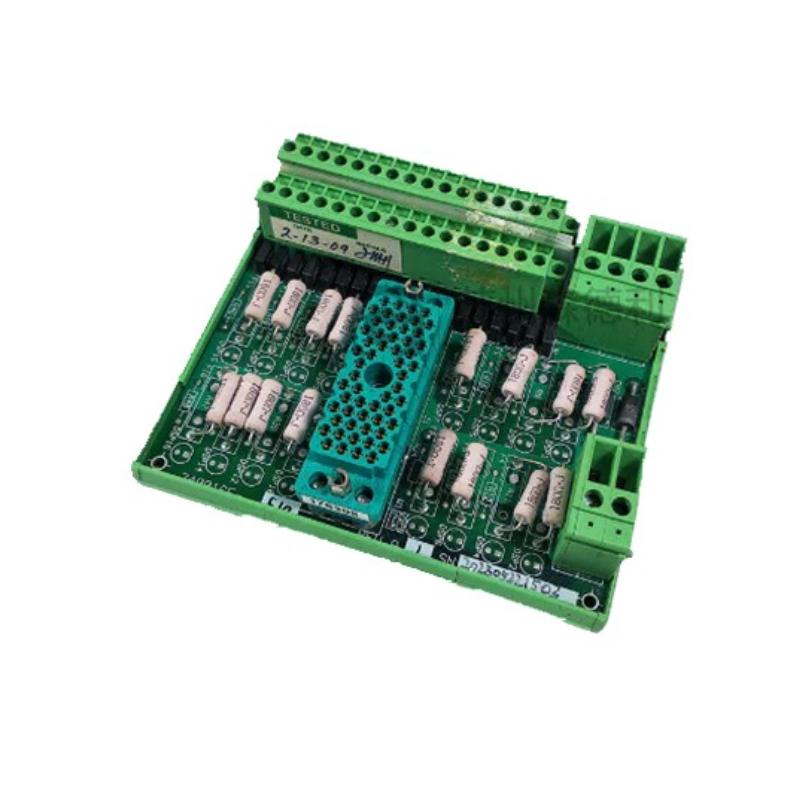

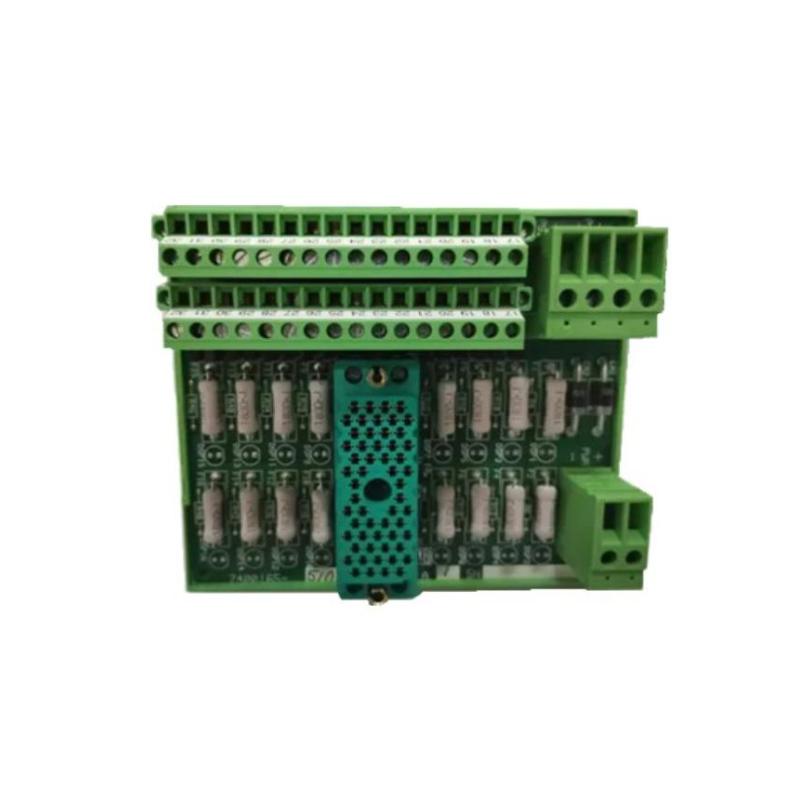

Triconex 3000510-510 erminal panel module

Overview

The Triconex 3000510-510 is a terminal panel module / external termination assembly used in Tricon safety systems. It provides field wiring connection points and reliable interfaces for sensors, actuators, or other I/O devices, supporting high integrity in industrial control environments.

General Information

• Part Number: 3000510-510

• Manufacturer: Triconex (Schneider Electric)

• Series: Tricon Modular / Safety Instrumented System (SIS)

• Type: External Termination / Terminal Panel Module

• Mounting: External panel or cabinet, intended for field terminations

• Technology: Passive terminal interface with fused or protected points

Power Specifications

• Power Supply: 24 V DC supply for I/O circuits

• Power Consumption: ~ 2 W

• Input: Field wiring from sensors or switches into termination points

• Outputs: Routes signals to safety logic or I/O modules

• Protection: Individual point protection (fusing or equivalent)

• Indicators: Some per-point indicators for status or fused point failure

Communication & Interface

• Ethernet Port: None

• Microprocessor: None

• LAN Management: Not applicable

• Operator Interface: Terminals + status indicators (LED / fused point indicators)

• Reset Features: Manual reset via replacing fuse or cleared indicator

I/O & Channels

• Digital I/O Points: 16 channels

• Analog I/O Points: None (module focused on digital points)

• Input Impedance: approx. 250 Ω

• Output Impedance: approx. 250 Ω

• Max Loop Voltage: 30 V

• Max Loop Current: 1 A

Environmental

• Operating Temperature: -40 °C to +70 °C

• Humidity: 0% to 95% RH, non-condensing

• Protection Rating: IP66

Dimensions

• Size (L × W × H): 140 × 80 × 30 mm

• Weight: ~ 0.5 kg
