Triconex 3003 Control Module Quality Selection

Overview

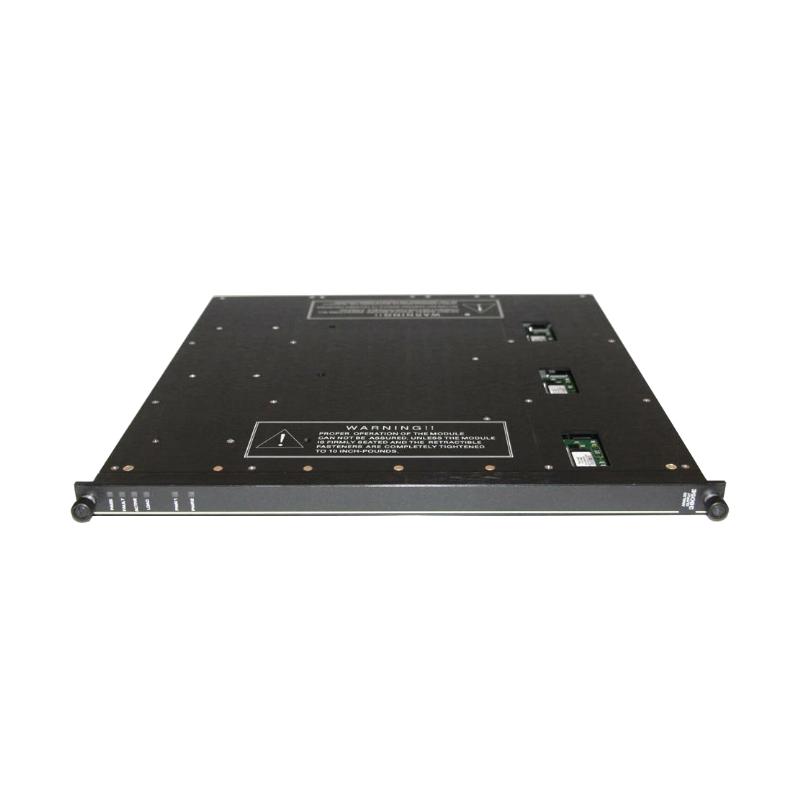

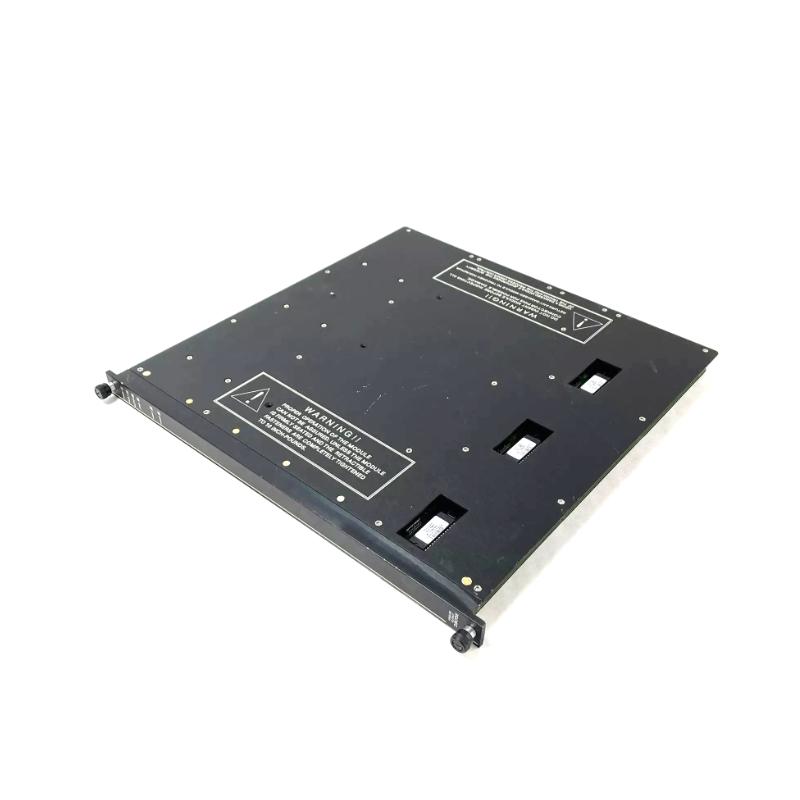

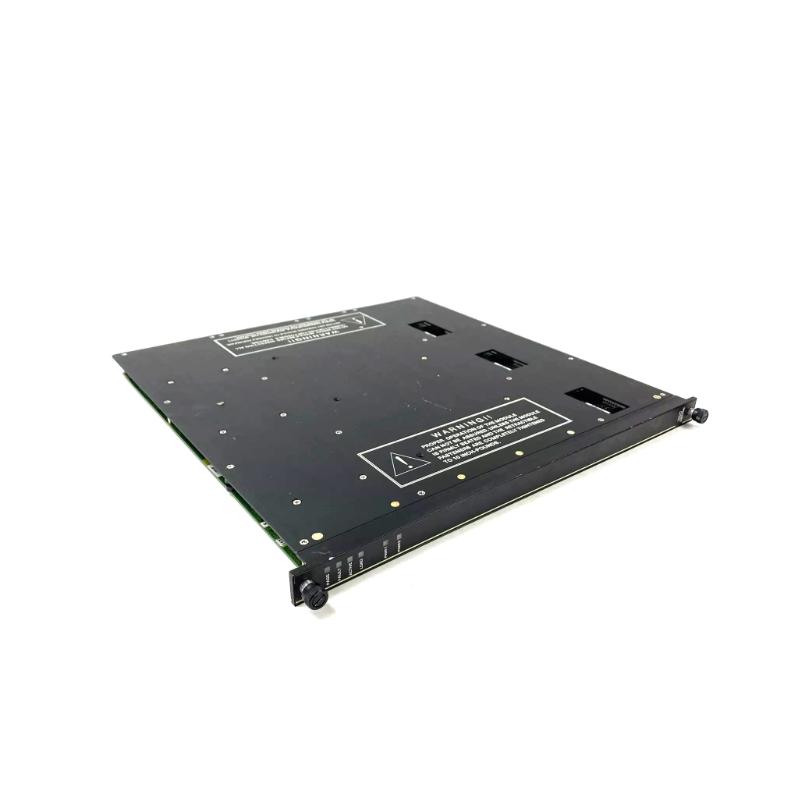

The Triconex 3003 is a Main Processor Module (MPM) used in Tricon safety and control systems. It executes control programs, communicates with I/O subsystems, and ensures system reliability through triple modular redundancy (TMR) for critical process safety applications.

General Information

• Part Number: 3003

• Product Name / Model: Triconex 3003 Main Processor Module

• Manufacturer: Triconex (Schneider Electric)

• Country of Origin: United States

• Series / Module Type: Tricon Series / Main Processor Module

• Type: Processor Module / Control Module

• Mounting / Format: Main chassis slot installation

• Application Area: Process safety systems, turbine control, emergency shutdown, BMS, and critical automation systems

Electrical Specifications

• Microprocessor: Motorola MPC860, 32-bit, 50 MHz

• Memory: 16 MB DRAM, 32 KB battery-backed SRAM, 6 MB Flash PROM

• Communication Rate: 25 Mbps

• Redundancy: Triple modular redundancy (TMR) for fault tolerance

• Diagnostics: Onboard health monitoring, self-tests, and communication supervision

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +70 °C

• Relative Humidity: Up to 95%, non-condensing

• Cooling: Natural convection

• Protection / Coating: Standard industrial module; designed for cabinet installation

Dimensions & Weight

• Dimensions (L × W × H): 335 × 38 × 203 mm

• Weight: Approximately 3.0 kg

All our stock is genuine, unused, and fully available.
